2.3 Electric dipoles

Electric dipoles consist of two equal but opposite charges separated by a small distance. They're one of the most useful models in electromagnetism because they show up everywhere: in molecules, capacitors, antennas, and the behavior of materials in electric fields. This guide covers how dipoles work, how they respond to fields, and where these ideas get applied.

Definition of electric dipoles

An electric dipole is a pair of charges, $+q$ and $-q$, separated by a distance $d$. The total charge of the system is zero, but the separation between the charges creates interesting electric field and potential patterns that don't cancel out.

Dipole moment

The dipole moment is the vector quantity that captures both the strength and direction of a dipole:

$\vec{p} = q\vec{d}$

• $q$ is the magnitude of either charge
• $\vec{d}$ is the displacement vector pointing from the negative charge to the positive charge
• Units are coulomb-meters (C·m)

The dipole moment tells you how strongly the dipole interacts with external fields. A larger charge or a larger separation both increase $\vec{p}$.

Charge distribution

The two charges create a non-uniform electric field. Field lines originate from $+q$ and terminate at $-q$, forming the characteristic looping pattern you'll see in textbook diagrams. Even though the net charge is zero, the separation of charge means the fields don't fully cancel at points away from the dipole. Close to the dipole, the field is complex; far away, it falls off as $1/r^3$, faster than a single point charge's $1/r^2$ field.

Behavior in electric fields

When you place a dipole in an external electric field, two things happen: it experiences a torque that tries to rotate it, and it gains potential energy that depends on its orientation.

Torque on dipoles

If the dipole moment $\vec{p}$ isn't aligned with the external field $\vec{E}$, the field pushes $+q$ one way and $-q$ the other, creating a net torque:

$\vec{\tau} = \vec{p} \times \vec{E}$

The magnitude is $\tau = pE\sin\theta$, where $\theta$ is the angle between $\vec{p}$ and $\vec{E}$. The torque is maximum when the dipole is perpendicular to the field ($\theta = 90°$) and zero when it's aligned ($\theta = 0°$) or anti-aligned ($\theta = 180°$).

Potential energy

The potential energy of a dipole in a uniform external field is:

$U = -\vec{p} \cdot \vec{E} = -pE\cos\theta$

• Minimum energy (most stable): $\theta = 0°$, dipole aligned with the field. $U = -pE$.
• Maximum energy (unstable): $\theta = 180°$, dipole anti-aligned. $U = +pE$.

The dipole naturally tends toward the lowest energy configuration, which is why it rotates to align with the field. In thermal equilibrium, random thermal motion competes with this alignment, so you get partial ordering rather than perfect alignment (except at very low temperatures or very strong fields).

Dipole-dipole interactions

When two dipoles are near each other, they exert forces on one another. These interactions are weaker than charge-charge forces but are responsible for a lot of physical and chemical behavior.

Alignment and orientation

Dipoles tend to arrange themselves head-to-tail (positive end of one near the negative end of another) because this minimizes potential energy. In solids, this can lead to ordered arrangements. In liquids and gases, thermal motion partially disrupts the ordering.

Forces between dipoles

The force between dipoles depends strongly on distance and orientation:

• For fixed dipoles (locked in place), the force falls off as $1/r^4$ and the interaction energy as $1/r^3$
• For freely rotating dipoles (thermally averaged), the interaction energy falls off as $1/r^6$

Head-to-tail arrangements are attractive; side-by-side parallel arrangements are repulsive. These interactions contribute to cohesion in polar liquids like water and affect properties like solubility and boiling points.

Applications of electric dipoles

Molecular polarity

Many molecules have permanent dipole moments because their atoms share electrons unevenly. Water ($H_2O$) is a classic example: oxygen pulls electron density away from the hydrogens, creating a bent molecule with a significant dipole moment of about $6.2 \times 10^{-30}$ C·m. Hydrogen chloride ($HCl$) is another, with chlorine being the more electronegative end.

Molecular polarity determines solubility ("like dissolves like"), boiling points (polar molecules have stronger intermolecular attractions), and chemical reactivity.

Dielectric materials

Dielectric materials contain dipoles that respond to external electric fields. These can be:

• Permanent dipoles that physically rotate to align with the field
• Induced dipoles where the field distorts the electron cloud of neutral atoms or molecules

This response is called polarization, and it reduces the net electric field inside the material. The dielectric constant $\kappa$ (also called relative permittivity) quantifies this effect. Placing a dielectric in a capacitor increases the capacitance by a factor of $\kappa$ because the polarization partially cancels the internal field, allowing more charge to be stored at the same voltage.

Dipoles in electromagnetic waves

Radiation from dipoles

When a dipole oscillates (the charges accelerate back and forth), it radiates electromagnetic waves. The power radiated is proportional to the square of the dipole moment and the fourth power of the oscillation frequency. This is why the sky is blue: shorter-wavelength (higher-frequency) light is scattered more strongly by induced dipoles in air molecules.

Oscillating dipoles are also the basis for understanding how atoms and molecules emit and absorb light.

Dipole antennas

A dipole antenna is the simplest practical antenna: two conducting rods fed at the center by an alternating current source. The current creates an oscillating dipole moment that radiates electromagnetic waves. The radiation pattern looks like a donut around the antenna axis, with maximum radiation perpendicular to the antenna and zero radiation along its length. The antenna's resonant frequency depends on its length, with a half-wave dipole (total length = $\lambda/2$) being the most common design.

Measurement and detection

Experimental techniques

Several methods are used to measure dipole moments and study dipole behavior:

• Dielectric spectroscopy applies alternating electric fields and measures how the material's polarization responds at different frequencies
• Stark effect spectroscopy observes how spectral lines split when a strong external electric field is applied, revealing information about the dipole moment
• Microwave spectroscopy detects rotational transitions of polar molecules, which depend directly on the dipole moment
• Kerr effect measurements analyze how electric fields induce birefringence (direction-dependent light transmission) in liquids

Dipole strength determination

Macroscopic measurements can be related back to molecular dipole moments. The Debye equation connects the dielectric constant of a gas or dilute solution to the molecular dipole moment. The Clausius-Mossotti relation does something similar for denser media, relating polarizability to the dielectric constant. More directly, molecular beam deflection experiments measure how much a beam of molecules bends in a non-uniform electric field, giving the dipole moment of isolated molecules.

Dipoles in quantum mechanics

Quantum dipole moments

In quantum mechanics, charge isn't localized at a point but spread out as a probability distribution. The dipole moment is calculated as an expectation value: you integrate the charge distribution weighted by position over all space. External fields can also induce dipole moments in systems that don't have one naturally, which is treated using perturbation theory.

Selection rules

Not every transition between quantum states involves a dipole moment change. Selection rules specify which transitions are "allowed" (meaning they can emit or absorb a photon through dipole radiation). These rules come from conservation of angular momentum and parity. For example:

• Rotational transitions: $\Delta J = \pm 1$
• Vibrational transitions (harmonic approximation): $\Delta v = \pm 1$

Transitions that violate these rules are called "forbidden" and occur much more weakly, if at all.

Dipoles in chemistry

Hydrogen bonding

Hydrogen bonding is a particularly strong type of dipole-dipole interaction. It occurs when hydrogen is bonded to a highly electronegative atom (oxygen, nitrogen, or fluorine), making the hydrogen strongly positive. This partially positive hydrogen then attracts a lone pair on a nearby electronegative atom.

Hydrogen bonds are stronger than typical dipole-dipole forces but much weaker than covalent bonds (roughly 5-30 kJ/mol vs. hundreds of kJ/mol for covalent bonds). They're responsible for water's unusually high boiling point, the structure of DNA's double helix, and protein folding.

Intermolecular forces

Dipole-related intermolecular forces come in three main types:

• Keesom forces: between two permanent dipoles (e.g., two $HCl$ molecules)
• Debye forces: between a permanent dipole and an induced dipole (e.g., $HCl$ near $Ar$)
• London dispersion forces: between instantaneous and induced dipoles, present in all molecules including non-polar ones

Together, these are often grouped under the umbrella of van der Waals forces. They influence boiling points, viscosity, surface tension, and solubility.

Mathematical treatment

Multipole expansion

Any charge distribution can be described as a sum of terms: monopole (net charge), dipole, quadrupole, octupole, and so on. This is the multipole expansion. For a neutral system, the monopole term is zero, and the dipole term becomes the leading contribution to the potential at large distances. Higher-order terms become important when the dipole moment is also zero or when you need more precision at closer distances.

Dipole approximation

The dipole approximation treats a charge distribution as a single point dipole. This is valid when the observation distance $r$ is much larger than the charge separation $d$ (i.e., $r \gg d$). Under this approximation, the electric potential of a dipole is:

$V = \frac{1}{4\pi\epsilon_0}\frac{p\cos\theta}{r^2}$

This simplification is used constantly in electrostatics, antenna theory, and molecular physics because it makes calculations tractable while remaining accurate at reasonable distances.

Dipoles vs monopoles

Charge distribution differences

Because dipole fields decay faster, they dominate only at closer ranges. At very large distances from a neutral system, even the dipole contribution becomes negligible compared to a monopole of the same magnitude.

Field patterns comparison

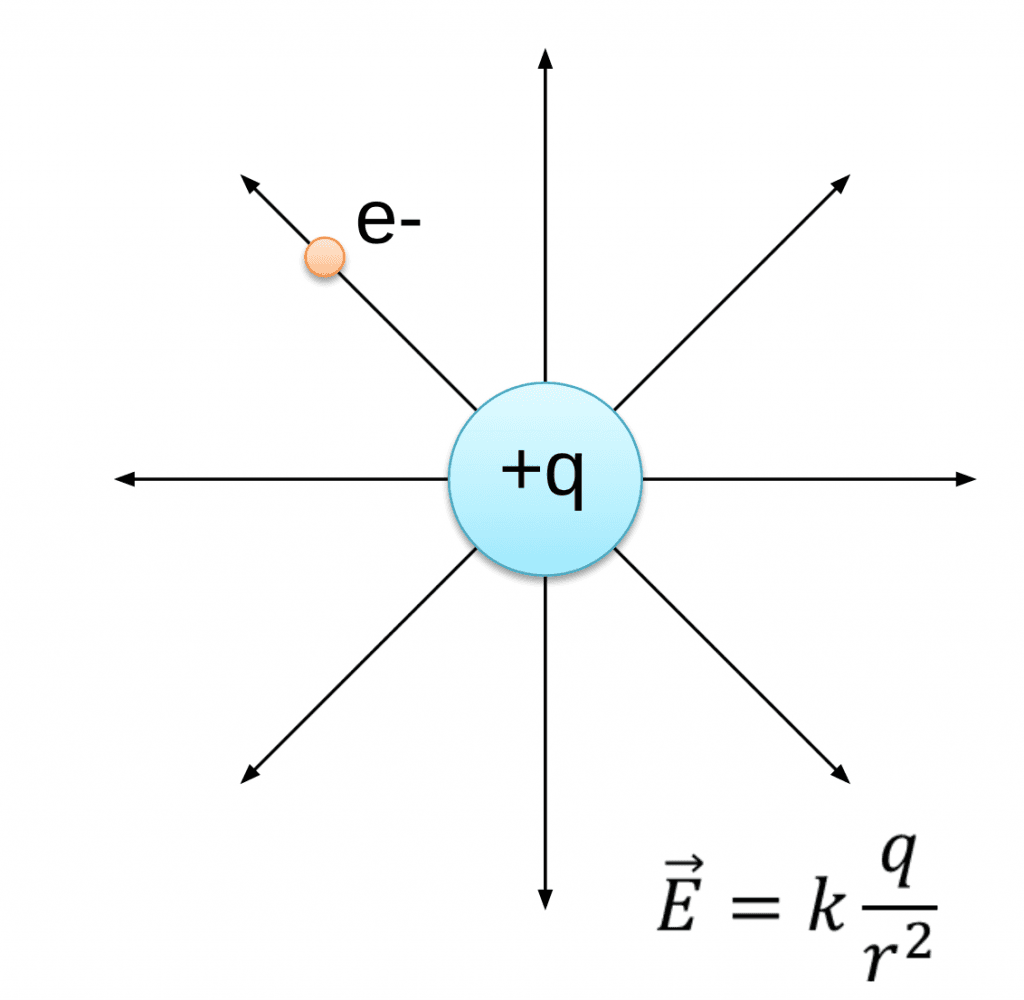

Monopole field lines point radially outward (positive) or inward (negative) with perfect spherical symmetry. Dipole field lines curve from the positive charge around to the negative charge, creating a pattern with both radial and angular components. The field along the dipole axis points in the same direction as $\vec{p}$, while the field on the perpendicular bisector points opposite to $\vec{p}$ (and is half the magnitude at the same distance).

Dipoles in materials science

Polarization of materials

When an external electric field is applied to a material, its dipoles align (or new dipoles are induced), producing a net polarization density $\vec{P}$. This is related to the applied field by:

$\vec{P} = \epsilon_0 \chi_e \vec{E}$

where $\chi_e$ is the electric susceptibility. The polarization reduces the effective field inside the material, which is why dielectrics lower the voltage across a capacitor for a given charge.

Ferroelectric materials

Ferroelectric materials are special: they have spontaneous polarization even without an external field. Their dipoles organize into domains of aligned moments, similar to magnetic domains in ferromagnets. Applying an external field can flip the polarization direction, and the relationship between polarization and applied field shows hysteresis (the polarization depends on the material's history, not just the current field).

Common ferroelectrics include barium titanate ($BaTiO_3$) and lead zirconate titanate (PZT). They're used in non-volatile memory devices, piezoelectric sensors, and actuators.
