6.3 Motion of charged particles in magnetic fields

Charged particles in magnetic fields

When a charged particle enters a magnetic field, it experiences a force that curves its path without changing its speed. This single idea underpins an enormous range of physics, from how particle accelerators work to why auroras light up the polar skies.

The Lorentz force equation is the starting point. Once you understand how it governs particle trajectories, you can extend that understanding to cyclotrons, mass spectrometers, fusion reactors, and Earth's magnetosphere.

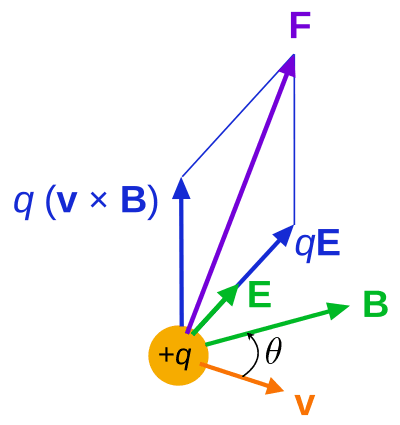

Lorentz force equation

The Lorentz force describes the total electromagnetic force on a charged particle:

$\mathbf{F} = q(\mathbf{E} + \mathbf{v} \times \mathbf{B})$

Here, $q$ is the particle's charge, $\mathbf{E}$ is the electric field, $\mathbf{v}$ is the particle's velocity, and $\mathbf{B}$ is the magnetic field. The cross product $\mathbf{v} \times \mathbf{B}$ means the magnetic part of the force is always perpendicular to the particle's velocity. That's why a magnetic field can change a particle's direction but never its speed (and therefore never its kinetic energy).

• In a pure magnetic field (no $\mathbf{E}$), the force simplifies to $\mathbf{F} = q\mathbf{v} \times \mathbf{B}$
• The magnitude of this force is $F = qvB\sin\theta$, where $\theta$ is the angle between $\mathbf{v}$ and $\mathbf{B}$
• If the particle moves parallel to $\mathbf{B}$ ($\theta = 0$), the magnetic force is zero
• This equation governs trajectories in accelerators, cathode ray tubes, and cosmic ray detectors

Circular motion in uniform fields

When a charged particle enters a uniform magnetic field with its velocity entirely perpendicular to $\mathbf{B}$, the magnetic force acts as a centripetal force, pulling the particle into a circular orbit.

Setting the magnetic force equal to the centripetal force:

$qvB = \frac{mv^2}{r}$

Solving for the radius of the circular path (the cyclotron radius or gyroradius):

$r = \frac{mv}{qB}$

A heavier or faster particle traces a larger circle. A stronger field or larger charge produces a tighter circle.

The cyclotron frequency is how many orbits the particle completes per second:

$f = \frac{qB}{2\pi m}$

Notice that this frequency doesn't depend on the particle's speed. Faster particles travel larger circles but complete them in the same time. This fact is what makes cyclotrons work.

• Applied in cyclotrons to accelerate particles and in mass spectrometers to separate ions by mass

Helical motion in uniform fields

If the particle's velocity has a component parallel to $\mathbf{B}$ as well as a perpendicular component, the perpendicular part produces circular motion while the parallel part carries the particle forward along the field line. The combined result is a helical (spiral) trajectory.

• The pitch angle is the angle between the velocity vector and the magnetic field direction. A small pitch angle means mostly forward motion with a tight spiral; a large pitch angle means a wide spiral with slow forward progress.
• Helical motion explains how charged particles spiral along Earth's magnetic field lines, producing auroras when they collide with atmospheric gases near the poles.
• Particles in the Van Allen radiation belts follow helical paths as they bounce between the northern and southern hemispheres.

Particle accelerators

Particle accelerators use electromagnetic fields to push charged particles to high energies. They're essential tools in high-energy physics research, medical imaging, and cancer treatment.

Cyclotron principles

A cyclotron accelerates particles in a spiral path using a constant, uniform magnetic field and an oscillating electric field.

How it works, step by step:

1. Two hollow, D-shaped electrodes ("dees") sit inside a uniform magnetic field directed perpendicular to the plane of the dees.
2. A charged particle is injected near the center and curves in a semicircle inside one dee.
3. Each time the particle crosses the gap between the dees, an alternating voltage accelerates it, adding kinetic energy.
4. Because $f = \frac{qB}{2\pi m}$ is constant (at non-relativistic speeds), the alternating voltage can be set to a fixed frequency that stays in sync with the particle.
5. As the particle gains energy, its radius grows ($r = mv/qB$), so it spirals outward until it exits at the edge.

At very high speeds, relativistic mass increase causes the particle to fall out of sync with the fixed-frequency voltage. This limitation led to the development of synchrotrons.

Synchrotron operation

A synchrotron keeps particles in a fixed-radius circular path rather than letting them spiral outward.

• As particles gain energy, the magnetic field strength is ramped up to maintain the same orbit radius.
• Radio-frequency (RF) cavities at specific points around the ring provide energy boosts each revolution.
• Because the radius is constant, synchrotrons can be built at enormous scales. CERN's Large Hadron Collider, for example, has a 27 km circumference and accelerates protons to energies of several TeV.
• Synchrotrons overcome the relativistic limitation of cyclotrons by adjusting both the magnetic field and the RF frequency as particles speed up.

Mass spectrometry

Mass spectrometry identifies substances by measuring the mass-to-charge ratio ($m/q$) of ions. It applies the same circular-motion physics from the sections above: ions in a magnetic field follow curved paths whose radii depend on $m/q$.

Magnetic sector analyzers

A magnetic sector analyzer sends ions through a uniform magnetic field region. Each ion follows a circular arc with radius:

$r = \frac{mv}{qB}$

• Heavier ions (larger $m$) curve less and follow larger-radius paths; lighter ions curve more tightly.
• A detector placed at specific positions along the focal plane registers ions of different masses separately.
• Magnetic sector instruments offer high mass resolution but are limited in the range of masses they can analyze in a single scan.

Time-of-flight spectrometers

Time-of-flight (TOF) spectrometers take a different approach. Instead of curving ions, they accelerate all ions through the same voltage and then let them fly through a field-free drift tube.

• All ions receive the same kinetic energy, so lighter ions travel faster ($v = \sqrt{2qV/m}$) and reach the detector first.
• By precisely measuring arrival times, the instrument calculates $m/q$ for each ion.
• TOF instruments have a theoretically unlimited mass range, making them well-suited for analyzing large biomolecules in proteomics and polymer chemistry.

Magnetic confinement

Magnetic confinement uses magnetic fields to trap and control charged particles, especially in hot plasmas where physical walls would melt. This is the central challenge of fusion energy research.

Plasma containment techniques

Several magnetic field configurations have been developed to confine plasma:

• Tokamaks combine a strong toroidal (doughnut-shaped) magnetic field with a poloidal field generated by a current flowing through the plasma itself. The resulting helical field lines keep particles from drifting to the walls.
• Stellarators use external coils twisted into complex 3D shapes to produce the confining field without needing a plasma current. This improves stability but makes engineering much harder.
• Magnetic mirrors use regions of converging (strengthening) field lines to reflect particles back toward the center of the device.

The main challenges are plasma instabilities (the plasma finds ways to escape) and particle drifts that push charges across field lines toward the walls.

Fusion reactor concepts

Nuclear fusion combines light nuclei (typically deuterium and tritium) to release energy, but it requires temperatures above 100 million kelvin and sufficient plasma density held for long enough to sustain reactions.

• Magnetic confinement fusion (MCF) uses strong magnetic fields to isolate the plasma from reactor walls. The ITER project in France is the largest MCF experiment, designed to demonstrate net energy gain from fusion.
• Inertial confinement fusion (ICF) uses powerful lasers or particle beams to compress a tiny pellet of fusion fuel so rapidly that fusion occurs before the fuel can fly apart.

Both approaches remain active areas of research, with MCF currently closer to reactor-scale demonstration.

Hall effect

When a current-carrying conductor sits in a magnetic field, the magnetic force pushes charge carriers to one side, creating a voltage difference across the conductor. This is the Hall effect, discovered by Edwin Hall in 1879.

Hall voltage vs. current

The Hall voltage is given by:

$V_H = \frac{IB}{ned}$

where $I$ is the current, $B$ is the magnetic field strength, $n$ is the charge carrier density, $e$ is the elementary charge, and $d$ is the thickness of the sample.

• At constant $B$, plotting $V_H$ versus $I$ gives a straight line whose slope depends on $B$, $n$, $e$, and $d$.
• The sign of $V_H$ tells you whether the dominant charge carriers are electrons (negative) or holes (positive). This is one of the key ways to characterize semiconductor materials.
• From the measured Hall voltage, you can calculate the carrier concentration $n$.

Applications in sensors

Hall effect sensors convert magnetic field information into an electrical signal, and they show up in a surprising number of places:

• Current sensing: Measuring DC and AC currents in power systems without physical contact with the conductor
• Automotive: Wheel speed sensors (for ABS), ignition timing, and throttle position
• Motors: Brushless DC motors use Hall sensors to detect rotor position for electronic commutation
• Consumer electronics: Smartphones use Hall sensors for compass functions and detecting whether a flip cover is open or closed

Magnetohydrodynamics

Magnetohydrodynamics (MHD) studies how electrically conducting fluids (like plasmas or liquid metals) interact with magnetic fields. It merges fluid dynamics with electromagnetism.

MHD generators

An MHD generator produces electricity by flowing a conducting fluid through a magnetic field.

• The moving charges in the fluid experience a Lorentz force, which drives them toward electrodes on opposite sides of the flow channel.
• This induces a voltage perpendicular to both the flow direction and the magnetic field.
• MHD generators can potentially operate at very high temperatures (above what turbine blades can withstand), offering higher thermodynamic efficiency.
• Practical challenges include finding materials that survive extreme temperatures and achieving sufficient electrical conductivity in the working fluid.

Propulsion systems

MHD principles also apply to propulsion, particularly for spacecraft:

• Magnetoplasmadynamic (MPD) thrusters ionize a propellant and accelerate it using the Lorentz force ($\mathbf{J} \times \mathbf{B}$).
• These thrusters offer high specific impulse (efficient use of propellant), making them attractive for long-duration space missions.
• The trade-offs are high power requirements and electrode erosion from the intense plasma environment.

Particle detectors

Particle detectors reveal the paths and properties of subatomic particles. Different detector types exploit different physical effects, but many rely on the fact that charged particles ionize the material they pass through.

Cloud chamber operation

A cloud chamber contains supersaturated vapor (often alcohol vapor cooled by dry ice).

1. A charged particle passes through and ionizes vapor molecules along its path.
2. These ions act as condensation nuclei: tiny droplets form around them.
3. The result is a visible trail of droplets tracing the particle's trajectory.

Cloud chambers were historically important for discovering the positron (1932) and the muon. In a magnetic field, the curvature of a track reveals the particle's momentum and charge sign. However, cloud chambers have low density and can't provide precise energy measurements, so they've been largely replaced by modern electronic detectors.

Bubble chamber principles

A bubble chamber works on a similar idea but in reverse: it uses a superheated liquid (often liquid hydrogen) instead of a supersaturated vapor.

1. The chamber is pressurized to keep the liquid just below its boiling point.
2. A sudden pressure drop superheats the liquid.
3. Charged particles ionize the liquid along their paths, and tiny bubbles nucleate at those ionization sites.
4. The bubble trails are photographed, often in a magnetic field, allowing 3D reconstruction of particle tracks and interaction vertices.

Bubble chambers provided high-resolution images and led to many particle discoveries in the mid-20th century, but their complex operation and slow cycle time eventually made them impractical for high-rate experiments.

Earth's magnetic field

Earth's magnetic field is generated by convective currents in the liquid iron outer core (the dynamo effect). It extends far into space, forming the magnetosphere, which shields the planet from most solar wind particles and cosmic rays.

Charged particle motion

When charged particles from space encounter Earth's magnetic field, their trajectories depend on energy and entry angle:

• Low-energy particles are deflected away entirely or become trapped in the magnetosphere, spiraling along field lines.
• High-energy cosmic rays can penetrate deeper into the atmosphere, producing showers of secondary particles.
• The geomagnetic field creates a latitude-dependent shielding effect: cosmic ray intensity at the surface is lowest near the equator (where the field is most effective at deflecting particles) and highest near the poles.

Van Allen radiation belts

The Van Allen belts are two doughnut-shaped regions of energetic charged particles trapped by Earth's magnetic field:

• The inner belt (roughly 1,000 to 6,000 km altitude) contains mainly high-energy protons.
• The outer belt (roughly 13,000 to 60,000 km altitude) contains mainly electrons.

Trapped particles undergo three types of motion simultaneously: gyration around field lines, bounce motion between magnetic mirror points in the northern and southern hemispheres, and a slow drift around Earth (protons drift westward, electrons drift eastward).

The Van Allen belts are a serious consideration for satellite design and crewed spaceflight, since prolonged exposure to the trapped radiation can damage electronics and pose health risks.

Astrophysical applications

Magnetic fields permeate the universe, and charged particle motion in those fields drives many large-scale astrophysical phenomena.

Solar wind interactions

The solar wind is a continuous stream of charged particles (mostly protons and electrons) flowing outward from the Sun's corona at speeds of 300 to 800 km/s.

• When the solar wind reaches Earth, it compresses the magnetosphere on the dayside and stretches it into a long magnetotail on the nightside.
• Energy stored in the magnetotail can be released suddenly through magnetic reconnection, driving geomagnetic storms and substorms.
• These storms intensify auroral displays and can disrupt satellite communications, GPS accuracy, and power grids on Earth.

Cosmic ray deflection

Cosmic rays are high-energy particles (mostly protons) originating from supernovae, active galactic nuclei, and other energetic sources outside the solar system.

• Galactic and intergalactic magnetic fields deflect cosmic rays during their journey, scrambling their arrival directions.
• This deflection makes it very difficult to trace a cosmic ray back to its source, since the particle's path is no longer a straight line.
• The energy spectrum and directional distribution of cosmic rays observed at Earth carry information about both the sources and the magnetic fields the particles traversed.

Magnetic mirrors

A magnetic mirror is a region where magnetic field lines converge (the field gets stronger). Charged particles spiraling into such a region can be reflected back, effectively trapping them.

Particle trapping mechanisms

The trapping works because of the first adiabatic invariant: the magnetic moment $\mu = \frac{W_\perp}{B}$ of a gyrating particle stays approximately constant as long as the field changes slowly compared to the gyration period.

As a particle moves into a region of stronger $B$, $W_\perp$ (perpendicular kinetic energy) must increase to keep $\mu$ constant. Since total kinetic energy is conserved (magnetic fields do no work), the parallel kinetic energy $W_\parallel$ decreases. At the mirror point, all kinetic energy has been converted to perpendicular motion, $W_\parallel = 0$, and the particle reverses direction.

• The mirror ratio $R = B_{max}/B_{min}$ determines how effective the trap is. A higher ratio traps a larger fraction of particles.
• A magnetic bottle uses two mirror regions to trap particles bouncing back and forth between them.

Loss cone phenomena

Not every particle gets reflected. If a particle's velocity is directed too closely along the field line (small pitch angle), it won't have enough perpendicular energy to be reflected before reaching the high-field region.

The critical pitch angle defining the loss cone is:

$\sin^2\theta_{LC} = \frac{B_{min}}{B_{max}}$

• Particles with pitch angles smaller than $\theta_{LC}$ escape through the mirror and are lost.
• In Earth's magnetosphere, particles in the loss cone precipitate into the atmosphere, contributing to auroral emissions.
• In magnetic mirror fusion devices, loss cone escape is a major source of particle and energy loss, which is one reason mirrors have been largely superseded by tokamaks.

Drift motions

In a perfectly uniform magnetic field, charged particles just gyrate in circles (or helices). But real magnetic fields have gradients, curvature, and coexisting electric fields, all of which cause the particle's guiding center to drift across field lines.

E × B drift

When perpendicular electric and magnetic fields are both present, all charged particles drift in the same direction, perpendicular to both $\mathbf{E}$ and $\mathbf{B}$:

$\mathbf{v}_d = \frac{\mathbf{E} \times \mathbf{B}}{B^2}$

This drift is remarkable because it's independent of the particle's charge, mass, and energy. Positive and negative particles drift together, so $\mathbf{E} \times \mathbf{B}$ drift doesn't cause charge separation.

• In tokamaks, this drift contributes to plasma rotation.
• In Earth's ionosphere, it drives large-scale current systems.

Gradient B drift

When the magnetic field strength varies in space ($\nabla B \neq 0$), particles drift perpendicular to both $\mathbf{B}$ and $\nabla B$. Unlike $\mathbf{E} \times \mathbf{B}$ drift, the gradient-B drift depends on the sign of the charge: positive and negative particles drift in opposite directions.

• This causes charge separation, which can generate electric fields and currents.
• The drift speed is proportional to the particle's kinetic energy and inversely proportional to its charge.
• In Earth's magnetosphere, gradient-B drift (combined with curvature drift) drives the ring current, a toroidal current of trapped particles that flows westward around Earth and measurably depresses the surface magnetic field during geomagnetic storms.

Adiabatic invariants

Adiabatic invariants are quantities that stay nearly constant when conditions change slowly compared to the particle's periodic motion. They're powerful tools for predicting long-term particle behavior without solving the full equations of motion at every instant.

Magnetic moment conservation

The first adiabatic invariant is the magnetic moment:

$\mu = \frac{W_\perp}{B}$

where $W_\perp$ is the perpendicular kinetic energy. As long as the magnetic field changes slowly relative to the gyration period, $\mu$ is conserved.

• This invariant is the reason magnetic mirrors work: as $B$ increases, $W_\perp$ must increase, and $W_\parallel$ decreases until the particle reflects.
• It breaks down when the field changes on scales comparable to the gyroradius or on timescales comparable to the gyration period.

Bounce motion invariance

The second adiabatic invariant is:

$J = \oint p_\parallel \, ds$

where $p_\parallel$ is the parallel momentum and the integral is taken over one complete bounce between mirror points.

• $J$ is conserved when conditions change slowly compared to the bounce period.
• It's useful for analyzing trapped particle orbits in dipole-like fields, such as Earth's magnetosphere or magnetic confinement devices.
• Together, the first and second invariants constrain a trapped particle to a specific drift shell around Earth, which is why the Van Allen belts maintain their structure over time.

Magnetosphere dynamics

The magnetosphere is the region of space where Earth's magnetic field dominates over the solar wind's magnetic field. It's a dynamic system, constantly reshaped by solar wind pressure and magnetic reconnection.

Magnetopause interactions

The magnetopause is the outer boundary of the magnetosphere, where the pressure of Earth's magnetic field balances the dynamic pressure of the solar wind.

• Its position fluctuates (typically 6 to 15 Earth radii on the dayside) depending on solar wind conditions.
• Magnetic reconnection at the magnetopause occurs when the solar wind's magnetic field has a southward component, allowing solar wind plasma and energy to enter the magnetosphere.
• Kelvin-Helmholtz instabilities can develop along the flanks where the solar wind flows past the magnetopause, creating wave-like ripples that also transfer energy inward.

Magnetotail phenomena

On the nightside, the solar wind stretches Earth's magnetic field into a long magnetotail extending hundreds of Earth radii downstream.

• The magnetotail stores magnetic energy that was transferred from the dayside.
• During substorms, magnetic reconnection in the tail releases this stored energy explosively, accelerating particles earthward and tailward.
• Reconnection can pinch off sections of the plasma sheet into plasmoids that are ejected down the tail.
• The earthward-accelerated particles precipitate into the atmosphere along field lines, intensifying auroral displays.

Birkeland currents

Birkeland currents are large-scale electric currents that flow along Earth's magnetic field lines, connecting the magnetosphere to the ionosphere. They're named after Norwegian physicist Kristian Birkeland, who proposed their existence in the early 1900s.

Field-aligned currents

These currents flow parallel to magnetic field lines and come in two main systems:

• Region 1 currents flow on the poleward edge of the auroral oval and connect to the outer magnetosphere.
• Region 2 currents flow on the equatorward edge and connect to the inner magnetosphere.

Together, they close through horizontal currents in the ionosphere and transmit information about magnetospheric convection patterns to the ionosphere. They're measured by magnetometers on the ground and by satellites passing through the auroral zone.

Aurora formation mechanisms

Auroras are the visible result of energetic particles (mainly electrons) slamming into atmospheric gases along magnetic field lines.

1. Electrons are accelerated downward by parallel electric fields or through wave-particle interactions in the magnetosphere.
2. These electrons collide with oxygen and nitrogen atoms and molecules in the upper atmosphere (100 to 300 km altitude), exciting them to higher energy states.
3. When the excited atoms return to their ground states, they emit photons at characteristic wavelengths.

Different colors correspond to different atmospheric species and altitudes:

• Green (557.7 nm) comes from atomic oxygen at around 100 to 200 km altitude.
• Red (630.0 nm) comes from atomic oxygen at higher altitudes (above 200 km).
• Blue and violet come from ionized molecular nitrogen.

The auroral ovals (rings around the magnetic poles where auroras are most common) expand equatorward during geomagnetic storms and contract during quiet times.
