8.7 Electromagnetic spectrum

Nature of Electromagnetic Waves

Electromagnetic (EM) waves are oscillating electric and magnetic fields that travel through space. The electric field and magnetic field oscillate perpendicular to each other and perpendicular to the direction the wave travels, making EM waves transverse waves. Understanding their behavior is central to optics, electromagnetism, and the quantum ideas you'll encounter in Physics II.

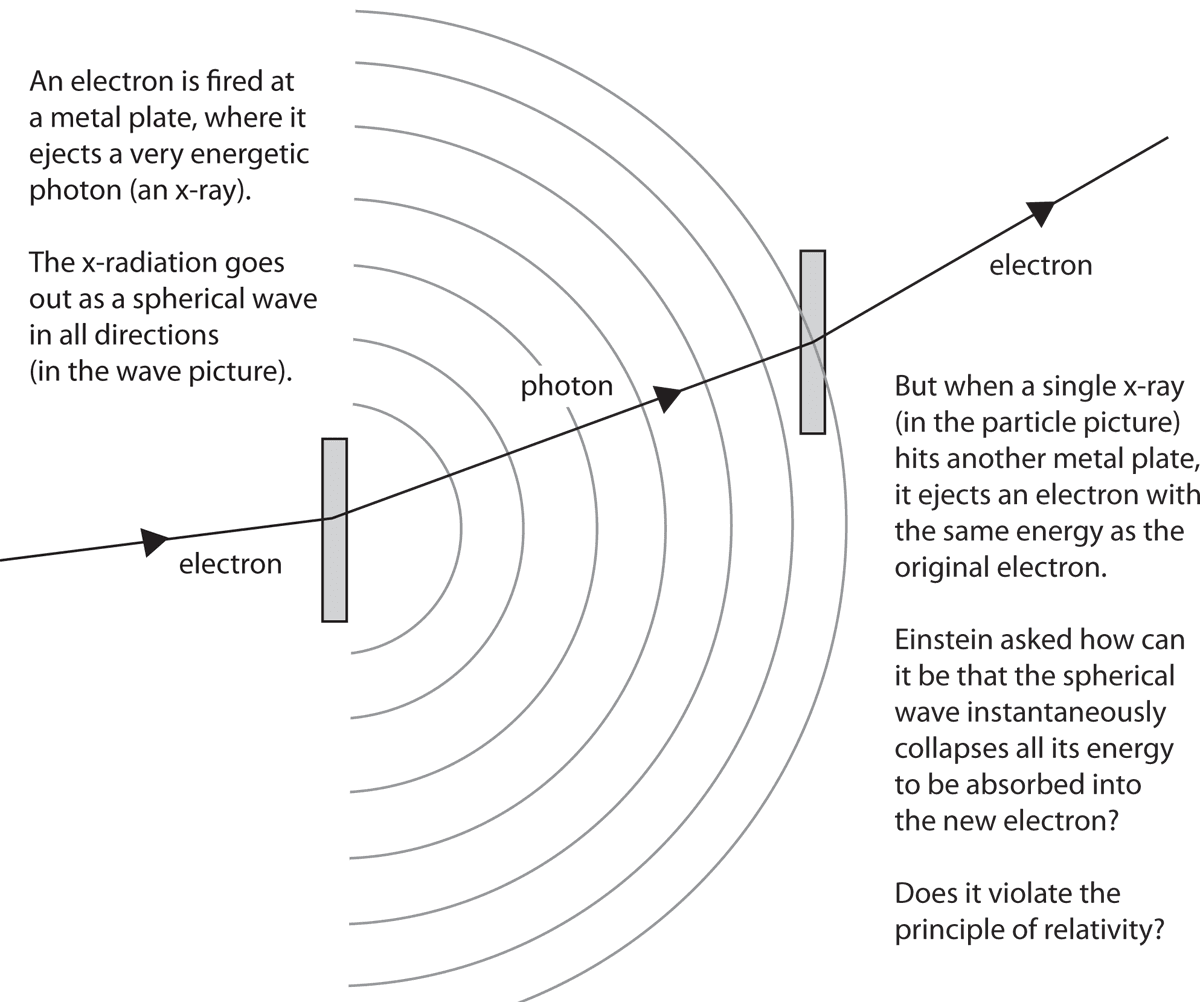

Wave-Particle Duality

Electromagnetic radiation behaves as both a wave and a particle, depending on the situation. Wave behavior shows up in phenomena like interference and diffraction, where EM radiation produces predictable patterns. Particle behavior appears when EM radiation interacts with matter, as in the photoelectric effect, where light knocks electrons off a metal surface only if the photon energy is high enough. Quantum mechanics provides the framework that unifies these two descriptions.

Propagation in Vacuum

Unlike mechanical waves (such as sound), EM waves don't need a medium to travel through. They sustain themselves: a changing electric field generates a magnetic field, and a changing magnetic field generates an electric field. This self-sustaining cycle is what allows light from distant stars to reach us across billions of kilometers of empty space.

Speed of Light

All EM waves travel at the same speed in vacuum, denoted c:

$c \approx 3 \times 10^8 \text{ m/s}$

This is a fundamental constant of nature and plays a central role in Einstein's theory of relativity. In any material medium, EM waves slow down. The factor by which they slow is described by the medium's refractive index $n$, where the speed in the medium is $v = \frac{c}{n}$.

Components of the EM Spectrum

The electromagnetic spectrum covers all possible frequencies (and wavelengths) of EM radiation. It ranges from low-energy, long-wavelength radio waves to high-energy, short-wavelength gamma rays. The boundaries between regions are not sharp; they blend into each other. Here's the full lineup from longest wavelength to shortest.

Radio Waves

• Longest wavelengths, from about 1 mm to hundreds of kilometers
• Used in broadcasting, mobile phones, and WiFi
• Generated by accelerating charges in antennas
• Can penetrate buildings and reflect off the ionosphere, enabling long-distance communication

Microwaves

• Wavelengths roughly from 1 mm to 30 cm, sitting between radio waves and infrared
• Used in cooking (microwave ovens operate at 2.45 GHz), radar, and satellite communications
• Interact strongly with water molecules, which is why they heat food so effectively (dielectric heating)

Infrared Radiation

• Emitted by any object with a temperature above absolute zero; objects at room temperature radiate primarily in the infrared
• Split into near-infrared (closest to visible), mid-infrared, and far-infrared
• Applications include thermal imaging, night-vision devices, remote sensing, and fiber-optic communications
• Plays a key role in the greenhouse effect: Earth's surface emits infrared radiation that greenhouse gases absorb and re-emit

Visible Light

• The narrow band your eyes can detect, from about 380 nm (violet) to 740 nm (red)
• This is a tiny slice of the full spectrum, yet it's the one we experience most directly
• Essential for photosynthesis and human vision
• The different wavelengths within this range correspond to the colors of the rainbow (ROYGBIV)

Ultraviolet Radiation

• Higher energy than visible light, with wavelengths from about 10 nm to 380 nm
• Subdivided into UVA (longest wavelength, least harmful), UVB (causes sunburn), and UVC (most energetic, mostly absorbed by the ozone layer)
• The Sun is the primary natural source; artificial UV sources are used in sterilization and fluorescent lighting
• Can damage DNA, but moderate exposure is needed for vitamin D synthesis in the skin

X-Rays

• Wavelengths roughly from 0.01 nm to 10 nm
• Produced by accelerating electrons into a metal target in X-ray tubes, or in synchrotron facilities
• Penetrate soft tissue but are absorbed by dense materials like bone, which is why they're useful for medical imaging
• Also used in security screening and crystallography (determining molecular structures)

Gamma Rays

• Shortest wavelengths and highest energies in the spectrum
• Produced by nuclear processes: radioactive decay, nuclear reactions, and high-energy cosmic events
• Extremely penetrating; thick lead or concrete shielding is needed for protection
• Used in cancer treatment (radiation therapy), sterilization of medical equipment, and astrophysical observations

Wave Properties

Every EM wave is characterized by its frequency, wavelength, and energy. These three quantities are tightly linked.

Frequency

Frequency ($f$) is the number of complete wave cycles passing a point per second, measured in Hertz (Hz). Higher frequency means higher energy. Radio waves might have frequencies around $10^6$ Hz (1 MHz), while gamma rays can exceed $10^{20}$ Hz.

Wavelength

Wavelength ($\lambda$) is the distance between consecutive crests (or any two equivalent points on the wave). It's inversely proportional to frequency: long wavelength means low frequency, and vice versa. Wavelengths range from hundreds of kilometers (radio) down to fractions of a picometer (gamma rays).

Energy

The energy of a single photon is directly proportional to its frequency:

$E = hf$

where $h = 6.626 \times 10^{-34}$ J·s is Planck's constant. This equation is why gamma rays are dangerous (high $f$, high energy per photon) and radio waves are harmless (low $f$, low energy per photon). Radiation with enough energy per photon to knock electrons from atoms is called ionizing radiation (UV, X-rays, gamma rays).

Frequency-Wavelength Relationship

The fundamental equation connecting frequency and wavelength is:

$c = f\lambda$

Since $c$ is constant in vacuum, knowing either $f$ or $\lambda$ lets you calculate the other. For example, a radio station broadcasting at $f = 100$ MHz has a wavelength of:

$\lambda = \frac{c}{f} = \frac{3 \times 10^8}{100 \times 10^6} = 3 \text{ m}$

Sources of EM Radiation

Natural Sources

• Stars emit across the entire spectrum; the Sun's output peaks in visible light
• Cosmic microwave background radiation fills the universe as a remnant of the Big Bang
• Lightning produces radio waves and even brief bursts of gamma rays
• Radioactive decay in rocks and soil generates gamma radiation

Artificial Sources

• Radio and TV transmitters generate radio waves
• X-ray tubes produce high-energy radiation for medical and industrial imaging
• Lasers emit coherent, single-wavelength light
• Microwave ovens generate microwaves tuned to excite water molecules

Blackbody Radiation

An ideal blackbody absorbs all incident radiation and re-emits it across a continuous spectrum. The shape of that spectrum depends only on the object's temperature. Two key results:

• Wien's displacement law: The peak wavelength shifts shorter (toward blue) as temperature increases. A hot star appears blue-white; a cooler star appears red.
• Planck's law: Gives the full intensity distribution across wavelengths for a given temperature, and historically led to the development of quantum mechanics.

Interactions with Matter

When EM waves encounter matter, several things can happen depending on the material and the wavelength.

Absorption

The material takes in the EM energy and converts it to another form, usually heat or electronic excitation. Which wavelengths get absorbed depends on the material's atomic and molecular structure. This is the basis of spectroscopy: by seeing which wavelengths a substance absorbs, you can identify it.

Reflection

EM waves bounce off surfaces. Specular reflection occurs on smooth surfaces (mirrors) and produces a clear image. Diffuse reflection occurs on rough surfaces and scatters light in many directions, which is how you see most everyday objects. The law of reflection states that the angle of incidence equals the angle of reflection.

Refraction

When an EM wave passes from one medium into another with a different refractive index, it changes speed and bends. This bending is described by Snell's law:

$n_1 \sin \theta_1 = n_2 \sin \theta_2$

Refraction explains why a straw looks bent in a glass of water and is the operating principle behind lenses, prisms, and optical fibers.

Diffraction

Waves bend around obstacles and spread out after passing through narrow openings. Diffraction is most noticeable when the wavelength is comparable to the size of the obstacle or opening. This is why X-ray diffraction can reveal atomic-scale crystal structures (X-ray wavelengths are similar to atomic spacings), and why visible light diffracts through narrow slits.

Scattering

EM waves get redirected when they hit small particles or irregularities. Rayleigh scattering occurs when particles are much smaller than the wavelength; it scatters shorter wavelengths more strongly, which is why the sky appears blue. Mie scattering occurs when particle sizes are comparable to the wavelength and is responsible for the white appearance of clouds.

Detection and Measurement

Spectroscopy

Spectroscopy analyzes how matter absorbs, emits, or scatters EM radiation as a function of wavelength. Different techniques (absorption spectroscopy, emission spectroscopy, Raman spectroscopy) reveal information about atomic and molecular structure. It's used across chemistry, astronomy, and materials science.

Photometry

Photometry measures the intensity of visible light, weighted by the sensitivity of the human eye. Instruments like photometers and luxmeters quantify brightness for applications in lighting design, photography, and display calibration.

Radiometry

Radiometry measures EM radiation across the entire spectrum, not just the visible portion. It quantifies radiant energy, power, and intensity using instruments like bolometers and pyranometers. It's essential in remote sensing, solar energy research, and astrophysics.

Applications in Science

Astronomy

Different parts of the spectrum reveal different cosmic phenomena. Radio telescopes detect emissions from gas clouds and pulsars. Infrared telescopes see through dust to observe star-forming regions. X-ray telescopes study accretion disks around black holes. Gamma-ray observatories detect the most violent events in the universe, like gamma-ray bursts.

Medical Imaging

• X-ray radiography: Produces images of bones and dense structures
• CT (Computed Tomography): Combines multiple X-ray images to create detailed 3D views of internal organs
• MRI (Magnetic Resonance Imaging): Uses radio waves and strong magnetic fields to image soft tissues without ionizing radiation
• PET (Positron Emission Tomography): Detects gamma rays emitted by a radioactive tracer injected into the body, useful for imaging metabolic activity

Remote Sensing

• Satellites use visible and infrared light to monitor land use, vegetation, and ocean temperatures
• RADAR systems use microwaves for weather forecasting and terrain mapping
• LIDAR uses laser pulses to create high-resolution topographic maps
• Hyperspectral imaging captures data across many narrow EM bands simultaneously

Electromagnetic Spectrum in Everyday Life

Communication Technologies

• Radio and TV broadcasting use assigned frequency bands in the radio wave range
• Mobile phones operate at microwave frequencies (typically 700 MHz to several GHz)
• WiFi networks use 2.4 GHz and 5 GHz bands
• Satellite communications rely on microwave and radio frequencies

Household Appliances

• Microwave ovens heat food using 2.45 GHz EM waves
• Infrared remote controls send coded signals to TVs and other devices
• LEDs and fluorescent lamps produce visible light through different EM emission mechanisms
• Induction cooktops use rapidly changing magnetic fields to induce currents (and therefore heat) in cookware

Safety Concerns

• Ionizing radiation (UV, X-rays, gamma rays) carries enough energy per photon to damage DNA and increase cancer risk
• Prolonged UV exposure causes sunburn and raises skin cancer risk
• Non-ionizing radiation (radio, microwave) at normal exposure levels is generally considered safe, though research on long-term effects of radiofrequency fields continues
• In medical and industrial settings, proper shielding, distance, and time limits are used to minimize exposure

Limits of the EM Spectrum

The spectrum extends theoretically from zero frequency to infinity, but practical and physical constraints set boundaries.

Low-Frequency Limit

Extremely Low Frequency (ELF) waves have frequencies below about 30 Hz, with wavelengths of thousands of kilometers. Generating and detecting them efficiently is very difficult. Natural sources include geomagnetic fluctuations and lightning. One practical application: submarine communication, since ELF waves penetrate seawater.

High-Frequency Limit

The highest-energy photons observed come from cosmic sources. A theoretical upper limit is set by the Planck energy (around $10^{19}$ GeV), where quantum gravity effects are expected to become significant. Studying ultra-high-energy gamma rays pushes the boundaries of particle physics and cosmology.

Current Research and Discoveries

Gravitational Waves

Gravitational waves are not electromagnetic waves. They are ripples in spacetime itself, predicted by Einstein's general relativity and first directly detected in 2015 by LIGO. They're included here because gravitational wave astronomy now complements EM observations: for example, the 2017 neutron star merger was observed in both gravitational waves and across the EM spectrum, marking the start of multi-messenger astronomy.

Cosmic Microwave Background

The cosmic microwave background (CMB) is the oldest light in the universe, emitted about 380,000 years after the Big Bang when the universe cooled enough for atoms to form. It has been mapped in detail by the COBE, WMAP, and Planck missions. The CMB provides strong evidence for the Big Bang theory and cosmic inflation. Current research focuses on detecting subtle polarization patterns in the CMB that could reveal signatures of primordial gravitational waves.
