10.2 Interference

Wave interference basics

Wave interference describes what happens when two or more waves occupy the same space at the same time. This concept is central to wave optics because it explains everything from the colorful sheen on soap bubbles to how noise-canceling headphones work. It applies to all wave types: light, sound, water, and even matter waves at the quantum scale.

Constructive vs destructive interference

The outcome of interference depends on how the waves line up relative to each other.

• Constructive interference happens when waves arrive in phase (crests align with crests). Their amplitudes add together, producing a larger combined wave. In light experiments, this creates bright fringes.
• Destructive interference happens when waves arrive out of phase (crests align with troughs). Their amplitudes cancel, reducing or eliminating the wave. In light experiments, this creates dark fringes.

Whether interference is constructive or destructive comes down to the phase difference between the waves. Noise-canceling headphones exploit destructive interference by generating sound waves that are out of phase with ambient noise. Lasers rely on constructive interference to produce intense, coherent beams.

Principle of superposition

The principle of superposition states that when multiple waves overlap, the net displacement at any point equals the algebraic sum of the individual displacements:

$y_{total} = y_1 + y_2 + \cdots + y_n$

This works for linear wave systems, where waves pass through each other without permanently changing. After the waves move past each other, each one continues as if nothing happened. Superposition is what makes it possible to analyze complex wave patterns by breaking them into simpler components, which is the foundation of Fourier analysis used in signal processing.

Phase difference and path length

Phase difference ($\Delta \phi$) measures how "offset" two waves are in their cycles, expressed in radians or degrees. In most interference setups, the phase difference comes from a path length difference: one wave travels farther than the other to reach the same point.

The relationship between path length difference and phase difference is:

$\Delta \phi = \frac{2\pi \Delta x}{\lambda}$

where $\Delta x$ is the path length difference and $\lambda$ is the wavelength.

From this, two key conditions follow:

• Constructive interference: $\Delta x = m\lambda$ (where $m = 0, 1, 2, \ldots$). The path difference is a whole number of wavelengths, so the waves arrive in phase.
• Destructive interference: $\Delta x = (m + \tfrac{1}{2})\lambda$. The path difference is a half-integer number of wavelengths, so the waves arrive out of phase.

These conditions show up repeatedly in Young's double-slit experiment, thin film interference, and nearly every other interference scenario.

Interference of light waves

Light wave interference produces some of the most visually striking phenomena in optics and underpins technologies like anti-reflective coatings and precision measurement instruments.

Young's double-slit experiment

Thomas Young's 1801 experiment was a landmark demonstration that light behaves as a wave. Here's how it works:

1. A monochromatic (single-wavelength) light source illuminates a barrier with two narrow slits separated by distance $d$.
2. Light diffracts through each slit, and the two emerging wavefronts overlap on a distant observation screen at distance $L$.
3. At points where the waves arrive in phase, you get bright fringes (constructive interference). Where they arrive out of phase, you get dark fringes (destructive interference).

The position of the $m$th bright fringe (measured from the central maximum) is:

$y_m = \frac{m\lambda L}{d}$

where $m = 0, \pm 1, \pm 2, \ldots$

This equation tells you that fringes spread farther apart when you increase $\lambda$ or $L$, and move closer together when you increase $d$. The experiment also provides a precise method for measuring the wavelength of light.

Thin film interference

When light hits a thin transparent film (like a soap bubble or an oil slick), some reflects off the top surface and some off the bottom surface. These two reflected waves then interfere with each other.

A few things determine whether the interference is constructive or destructive:

• Film thickness ($t$): the extra distance the second wave travels is roughly $2t$ (it goes down and back up through the film).
• Refractive index ($n$): light slows down inside the film, so its effective wavelength becomes $\lambda / n$. The path difference in terms of wavelength changes accordingly.
• Phase shifts on reflection: when light reflects off a medium with a higher refractive index, it picks up an extra half-wavelength ($\pi$) phase shift. This matters because it can flip constructive conditions into destructive ones and vice versa.

The colorful swirls you see on soap bubbles happen because the film thickness varies across the surface, so different wavelengths (colors) constructively interfere at different locations.

Newton's rings

Newton's rings form when a convex lens sits on a flat glass surface. The thin air gap between the curved lens and the flat surface varies in thickness, creating a pattern of concentric bright and dark rings.

• Dark rings appear where destructive interference occurs.
• Bright rings appear where constructive interference occurs.

The radius of the $n$th bright ring is:

$r_n = \sqrt{nR\lambda}$

where $R$ is the radius of curvature of the lens and $\lambda$ is the wavelength. This pattern is used in optical testing to measure lens curvature and check the flatness of glass surfaces.

Interference patterns

Interference patterns are the visible (or measurable) result of wave superposition. Analyzing these patterns lets you extract information about wavelengths, slit geometry, and material properties.

Fringe spacing and wavelength

Fringe spacing ($\Delta y$) is the distance between adjacent bright fringes (or adjacent dark fringes). In Young's double-slit experiment:

$\Delta y = \frac{\lambda L}{d}$

Notice that fringe spacing is directly proportional to wavelength and screen distance, and inversely proportional to slit separation. This relationship is why measuring fringe spacing gives you a reliable way to determine an unknown wavelength, which is the basis of many spectroscopic techniques.

Intensity distribution

The intensity across a double-slit interference pattern isn't just "bright or dark." It varies smoothly. For two identical slits, the intensity at position $y$ on the screen follows:

$I = I_0 \cos^2\!\left(\frac{\pi d y}{\lambda L}\right)$

The central maximum (at $y = 0$) is the brightest. Higher-order fringes have the same peak intensity in this idealized two-slit model, but in practice, the single-slit diffraction envelope modulates the pattern. Each individual slit produces its own diffraction pattern, and the overall intensity is the interference pattern multiplied by this envelope. That's why fringes farther from the center appear dimmer.

Multiple slit interference

When light passes through $N$ slits instead of just two, the pattern sharpens dramatically:

• Primary maxima become narrower and more intense (intensity scales as $N^2$).
• Secondary maxima appear between primary maxima, but they're much weaker.
• As $N$ increases, the pattern approaches that of a diffraction grating.

The intensity for $N$ slits is described by:

$I = I_0 \left(\frac{\sin(N\beta/2)}{\sin(\beta/2)}\right)^2$

where $\beta = \frac{2\pi d \sin\theta}{\lambda}$ is the phase difference between adjacent slits. Diffraction gratings (which have thousands of slits) exploit this sharpening effect to precisely separate wavelengths, making them essential tools in spectroscopy.

Applications of interference

Interferometers

Interferometers are precision instruments that convert tiny changes in path length or refractive index into measurable shifts in an interference pattern. Several designs exist:

• Michelson interferometer: Splits a beam into two paths using a beam splitter, reflects each path back with mirrors, and recombines them. Any difference in path length shows up as a fringe shift. LIGO uses a giant version of this to detect gravitational waves, measuring displacements smaller than $10^{-18}$ m.
• Mach-Zehnder interferometer: Uses two separate beam paths and is common in fiber optic sensing.
• Fabry-Pérot interferometer: Bounces light back and forth between two parallel partially reflective surfaces, producing extremely sharp fringes useful for high-resolution spectroscopy.

Anti-reflective coatings

Anti-reflective (AR) coatings are thin films applied to lenses and optical surfaces to reduce unwanted reflections. The idea is straightforward:

1. Light reflects from both the top and bottom surfaces of the coating.
2. If the coating thickness equals one-quarter of the wavelength inside the coating material ($t = \lambda / 4n$), the two reflected waves are half a wavelength out of phase.
3. They destructively interfere, canceling the reflection.

Single-layer coatings work well for one wavelength. Multi-layer coatings stack films of different thicknesses and refractive indices to suppress reflections across a broader range of wavelengths. You'll find AR coatings on eyeglasses, camera lenses, and solar panels (where reducing reflection means more light gets absorbed).

Fiber optic communications

Fiber optic systems transmit data as pulses of light through thin glass fibers. Interference principles show up in several ways:

• Wavelength division multiplexing (WDM) uses interference-based filters to combine many different wavelengths into a single fiber and then separate them at the other end, massively increasing data capacity.
• Single-mode fibers maintain the coherence of light, enabling interference-based signal processing.
• Fiber optic sensors use interferometric techniques to detect tiny changes in fiber length or refractive index caused by temperature, pressure, or strain.

Interference in sound waves

Sound waves interfere just like light waves, but since sound wavelengths are much larger (centimeters to meters), the effects are easier to observe in everyday settings.

Standing waves

Standing waves form when two waves of equal amplitude and frequency travel in opposite directions and superpose. This typically happens when a wave reflects back on itself in a confined space (a string, a pipe, a room).

The result is a pattern of:

• Nodes: points that never move (zero amplitude)
• Antinodes: points of maximum oscillation

For a string of length $L$ fixed at both ends, the allowed frequencies are:

$f_n = \frac{nv}{2L}$

where $n = 1, 2, 3, \ldots$ is the harmonic number and $v$ is the wave speed. The $n = 1$ case is the fundamental frequency; higher values of $n$ give overtones. This is how musical instruments work: a guitar string, an organ pipe, and a flute all produce sound at specific frequencies determined by standing wave conditions.

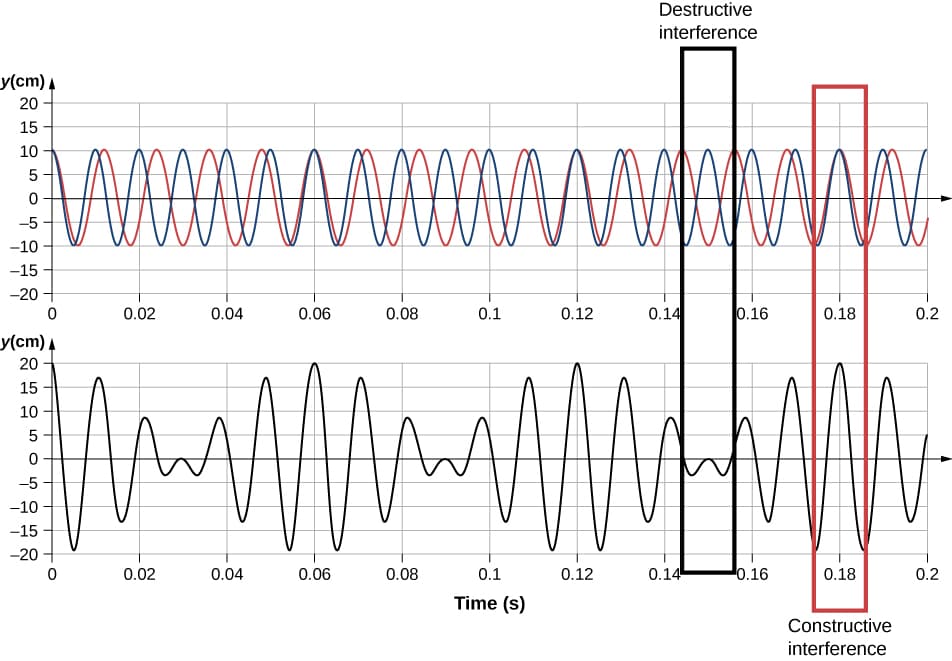

Beats phenomenon

When two sound waves with slightly different frequencies ($f_1$ and $f_2$) overlap, you hear a pulsing variation in loudness called beats. The combined wave oscillates at the average frequency, but its amplitude rises and falls at the beat frequency:

$f_{beat} = |f_1 - f_2|$

For example, if one tuning fork vibrates at 440 Hz and another at 443 Hz, you'll hear 3 beats per second. Musicians use this effect to tune instruments: as two notes get closer in pitch, the beats slow down and eventually disappear when the frequencies match. Beats are only audible when $f_{beat}$ is below about 20 Hz; above that, you just hear two separate tones.

Acoustic interference

Sound waves interfere constructively and destructively in three-dimensional space, creating regions that are louder or quieter depending on your position.

• Active noise cancellation generates sound waves that are precisely out of phase with unwanted noise, producing destructive interference that reduces what you hear.
• Passive methods like mufflers and sound-absorbing panels use geometry and materials to encourage destructive interference of specific frequencies.
• Room acoustics design takes interference into account to avoid dead spots or excessive resonance. Concert halls, recording studios, and lecture halls are all shaped with these principles in mind.

Quantum interference

Quantum interference extends wave interference into the quantum realm, where particles like electrons and atoms exhibit wave-like behavior. This is one of the most counterintuitive aspects of physics, but the math is remarkably similar to classical wave interference.

Matter waves

In 1924, Louis de Broglie proposed that all matter has an associated wavelength given by:

$\lambda = \frac{h}{p}$

where $h$ is Planck's constant ($6.626 \times 10^{-34}$ J·s) and $p$ is the particle's momentum. For everyday objects, this wavelength is absurdly small and undetectable. But for electrons and other subatomic particles, the wavelength is comparable to atomic spacings, which means wave effects like interference and diffraction become observable.

Electron diffraction

In 1927, Davisson and Germer fired electrons at a crystalline nickel target and observed a diffraction pattern, confirming de Broglie's hypothesis. The electrons scattered off the regularly spaced atoms in the crystal lattice, and the resulting pattern matched what you'd expect from wave interference.

The condition for constructive interference follows Bragg's law:

$n\lambda = 2d\sin\theta$

where $d$ is the spacing between crystal planes and $\theta$ is the angle of incidence. Electron diffraction is now a standard technique in electron microscopy, providing atomic-resolution images of materials.

Double-slit experiment with particles

The double-slit experiment with individual particles is one of the most famous experiments in physics. Here's what happens:

1. Particles (electrons, neutrons, or even large molecules like $C_{60}$) are sent toward a double-slit barrier one at a time.
2. Each particle lands at a single spot on the detector, looking like a particle.
3. After many particles accumulate, an interference pattern emerges, identical to the pattern you'd see with light waves.

This means each particle somehow "interferes with itself," as if it passes through both slits simultaneously as a wave. But if you place a detector at the slits to determine which one the particle goes through, the interference pattern disappears and you get two clumps. The act of measurement collapses the wave behavior. This experiment illustrates the core ideas of quantum mechanics: superposition, wave-particle duality, and the role of measurement.

Interference in electromagnetic waves

Interference occurs across the entire electromagnetic spectrum. The same physics applies whether you're dealing with radio waves, microwaves, or X-rays; only the wavelengths and practical details change.

Radio wave interference

Radio signals can interfere when multiple signals overlap at a receiver. Multipath interference is especially common: a signal bounces off buildings, hills, or the ground and arrives at the receiver via several paths with different delays. Depending on the phase relationships, this can strengthen or weaken the received signal.

• Fading in mobile communications often results from destructive interference between multipath signals.
• Antenna arrays use controlled spacing between antennas to create constructive interference in desired directions (beamforming) and destructive interference in others.
• Ionospheric reflection can cause long-distance radio signals to interfere with themselves, affecting shortwave communications.

Microwave interference

Microwaves (wavelengths of roughly 1 mm to 30 cm) show interference effects in several practical contexts:

• Microwave ovens produce standing waves inside the cavity. The nodes (low-intensity spots) are why your food heats unevenly and why the turntable exists.
• Wi-Fi routers with multiple antennas use beamforming to direct signals toward devices through controlled constructive interference.
• Radar systems analyze reflected microwave signals, using Doppler shifts and interference patterns to determine target distance and velocity.
• Radio astronomy uses microwave interferometry (arrays of dishes) to achieve angular resolution far beyond what a single telescope could provide.

X-ray diffraction

X-ray diffraction (XRD) uses the interference of X-rays scattered by atoms in a crystal lattice to reveal atomic structure. Because X-ray wavelengths (around 0.1 nm) are comparable to atomic spacings, crystals act as natural diffraction gratings.

Constructive interference follows Bragg's law:

$n\lambda = 2d\sin\theta$

where $d$ is the spacing between atomic planes. By measuring the angles and intensities of the diffracted beams, you can reconstruct the three-dimensional arrangement of atoms. This technique was used to determine the structure of DNA and remains essential in materials science, pharmaceutical research, and structural biology. Powder diffraction extends the method to polycrystalline samples where single crystals aren't available.

Interference limitations and challenges

Real interference experiments never produce perfect patterns. Several factors limit what you can observe, and understanding these limitations is important for designing experiments and interpreting data.

Coherence length

Coherence length ($L_c$) is the maximum path length difference over which two waves can still produce a visible interference pattern. It depends on how "pure" the light source's wavelength is:

$L_c = \frac{\lambda^2}{\Delta\lambda}$

where $\Delta\lambda$ is the spectral width of the source. A laser with a very narrow spectral line might have a coherence length of meters or even kilometers, while a white-light source has a coherence length of only a few micrometers. If your interferometer's path difference exceeds $L_c$, the fringes wash out.

Temporal vs spatial coherence

These are two distinct ways to characterize how "orderly" a wave is:

• Temporal coherence describes how well a wave maintains a consistent phase over time. High temporal coherence means a long coherence length and a narrow spectral width. It determines how large a path difference your interferometer can handle.
• Spatial coherence describes how well-correlated the phase is across different points on the same wavefront. High spatial coherence means you can interfere light from widely separated points on the wavefront and still see fringes.

Lasers score high on both. Thermal sources (like incandescent bulbs) have low temporal coherence but can have reasonable spatial coherence if you use a small pinhole to filter the light (which is exactly what Young did in his original experiment).

Noise and environmental factors

Even with a perfectly coherent source, practical challenges can degrade your interference pattern:

• Mechanical vibrations shift optical components by fractions of a wavelength, blurring fringes. Sensitive setups use optical tables with vibration isolation.
• Temperature fluctuations cause thermal expansion of components and change the refractive index of air, altering path lengths.
• Air currents create local variations in refractive index, distorting wavefronts.
• Stray light and background illumination reduce fringe contrast.

Mitigation strategies include vibration-isolated tables, temperature-controlled enclosures, vacuum chambers (for the most sensitive work), and digital signal processing to extract fringe data from noisy measurements.
