4.2 Current density

Definition of current density

Current density describes how electric charge flows through a specific cross-sectional area of a conductor. While electric current tells you the total charge flowing per second, current density tells you how that flow is distributed across the area. This distinction matters whenever the conductor isn't uniform or when you need to know where current is concentrated.

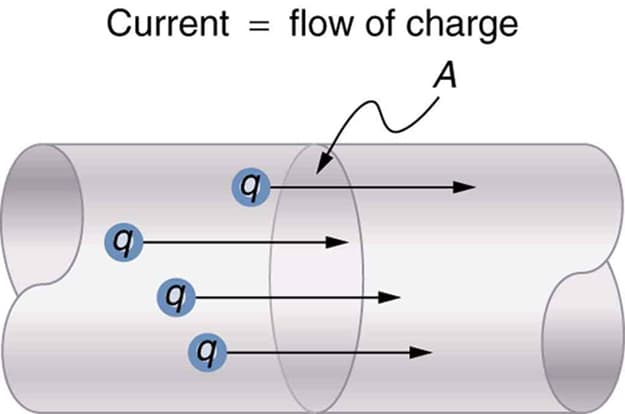

Electric current vs. current density

Electric current ($I$) measures the total rate of charge flow through a conductor. Current density ($J$) measures the charge flow per unit area, which lets you analyze how current is distributed across a cross-section rather than just the total amount.

The relationship between them is straightforward:

$J = \frac{I}{A}$

where $A$ is the cross-sectional area. If current spreads unevenly across a conductor, $J$ will vary from point to point, even though $I$ through the whole cross-section stays the same.

Vector nature of current density

Current density is a vector quantity, meaning it has both magnitude and direction. The direction of $\vec{J}$ points along the motion of positive charge carriers. This vector representation lets you describe current flow in three dimensions, which becomes important when conductors have complex shapes or when current doesn't flow in a straight line.

Mathematical representation

Current density equation

The microscopic equation for current density connects it to the properties of the charge carriers themselves:

$\vec{J} = n q \vec{v}_d$

• $n$ = number density of charge carriers (carriers per cubic meter)
• $q$ = charge of each carrier (for electrons, $q = 1.6 \times 10^{-19}$ C)
• $\vec{v}_d$ = drift velocity of the carriers

This equation is powerful because it links a macroscopic, measurable quantity (current density) to what's happening at the particle level inside the material.

Units of current density

Current density is measured in amperes per square meter (A/m²) in SI units. You may also see A/cm² used for smaller-scale applications like semiconductor devices. To convert: $1 \text{ A/cm}^2 = 10^4 \text{ A/m}^2$.

Factors affecting current density

Conductor cross-sectional area

For a given total current, current density is inversely proportional to cross-sectional area. Shrink the area and $J$ goes up. This is why thin wires heat up more than thick ones carrying the same current: higher current density means more energy dissipated per unit volume. Engineers account for this when sizing wires and PCB traces.

Charge carrier concentration

Current density is directly proportional to $n$, the number of charge carriers per unit volume. Metals like copper have enormous carrier concentrations (on the order of $10^{28}$ electrons/m³), which is why they conduct so well. Semiconductors have far fewer carriers, though doping and temperature changes can increase $n$ significantly.

Drift velocity

Drift velocity ($v_d$) is the average net velocity of charge carriers in response to an applied electric field. It's surprisingly slow, often on the order of fractions of a millimeter per second in typical metal wires. Carriers are constantly bouncing around at high thermal speeds, but the net motion due to the field is very small. Still, because $n$ is so large in metals, even a tiny drift velocity produces a substantial current density.

Ohm's law and current density

Relationship to conductivity

Ohm's law has a local, point-by-point form written in terms of current density:

$\vec{J} = \sigma \vec{E}$

Here, $\sigma$ is the electrical conductivity of the material and $\vec{E}$ is the electric field at that point. This is sometimes called the microscopic form of Ohm's law because it applies at every location inside the conductor, not just to the circuit as a whole.

You can also write this using resistivity ($\rho = 1/\sigma$):

$\vec{E} = \rho \vec{J}$

Connection to carrier mobility

Going one level deeper, conductivity depends on carrier properties:

$\sigma = n q \mu$

where $\mu$ is the charge carrier mobility, a measure of how easily carriers move through the material under an electric field. Substituting into the Ohm's law form gives:

$\vec{J} = n q \mu \vec{E}$

This version is especially useful in semiconductor physics, where mobility varies with temperature and doping.

Applications of current density

Circuit analysis

Current density enables detailed modeling of how current distributes itself in real conductors, which matters for:

• Identifying regions of current crowding where $J$ spikes (common at sharp bends or narrow points)
• Predicting localized heating that could damage components
• Designing high-frequency circuits where current distribution is non-uniform

Power transmission

When designing power lines, engineers choose conductor cross-sections to keep current density below safe limits. Too high a $J$ means excessive resistive ($I^2R$) losses and overheating. This analysis is central to sizing cables for long-distance transmission.

Material characterization

Measuring how current density responds to applied fields reveals a material's conductivity, carrier concentration, and mobility. This is essential for evaluating new materials and for quality control in semiconductor manufacturing.

Current density in different media

Metals vs. semiconductors

• Metals have very high free-electron concentrations, so they support large current densities easily.
• Semiconductors have far fewer carriers, and their current density depends strongly on doping and temperature. Both electrons and holes contribute to $\vec{J}$, and the relative contribution of each depends on whether the material is n-type or p-type.

Electrolytes and plasmas

In electrolytes, current is carried by ions (both positive and negative) rather than free electrons. The ions are much heavier and slower, so drift velocities and mobilities are very different from metals. In plasmas, current density depends on the degree of ionization and the energies of the charged particles.

Conservation of charge

Continuity equation

Charge is conserved, and the continuity equation expresses this mathematically:

$\nabla \cdot \vec{J} + \frac{\partial \rho}{\partial t} = 0$

where $\rho$ is the local charge density. In plain terms: if more current flows out of a region than flows in (positive divergence of $\vec{J}$), the charge density in that region must be decreasing.

Steady-state conditions

In steady-state (DC) circuits, charge doesn't accumulate anywhere, so $\frac{\partial \rho}{\partial t} = 0$. That simplifies the continuity equation to:

$\nabla \cdot \vec{J} = 0$

This means current density has zero divergence: whatever flows into a region also flows out. It's the formal way of saying "current in equals current out" at every point.

Measurement techniques

Hall effect measurements

The Hall effect provides an indirect way to measure current density and learn about the carriers themselves. When a current-carrying conductor sits in a magnetic field, a voltage develops perpendicular to both the current and the field. From this Hall voltage, you can determine:

• The sign of the charge carriers (electrons vs. holes)
• The carrier concentration $n$
• The carrier mobility $\mu$

Four-point probe method

This technique measures resistivity (and thus conductivity) in thin films and semiconductor wafers. Four equally spaced probes contact the surface: the outer two pass a known current, and the inner two measure the resulting voltage. Using four probes instead of two eliminates errors from contact resistance, giving much more accurate results.

Current density in electromagnetic fields

Magnetization currents

In magnetic materials, the alignment of atomic magnetic moments creates effective currents called magnetization currents. These contribute to the total current density and are important for understanding how magnetic fields are generated inside materials like permanent magnets and transformer cores.

Displacement current density

Maxwell introduced the concept of displacement current density to complete the equations of electromagnetism:

$\vec{J}_d = \epsilon_0 \frac{\partial \vec{E}}{\partial t}$

This isn't a flow of actual charges. Instead, it represents the effect of a changing electric field, which produces a magnetic field just as a real current would. Displacement current density is what allows electromagnetic waves to propagate through empty space and explains how current "flows" through the gap between capacitor plates during charging.

Advanced concepts

Skin effect

At high frequencies, AC current tends to concentrate near the surface of a conductor rather than distributing uniformly. This is the skin effect. The characteristic depth of penetration (skin depth) decreases as frequency increases, which means the effective cross-sectional area carrying current shrinks. The result is higher effective resistance at higher frequencies. Engineers combat this by using stranded wire (Litz wire) or hollow conductors.

Superconductors and current density

Below their critical temperature, superconductors have zero electrical resistance and can carry current with no energy loss. However, there's a limit: if the current density exceeds the material's critical current density ($J_c$), superconductivity breaks down and resistance returns. This critical current density is a key parameter in designing superconducting magnets and power cables.
