10.7 Thin film interference

Principles of thin film interference

Thin film interference happens when light reflects off both the top and bottom surfaces of a very thin transparent layer. The two reflected waves overlap and either reinforce or cancel each other, producing bright colors or dark bands depending on the film's thickness and the wavelength of light.

This is the physics behind the swirling colors on soap bubbles, oil slicks on wet pavement, and the coatings on camera lenses. The key variables are film thickness, refractive index of the film, and the wavelength of the incoming light.

Optical path difference

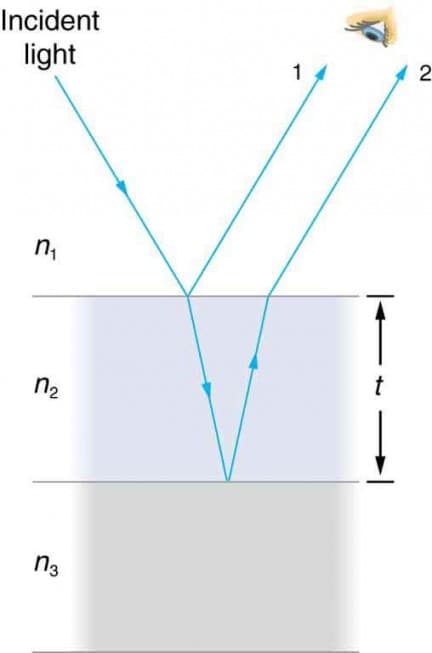

When light hits a thin film, part of it reflects off the top surface and part enters the film, reflects off the bottom surface, and exits back through the top. These two reflected rays travel different distances before recombining.

The optical path difference (OPD) accounts for both the extra physical distance and the fact that light slows down inside the film. It's given by:

$OPD = 2nt\cos\theta$

• $n$ = refractive index of the film
• $t$ = film thickness
• $\theta$ = angle of refraction inside the film (not the angle of incidence)

The factor of 2 appears because the light passes through the film thickness twice (down and back up). The $\cos\theta$ factor accounts for the geometry when light enters at an angle rather than straight on.

Constructive vs. destructive interference

Whether the two reflected waves add together or cancel depends on their phase difference, which comes from the optical path difference plus any phase shifts from reflection (covered in the next section).

• Constructive interference occurs when the waves are in phase. You see a bright fringe or strong reflection at that wavelength.
• Destructive interference occurs when the waves are half a wavelength out of phase. You see a dark fringe or weak reflection at that wavelength.

The exact conditions (which equations to use) depend on whether phase shifts occur at the boundaries, so you need to check that before plugging into a formula.

Reflection from thin films

Phase changes upon reflection

This is one of the trickiest parts of thin film problems, and getting it wrong will flip your answer between constructive and destructive.

The rule:

• Light reflecting off a surface with a higher refractive index picks up a 180° phase shift (equivalent to half a wavelength).
• Light reflecting off a surface with a lower refractive index gets no phase shift.

For example, consider an oil film ($n \approx 1.5$) floating on water ($n \approx 1.33$) with air above ($n = 1.0$):

• The top reflection (air → oil) hits a higher-index medium → 180° shift
• The bottom reflection (oil → water) hits a lower-index medium → no shift

So the two reflected rays have a net phase difference of 180° from reflection alone, before you even consider the path difference. If both reflections produce the same phase shift (both 180° or both 0°), the net phase shift from reflection is zero.

Refractive index effects

The refractive index of the film relative to the surrounding media matters in two ways:

1. It determines the phase shifts at each boundary (as described above).
2. It sets the optical path length inside the film, since light effectively travels slower in higher-index materials.

Snell's law governs refraction at each boundary:

$n_1\sin\theta_1 = n_2\sin\theta_2$

A larger refractive index difference between the film and its surroundings also produces stronger reflections, making the interference fringes more visible.

Thickness and wavelength relationships

Interference effects are most noticeable when the film thickness is on the order of the wavelength of visible light (roughly 400–700 nm). Much thicker films produce fringes too closely spaced to see, and much thinner films don't create enough path difference to produce visible color.

Quarter-wavelength films

A film whose optical thickness equals one-quarter of a wavelength is the basis for anti-reflective coatings.

$nt = \frac{(2m+1)\,\lambda}{4}$

where $m = 0, 1, 2, \ldots$

Here's why this works: the light reflecting from the bottom surface travels an extra optical path of $2nt = (2m+1)\,\lambda/2$, which is an odd multiple of half-wavelengths. If both reflections also produce the same phase shift (e.g., both get 180°), the two reflected waves end up perfectly out of phase and cancel. The result is minimal reflection and maximum transmission.

Half-wavelength films

A film whose optical thickness equals a half-wavelength (or integer multiple) produces constructive interference in reflection:

$nt = \frac{m\lambda}{2}$

where $m = 1, 2, 3, \ldots$

The round-trip path difference is a full wavelength, so the reflected waves reinforce. These films are used in highly reflective coatings and optical filters that need to strongly reflect a target wavelength.

Thin film interference calculations

Setting up a problem: step-by-step

Thin film problems follow a consistent process. Here's how to approach them:

1. Identify the three media. What's above the film, what's the film, and what's below? Write down their refractive indices.

2. Check phase shifts at each surface. Does the top reflection go to a higher index? If yes, 180° shift. Does the bottom reflection go to a higher index? If yes, 180° shift.

3. Count the net phase shift from reflection. If both reflections shift (or neither does), the net reflection phase shift is 0. If only one shifts, the net is 180° (half a wavelength).

4. Write the interference condition.

   • If the net reflection phase shift is 0: constructive interference requires $2nt\cos\theta = m\lambda$ and destructive requires $2nt\cos\theta = (m + \tfrac{1}{2})\lambda$.
   • If the net reflection phase shift is 180° (half-wavelength): the conditions swap. Constructive becomes $2nt\cos\theta = (m + \tfrac{1}{2})\lambda$ and destructive becomes $2nt\cos\theta = m\lambda$.

5. Solve for the unknown (usually thickness, wavelength, or order $m$).

Optical path length

The optical path length through the film is:

$OPL = 2nt\cos\theta$

This equals the physical distance the light travels inside the film, multiplied by the refractive index. It tells you how many wavelengths fit in the round trip, which directly determines the phase difference from the path alone.

Applications of thin film interference

Anti-reflective coatings

Camera lenses, eyeglasses, and solar panels use thin coatings to reduce unwanted reflections. A single quarter-wavelength layer can nearly eliminate reflection at one wavelength. For broader coverage across the visible spectrum, manufacturers stack multiple layers with different thicknesses and refractive indices.

A typical single-layer AR coating uses magnesium fluoride ($n \approx 1.38$) on glass ($n \approx 1.52$), optimized for green light around 550 nm. The coating thickness would be:

$t = \frac{\lambda}{4n} = \frac{550 \text{ nm}}{4 \times 1.38} \approx 100 \text{ nm}$

Optical filters

Thin film stacks can be engineered to transmit only certain wavelengths while reflecting others. Types include:

• Bandpass filters that transmit a narrow range of wavelengths
• Notch filters that block a specific wavelength while passing everything else
• Dichroic mirrors that reflect one color and transmit another

These rely on precisely controlled layer thicknesses and refractive indices, often involving dozens of alternating layers.

Interference patterns and color formation

Color in thin films

White light contains all visible wavelengths. At any given film thickness, some wavelengths undergo constructive interference (and reflect strongly) while others undergo destructive interference (and reflect weakly). Your eye sees the combination of the strongly reflected wavelengths as a particular color.

As the film thickness changes, different wavelengths are favored, which is why soap bubbles and oil slicks show bands or swirls of color. The colors also shift with viewing angle because $\cos\theta$ changes, altering the effective optical path difference.

Newton's rings

When a slightly curved convex lens sits on a flat glass plate, a thin air gap forms between them. The gap is thinnest at the center (where the lens touches) and increases outward. This creates a set of concentric circular interference fringes called Newton's rings.

• The center is typically dark (because the air gap is nearly zero and the reflection phase shifts produce destructive interference).
• Ring spacing decreases as you move outward because the air gap thickness increases faster.
• Newton's rings are used to measure lens curvature and to check the flatness of optical surfaces.

Factors affecting thin film interference

Film thickness variations

If a film isn't perfectly uniform, the interference pattern varies across its surface. A wedge-shaped film, for instance, produces parallel fringes. This property is actually useful: interferometric techniques exploit these fringe patterns to measure thickness variations down to a fraction of a wavelength.

Angle of incidence effects

Changing the angle at which you view a thin film changes $\cos\theta$ in the path difference formula. This shifts which wavelengths constructively interfere, causing the reflected color to change. That's why soap bubbles look different colors from different angles, and why anti-reflective coatings are optimized for a specific range of viewing angles.

Experimental observations

Soap bubble colors

A soap bubble is a thin water film ($n \approx 1.33$) with air on both sides. Gravity pulls the water downward, making the film thicker at the bottom and thinner at the top. As the bubble thins, the reflected colors shift through the spectrum. Just before a bubble pops, the top often appears dark because the film becomes so thin that the path difference is negligible and only the 180° phase shift from the top reflection remains, causing destructive interference across all visible wavelengths.

Oil slick patterns

A thin layer of oil ($n \approx 1.5$) on water ($n \approx 1.33$) creates colorful patterns because the oil thickness varies across the surface. Even nanometer-scale thickness differences produce visible color changes. The colors depend on both the local thickness and your viewing angle.

Advanced concepts

Multi-layer thin films

Real-world optical devices often use stacks of many thin film layers rather than a single layer. By alternating materials with different refractive indices and carefully choosing each layer's thickness, engineers can create coatings with very specific spectral properties. These multi-layer systems are analyzed using transfer matrix methods, which track how the electric field amplitude and phase change through each layer.

Brewster's angle in thin films

At Brewster's angle, p-polarized light (polarized parallel to the plane of incidence) reflects with zero intensity from a surface. This angle satisfies:

$\tan\theta_B = \frac{n_2}{n_1}$

At Brewster's angle, the reflected and refracted rays are perpendicular to each other. In thin film systems, this means the interference behavior differs for s-polarized and p-polarized light, which becomes relevant in polarization-sensitive applications and in the measurement technique called ellipsometry.
