2.7 Potential gradient

Definition of potential gradient

The potential gradient tells you how quickly electric potential changes as you move through space. If you think of electric potential as a "height" on a hill, the potential gradient is the steepness of that hill at any given point.

This concept bridges two things you already know: electric potential (a scalar, measured in volts) and the electric field (a vector, measured in N/C or V/m). The potential gradient lets you calculate one from the other.

Electric field vs. potential gradient

• The electric field represents force per unit charge. The potential gradient describes how potential energy per unit charge changes with distance.
• The potential gradient points in the direction of increasing potential, while the electric field points in the direction of decreasing potential. They point in opposite directions.
• The magnitude of the potential gradient equals the magnitude of the electric field in a given region.

Mathematical expression

In one dimension, the potential gradient is simply the change in potential divided by the change in distance:

$\frac{\Delta V}{\Delta x}$

In three dimensions, you use the gradient operator $\nabla V$:

$\nabla V = \frac{\partial V}{\partial x}\hat{i} + \frac{\partial V}{\partial y}\hat{j} + \frac{\partial V}{\partial z}\hat{k}$

Each partial derivative tells you how fast the potential changes along that particular axis.

Relationship to electric field

The connection between the electric field and the potential gradient is one of the most useful relationships in electrostatics. If you know the potential everywhere, you can find the field, and vice versa.

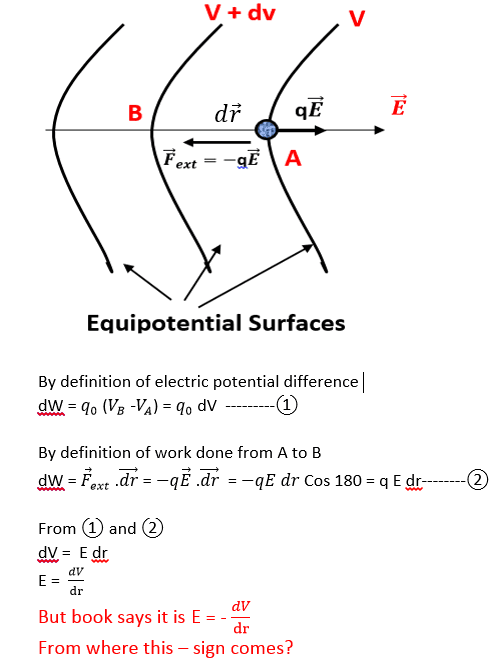

Negative gradient of potential

The electric field equals the negative gradient of electric potential:

$\vec{E} = -\nabla V$

That negative sign matters. It tells you the electric field points from regions of high potential toward regions of low potential, just like a ball rolls downhill from high elevation to low elevation.

In one dimension, this simplifies to:

$E_x = -\frac{dV}{dx}$

Vector nature of the gradient

The potential gradient is a vector quantity with both magnitude and direction. It points in the direction of the steepest increase in potential. Because of the negative sign in $\vec{E} = -\nabla V$, the electric field points in the direction of steepest decrease.

Calculation methods

You can find the potential gradient either graphically (from a diagram) or analytically (from an equation). The right approach depends on what information you're given.

Graphical approach

When you have a map of equipotential lines:

1. Pick two neighboring equipotential lines and note their voltage values.
2. Measure the perpendicular distance between them.
3. Divide the voltage difference by that distance to get the gradient magnitude.

The spacing of the lines tells you about field strength:

• Closely spaced equipotential lines → strong gradient (strong field)
• Widely spaced lines → weak gradient (weak field)

Analytical approach

When you have a mathematical expression for $V(x, y, z)$, take partial derivatives with respect to each coordinate.

For common symmetries, this reduces to simpler forms:

• Spherical symmetry (point charges, charged spheres): $E_r = -\frac{dV}{dr}$
• Cylindrical symmetry (long charged wires): $E_r = -\frac{dV}{dr}$

Symmetry is your best friend here because it often reduces a three-dimensional problem to a single variable.

Units and dimensions

SI units for potential gradient

The potential gradient is measured in volts per meter (V/m). This is dimensionally identical to newtons per coulomb (N/C), which makes sense because the potential gradient and the electric field have the same magnitude.

$1 \text{ V/m} = 1 \text{ N/C}$

Dimensional analysis

The dimensions of potential gradient are $[M][L][T]^{-3}[I]^{-1}$, which match the dimensions of the electric field. This consistency is a good check: if you derive an expression for a gradient and the dimensions don't come out to V/m, something went wrong.

Applications in electrostatics

Conductors and potential gradient

Inside a conductor in electrostatic equilibrium, the potential gradient is zero everywhere. Why? Because free charges in the conductor redistribute themselves until there's no net force on any charge, which means no electric field, which means no potential gradient.

The surface of the conductor is an equipotential surface, and the electric field at the surface points perpendicular to it.

Insulators and potential gradient

Unlike conductors, insulators can sustain a nonzero potential gradient in their interior. When you place an insulator in an external electric field, the molecules polarize (their positive and negative charges shift slightly), but charges can't flow freely to cancel the field. The strength of the internal gradient depends on the material's dielectric properties.

Potential gradient in uniform fields

A uniform field has the same strength and direction everywhere, which means the potential gradient is constant throughout the region. This is the simplest case to work with.

Parallel plate capacitor example

The parallel plate capacitor is the classic uniform-field setup. Between two large parallel conducting plates separated by distance $d$ with voltage $V$ across them:

$E = \frac{V}{d}$

The field lines run straight from the positive plate to the negative plate, perpendicular to both surfaces. The potential drops linearly as you move from the positive plate to the negative plate.

Uniform field characteristics

• Equipotential surfaces are equally spaced planes perpendicular to the field lines.
• Potential varies linearly with distance along the field direction.
• The work done moving a charge between two points depends only on the starting and ending positions, not the path taken (this is true for all electrostatic fields, but it's especially easy to see in the uniform case).

Non-uniform potential gradients

Most real-world situations involve non-uniform fields, where the potential gradient varies from point to point.

Spherical charge distributions

For a point charge $Q$, the electric field at distance $r$ is:

$E(r) = \frac{1}{4\pi\epsilon_0}\frac{Q}{r^2}$

The field (and therefore the gradient) drops off as the inverse square of the distance. Close to the charge, the gradient is steep; far away, it flattens out.

Cylindrical charge distributions

For an infinitely long line of charge with linear charge density $\lambda$:

$E(r) = \frac{\lambda}{2\pi\epsilon_0 r}$

Here the field drops off as $1/r$ (not $1/r^2$), so it weakens more slowly with distance than a point charge field does.

Potential gradient in materials

Dielectrics and potential gradient

When you insert a dielectric material into a region with an electric field, the potential gradient inside the dielectric is reduced compared to what it would be in vacuum. The reduction factor is the material's relative permittivity (dielectric constant) $\epsilon_r$:

$E_{eff} = \frac{E_0}{\epsilon_r}$

where $E_0$ is the field that would exist without the dielectric. This happens because the polarized molecules in the dielectric create an internal field that partially opposes the applied field.

Conductors and zero gradient

As noted earlier, the potential gradient inside a conductor at electrostatic equilibrium is zero. Charges on the surface arrange themselves so the interior is at a single uniform potential. This principle is the basis of Faraday cage shielding: a conducting enclosure blocks external electric fields from reaching its interior.

Experimental measurements

Electrostatic voltmeter use

An electrostatic voltmeter measures potential differences without drawing significant current, so it doesn't disturb the field you're trying to measure. It works through electrostatic induction and can handle potentials up to hundreds of kilovolts. By measuring potential at two nearby points, you can estimate the gradient.

Field mill applications

A field mill is a rotating-vane instrument that directly measures electric field strength. It's widely used in atmospheric electricity studies and lightning warning systems. Typical measurement range spans from about 1 V/m to 500 kV/m, with response times in milliseconds, fast enough to detect rapid field changes before lightning strikes.

Potential gradient in Earth's atmosphere

Fair weather electric field

Even on a clear day, Earth's atmosphere has a natural potential gradient of roughly 100 V/m near the surface, pointing downward. This is part of the global electric circuit maintained by thunderstorm activity worldwide. The gradient decreases with altitude and approaches zero near the ionosphere (about 50 km up).

Thunderstorm conditions

Under storm clouds, the potential gradient can spike to over 10 kV/m near ground level. Rapid changes in the gradient, especially a sudden reversal in direction, often precede lightning strikes. Monitoring stations use these gradient changes as early warning indicators for lightning risk.

Technological applications

Electron microscopes

Electron microscopes use carefully shaped potential gradients to accelerate and focus beams of electrons. The accelerating voltage (typically 1 to 300 kV) determines the electron energy and ultimately the resolution of the image. Electrostatic lenses, created by electrodes at different potentials, bend the electron beam much like glass lenses bend light. High-end instruments achieve sub-angstrom resolution.

Particle accelerators

Particle accelerators chain together many potential gradients to push charged particles to enormous energies. In a linear accelerator, radio-frequency cavities create time-varying electric fields that give particles a "kick" each time they pass through, with gradients reaching up to 100 MV/m. Circular accelerators combine these RF cavities with magnetic fields to keep particles on curved paths while continuously accelerating them. Applications range from fundamental physics research to radiation therapy in medicine.

Problem-solving strategies

Symmetry considerations

Before diving into a calculation, always look for symmetry in the charge distribution. Symmetry can dramatically simplify your work:

• Spherical symmetry (point charges, uniformly charged spheres) → use Gauss's law; the problem reduces to one variable ($r$).
• Cylindrical symmetry (long wires, coaxial cables) → again reduces to one radial variable.
• Planar symmetry (infinite sheets, parallel plates) → the field depends only on the perpendicular distance from the plane.

Recognizing symmetry turns a potentially difficult three-dimensional problem into a much simpler one-dimensional problem.

Superposition principle application

When you have multiple charges, find the potential from each charge individually, then add them all up:

$V_{total} = \sum_i V_i$

Since potential is a scalar, you just add numbers (no vector components to worry about). Once you have the total potential, take the gradient to find the total electric field:

$\nabla V_{total} = \sum_i \nabla V_i$

This "find potential first, then differentiate" strategy is often easier than adding up electric field vectors directly, because you avoid dealing with vector components until the very last step.
