4.7 Electrical power

Definition of electrical power

Electrical power measures the rate at which electrical energy transfers or converts to other forms of energy in a circuit. In equation form, it describes the work done per unit time by an electric current. This concept is central to understanding energy consumption, circuit efficiency, and the design of electrical systems.

Power in DC circuits

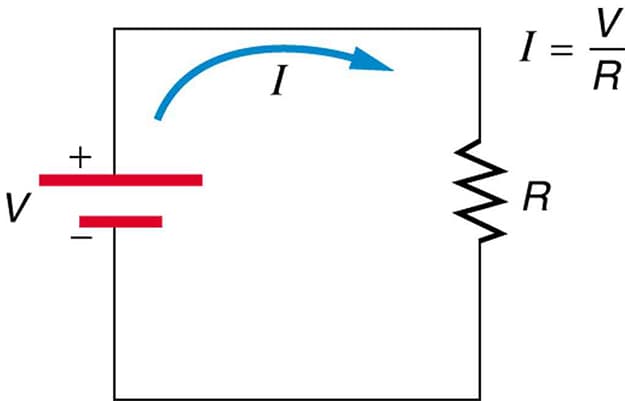

In DC circuits, voltage and current are constant and flow in one direction. Power is calculated using:

$P = VI$

where $P$ is power in watts, $V$ is voltage in volts, and $I$ is current in amps. Because voltage and current don't change with time in an ideal DC circuit, the power output remains steady. This applies to battery-powered devices like flashlights and smartphones.

Power in AC circuits

In AC circuits, voltage and current vary sinusoidally over time. You can't just multiply the peak values together, because those peaks don't last. Instead, you use root mean square (RMS) values, which represent the effective steady-state equivalent:

$P = V_{rms} \, I_{rms} \cos\phi$

The power factor ($\cos\phi$) accounts for the phase difference between voltage and current. When voltage and current are perfectly in phase ($\phi = 0$), $\cos\phi = 1$ and all the supplied power does useful work. When they're out of phase, some power sloshes back and forth without doing anything productive.

Power equation

The power equation connects electrical power to the basic circuit parameters: voltage, current, and resistance. These relationships let you calculate power in any situation, depending on which quantities you know.

Relationship to voltage and current

The foundational equation is:

$P = VI$

Power is directly proportional to both voltage and current. Doubling either one doubles the power.

In AC circuits, there's a distinction between apparent power and real power:

• Apparent power: $S = VI$ (measured in volt-amperes, VA)
• Real power: $P = VI \cos\phi$ (measured in watts)

The power triangle illustrates how real power ($P$), reactive power ($Q$), and apparent power ($S$) relate geometrically, with $S$ as the hypotenuse.

Relationship to resistance

By substituting Ohm's law ($V = IR$) into $P = VI$, you get two alternative forms:

$P = I^2 R$

$P = \frac{V^2}{R}$

The first form, sometimes called Joule's law, is especially useful for understanding heat generation. It tells you that power dissipated in a resistor grows with the square of the current. Double the current, and you get four times the power loss. This explains why heating elements, incandescent bulbs, and overloaded wires get hot.

The second form is handy when you know the voltage across a component but not the current through it.

Units of power

Watts and kilowatts

The watt (W) is the SI unit of power, equal to one joule per second ($1 \text{ W} = 1 \text{ J/s}$). For larger power ratings, the kilowatt (kW) equals 1000 watts.

To measure energy consumption over time, you use the kilowatt-hour (kWh). One kWh is the energy used by a 1 kW device running for one hour. Utility companies bill customers based on kWh consumed. For example, running a 100 W light bulb for 10 hours uses 1 kWh.

Horsepower vs watts

Horsepower (hp) is an older unit still common in the automotive industry for engine ratings. The conversion is:

$1 \text{ hp} = 745.7 \text{ W}$

So a 200 hp engine produces about 149,140 W, or roughly 149 kW. The watt is gradually replacing horsepower in many fields for standardization.

Power dissipation

Power dissipation is the process of converting electrical energy into other forms, most often heat. Managing dissipation is critical for circuit reliability and safety.

Heat generation in circuits

Resistive elements convert electrical energy to thermal energy, described by $P = I^2 R$. This is called Joule heating. Every real conductor has some resistance, so every real circuit generates some waste heat.

If heat isn't managed properly, components can overheat and fail. Thermal management techniques include heat sinks (metal fins that radiate heat away), cooling fans, and thermal paste to improve heat transfer between components.

Power loss in transmission lines

Transmission lines have resistance, so they dissipate power as heat according to:

$P_{loss} = I^2 R$

This is why long-distance power transmission uses high voltage. For a given amount of power ($P = VI$), raising the voltage lets you lower the current. Since losses scale with $I^2$, even a modest reduction in current dramatically cuts losses. This is the entire reason transformers and high-voltage lines exist.

Power factor

The power factor is the ratio of real power to apparent power in an AC circuit:

$\text{Power Factor} = \cos\phi = \frac{P}{S}$

It ranges from 0 to 1. A power factor of 1 means all supplied power is doing useful work (purely resistive load). A low power factor means a large portion of the current is reactive, flowing back and forth without delivering energy.

Real vs apparent power

• Real power (P): The power that actually performs useful work. Measured in watts (W).
• Apparent power (S): The total power supplied to the circuit. Measured in volt-amperes (VA).
• Reactive power (Q): Power stored and released by inductors and capacitors. Measured in volt-amperes reactive (VAR).

These three are related by the power triangle:

$S^2 = P^2 + Q^2$

Power factor correction

Inductive loads (like motors and transformers) cause current to lag behind voltage, lowering the power factor. Power factor correction adds capacitors to the circuit to counteract this lag, bringing the power factor closer to 1.

Benefits include:

• Reduced current draw for the same real power
• Lower $I^2 R$ losses in wiring
• Improved voltage regulation
• Lower electricity costs (utilities often penalize industrial customers for poor power factor)

Power in household circuits

Residential electrical systems distribute power at typically 120 V or 240 V AC, at either 50 Hz or 60 Hz depending on the country.

Circuit breakers and fuses

These protective devices interrupt current flow during an overload or short circuit. Circuit breakers can be reset after they trip. Fuses contain a thin wire that melts and must be replaced. Both are rated for specific current capacities (e.g., 15 A, 20 A, 30 A) and prevent electrical fires and equipment damage.

You can figure out the maximum power a circuit can handle using $P = VI$. A 20 A circuit at 120 V can safely deliver $20 \times 120 = 2400$ W.

Electrical safety considerations

• Grounding provides a safe path for fault currents, preventing electric shock and equipment damage.
• Ground Fault Circuit Interrupters (GFCIs) detect small current imbalances (as little as 5 mA) and cut power almost instantly. Required in bathrooms, kitchens, and outdoor outlets.
• Arc Fault Circuit Interrupters (AFCIs) detect dangerous electrical arcing that could start fires.
• Overloading circuits by plugging in too many devices is a common cause of electrical fires.

Power generation

Power generation converts various energy sources into electrical power. The basic principle for most generators is the same: mechanical energy spins a turbine connected to a generator, which uses electromagnetic induction to produce electricity.

Hydroelectric vs thermal plants

• Hydroelectric plants convert the potential energy of falling water into electricity. They're cleaner but limited by geography (you need a suitable river or reservoir).
• Thermal plants burn fuel (coal, natural gas) or use nuclear reactions to produce heat, which generates steam to drive turbines. They provide consistent baseload power but often produce emissions.

Renewable energy sources

• Solar: Photovoltaic cells convert light directly into electricity.
• Wind: Turbines harness kinetic energy from moving air.
• Geothermal: Taps into Earth's internal heat.
• Biomass: Burns organic matter to produce electricity.

The main challenge with solar and wind is intermittency: they only produce power when the sun shines or wind blows, making energy storage a key engineering problem.

Power transmission

Electrical power must travel from generation sites to consumers, sometimes over hundreds of kilometers. The transmission network includes power lines, transformers, and substations.

Step-up and step-down transformers

Transformers change voltage levels using electromagnetic induction:

1. Step-up transformers increase voltage (and decrease current) at the power plant for long-distance transmission.
2. Step-down transformers reduce voltage at substations and distribution points for safe consumer use.

This two-step process is the key to efficient transmission. High voltage on the lines means low current, which means low $I^2 R$ losses.

High-voltage transmission lines

These lines carry electricity at voltages ranging from 100 kV to over 1000 kV. The high voltage keeps current low, minimizing resistive losses over long distances. The lines require specialized insulation, tall towers for safety clearance, and maintenance to manage environmental factors like weather and vegetation.

Power consumption

Power consumption refers to the amount of electrical energy used by devices or systems. It varies widely: a phone charger might draw 5 W, while an electric oven draws 2000-5000 W.

Energy efficiency ratings

Standardized ratings help consumers compare how much energy appliances use. In the US, the Energy Star program certifies high-efficiency products, and EnergyGuide labels show estimated annual energy consumption and operating cost. Choosing efficient appliances can significantly reduce electricity bills over time.

Standby power in devices

Standby power (sometimes called vampire power or phantom load) is the energy consumed by devices that are off but still plugged in. Think of phone chargers left in the wall, TVs on standby, or game consoles in sleep mode. This can account for 5-10% of a household's total electricity use. Smart power strips that cut power completely to idle devices can help reduce this waste.

Measuring electrical power

Wattmeters and energy meters

• Wattmeters measure instantaneous power consumption at a given moment.
• Energy meters (kilowatt-hour meters) measure cumulative energy use over time. The meter on the side of your house is an energy meter.
• Modern digital meters offer improved accuracy and can be read remotely.
• Power quality analyzers measure additional parameters like power factor and harmonics.

Smart grid technologies

Smart grids use advanced metering infrastructure (AMI) to enable two-way communication between utilities and consumers. This allows real-time monitoring of power distribution, demand response programs that adjust consumption based on grid conditions, and better integration of intermittent renewable sources. The goal is a more reliable, efficient, and flexible power grid.

Applications of electrical power

Industrial vs residential use

Industrial applications often require three-phase power to run heavy machinery like motors and welding equipment. Residential use is primarily single-phase, powering lighting, appliances, and electronics. Industrial power consumption is typically much higher and more constant throughout the day, while residential use peaks in the morning and evening.

Electric vehicles and charging

As transportation electrifies, EV charging is becoming a significant category of power consumption. Charging levels differ in speed and voltage:

• Level 1: Standard 120 V outlet, slowest (adds ~5 miles of range per hour)
• Level 2: 240 V dedicated circuit, moderate speed (adds ~25 miles per hour)
• DC Fast Charging: High-voltage direct current, fastest (can reach 80% in 20-40 minutes)

Widespread EV adoption raises questions about grid capacity, charging infrastructure, and the potential for vehicle-to-grid (V2G) technology, where parked EVs could feed power back to the grid during peak demand.
