9.4 Total internal reflection
8 min read•august 21, 2024
Total internal reflection is a fascinating optical phenomenon where light is completely reflected within a medium. This occurs when light travels from a denser to a less dense medium at an angle greater than the .
Understanding total internal reflection is crucial for grasping various optical devices and natural phenomena. It's the principle behind , mirages, and many other applications that rely on controlling light's path through different materials.
Principles of total reflection
- Total internal reflection forms a crucial component of optical physics, building on fundamental principles of light propagation and refraction
- This phenomenon occurs when light travels from a medium with a higher to one with a lower refractive index, under specific conditions
- Understanding total internal reflection is essential for comprehending various optical devices and natural phenomena studied in Principles of Physics II

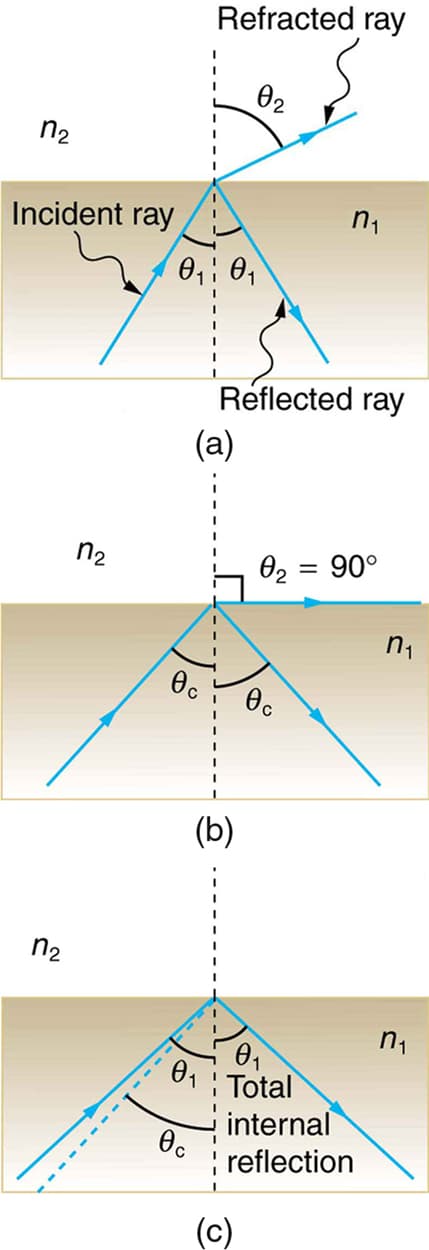

Critical angle definition
Top images from around the web for Critical angle definition
Reflection, Refraction, and Dispersion | Boundless Physics View original
Is this image relevant?
10.4 Total Internal Reflection – Douglas College Physics 1207 View original
Is this image relevant?
List of refractive indices - Wikipedia View original
Is this image relevant?
Reflection, Refraction, and Dispersion | Boundless Physics View original
Is this image relevant?
10.4 Total Internal Reflection – Douglas College Physics 1207 View original
Is this image relevant?
1 of 3
Top images from around the web for Critical angle definition
Reflection, Refraction, and Dispersion | Boundless Physics View original
Is this image relevant?
10.4 Total Internal Reflection – Douglas College Physics 1207 View original
Is this image relevant?
List of refractive indices - Wikipedia View original
Is this image relevant?
Reflection, Refraction, and Dispersion | Boundless Physics View original
Is this image relevant?
10.4 Total Internal Reflection – Douglas College Physics 1207 View original
Is this image relevant?
1 of 3
- Defines the minimum angle of incidence at which total internal reflection occurs
- Calculated using the refractive indices of the two media involved
- Varies depending on the specific materials through which light is passing
- Crucial concept for designing optical systems that rely on total internal reflection
Snell's law application
- forms the basis for understanding the critical angle and total internal reflection
- Relates the angles of incidence and refraction to the refractive indices of the media
- Expressed mathematically as
- Used to determine the critical angle when the angle of refraction equals 90 degrees
- Helps predict the behavior of light at interfaces between different media
Conditions for occurrence
- Total internal reflection requires specific conditions to take place, rooted in the principles of optics
- These conditions involve the relationship between refractive indices of the media and the angle at which light strikes the interface
- Understanding these conditions is crucial for designing optical systems and explaining natural optical phenomena
Refractive index requirements
- Light must travel from a medium with a higher refractive index to one with a lower refractive index
- The ratio of refractive indices determines the critical angle
- Common examples include light traveling from water to air or glass to air
- Refractive index difference impacts the range of angles at which total internal reflection occurs
- Materials with larger refractive index differences allow for a wider range of total internal reflection angles
Angle of incidence vs critical angle
- Total internal reflection occurs when the angle of incidence exceeds the critical angle
- Angles of incidence below the critical angle result in partial reflection and refraction
- As the angle of incidence approaches the critical angle, the angle of refraction approaches 90 degrees
- Beyond the critical angle, no light is transmitted into the second medium
- The relationship between angle of incidence and critical angle is key to designing optical systems (prisms, fiber optics)
Optical phenomena
- Total internal reflection explains various optical phenomena observed in nature and utilized in technology
- These phenomena demonstrate the practical applications of the principles learned in Principles of Physics II
- Understanding these effects helps in developing new optical technologies and explaining natural optical illusions
Mirages and light bending
- Mirages occur due to gradual changes in air density, causing light to bend and create optical illusions
- Inferior mirages (hot road surfaces) result from total internal reflection in air layers of varying temperature
- Superior mirages (inverted images in cold regions) involve total internal reflection in atmospheric temperature inversions
- Light bending in mirages follows principles similar to fiber optics, but in a natural, continuous medium
- Understanding mirages requires knowledge of both total internal reflection and atmospheric physics
Fiber optics applications
- Fiber optics utilize total internal reflection to transmit light signals over long distances with minimal loss
- consist of a core with a higher refractive index surrounded by a cladding with a lower refractive index
- Light undergoes multiple total internal reflections within the fiber core, allowing for efficient signal transmission
- Fiber optic applications include high-speed internet, medical endoscopy, and telecommunications
- The efficiency of fiber optics depends on the critical angle and the fiber's material properties
Mathematical treatment
- The mathematical analysis of total internal reflection provides quantitative insights into its behavior
- These calculations are essential for designing optical systems and predicting light behavior in various media
- Understanding the mathematical treatment enhances the ability to apply total internal reflection principles in practical scenarios
Critical angle calculation
- Derived from Snell's law when the angle of refraction equals 90 degrees
- Calculated using the formula: , where n1 > n2
- Depends solely on the ratio of the refractive indices of the two media
- Critical angle for water-air interface: approximately 48.6 degrees
- Critical angle for glass-air interface: approximately 41.1 degrees (for typical glass)
Reflectance vs angle of incidence
- Reflectance increases as the angle of incidence approaches and exceeds the critical angle
- Below the critical angle, reflectance follows Fresnel equations
- At the critical angle, reflectance increases sharply
- Beyond the critical angle, 100% reflectance is achieved
- Graphing reflectance vs angle of incidence shows a characteristic curve with a sharp transition at the critical angle
Practical applications
- Total internal reflection finds numerous applications in modern technology and scientific instruments
- These applications demonstrate the practical relevance of optical physics principles studied in Principles of Physics II
- Understanding these applications helps in appreciating the real-world impact of fundamental physics concepts
Optical fibers in communications
- Optical fibers transmit data using pulses of light guided by total internal reflection
- Enable high-speed, long-distance communication with minimal signal loss
- Core-cladding structure ensures light remains confined within the fiber
- Fiber optic cables can carry multiple signals simultaneously using different wavelengths
- Applications include internet infrastructure, telephone networks, and submarine communication cables
Prisms and light guides
- Prisms use total internal reflection to redirect light without losses
- Right-angle prisms reflect light at 90-degree angles, used in binoculars and periscopes
- Retroreflectors (corner cube prisms) reflect light back to its source, used in road signs and safety equipment
- Light guides in electronic displays use total internal reflection to distribute light evenly
- Prism-based spectrometers separate light into its component wavelengths for analysis
Limitations and exceptions
- While total internal reflection is a powerful optical phenomenon, it has certain limitations and exceptions
- Understanding these limitations is crucial for accurately applying total internal reflection principles in various scenarios
- These exceptions often lead to interesting optical effects and specialized applications
Frustrated total internal reflection
- Occurs when a third medium is placed very close to the interface where total internal reflection takes place
- Allows some light to "tunnel" through the gap and enter the third medium
- The intensity of transmitted light decreases exponentially with the gap width
- Used in optical tunneling microscopes and some touch-sensitive screens
- Demonstrates the wave nature of light and relates to quantum mechanical tunneling
Evanescent waves
- Electromagnetic fields that extend beyond the interface during total internal reflection
- Decay exponentially with distance from the interface
- Do not carry energy across the boundary but can interact with nearby particles or materials
- Used in surface plasmon resonance sensors and near-field scanning optical microscopy
- Provide a means of coupling light between optical waveguides placed in close proximity
Experimental demonstrations
- Experimental demonstrations of total internal reflection help visualize and verify the principles learned in class
- These experiments often form part of laboratory sessions in Principles of Physics II courses
- Conducting and analyzing these experiments enhances understanding of optical physics concepts
Laser beam in water tank
- Demonstrates total internal reflection at the water-air interface
- A laser beam is directed into a water-filled tank at various angles
- As the angle increases, the beam transitions from refraction to total internal reflection
- Allows direct observation of the critical angle
- Can be used to measure the refractive index of water experimentally
Optical fiber transmission efficiency
- Measures the efficiency of light transmission through optical fibers
- Compares input and output light intensities for fibers of different lengths
- Demonstrates the low signal loss in properly designed optical fibers
- Can be used to calculate the attenuation coefficient of the fiber
- Illustrates the practical application of total internal reflection in telecommunications
Historical context
- The historical development of total internal reflection concepts provides insight into the evolution of optical physics
- Understanding this history helps appreciate the progression of scientific thought and experimental techniques
- Historical context often reveals the interconnectedness of various physics concepts and their practical applications
Discovery and early observations
- Total internal reflection phenomena observed in ancient times (shimmering water surfaces, mirages)
- First scientific description by Johannes Kepler in the early 17th century
- Isaac Newton's experiments with prisms further explored the phenomenon
- Augustin-Jean Fresnel developed mathematical descriptions in the early 19th century
- Early applications included lighthouses using prism-based lenses to focus light
Evolution of scientific understanding
- Development of wave theory of light in the 19th century provided deeper explanations
- Maxwell's equations in the late 19th century unified optics with electromagnetism
- Quantum mechanics in the 20th century explained evanescent waves and tunneling effects
- Invention of lasers in the 1960s enabled more precise experiments and applications
- Modern computational methods allow for complex simulations of total internal reflection in various systems
Related optical concepts
- Total internal reflection is closely related to other optical phenomena studied in Principles of Physics II
- Understanding these relationships helps in developing a comprehensive view of optical physics
- Comparing and contrasting these concepts enhances overall comprehension of light behavior
Brewster's angle comparison
- Brewster's angle occurs when reflected light is completely polarized
- Unlike total internal reflection, Brewster's angle involves partial reflection and transmission
- Brewster's angle depends on the refractive indices of both media
- Calculated using the formula:
- Used in polarizing filters and optical devices to manipulate light polarization
Total internal reflection vs refraction
- Refraction involves light bending as it passes between media of different refractive indices
- Total internal reflection occurs when light cannot refract into the second medium
- Refraction follows Snell's law for all angles of incidence below the critical angle
- Total internal reflection results in 100% reflection, while refraction always involves some transmission
- Understanding both phenomena is crucial for analyzing light behavior at interfaces between different media
Key Terms to Review (16)
Critical angle: The critical angle is the specific angle of incidence at which light, traveling from a denser medium to a less dense medium, is refracted at an angle of 90 degrees along the boundary. This phenomenon signifies the threshold for total internal reflection, where any incident light beyond this angle will not pass through the boundary but instead be completely reflected back into the denser medium. Understanding the critical angle is crucial for grasping how light behaves at the interface of different media, especially in optical applications.
Fiber optics: Fiber optics refers to the technology that uses thin strands of glass or plastic, known as optical fibers, to transmit data in the form of light signals. This technology enables high-speed data transmission over long distances with minimal loss, making it essential for telecommunications, internet connectivity, and medical applications.
Incident angle: The incident angle is the angle formed between the incoming ray of light and the normal line, which is an imaginary line perpendicular to the surface at the point of incidence. This angle is crucial in understanding how light behaves when it encounters different mediums, especially in the context of reflection and refraction. When light hits a boundary between two materials, the incident angle plays a significant role in determining whether the light will be refracted or reflected, and it directly influences phenomena like total internal reflection.
Law of reflection: The law of reflection states that when light rays hit a reflective surface, the angle of incidence is equal to the angle of reflection. This fundamental principle helps us understand how light behaves when it encounters various surfaces, which is crucial for grasping concepts related to light's nature, reflection processes, total internal reflection phenomena, and the operation of mirrors.
Light ray: A light ray is an idealized model that represents the path along which light energy travels. It is often depicted as a straight line with an arrow indicating the direction of propagation, helping to visualize how light interacts with various materials and phenomena like reflection and refraction. Understanding light rays is crucial in explaining optical principles, including total internal reflection, where light is completely reflected within a medium rather than passing through its boundary.
Light trapping: Light trapping is a phenomenon that occurs when light is confined within a medium through repeated total internal reflection, maximizing the absorption of light within that material. This process is crucial in various applications, such as solar cells and optical devices, where efficient light capture is essential for enhanced performance. By leveraging the principles of refraction and reflection, light trapping ensures that more photons are utilized, leading to improved energy conversion or signal transmission.
Medium boundary: A medium boundary refers to the interface between two different media, where the properties of light or sound can change, affecting how waves behave as they pass through. This boundary is crucial in understanding phenomena like reflection, refraction, and total internal reflection, as it determines how waves interact with different materials and influences the angles at which these interactions occur.
N1 sin(θ1) = n2 sin(θ2): The equation $$n_1 \sin(\theta_1) = n_2 \sin(\theta_2}$$ describes the relationship between the angles of incidence and refraction when light passes between two different media. This principle is fundamental in understanding how light bends or refracts as it travels through materials with different indices of refraction, and it directly connects to the phenomenon of total internal reflection, where light cannot escape a medium and is instead reflected back.
Optical fibers: Optical fibers are thin strands of glass or plastic that transmit light signals over long distances with minimal loss of signal strength. These fibers utilize the principle of total internal reflection, allowing light to be guided along their length while preventing it from escaping into the surrounding medium. Their unique properties make them essential for various applications, including telecommunications and medical instruments.
Optically denser medium: An optically denser medium is a substance that has a higher refractive index than another substance, which means that light travels more slowly in it compared to the less dense medium. This characteristic influences how light behaves when it transitions between different materials, particularly in phenomena such as refraction and total internal reflection. In an optically denser medium, light bends towards the normal when entering from a less dense medium.
Optically less dense medium: An optically less dense medium is a substance through which light travels faster compared to other materials, typically having a lower index of refraction. This characteristic plays a crucial role in phenomena such as refraction and total internal reflection, as light transitions between different media can significantly affect its speed and direction. Understanding how light behaves in these media is key to grasping the underlying principles of optics.
Ray diagram: A ray diagram is a visual representation used in optics to depict the path that light rays take as they travel through different media and interact with optical elements. This method simplifies complex interactions by using straight lines to represent the direction of light, making it easier to understand how images are formed by lenses or mirrors, and is essential in analyzing phenomena like total internal reflection.
Refractive index: The refractive index is a dimensionless number that describes how light propagates through a medium. It is defined as the ratio of the speed of light in a vacuum to the speed of light in the medium. This concept is crucial for understanding how light bends, reflects, and interacts with different materials, influencing phenomena such as total internal reflection and thin film interference.
Sin(θc) = n2/n1: The equation sin(θc) = n2/n1 defines the critical angle, θc, for total internal reflection at the boundary between two media with different refractive indices. This relationship illustrates how light behaves as it travels from a medium with a higher refractive index (n1) to one with a lower refractive index (n2), where θc represents the angle of incidence at which light can no longer pass into the second medium and is instead entirely reflected back into the first medium. Understanding this equation is crucial in applications such as fiber optics, where total internal reflection is exploited to transmit light efficiently.
Snell's Law: Snell's Law is a principle that describes how light bends when it passes from one medium to another, relating the angles of incidence and refraction to the indices of refraction of the two media. This law highlights the behavior of light in different materials, revealing how changes in speed and direction occur during transmission, which connects directly to concepts like reflection, refraction, total internal reflection, and the wave nature of light.
Total internal reflection prism: A total internal reflection prism is an optical device that utilizes the principle of total internal reflection to redirect light. It works by allowing light to hit the boundary of two materials at a steep angle, causing it to reflect back completely instead of refracting through. This property makes these prisms essential in applications such as optical devices, fiber optics, and certain imaging systems.
