4.1 Nodal Analysis

Nodal analysis is a powerful technique for solving complex circuits. It uses Kirchhoff's Current Law to set up equations for node voltages, simplifying the analysis of multi-node networks. This method is especially useful for circuits with many current sources and nodes.

By systematically applying KCL at each node, we can create a set of equations to solve for unknown voltages. This approach works for both DC and AC circuits, making it a versatile tool in your circuit analysis toolkit.

Nodal Analysis for Circuits

Top images from around the web for Kirchhoff's Current Law and Nodal Analysis Fundamentals

• Nodal Voltage Analysis and Mesh Current Analysis - Electronics-Lab.com View original

  Is this image relevant?

•

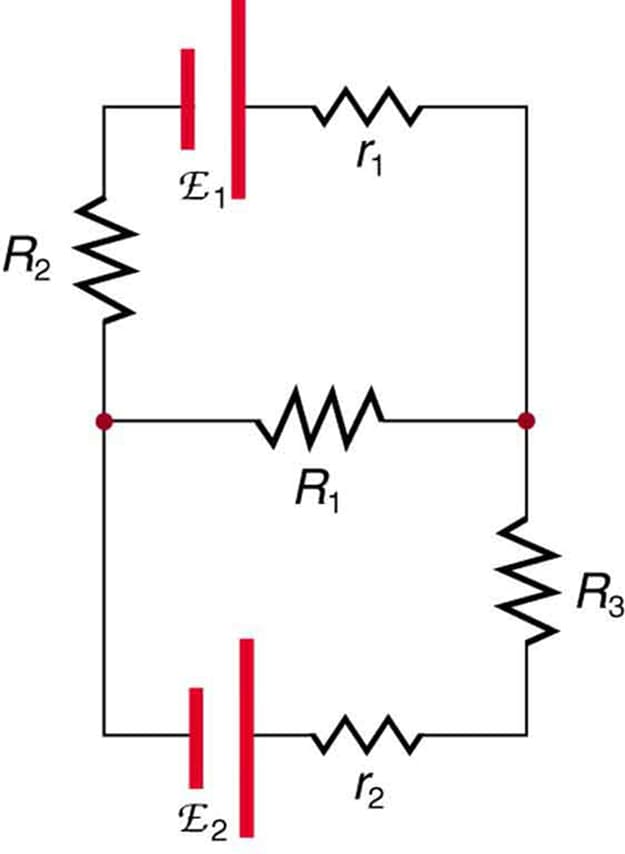

  Kirchhoff’s Rules | Boundless Physics View original

  Is this image relevant?

• Kirchhoff's circuit laws - Wikipedia View original

  Is this image relevant?

• Nodal Voltage Analysis and Mesh Current Analysis - Electronics-Lab.com View original

  Is this image relevant?

• Kirchhoff’s Rules | Boundless Physics View original

  Is this image relevant?

Kirchhoff's Current Law and Nodal Analysis Fundamentals

• Kirchhoff's Current Law (KCL) states the algebraic sum of currents entering and leaving a node equals zero
• Nodal analysis applies KCL at each circuit node to determine node voltages
• Node defined as a point where two or more circuit elements connect
• Reference node (ground) typically assigned 0V voltage used as basis for measuring other node voltages
• KCL equations written for each non-reference node express currents in terms of node voltages and component values
• Ohm's Law expresses branch currents as voltage differences between nodes divided by branch resistances

Key Components and Concepts in Nodal Analysis

• Circuit elements involved in nodal analysis include resistors, current sources, and voltage sources
• Independent and dependent sources treated differently in nodal equations
• Supernodes formed when voltage sources connect directly between nodes
• Essential steps in nodal analysis process
  • Identify all nodes and designate reference node
  • Assign voltage variables to non-reference nodes
  • Write KCL equations for each non-reference node
  • Express currents using Ohm's Law and component values
• Nodal analysis applies to both DC and AC circuits (using phasor notation for AC)

Nodal Equations for Complex Circuits

Formulating Nodal Equations

• Identify all circuit nodes and designate a reference node (ground)
• Assign voltage variables to each non-reference node (V1, V2, V3)
• Write KCL equations for each non-reference node expressing currents in terms of node voltages
• For voltage sources between nodes use voltage difference in equations
• Include current source values directly in KCL equations at connected nodes
• Express resistor currents using Ohm's Law with node voltages and resistance values
• Simplify and rearrange equations to create a system of linear equations with node voltages as unknowns

Handling Special Cases in Nodal Analysis

• Supernode technique for voltage sources connected directly between nodes
  • Combine nodes connected by voltage source into a single supernode
  • Write KCL equation for the supernode
  • Use voltage source value as an additional equation
• Floating voltage sources require special treatment
  • Assign a variable to one terminal and express the other in terms of it
• Dependent sources in nodal analysis
  • Express controlling variable in terms of node voltages
  • Include dependent source term in KCL equation at appropriate node

Solving Circuits with Nodal Analysis

Matrix-Based Solution Methods

• Organize nodal equations into matrix form AV = B
  • A represents coefficient matrix
  • V represents vector of unknown node voltages
  • B represents vector of known quantities
• Use matrix algebra techniques to solve for unknown node voltages
  • Gaussian elimination
  • LU decomposition
  • Matrix inversion (for smaller systems)
• Apply computer algebra systems or numerical methods for larger circuits
• Calculate branch currents using Ohm's Law once node voltages determined

Verification and Advanced Techniques

• Verify solution by substituting calculated values into original nodal equations
• Apply superposition principle for circuits with multiple independent sources
  • Analyze each source separately
  • Sum individual results for final solution
• Use nodal analysis in conjunction with other techniques
  • Source transformation
  • Thevenin and Norton equivalent circuits
• Extend nodal analysis to AC circuits using phasor notation and complex impedances

Nodal Analysis: Advantages vs Limitations

Advantages of Nodal Analysis

• Systematic approach for analyzing complex circuits with multiple nodes
• Reduces equation count compared to mesh analysis for circuits with more nodes than loops
• Well-suited for computer-aided circuit analysis due to systematic nature
• Particularly effective for circuits with high node-to-loop ratio
• Efficient for analyzing circuits containing many current sources
• Easily extended to AC circuit analysis using phasor notation

Limitations and Considerations

• Can become cumbersome for circuits with many voltage sources connected directly between nodes
• Requires supernode technique modification for voltage sources connected between nodes
• May not be most efficient method for circuits with large number of voltage sources
• Less efficient when dealing with circuits containing many voltage sources not referenced to ground
• Requires additional steps for floating voltage sources or certain types of dependent sources
• May require more complex matrix operations for very large circuits
