Sinusoidal sources and phasors are key to understanding AC circuits. They let us analyze how voltage and current change over time in a simple way. Instead of dealing with complicated time-based equations, we can use phasors to represent these signals as simple numbers.

This approach makes it much easier to solve circuit problems. We can use familiar techniques like Ohm's Law and Kirchhoff's Laws, but now with complex numbers. This powerful method helps us tackle real-world AC systems, from household electricity to power grids.

Sinusoidal Sources and Characteristics

Fundamentals of Sinusoidal Sources

Top images from around the web for Fundamentals of Sinusoidal Sources

  • Power in AC Circuits - Electronics-Lab.com View original

    Is this image relevant?

  • Sinusoidal Waveforms - Electronics-Lab.com View original

    Is this image relevant?

  • Power in AC Circuits - Electronics-Lab.com View original

    Is this image relevant?

1 of 3

Top images from around the web for Fundamentals of Sinusoidal Sources

  • Power in AC Circuits - Electronics-Lab.com View original

    Is this image relevant?

  • Sinusoidal Waveforms - Electronics-Lab.com View original

    Is this image relevant?

  • Power in AC Circuits - Electronics-Lab.com View original

    Is this image relevant?

1 of 3
  • Sinusoidal sources generate time-varying voltage or current waveforms described by sine or cosine functions
  • General form expressed as v(t)=Vmcos⁡(ωt+θ)v(t) = V_m \cos(\omega t + \theta) for voltage or i(t)=Imcos⁡(ωt+θ)i(t) = I_m \cos(\omega t + \theta) for current
  • Form the basis for more complex waveforms through Fourier analysis
  • Fundamental in AC circuit analysis and power systems

Key Parameters of Sinusoidal Waveforms

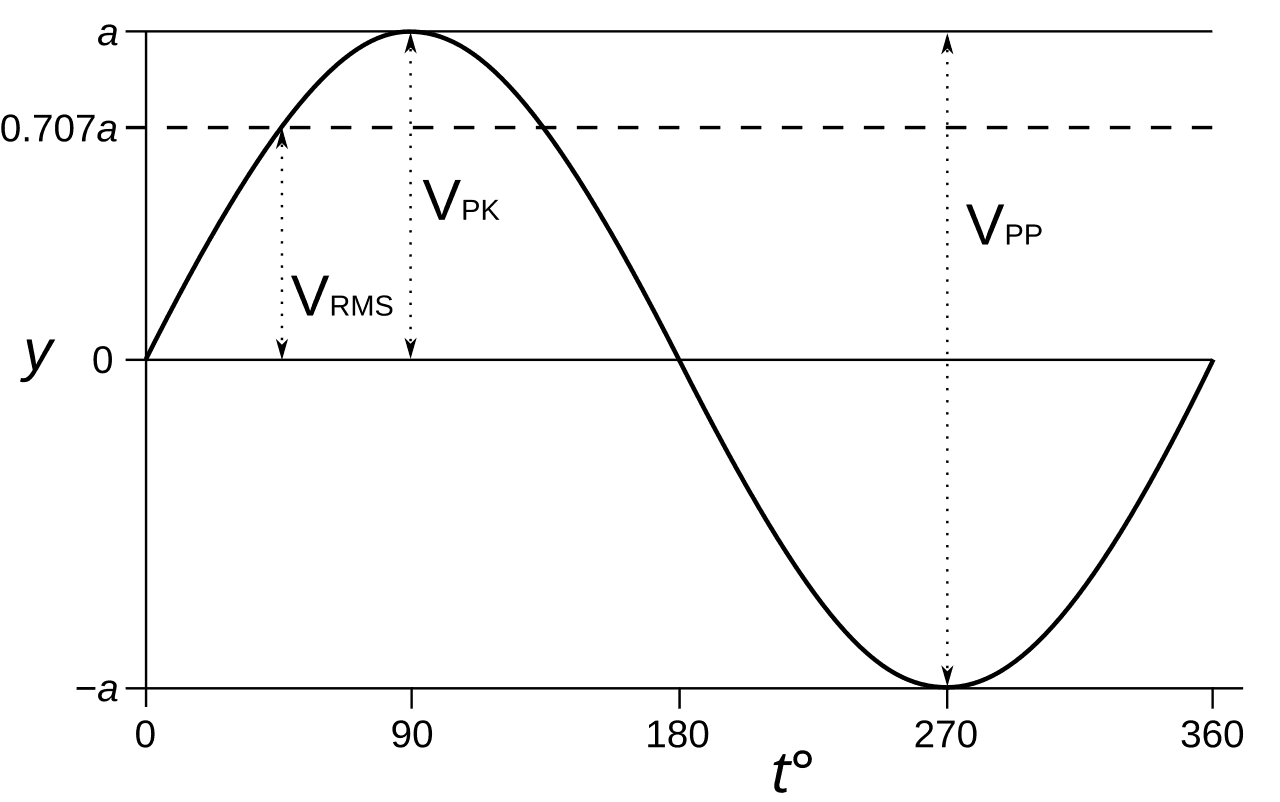

  • (VmV_m or ImI_m) measures the peak value of the waveform
  • (f) indicates the number of cycles per second, measured in Hertz (Hz)
  • Angular frequency (ω) relates to frequency by ω=2πf\omega = 2\pi f, measured in radians per second
  • Period (T) represents time for one complete cycle, calculated as T=1/fT = 1/f or T=2π/ωT = 2\pi/\omega
  • (θ) denotes the shift of the waveform from a reference point

Derived Quantities and Measurements

  • Root Mean Square (RMS) values represent the effective value of sinusoidal sources
  • Calculate RMS as Vrms=Vm/2V_{rms} = V_m/\sqrt{2} for voltage or Irms=Im/2I_{rms} = I_m/\sqrt{2} for current
  • Average power in a resistive load determined using RMS values
  • Instantaneous power varies sinusoidally at twice the frequency of the source

Phasors for Sinusoidal Signals

Phasor Representation Basics

  • Phasors simplify sinusoidal steady-state circuit analysis by converting time-domain equations to algebraic equations
  • Represent amplitude and phase of sinusoidal signals in the frequency domain
  • Define phasors in polar form as V=Vm∠θV = V_m\angle\theta or rectangular form as V=Vm(cos⁡θ+jsin⁡θ)V = V_m(\cos \theta + j \sin \theta)
  • Utilize Euler's formula ejθ=cos⁡θ+jsin⁡θe^{j\theta} = \cos \theta + j \sin \theta to relate phasors to time-domain functions

Phasor Domain Characteristics

  • Assume single frequency of operation (typically natural frequency of circuit or driving source frequency)
  • Valid only for linear time-invariant (LTI) systems in sinusoidal steady-state conditions
  • Relationship between time-domain function and phasor given by v(t)=Re{Vejωt}v(t) = \text{Re}\{Ve^{j\omega t}\}, where V is the phasor
  • Simplify analysis by eliminating need to solve differential equations for each time point

Phasor Transformations and Applications

  • Transform time-domain circuit elements to frequency-domain equivalents (resistors unchanged, inductors become jωLj\omega L, capacitors become 1/(jωC)1/(j\omega C))
  • Apply Kirchhoff's Voltage Law (KVL) and Kirchhoff's Current Law (KCL) directly to phasor quantities
  • Use impedance (Z) and admittance (Y) concepts to represent combined effects of resistance, inductance, and capacitance
  • Express as V=ZIV = ZI, where V and I are phasors and Z is complex impedance

Phasor Analysis of Circuits

Circuit Analysis Techniques

  • Apply KVL and KCL to phasor circuits similar to DC circuit analysis
  • Use series and parallel combinations of impedances following rules of DC resistive circuits with complex arithmetic
  • Implement voltage and current division principles with complex impedances
  • Utilize source transformation and Thévenin/Norton equivalent circuits in the phasor domain

Power Calculations in Phasor Domain

  • Introduce complex power (S) concept composed of real power (P) and reactive power (Q)
  • Calculate apparent power as S=VI∗S = VI^*, where V and I are voltage and current phasors, and I* is the complex conjugate of I
  • Determine real power as P=Re{S}P = \text{Re}\{S\} and reactive power as Q=Im{S}Q = \text{Im}\{S\}
  • Compute power factor as cos⁡θ=P/∣S∣\cos \theta = P/|S|, where θ is the phase angle between voltage and current

Advanced Analysis Methods

  • Apply superposition principle to circuits with multiple sinusoidal sources of the same frequency
  • Use nodal and mesh analysis techniques with complex impedances and admittances
  • Implement maximum power transfer theorem in AC circuits using complex conjugate matching
  • Analyze balanced three-phase systems using per-phase equivalent circuits and phasor notation

Phasor Operations

Basic Phasor Arithmetic

  • Add or subtract phasors by operating on real and imaginary parts separately in rectangular form
  • Convert phasors to rectangular form for addition/subtraction, then back to polar if needed
  • Multiply phasors in polar form by multiplying magnitudes and adding phase angles: (A∠θ1)(B∠θ2)=AB∠(θ1+θ2)(A\angle\theta_1)(B\angle\theta_2) = AB\angle(\theta_1 + \theta_2)
  • Divide phasors in polar form by dividing magnitudes and subtracting phase angles: (A∠θ1)/(B∠θ2)=(A/B)∠(θ1−θ2)(A\angle\theta_1) / (B\angle\theta_2) = (A/B)\angle(\theta_1 - \theta_2)

Advanced Phasor Operations

  • Use complex conjugate multiplication in power calculations (S = VI*)
  • Apply j-operator (j=−1j = \sqrt{-1}) for 90-degree rotations and imaginary component representation
  • Perform phasor differentiation and integration for time-varying phasors
  • Utilize phasor diagrams for graphical representation and analysis of circuit relationships

Coordinate System Conversions

  • Convert between rectangular (a + jb) and polar (r∠θr\angle\theta) forms using trigonometric functions
  • Calculate magnitude as r=a2+b2r = \sqrt{a^2 + b^2} and phase angle as θ=tan⁡−1(b/a)\theta = \tan^{-1}(b/a) when converting from rectangular to polar
  • Determine real part as a=rcos⁡θa = r \cos \theta and imaginary part as b=rsin⁡θb = r \sin \theta when converting from polar to rectangular
  • Use built-in functions in calculators or software for efficient conversions in complex calculations

Key Terms to Review (17)

Ac current source: An ac current source is a device or component that delivers an alternating current (AC) at a specific frequency, which can vary in magnitude and phase over time. It is essential in analyzing and designing electrical circuits that operate with sinusoidal signals, as it serves as a fundamental building block for understanding how these signals behave in the presence of other circuit elements.
Ac voltage source: An ac voltage source is a device that provides alternating current (AC) voltage to a circuit, characterized by a sinusoidal waveform. These sources are essential in powering electrical systems, as they produce voltages that vary over time, allowing for the efficient transmission and distribution of electricity.
Amperes: Amperes, often shortened to amps, are the unit of measurement for electric current in a circuit. It quantifies the flow of electric charge, essentially indicating how much electricity is flowing through a conductor at any given moment. The relationship between amperes and other electrical components, like voltage and resistance, is crucial for understanding how circuits operate, particularly when dealing with sinusoidal sources and phasors.
Amplitude: Amplitude refers to the maximum extent of a vibration or oscillation, measured from the position of equilibrium. It is a key characteristic of sinusoidal signals, as it indicates the strength or magnitude of the signal, directly affecting how signals interact in systems. Understanding amplitude is essential for analyzing how circuits respond to sinusoidal excitations and for utilizing phasors in electrical engineering.
Frequency: Frequency refers to the number of cycles or oscillations of a periodic waveform that occur in a unit of time, typically measured in hertz (Hz). This concept is crucial in understanding sinusoidal signals and their behavior in circuits, as it helps describe how quickly a signal oscillates and impacts the response of systems to sinusoidal excitation. By analyzing frequency, one can determine the relationship between the input signal and the response it generates within electrical circuits.
Impedance calculation: Impedance calculation refers to the process of determining the total opposition a circuit presents to the flow of alternating current (AC), incorporating both resistance and reactance. It is a complex quantity represented in polar or rectangular form, allowing engineers to analyze AC circuits more effectively. Understanding impedance is crucial when working with sinusoidal sources and phasors, as it helps predict how circuits respond to different frequencies.
Kirchhoff's Voltage Law for AC Circuits: Kirchhoff's Voltage Law (KVL) for AC circuits states that the sum of the voltages around any closed loop in a circuit is equal to zero. This principle is crucial for analyzing circuits with alternating current (AC) as it helps to understand how voltage phasors behave when sources and impedances are involved. KVL helps in establishing relationships between various components in the circuit, emphasizing the role of phase angles and magnitudes associated with sinusoidal sources.
Multimeter: A multimeter is a versatile instrument used to measure various electrical quantities such as voltage, current, and resistance. It is essential for diagnosing electrical issues and analyzing circuit performance, making it crucial for understanding how electrical circuits function and interact. By measuring these quantities, it allows users to assess power consumption, determine circuit continuity, and analyze complex signals in different contexts.
Ohm's Law in Phasor Form: Ohm's Law in phasor form relates the voltage, current, and impedance in alternating current (AC) circuits using phasors, which are complex numbers representing sinusoidal functions. It expresses that the phasor voltage ($$V$$) across an impedance ($$Z$$) is equal to the phasor current ($$I$$) times the impedance, given by the equation $$V = IZ$$. This formulation helps analyze AC circuits by simplifying calculations involving sinusoidal sources and their effects on circuit components.
Ohms: Ohms is the unit of measurement for electrical resistance in a circuit, defined by the relationship that one ohm equals one volt per ampere. This unit is essential for understanding how electrical components interact, especially in circuits involving sinusoidal sources and phasors, where resistance affects current and voltage relationships in alternating current (AC) systems.
Oscilloscope: An oscilloscope is an electronic device that visualizes electrical signals as waveforms on a screen, allowing users to analyze the characteristics of those signals over time. It is essential for observing voltage variations, timing relationships, and signal behavior, making it a crucial tool in understanding various electrical quantities and phenomena.
Phase Angle: Phase angle is the measure of the phase difference between two sinusoidal waveforms, often expressed in degrees or radians. It indicates how far one waveform is shifted in time relative to another, affecting the timing and interaction of oscillating signals in circuits. Understanding phase angle is essential for analyzing the complete response to sinusoidal excitation and applying phasor analysis to sinusoidal sources.
Phasor addition: Phasor addition is the mathematical process of combining two or more phasors, which represent sinusoidal functions, by adding their corresponding magnitudes and angles. This method simplifies the analysis of electrical circuits that involve alternating current (AC) sources by transforming sinusoidal waveforms into a convenient vector representation. Phasor addition allows for easier calculation of voltage and current relationships in AC circuits.
Phasor representation: Phasor representation is a mathematical technique used to simplify the analysis of sinusoidal signals by converting them from time-domain functions into the frequency domain. This transformation allows for easier manipulation of these signals, especially when dealing with linear systems, as it captures both amplitude and phase information in a compact form. Phasors are often represented as rotating vectors in the complex plane, which helps visualize the relationships between different sinusoidal sources and their interactions in circuits.
Phasor transformation: Phasor transformation is a mathematical technique used to convert time-domain sinusoidal signals into a frequency-domain representation called phasors. This transformation simplifies the analysis of circuits with sinusoidal sources by allowing engineers to use algebraic methods instead of differential equations, making it easier to analyze and solve AC circuit problems.
Superposition Theorem: The superposition theorem states that in a linear circuit with multiple independent sources, the total response (voltage or current) at any point in the circuit can be determined by summing the responses produced by each independent source acting alone, with all other independent sources turned off. This theorem is crucial for simplifying the analysis of complex circuits by breaking them down into more manageable parts.
Volts: Volts are the unit of electric potential difference, representing the amount of energy per unit charge required to move electrons through a circuit. This measurement is crucial for understanding how electrical energy is transferred and utilized in systems, particularly in analyzing sinusoidal sources and phasors, where voltage can vary over time and is often represented as a sinusoidal waveform.
