2.4 Series and Parallel Connections
4 min read•july 30, 2024
Series and parallel connections form the backbone of electrical circuit design. They determine how components interact, affecting current flow, voltage distribution, and overall circuit behavior. Understanding these connections is crucial for analyzing and creating effective electrical systems.
Mastering series and parallel concepts opens doors to complex circuit analysis. It enables you to break down intricate systems, calculate equivalent resistances, and predict voltage and current distributions. This knowledge is essential for troubleshooting, optimizing, and designing innovative electrical solutions in various applications.
Series vs Parallel Connections
Fundamental Differences
Top images from around the web for Fundamental Differences
File:Series and parallel circuits.png - Wikimedia Commons View original
Is this image relevant?
Series and parallel circuits - Wikipedia View original
Is this image relevant?
Series and parallel circuits - Wikipedia View original
Is this image relevant?
File:Series and parallel circuits.png - Wikimedia Commons View original
Is this image relevant?
Series and parallel circuits - Wikipedia View original
Is this image relevant?
1 of 3
Top images from around the web for Fundamental Differences
File:Series and parallel circuits.png - Wikimedia Commons View original
Is this image relevant?
Series and parallel circuits - Wikipedia View original
Is this image relevant?
Series and parallel circuits - Wikipedia View original
Is this image relevant?
File:Series and parallel circuits.png - Wikimedia Commons View original
Is this image relevant?
Series and parallel circuits - Wikipedia View original
Is this image relevant?
1 of 3

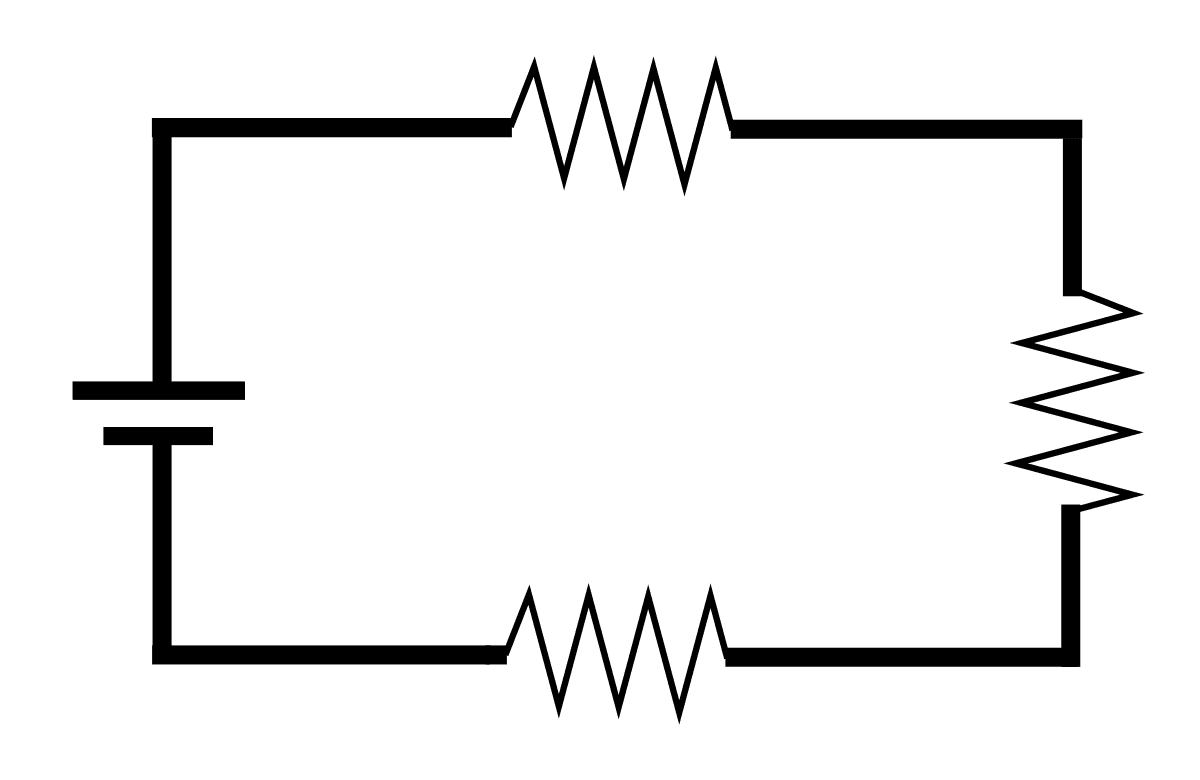

- Series connections involve components connected end-to-end in a single path, while parallel connections have components connected across the same two points
- Current flows through all components in series circuits, whereas it divides among branches in parallel circuits
- Voltage divides among components in series circuits, but remains constant across all components in parallel circuits
- Series connections increase total circuit resistance, while parallel connections decrease it
- Physical arrangement in circuit diagrams helps identify series and parallel connections (straight line for series, branching for parallel)
Current and Voltage Behavior
- Series circuits maintain constant current through all components ()
- Parallel circuits have equal voltage across all components ()
- Current in parallel circuits splits according to branch resistance (higher resistance branches receive less current)
- Voltage in series circuits splits according to component resistance (higher resistance components have larger voltage drops)
- Examples: Christmas lights (series), household outlets (parallel)
Applications and Considerations
- Series connections used for voltage division (potentiometers)
- Parallel connections provide multiple paths, increasing circuit reliability
- Battery arrangements utilize series (increase voltage) or parallel (increase capacity) connections
- Combination circuits incorporate both series and parallel elements for complex designs
- Circuit analysis often involves breaking down complex circuits into simpler series and parallel sections
Equivalent Resistance in Circuits
Series Resistance Calculation
- in series circuits calculated by summing individual resistances:
- Series resistance always greater than the largest individual resistance
- Useful for creating specific total resistances or voltage dividers
- Example: Three 100Ω resistors in series yield
- Adding resistors in series increases overall resistance linearly
Parallel Resistance Calculation
- Equivalent resistance in parallel circuits calculated using reciprocal sum:
- For two resistors in parallel, product over sum formula applies:
- Parallel resistance always smaller than the smallest individual resistance
- Example: Two 200Ω resistors in parallel yield
- Adding resistors in parallel decreases overall resistance non-linearly
Advanced Calculation Techniques
- (G = 1/R) simplifies parallel resistance calculations (conductances in parallel are additive)
- Complex circuits require iterative simplification, combining series and parallel sections
- Delta-Wye (Δ-Y) transformations used for circuits without clear series or parallel connections
- Computer-aided tools and simulators assist in calculating equivalent resistance for intricate circuits
- Thevenin's and Norton's theorems simplify complex circuit analysis by creating equivalent circuits
Voltage and Current Distribution
Series Circuit Analysis
- Total voltage in series circuits equals sum of individual voltage drops:
- (KVL) states sum of voltage drops around any closed loop equals zero
- calculates individual voltage drops:
- Current remains constant throughout ()
- Example: In a series circuit with 9V source and three 1kΩ resistors, each has a 3V drop
Parallel Circuit Analysis
- Current divides among parallel branches based on branch resistance:
- (KCL) states sum of currents entering a node equals sum of currents leaving
- calculates individual branch currents:
- Voltage remains constant across all parallel components ()
- Example: In a with 12V source and two 6Ω resistors, each resistor draws 1A
Power Distribution and Analysis
- Power in circuits calculated using , , or formulas
- Series circuits distribute power proportionally to component resistance
- Parallel circuits distribute power inversely proportional to component resistance
- Total power in any circuit equals sum of power dissipated by individual components
- Power analysis crucial for component selection and thermal management in circuit design
Designing Series and Parallel Circuits
Circuit Design Principles
- Begin with identifying desired output characteristics (, current flow, voltage distribution)
- Series circuits useful for voltage division or achieving specific total resistance
- Parallel circuits advantageous for constant voltage across components or redundancy
- Combination circuits achieve complex voltage and current relationships
- Consider power consumption, efficiency, and reliability in circuit configuration choice
Practical Design Considerations
- Component ratings must match circuit requirements (voltage, current, power handling)
- Account for component tolerances and their impact on overall circuit performance
- Temperature effects on component behavior influence circuit stability and reliability
- Utilize safety factors in designs to ensure components operate within specified limits
- Consider electromagnetic interference (EMI) and implement appropriate shielding techniques
Design Tools and Verification
- Circuit simulation software (SPICE) aids in design verification before physical implementation
- Breadboarding allows for quick prototyping and testing of circuit designs
- Oscilloscopes and multimeters essential for measuring and verifying circuit behavior
- PCB design software facilitates transition from schematic to physical layout
- Thermal imaging cameras help identify potential hotspots in high-power circuits
