8.4 Complete Response to Sinusoidal Excitation
4 min read•july 30, 2024
Second-order circuits respond to sinusoidal inputs with a combo of steady-state and transient components. The steady-state part oscillates at the input , while the transient part decays over time. This gives us the full picture of how the circuit behaves.
Understanding this response is key to analyzing filters, resonant circuits, and other systems. We'll look at how to calculate both parts, what factors influence them, and how to use this knowledge in real-world applications. It's all about getting the big picture of circuit behavior.
Sinusoidal Response of Second-Order Circuits
Components and Characteristics of Complete Response
Top images from around the web for Components and Characteristics of Complete Response
Phasor Diagrams and Phasor Algebra - Electronics-Lab.com View original
Is this image relevant?

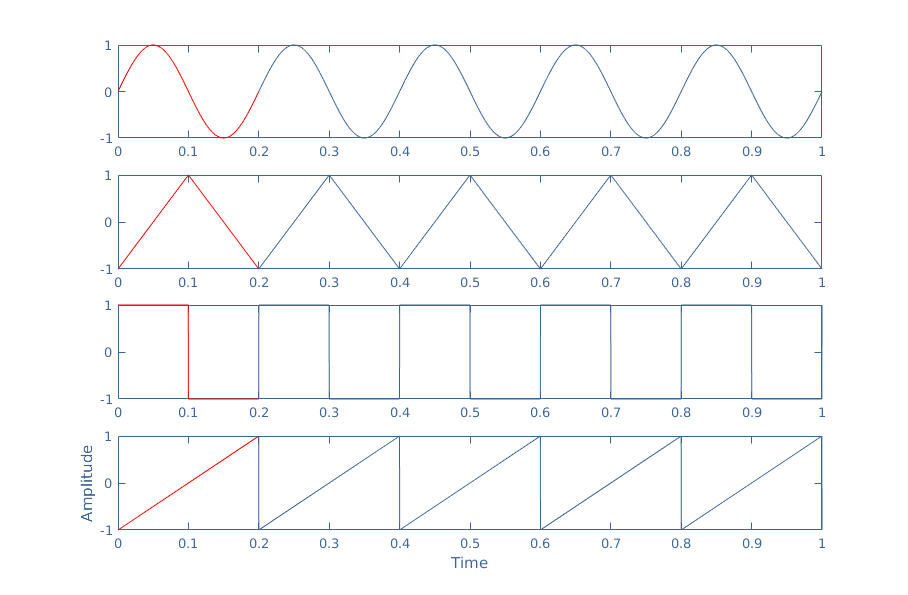

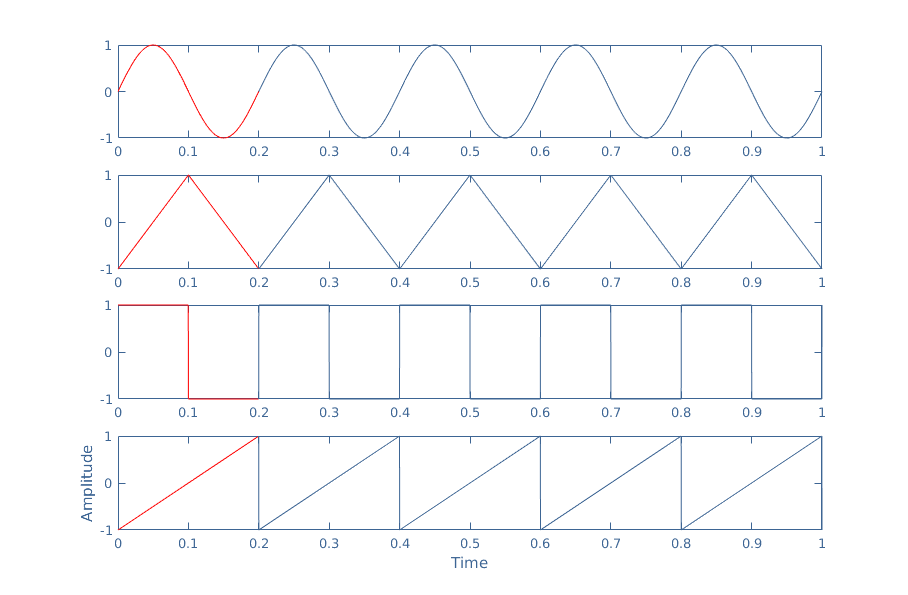

AC Waveform and AC Circuit Theory - Electronics-Lab.com View original
Is this image relevant?
Neural Stimulation of Muscle Contraction | Biology for Majors II View original
Is this image relevant?
Phasor Diagrams and Phasor Algebra - Electronics-Lab.com View original
Is this image relevant?
AC Waveform and AC Circuit Theory - Electronics-Lab.com View original
Is this image relevant?
1 of 3
Top images from around the web for Components and Characteristics of Complete Response
Phasor Diagrams and Phasor Algebra - Electronics-Lab.com View original
Is this image relevant?
AC Waveform and AC Circuit Theory - Electronics-Lab.com View original
Is this image relevant?
Neural Stimulation of Muscle Contraction | Biology for Majors II View original
Is this image relevant?
Phasor Diagrams and Phasor Algebra - Electronics-Lab.com View original
Is this image relevant?
AC Waveform and AC Circuit Theory - Electronics-Lab.com View original
Is this image relevant?
1 of 3
- Complete response of a second-order circuit to sinusoidal excitation comprises and
- Steady-state response oscillates at the same frequency as the input sinusoid representing long-term circuit behavior
- Transient response represents temporary circuit behavior immediately after sinusoidal excitation application
- Obtain complete response by solving second-order differential equation describing circuit behavior (typically using methods)
- Characteristic equation determines nature of transient response (overdamped, critically damped, or underdamped)
- and influence complete response behavior
- Principle of superposition allows separate calculation of responses to different input components
- Combine individual responses to obtain total response
Circuit Analysis and Response Calculation
- Solve complete response using second-order differential equation
- Use or complex methods to find steady-state component at excitation frequency
- Determine transient component by solving homogeneous part of differential equation
- Initial conditions at excitation application crucial for transient component magnitude
- Transient component typically takes form of terms (real or complex)
- Underdamped systems include oscillatory terms at damped natural frequency
- Time constant influences rate of transient component decay
- Sum steady-state and transient components to obtain complete response
- Ensure initial conditions are satisfied
Steady-State vs Transient Response
Steady-State Response Characteristics
- Represents long-term circuit behavior after transients die out
- Oscillates at same frequency as input sinusoid
- Analyze using phasor analysis or complex impedance methods
- Determined by circuit's at excitation frequency
- Magnitude depends on input sinusoid and transfer function
- Phase represents time shift between input and output waveforms
- Use to graphically represent magnitude and phase response over frequency range
Transient Response Characteristics
- Temporary behavior immediately after sinusoidal excitation application
- Decays over time based on circuit's natural response characteristics
- Determined by solving homogeneous part of differential equation
- Depends on circuit's natural frequency and damping ratio
- Takes form of exponential decay terms (real or complex)
- Underdamped systems show oscillatory behavior at damped natural frequency
- Initial conditions crucial for determining transient component magnitude
- Time constant influences decay rate of transient component
Magnitude and Phase of Steady-State Response
Calculating Magnitude and Phase
- Determine magnitude using input sinusoid amplitude and circuit's transfer function at excitation frequency
- Calculate phase using circuit's transfer function (represents time shift between input and output)
- Express transfer function as complex function of frequency derived from circuit's impedance characteristics
- Use Bode plots for graphical representation of magnitude and phase response
- (Q) influences sharpness of peak in magnitude response
- relates to frequency range where response magnitude within specified range of maximum value
- Utilize polar plots (Nyquist diagrams) for alternative visualization of magnitude and phase response
Factors Influencing Steady-State Response
- Circuit's transfer function shape affects magnitude and phase characteristics
- Resonance causes response magnitude to peak at specific frequency
- Damping ratio impacts resonance peak prominence (underdamped systems show more pronounced peak)
- Quality factor (Q) determines selectivity and sharpness of response curve
- Circuit topology (low-pass, high-pass, band-pass) influences overall response shape
- Component values (resistors, capacitors, inductors) directly affect transfer function
- Input frequency relative to circuit's natural frequency determines response behavior
Frequency Response in Second-Order Circuits
Frequency Response Fundamentals
- Describes how circuit's steady-state output varies in magnitude and phase with changing input frequency
- Transfer function H(jω) mathematically represents (relates output to input in frequency domain)
- Second-order circuits exhibit characteristic behaviors (resonance, bandwidth, )
- Resonance occurs when response magnitude peaks at specific frequency
- Cutoff frequencies (half-power frequencies) define circuit bandwidth
- Points where output power is half of maximum value
- Damping ratio influences frequency response curve shape
- Underdamped systems show more pronounced resonance peak
- Phase response typically exhibits total 180° shift from DC to infinity
- Steepest rate of change near natural frequency
Applications and Design Considerations
- Design second-order low-pass, high-pass, and band-pass filters by manipulating frequency response characteristics
- Utilize frequency response analysis for circuit performance optimization
- Consider trade-offs between bandwidth, selectivity, and phase response in filter design
- Analyze stability of feedback systems using frequency response techniques
- Apply frequency response concepts in audio systems (equalizers, crossover networks)
- Use frequency response analysis in communication systems (channel equalization, signal filtering)
- Implement frequency response shaping in control systems for desired closed-loop behavior
Key Terms to Review (27)
Amplitude: Amplitude refers to the maximum extent of a vibration or oscillation, measured from the position of equilibrium. It is a key characteristic of sinusoidal signals, as it indicates the strength or magnitude of the signal, directly affecting how signals interact in systems. Understanding amplitude is essential for analyzing how circuits respond to sinusoidal excitations and for utilizing phasors in electrical engineering.
Bandwidth: Bandwidth refers to the range of frequencies over which a system, such as an amplifier or circuit, can operate effectively. It determines how much information can be transmitted or processed in a given period of time and is crucial for understanding the performance of various electronic components and systems. A wider bandwidth means the ability to handle higher frequencies, which is essential for signal clarity and fidelity.
Bode Plots: Bode plots are graphical representations used to analyze the frequency response of linear time-invariant systems. They consist of two separate plots: one for magnitude (in decibels) versus frequency (on a logarithmic scale) and another for phase (in degrees) versus frequency. Bode plots are essential for understanding how systems respond to sinusoidal inputs, making it easier to design and analyze control systems and circuits.
Complete Response: Complete response refers to the total behavior of a linear time-invariant system when subjected to sinusoidal input. It encompasses both the steady-state response and the transient response, highlighting how systems react over time to continuous sinusoidal signals. Understanding complete response is crucial for analyzing system stability and frequency response, as it illustrates how systems settle into their final behavior after any initial disturbances.
Cosine wave: A cosine wave is a continuous wave that describes a smooth periodic oscillation, characterized by its amplitude, frequency, and phase. It is one of the fundamental waveforms used in electrical engineering and signal processing, serving as the basis for analyzing oscillatory systems under sinusoidal excitation. The cosine wave is crucial in understanding how systems respond to sinusoidal inputs, especially in terms of phase relationships and steady-state behavior.
Cutoff frequencies: Cutoff frequencies are specific points in a system's frequency response where the output power drops to half of its maximum value, typically corresponding to a -3 dB point. These frequencies are critical in defining the limits of a circuit's operational bandwidth and determining how effectively a circuit can respond to sinusoidal inputs over different frequency ranges.
Damping ratio: The damping ratio is a dimensionless measure that describes how oscillations in a system decay after a disturbance. It indicates whether a system is underdamped, critically damped, or overdamped, affecting how quickly the system returns to equilibrium and the nature of its response. Understanding the damping ratio is essential when analyzing natural and step responses, as well as the complete response to sinusoidal excitation, since it determines stability and transient behavior.
Exponential decay: Exponential decay refers to the process in which a quantity decreases at a rate proportional to its current value, leading to a rapid drop-off over time. This concept is crucial in understanding how circuits respond during the discharging phase, as well as in the analysis of current changes in inductive components. The behavior is characterized by a time constant, which indicates how quickly the system approaches a stable state.
Frequency: Frequency refers to the number of cycles or oscillations of a periodic waveform that occur in a unit of time, typically measured in hertz (Hz). This concept is crucial in understanding sinusoidal signals and their behavior in circuits, as it helps describe how quickly a signal oscillates and impacts the response of systems to sinusoidal excitation. By analyzing frequency, one can determine the relationship between the input signal and the response it generates within electrical circuits.
Frequency response: Frequency response is the measure of a system's output spectrum in response to an input signal of varying frequency, typically expressed as a function of frequency. It describes how a circuit or system reacts to different frequencies of input signals, helping to analyze stability and performance. Understanding frequency response is essential for evaluating the behavior of both RLC circuits and various damping responses when subjected to sinusoidal excitations.
Impedance: Impedance is a measure of how much a circuit resists the flow of alternating current (AC) at a particular frequency, combining both resistance and reactance into a single complex quantity. It plays a crucial role in analyzing circuits, especially those involving capacitors and inductors, as it helps determine how these elements interact with AC signals.
Kirchhoff's Voltage Law: Kirchhoff's Voltage Law (KVL) states that the sum of the electrical potential differences (voltages) around any closed loop in a circuit must equal zero. This fundamental principle is essential for analyzing circuits and is deeply connected to the behavior of various circuit elements, helping to understand how voltage is distributed and conserved throughout different configurations.
Laplace Transform: The Laplace Transform is a powerful mathematical technique used to transform time-domain functions into the frequency domain, making it easier to analyze linear time-invariant systems. It allows engineers and scientists to simplify complex differential equations, especially in the context of circuit analysis and control systems, by converting them into algebraic equations. This transformation is essential for studying system behaviors like transient and steady-state responses to various inputs.
Mesh analysis: Mesh analysis is a method used in circuit analysis to determine the currents flowing in a circuit by applying Kirchhoff's Voltage Law (KVL) around mesh loops. This technique simplifies the process of analyzing complex circuits by focusing on independent loops, allowing for systematic equations to be formed and solved to find unknown currents. It connects closely with understanding basic circuit elements, voltage and current relationships, and the overall behavior of circuits under various conditions.
Natural Frequency: Natural frequency is the frequency at which a system tends to oscillate in the absence of any driving force. It is a fundamental characteristic of dynamic systems, determining how they respond to external excitations and influencing their stability and performance. Understanding natural frequency is crucial when analyzing system behavior under sinusoidal excitation and in determining the frequency response through methods like Bode plots.
Nodal Analysis: Nodal analysis is a systematic method used to determine the voltage levels at different nodes in an electrical circuit by applying Kirchhoff's Current Law. This approach simplifies circuit analysis by focusing on the nodes rather than the branches, enabling easier calculations of voltages and currents throughout the circuit.
Ohm's Law: Ohm's Law is a fundamental principle in electrical engineering that states the relationship between voltage, current, and resistance in a circuit. It asserts that the current flowing through a conductor between two points is directly proportional to the voltage across the two points and inversely proportional to the resistance of the conductor. This relationship helps in understanding how circuits operate and facilitates the analysis of various electrical components.
Phase Angle: Phase angle is the measure of the phase difference between two sinusoidal waveforms, often expressed in degrees or radians. It indicates how far one waveform is shifted in time relative to another, affecting the timing and interaction of oscillating signals in circuits. Understanding phase angle is essential for analyzing the complete response to sinusoidal excitation and applying phasor analysis to sinusoidal sources.
Phasor analysis: Phasor analysis is a mathematical technique used in electrical engineering to simplify the analysis of sinusoidal signals by representing them as rotating vectors in the complex plane. This method helps in transforming differential equations into algebraic equations, making it easier to analyze RLC circuits, assess responses to sinusoidal inputs, and determine impedance and admittance values. By using phasors, engineers can efficiently calculate voltage and current relationships in AC circuits.
Quality Factor: The quality factor, often denoted as Q, is a dimensionless parameter that describes the sharpness of resonance in a resonant circuit, indicating how underdamped a system is. A higher Q value means that the system can store more energy relative to the energy dissipated per cycle, leading to sharper peaks in the frequency response. This concept is crucial for understanding the behavior of circuits that contain inductors and capacitors, particularly in their response to sinusoidal inputs and how they behave over different frequencies.
Reactance: Reactance is a measure of the opposition that a circuit element presents to alternating current (AC) due to its inductance and capacitance. It plays a crucial role in the behavior of AC circuits, influencing how voltage and current relate to each other, particularly in RLC circuits where energy storage components interact with AC signals.
Resonance: Resonance is a phenomenon that occurs in systems when they are driven at their natural frequency, resulting in an amplification of oscillations. This can lead to significant increases in the amplitude of the system's response, which is critical in analyzing how systems react to sinusoidal inputs and how they behave across different frequencies. Understanding resonance helps in designing circuits and systems to avoid destructive interference and optimize performance.
Sine wave: A sine wave is a smooth, periodic oscillation that represents a continuous waveform characterized by its amplitude, frequency, and phase. This wave is fundamental in the study of electrical circuits and signals, as it serves as the ideal representation of alternating current (AC) and forms the basis for analyzing circuit responses to sinusoidal excitation. Its mathematical representation is given by the equation $$y(t) = A imes ext{sin}(2 ext{π}ft + φ)$$, where A is the amplitude, f is the frequency, and φ is the phase shift.
Steady-state response: Steady-state response refers to the behavior of a circuit after all transient effects have dissipated, and the circuit is in equilibrium. In this state, the circuit responds predictably to constant inputs, such as DC voltage or constant sinusoidal sources, allowing for the analysis of long-term performance without the complications introduced by initial conditions or transient responses.
Superposition principle: The superposition principle states that in a linear system, the total response caused by multiple independent stimuli is equal to the sum of the responses that would have been caused by each stimulus individually. This principle is crucial for analyzing complex circuits and systems, allowing for simplified calculations and understanding of how different inputs affect the overall output.
Transfer Function: A transfer function is a mathematical representation that describes the relationship between the input and output of a linear time-invariant system in the frequency domain. It is typically expressed as a ratio of two polynomials, where the numerator represents the output and the denominator represents the input. This function helps in analyzing how a system responds to different frequencies, which is crucial for understanding system dynamics and stability.
Transient Response: Transient response refers to the behavior of a circuit when it is subjected to a sudden change, such as a voltage or current step input. This response is characterized by a temporary state that occurs before the system settles into a steady-state condition. The transient response is influenced by the components of the circuit, such as capacitors and inductors, and plays a crucial role in understanding the dynamics of RLC circuits and their natural and step responses.
