11.4 Reflected Impedance and Impedance Matching

4 min read•july 30, 2024

is a key concept in magnetically coupled circuits, showing how load on one side affects the other. It's crucial for understanding transformer behavior and designing efficient power systems, audio equipment, and RF circuits.

Impedance matching with transformers maximizes power transfer between source and load. By choosing the right turns ratio, we can match impedances in various applications, from RF systems to audio equipment, ensuring optimal performance and efficiency.

Reflected Impedance in Coupled Circuits

Concept and Principles

Top images from around the web for Concept and Principles

  • electromagnetism - Question about transformer reflected source - Electrical Engineering Stack ... View original

    Is this image relevant?

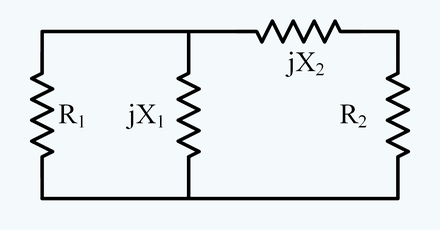

  • Impedance matching - Wikipedia View original

    Is this image relevant?

  • electromagnetism - Question about transformer reflected source - Electrical Engineering Stack ... View original

    Is this image relevant?

1 of 3

Top images from around the web for Concept and Principles

  • electromagnetism - Question about transformer reflected source - Electrical Engineering Stack ... View original

    Is this image relevant?

  • Impedance matching - Wikipedia View original

    Is this image relevant?

  • electromagnetism - Question about transformer reflected source - Electrical Engineering Stack ... View original

    Is this image relevant?

1 of 3
  • Reflected impedance represents apparent impedance seen on transformer primary side due to secondary side load
  • Based on electromagnetic induction principle and coupling between primary and secondary windings
  • Function of transformer turns ratio and actual secondary side load impedance
  • Affects primary circuit current flow and power transfer despite physical connection to secondary side
  • For ideal transformers, directly proportional to turns ratio squared and inversely proportional to load impedance
  • Used to match impedances between source and load for maximum power transfer
  • Crucial in power systems, audio equipment, and RF circuits analysis and design

Applications and Importance

  • Enables impedance transformation between different circuit sections
  • Allows for efficient power transfer in electrical systems (power grids, audio amplifiers)
  • Facilitates signal coupling in communication systems (RF transmitters, receivers)
  • Helps in designing impedance matching networks for antennas and transmission lines
  • Utilized in isolation transformers for safety and noise reduction (medical equipment, industrial machinery)
  • Plays a role in voltage and current scaling in measurement systems (current transformers, potential transformers)

Calculating Reflected Impedance

Basic Formula and Concepts

  • Reflected impedance formula: Zreflected=(Np/Ns)2∗ZloadZ_{reflected} = (N_p / N_s)^2 * Z_{load}
    • NpN_p primary winding turns
    • NsN_s secondary winding turns
  • Turns ratio (a) defined as a=Np/Nsa = N_p / N_s
  • Simplified formula: Zreflected=a2∗ZloadZ_{reflected} = a^2 * Z_{load}
  • For complex load impedances, multiply both real and imaginary parts by turns ratio squared
  • Consider direction of impedance reflection (secondary to primary or vice versa)
  • Phase angle of reflected impedance remains same as load impedance, only magnitude affected by turns ratio

Practical Considerations

  • Autotransformer calculations must account for shared winding between primary and secondary sides
  • Practical transformers have additional factors affecting reflected impedance:
    • Winding resistance (increases losses)
    • Leakage inductance (reduces coupling efficiency)
    • Core losses (hysteresis and eddy currents)
  • Non-ideal transformer model includes:
    • Magnetizing inductance (represents core magnetic properties)
    • Parasitic capacitances (between windings and to ground)
  • Frequency dependence of reflected impedance due to transformer non-idealities
  • Temperature effects on winding resistance and core properties may alter reflected impedance

Impedance Matching with Transformers

Maximum Power Transfer Theorem

  • Impedance matching crucial for maximizing power transfer from source to load
  • Maximum power transfer occurs when source impedance equals complex conjugate of load impedance
  • Transformers used to match impedances by selecting appropriate turns ratio
  • Required turns ratio for impedance matching: a=Zsource/Zloada = \sqrt{Z_{source} / Z_{load}}
    • ZsourceZ_{source} and ZloadZ_{load} are magnitudes of source and load impedances
  • Examples of impedance matching applications:
    • RF systems (matching antennas to 50 or 75 standard impedance)
    • Audio systems (matching amplifier output to speaker )

Advanced Matching Techniques

  • Multistage impedance matching for complex impedances or large transformation ratios
  • Wideband impedance matching using multiple transformer sections or compensating networks
  • Use of tapped transformers for variable impedance matching
  • Impedance matching in balanced and unbalanced systems using baluns (balanced-to-unbalanced transformers)
  • Adaptive impedance matching systems for dynamic load conditions (automatic antenna tuners)

Transformer-Based Impedance Matching Networks

Design Process and Considerations

  • Determine required turns ratio based on source and load impedances
  • Select appropriate core material and size (ferrite, powdered iron, air core)
  • Consider bandwidth requirements for wideband applications
  • Account for parasitic elements:
    • Winding capacitance (limits high-frequency performance)
    • Core losses (affects efficiency and power handling)
  • Utilize computer-aided design tools and simulation software for optimization
  • Analyze network performance:
    • Insertion loss (power loss through the network)
    • Return loss (measure of impedance match quality)
    • Power handling capability (thermal and magnetic limitations)

Specialized Techniques and Tools

  • Use Smith charts for graphical design and analysis of RF impedance matching networks
  • Incorporate special transformer types:
    • Baluns (balanced-to-unbalanced conversion)
    • Ununs (unbalanced-to-unbalanced impedance transformation)
  • Employ transmission line transformers for high-frequency applications
  • Implement fractional turn ratios using bifilar or trifilar windings
  • Utilize ferrite beads or cores for broadband RF impedance matching
  • Consider distributed element matching for microwave frequencies
  • Apply compensation techniques for parasitic effects (series capacitors, parallel inductors)
