Thermodynamics explores the relationships between heat, work, and energy in physical systems. It delves into how energy transfers and transforms, providing a framework for understanding everything from engines to phase changes in matter. The laws of thermodynamics form the foundation of this field. These principles govern energy conservation, entropy, and the direction of spontaneous processes, shaping our understanding of natural phenomena and technological applications.

Key Concepts and Definitions

  • Thermodynamics studies the relationships between heat, work, temperature, and energy
  • System refers to the specific part of the universe under study (gas in a piston)
  • Surroundings include everything external to the system
  • Boundary separates the system from its surroundings and can be fixed or movable (piston)
  • State variables describe the current condition of a system (temperature, pressure, volume)
    • State variables depend only on the current state, not on how the system reached that state
  • Process describes the path or series of states through which a system passes (isothermal, adiabatic)
  • Thermal equilibrium achieved when two systems have the same temperature and no heat flows between them
  • Zeroth law of thermodynamics states that if two systems are in thermal equilibrium with a third system, they are in thermal equilibrium with each other

Laws of Thermodynamics

  • First law of thermodynamics states that energy cannot be created or destroyed, only converted from one form to another
    • Mathematically expressed as ΔU=Q−W\Delta U = Q - W, where ΔU\Delta U is the change in internal energy, QQ is heat added to the system, and WW is work done by the system
  • Second law of thermodynamics states that the total entropy of an isolated system always increases over time
    • Entropy is a measure of disorder or randomness in a system
    • Heat flows spontaneously from a hot object to a cold object, not the other way around
  • Third law of thermodynamics states that the entropy of a perfect crystal at absolute zero is zero
    • Absolute zero (0 K or -273.15°C) is the lowest possible temperature, where all molecular motion stops
  • Zeroth law of thermodynamics defines thermal equilibrium and provides the basis for temperature measurement

Thermal Properties of Matter

  • Heat capacity measures the amount of heat required to raise the temperature of a substance by one degree
    • Specific heat capacity (cc) is the heat capacity per unit mass (J/kg·K)
    • Molar heat capacity is the heat capacity per mole of a substance (J/mol·K)
  • Thermal expansion occurs when a substance expands or contracts due to temperature changes
    • Linear thermal expansion describes length changes in one dimension
    • Volumetric thermal expansion describes volume changes in three dimensions
  • Phase transitions occur when a substance changes from one state of matter to another (solid, liquid, gas)
    • Latent heat is the energy required for a substance to change phase without a change in temperature
    • Latent heat of fusion is the energy required to change a substance from solid to liquid (or vice versa)
    • Latent heat of vaporization is the energy required to change a substance from liquid to gas (or vice versa)

Heat Transfer Mechanisms

  • Conduction is the transfer of heat through direct contact between particles of matter
    • Thermal conductivity (kk) measures a material's ability to conduct heat (W/m·K)
    • Fourier's law of thermal conduction describes the rate of heat transfer through a material
  • Convection is the transfer of heat by the movement of fluids (liquids or gases)
    • Natural convection occurs due to density differences caused by temperature variations
    • Forced convection occurs when an external force, such as a fan or pump, moves the fluid

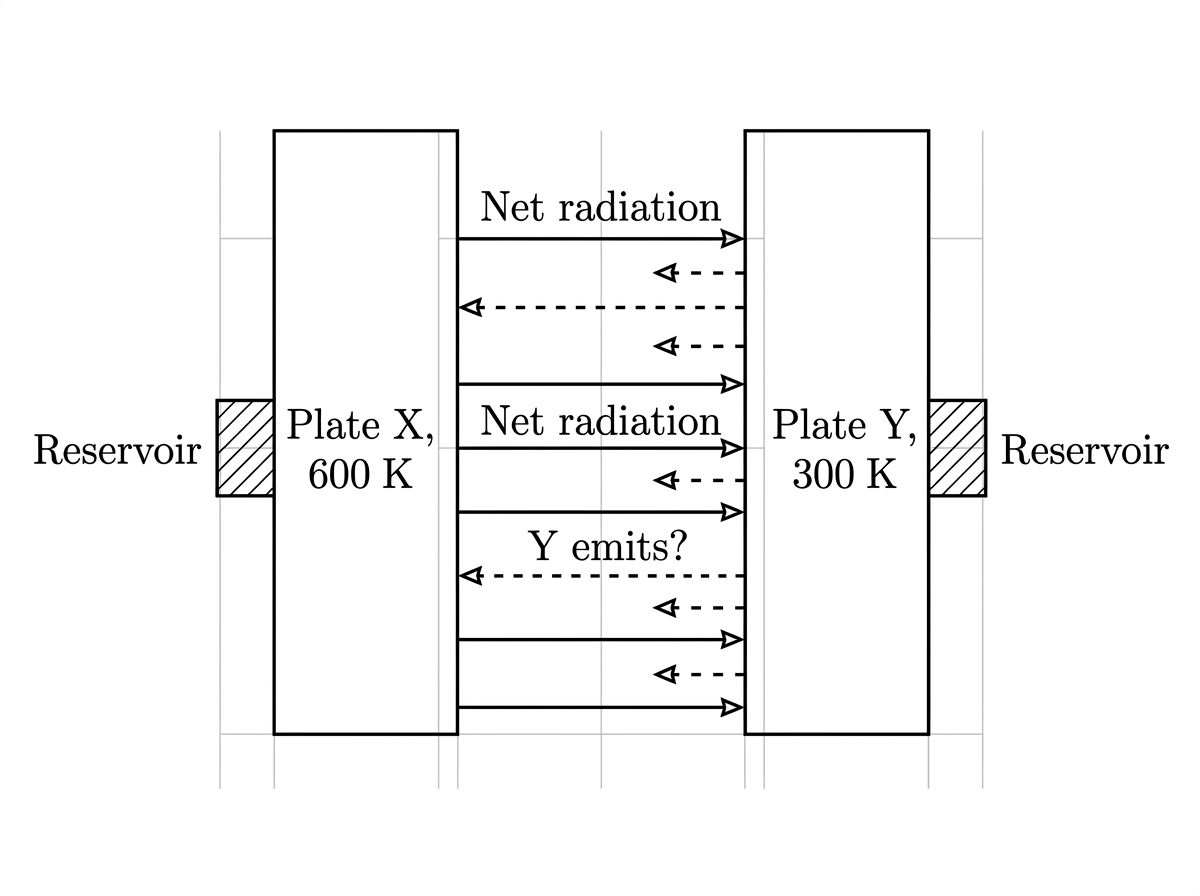

  • Radiation is the transfer of heat through electromagnetic waves
    • All objects emit thermal radiation based on their temperature
    • Stefan-Boltzmann law describes the power radiated by an object as proportional to its temperature to the fourth power
  • Insulation reduces heat transfer by slowing down conduction, convection, or radiation
    • Materials with low thermal conductivity (foam, fiberglass) are good insulators

Thermodynamic Processes

  • Isothermal process occurs at constant temperature
    • Ideal gas law (PV=nRTPV = nRT) applies, with TT remaining constant
  • Isobaric process occurs at constant pressure
    • Ideal gas law applies, with PP remaining constant
  • Isochoric (isovolumetric) process occurs at constant volume
    • Ideal gas law applies, with VV remaining constant
  • Adiabatic process occurs without heat transfer between the system and its surroundings
    • Pressure and volume are related by the equation PVγ=constantPV^\gamma = \text{constant}, where γ\gamma is the ratio of specific heats
  • Cyclic process occurs when a system returns to its initial state after undergoing a series of thermodynamic processes
    • Heat engines (internal combustion engines) and refrigerators operate on cyclic processes

Entropy and the Second Law

  • Entropy (SS) is a measure of the disorder or randomness in a system
    • Mathematically, entropy change is defined as ΔS=∫dQT\Delta S = \int \frac{dQ}{T}, where dQdQ is the heat added reversibly and TT is the absolute temperature
  • Second law of thermodynamics states that the total entropy of an isolated system always increases over time
    • Spontaneous processes occur with an increase in entropy (gas expanding into a vacuum)
    • Reversible processes occur with no change in entropy (idealized, infinitely slow processes)
    • Irreversible processes occur with an increase in entropy (heat transfer, friction)
  • Entropy and the second law explain why certain processes are impossible (perpetual motion machines)
    • Heat cannot spontaneously flow from a cold object to a hot object
    • Work cannot be completely converted into heat without some heat being lost to the surroundings

Applications in Real-World Systems

  • Heat engines convert thermal energy into mechanical work (internal combustion engines, steam turbines)
    • Efficiency of a heat engine depends on the temperature difference between the hot and cold reservoirs
    • Carnot cycle represents the most efficient heat engine operating between two temperatures
  • Refrigerators and heat pumps move thermal energy from a cold reservoir to a hot reservoir
    • Coefficient of performance (COP) measures the efficiency of refrigerators and heat pumps
    • Reverse Carnot cycle represents the most efficient refrigerator or heat pump operating between two temperatures
  • Thermodynamic principles apply to various systems (power plants, HVAC systems, biological systems)
    • Efficiency and sustainability can be improved by understanding and applying thermodynamic concepts
    • Energy conservation and waste heat recovery can reduce energy consumption and environmental impact

Problem-Solving Strategies

  • Identify the system and its surroundings
    • Define the boundaries and interactions between the system and surroundings
  • Determine the initial and final states of the system
    • Identify the state variables (temperature, pressure, volume) at the beginning and end of the process
  • Apply the relevant thermodynamic laws and principles
    • Use the first law of thermodynamics to analyze energy conservation and heat transfer
    • Use the second law of thermodynamics to determine the direction of spontaneous processes and entropy changes
  • Use the appropriate equations and relationships for the specific process
    • Ideal gas law (PV=nRTPV = nRT) for processes involving ideal gases
    • Specific heat capacity (Q=mcΔTQ = mc\Delta T) for heat transfer problems
    • Latent heat equations (Q=mLQ = mL) for phase transition problems
  • Pay attention to units and convert them as needed
    • Use SI units (Joules, Kelvin, Pascals) for consistency
    • Convert between units using appropriate conversion factors (1 cal = 4.184 J)
  • Check your results for reasonableness and consistency with thermodynamic principles
    • Ensure that energy is conserved and entropy increases for spontaneous processes
    • Verify that your answer makes sense in the context of the problem and real-world applications

Frequently Asked Questions

What topics are covered in AP Physics 2 Unit 9 (Thermodynamics)?

Unit 9 (Thermodynamics) on Fiveable covers topics 9.1–9.6: kinetic theory of temperature and pressure, the ideal gas law, thermal energy transfer and equilibrium, the first law of thermodynamics (including PV diagrams and work), specific heat and thermal conductivity, and entropy/the second law. You’ll see key equations like PV = nRT, U = (3/2)nRT, Q = mcΔT, and Fourier’s conduction law. Expect qualitative ideas (heat flow, thermal equilibrium, entropy as energy dispersal) and process types (isothermal, isobaric, isovolumetric, adiabatic). Practice PV graphs, energy bookkeeping with ΔU = Q + W, and conceptual treatments of the second law. For concise notes, practice problems, and cram videos tied to these learning goals, see the Unit 9 guide (https://library.fiveable.me/ap-physics-2-revised/unit-9).

How much of the AP Physics 2 exam is Unit 9 (thermodynamics)?

Thermodynamics makes up roughly 15%–18% of the AP Physics 2 exam. The College Board lists that exam weight and recommends about 10–16 class periods for coverage. That percentage reflects how often thermodynamics topics show up across both multiple-choice and free-response questions. Focus on the subtopics: kinetic theory, the ideal gas law, heat transfer, the first law, specific heat and thermal conductivity, and entropy/the second law to match that weight. For a concise study guide, practice problems, and cram videos aligned to Unit 9, check Fiveable’s Unit 9 resources (https://library.fiveable.me/ap-physics-2-revised/unit-9).

What's the hardest part of AP Physics 2 Unit 9?

Most students find entropy and the Second Law (topic 9.6) the hardest part because entropy is abstract: interpreting the sign of ΔS, linking microscopic randomness to macroscopic irreversibility, and using ΔS = ∫dQ_rev/T trips people up. Applying the First Law across different processes (isothermal, adiabatic, isobaric, isochoric) is also tricky — especially tracking work vs. heat on PV diagrams and keeping sign conventions straight. Study tip: start with concept-first explanations, practice PV-work integrals, and do cycle problems (Carnot, heat engines, refrigerators) to see how energy and entropy interact. See the unit study guide at https://library.fiveable.me/ap-physics-2-revised/unit-9 for targeted practice and quick refreshers.

How long should I study Unit 9 for AP Physics 2?

Aim for about 10–16 class periods (the CED recommends ~10–16 class periods), which generally translates to roughly 8–20 hours of focused class and study time. If you’re self-studying, plan 2–4 days to learn the basics and another 2–4 days for problem practice and FRQ-style work — so about 4–8 days total depending on prior comfort with thermodynamics. Focus on 9.1–9.6 (ideal gas law, first law, heat transfer, entropy) and mix concept review with targeted practice. If you’re short on time, prioritize the First Law, ideal gas law problems, and entropy questions. For a structured review and practice, use the Unit 9 study guide (https://library.fiveable.me/ap-physics-2-revised/unit-9) and the 1000+ practice problems (https://library.fiveable.me/practice/physics-2-revised).

Where can I find AP Physics 2 Unit 9 PDF practice problems and notes?

You can find the Unit 9 study guide and practice problems on Fiveable (https://library.fiveable.me/ap-physics-2-revised/unit-9) and extra practice questions in the practice hub (https://library.fiveable.me/practice/physics-2-revised). The Unit 9 page covers thermodynamics topics (9.1–9.6) with notes, worked examples, and downloadable study materials. The practice hub has 1000+ Physics 2 questions you can filter by topic for extra problem sets. For official College Board PDFs and classroom progress checks, use AP Classroom (teachers assign Progress Check for Unit 9 there). If you want quick review tools, Fiveable also offers cheatsheets and cram videos tied to Unit 9 to reinforce concepts before exams.

Are there common FRQs from Unit 9 on AP Physics 2 exams and how do they typically appear?

Yes — thermodynamics (Unit 9) regularly appears on FRQs. Check Fiveable’s Unit 9 study guide (https://library.fiveable.me/ap-physics-2-revised/unit-9). Expect 1–2 free-response parts that focus on PV diagrams, the first law (ΔU = Q + W), calorimetry (Q = mcΔT), heat transfer/thermal conductivity, and qualitative entropy reasoning. Typical prompts ask you to describe processes on PV diagrams and compute work as the area under the curve. You’ll apply the first law to find Q, W, or ΔU for isothermal, isobaric, or adiabatic steps. You may derive relations using the ideal gas law, solve calorimetry or conduction-rate problems, and write a conceptual justification about entropy or heat flow (often a QQT-style part). Practice translating between words, graphs, and equations, and work on concise reasoning and derivations. For extra FRQ practice, use the study guide and practice bank.

How do I solve AP Physics 2 Unit 9 thermodynamics practice problems (energy, heat, and temperature)?

Kick off with the Unit 9 study guide (https://library.fiveable.me/ap-physics-2-revised/unit-9). Read the problem carefully, define the system, and note what changes (P, V, T, moles). Choose the right model: PV = nRT for state relations; Kavg = (3/2)kBT and Ur = (3/2)nRT for monatomic internal energy; ΔU = Q + W with W = -PΔV or the area under a PV curve; Q = mcΔT for heating solids/liquids; and Q/Δt = kAΔT/L for conduction rates. Keep sign conventions consistent, convert units early, and sketch PV or T‑V paths to spot isothermal, isobaric, isovolumetric, or adiabatic steps. For entropy and second-law questions, give clear qualitative reasoning about energy spreading and spontaneous heat flow. Work through stepwise solutions — Fiveable’s practice sets (https://library.fiveable.me/practice/physics-2-revised), cheatsheets, and cram videos are great for targeted review.

Is Unit 9 on AP Physics 2 usually covered in the multiple-choice or free-response sections more often?

You won't get a section-by-section breakdown from College Board — the 15–18% exam weight for Thermodynamics applies to the whole test. That means Unit 9 content appears in both multiple-choice and free-response sections. In practice, thermodynamics questions show up frequently as MC items and occasionally as FRQs; the exact split varies year to year. So prepare for both formats: practice quick conceptual and calculation MC problems (ideal gas, heat transfer, specific heat) and also work at least one FRQ-style derivation or energy/entropy problem. For focused study, see Fiveable’s Unit 9 guide at https://library.fiveable.me/ap-physics-2-revised/unit-9 and extra practice at https://library.fiveable.me/practice/physics-2-revised.
