5.4 Rotational Inertia
🎡 AP Physics 1
What is rotational inertia in AP Physics 1?
Rotational inertia tells you how hard it is to change an object's spinning motion. It depends on both mass and how far that mass sits from the axis of rotation, with the formula for a point mass. The farther the mass is from the axis, the bigger the rotational inertia, which is why a hoop is harder to spin up than a solid disk of the same mass.
Rotational inertia comes back in later topics when you connect net torque to angular acceleration and calculate rotational kinetic energy. Free-response questions can also ask you to translate between qualitative descriptions and quantitative work using it.
Mass Distribution and Axis Choice Set Rotational Inertia
- Rotational inertia measures resistance to changes in rotation and depends on mass and how that mass is spread out from the axis.
- For a single point mass, , where is the perpendicular distance to the axis.
- For several discrete masses, add up the pieces: .
- Rotational inertia is smallest when the axis passes through the center of mass.
- The parallel axis theorem, , gives rotational inertia about any axis parallel to a center-of-mass axis.
- Moving mass farther from the axis raises rotational inertia, which is why a hoop beats a solid disk of equal mass and radius.
Rotational Inertia of Rigid Systems
Rotational inertia measures how much a rigid system resists changes to its rotational motion. It is the rotational analog of mass: just as more mass makes it harder to change linear motion, more rotational inertia makes it harder to change spin.
What sets rotational inertia apart is that distribution matters, not just total mass. Two objects with the same mass can have very different rotational inertias depending on where that mass sits relative to the axis.
- For the same net torque, a system with more mass far from the axis has greater rotational inertia and gets a smaller angular acceleration.
- A hollow cylinder and a solid cylinder of equal mass spin up differently because their mass is arranged differently.
- A figure skater pulling in her arms lowers her rotational inertia because more of her mass moves closer to the axis. (This is an everyday application of the idea, not a required calculation.)
Point Mass and Discrete Systems
For a point mass, or an object treated as concentrated at one point at a perpendicular distance from the axis:
where:
- is rotational inertia (kg⋅m²)
- is mass (kg)
- is the perpendicular distance to the axis (m)

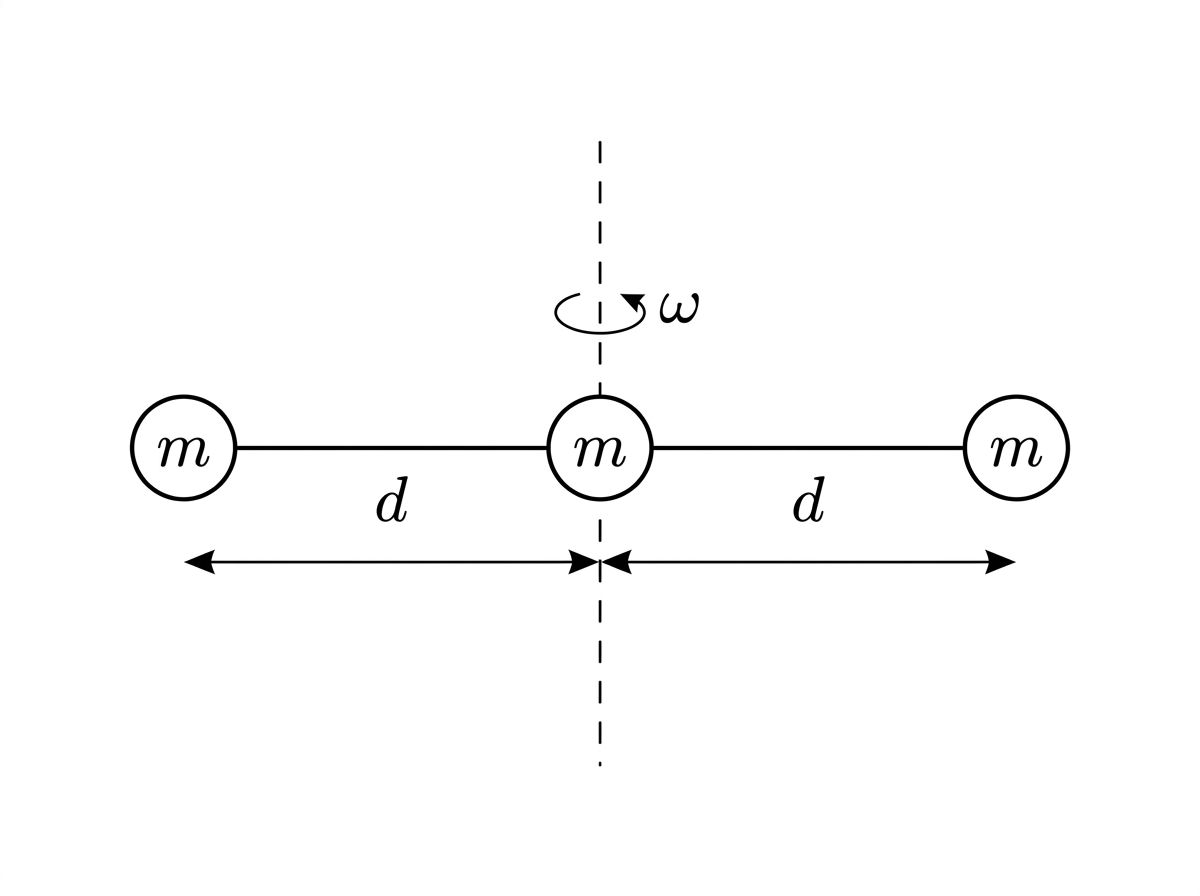

For a system of several discrete objects, add each object's contribution:
Notice the term. Distance matters a lot because it gets squared, so doubling how far a mass sits from the axis multiplies its contribution by four.
Rotational Inertia About an Off-Center Axis
Minimum at the Center of Mass
A rigid system has its smallest rotational inertia in a given plane when the axis passes through the center of mass. Any parallel axis that is farther out gives a larger rotational inertia.
- The center-of-mass axis is the "easiest" axis to spin about.
- Shift to a parallel axis and rotational inertia goes up.
Parallel Axis Theorem
The parallel axis theorem connects rotational inertia about a center-of-mass axis to rotational inertia about any parallel axis:
where:
- is rotational inertia about the parallel axis (kg⋅m²)
- is rotational inertia about the center-of-mass axis (kg⋅m²)
- is the total mass of the system (kg)
- is the perpendicular distance between the two parallel axes (m)
If you know the rotational inertia about the center-of-mass axis, this lets you find it about any axis parallel to it.
Example: A 4 kg rod has a rotational inertia of 0.8 kg⋅m² about an axis through its center. About an axis 0.2 m away and parallel to that center axis:
🚫 Boundary reminder: You calculate rotational inertia only for systems of five or fewer objects in two-dimensional arrangements. Rotational inertias for extended rigid systems are given on the exam. You should understand qualitatively how mass distribution affects rotational inertia, like why a hoop has greater rotational inertia than a solid disk of equal mass and radius.
Calculating Rotational Inertia and Reasoning About Changes
Problem Solving: When you compute rotational inertia for a group of point masses:
- Identify the axis and find the perpendicular distance for each mass.
- Apply to each mass.
- Add the contributions: .
- If the axis sits on a mass, that mass has and contributes nothing.
For the parallel axis theorem, confirm the new axis is parallel to a center-of-mass axis, then add to .
Free Response: When a question asks how rotational inertia or angular acceleration changes, reason through the functional relationships instead of just plugging numbers:
- Because , moving a mass twice as far from the axis quadruples its contribution.
- Because angular acceleration is inversely related to rotational inertia, increasing for the same net torque means a smaller angular acceleration.
- Justify claims with the equation and explain in words, not just with a final number.
Common Trap: The in is the perpendicular distance to the axis, not just any distance to the mass. Always measure straight to the axis of rotation.
Practice Problem 1: Rotational Inertia Calculation
Two masses are connected by a lightweight rod: a 3 kg mass is located 0.4 m from the rotation axis, and a 2 kg mass is located 0.7 m from the axis. Calculate the total rotational inertia of this system. If the rotation axis were moved to pass through the 3 kg mass, what would the new rotational inertia be?
Use the basic rotational inertia formula and track the distances carefully:
- For the initial setup, use :
- For the axis through the 3 kg mass:
- The 3 kg mass now has , so it contributes nothing.
- The problem doesn't say which side of the axis each mass is on, so assume they are on opposite sides. Then the 2 kg mass is 1.1 m from the new axis (0.7 + 0.4).
- If both masses were on the same side, the distance would be m, giving .
Practice Problem 2: Parallel Axis Theorem Application
A uniform solid disk has mass 5 kg, radius 0.3 m, and a given rotational inertia of about an axis through its center. Calculate the rotational inertia if the axis is moved to the edge of the disk, parallel to the original axis.
Use the parallel axis theorem:
- Set up :
- (center to edge)
- Calculate:
Common Misconceptions
- Misconception: Rotational inertia is just total mass.Actually: Rotational inertia is not just total mass. Two objects with the same mass can have very different rotational inertias depending on how the mass is spread out from the axis.
- Misconception: The in is the size of the object or the distance to its center.Actually: The in is the perpendicular distance to the axis, not the size of the object or the distance to its center.
- Misconception: Rotational inertia is a fixed property of an object alone.Actually: Rotational inertia is not a fixed property of an object alone. It depends on which axis you choose, so the same object has different values about different axes.
- Misconception: The parallel axis theorem works between any two parallel axes directly.Actually: The parallel axis theorem only works between an axis and a parallel axis through the center of mass. You cannot use it between two random parallel axes directly.
- Misconception: A heavier object is automatically harder to spin.Actually: A heavier object is not automatically harder to spin. A light hoop can have more rotational inertia than a heavier compact object if its mass sits farther from the axis.
Related AP Physics 1 Guides
Practice Questions for 5.4
1 of 10
The graph shown represents the rotational inertia of a point mass rotating at a fixed distance from an axis as a function of its mass . The best-fit line has a slope . If the distance is increased to , what is the new slope of the versus graph?
What is the new slope of the versus graph?
A.
B.
C.
D.
Vocabulary
The following words are mentioned explicitly in the AP® course framework for this topic.Term | Definition |
|---|---|
axis of rotation | The fixed line about which a system rotates. |
center of mass | The point in a system where all the mass can be considered to be concentrated for the purpose of analyzing motion and forces. |
mass distribution | The spatial arrangement of mass within a system relative to a reference point or axis, which affects the system's rotational inertia. |
parallel axis theorem | A theorem that relates the rotational inertia of a rigid system about any axis parallel to an axis through its center of mass, expressed as I' = I_cm + Md². |
perpendicular distance | The shortest distance from a point or object to the axis of rotation, measured at a right angle to the axis. |
rigid system | A system that holds its shape but in which different points on the system move in different directions during rotation. |
rotational inertia | A measure of a rigid system's resistance to changes in its rotational motion, dependent on both the mass of the system and how that mass is distributed relative to the axis of rotation. |
