5.1 Rotational Kinematics

Rotational kinematics describes how a rotating system moves over time using angular displacement, angular velocity, and angular acceleration. These angular quantities behave like their linear counterparts, so the same style of equations and graph analysis you used for straight-line motion carries over to spinning objects in AP Physics 1.

Rotational Kinematics in AP Physics 1

In AP Physics 1, rotational kinematics describes rotation over time using angular displacement $\Delta \theta$, angular velocity $\omega$, and angular acceleration $\alpha$. These quantities are rotational versions of linear displacement, velocity, and acceleration.

The exam expects you to work in radians, choose a clockwise or counterclockwise sign convention, use constant-angular-acceleration equations when $\alpha$ is constant, and interpret angular motion graphs. The same graph logic from linear motion still applies: slope gives rate of change, and area under a rate graph gives the accumulated change.

more resources to help you study

practice multiple choiceFRQ practice & scoringcheatsheetsscore calculator

Why This Matters for the AP Physics 1 Exam

Rotation is a big part of Unit 5, which carries roughly 10 to 15 percent of the exam weight. This first topic sets up the vocabulary and equations you will reuse for torque, rotational inertia, and Newton's laws in rotational form.

The angular kinematic equations mirror the linear ones, so you can lean on motion-graph skills you already have. You will see these quantities in both the multiple-choice and free-response sections. One thing worth practicing early: questions often ask how a quantity changes when another variable changes (for example, what happens to angular displacement if angular acceleration doubles). Getting comfortable with these functional-relationship questions now pays off across the whole unit.

Key Takeaways

• Angular displacement is measured in radians and found with $\Delta \theta = \theta - \theta_0$; track direction with a clockwise/counterclockwise sign convention.
• Average angular velocity is $\omega_{avg} = \frac{\Delta \theta}{\Delta t}$ (rad/s); average angular acceleration is $\alpha_{avg} = \frac{\Delta \omega}{\Delta t}$ (rad/s²).
• For constant angular acceleration, use the three rotational kinematic equations, which match the linear ones in form.
• A rigid system holds its shape, but different points move in different directions, so you cannot treat it as a single particle unless its center-of-mass motion describes the rotation well.
• On motion graphs, the slope of $\theta$ vs. $t$ gives $\omega$, the slope of $\omega$ vs. $t$ gives $\alpha$, and the area under $\omega$ vs. $t$ gives $\Delta \theta$.

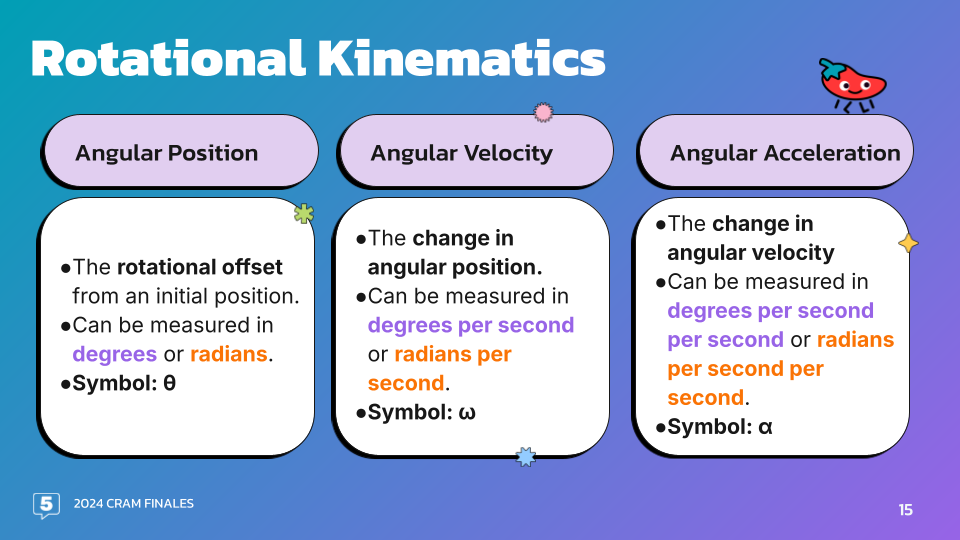

Angular Motion Measurements

Angular Displacement in Radians

Angular displacement measures how far an object has rotated around an axis, in radians. A radian is the angle you get when the arc length equals the radius of the circle. Angular displacement is the change in angular position:

$\Delta \theta = \theta - \theta_0$

where $\theta_0$ is the initial angular position and $\theta$ is the final angular position.

• A rigid system holds its shape, but different points move in different directions during rotation, so you cannot model the whole system as a single particle.
• One rotation direction (clockwise or counterclockwise) is assigned positive, the other negative, so you can track which way the system turns.
• You can treat a system as a single object when its rotation about an axis is well described by the motion of its center of mass.
• As an example, when analyzing Earth's revolution around the Sun, Earth's spin about its own axis can be treated as negligible.

Average Angular Velocity

Average angular velocity is the rate at which angular position changes over time. It is the rotational version of linear velocity.

• Equation: $\omega_{avg} = \frac{\Delta \theta}{\Delta t}$
• Units: radians per second (rad/s).
• A constant angular velocity means the object sweeps through equal angles in equal time intervals.

Average Angular Acceleration

Average angular acceleration describes how the angular velocity changes over time. If the spin rate speeds up or slows down, there is angular acceleration.

• Equation: $\alpha_{avg} = \frac{\Delta \omega}{\Delta t}$
• Units: radians per second squared (rad/s²).
• Positive angular acceleration increases angular velocity in the positive direction; negative angular acceleration slows it down or increases it in the negative direction.

Angular vs. Linear Motion

Angular motion equations closely parallel linear motion equations. The relationships between displacement, velocity, and acceleration work the same way, just with angular quantities and units.

• Angular displacement, velocity, and acceleration around one axis are analogous to their linear counterparts in one dimension.
• For constant angular acceleration:
  • $\omega = \omega_0 + \alpha t$
  • $\theta = \theta_0 + \omega_0 t + \frac{1}{2} \alpha t^2$
  • $\omega^2 = \omega_0^2 + 2\alpha(\theta - \theta_0)$
• Graphs help connect these quantities. The slope of a $\theta$ vs. $t$ graph gives angular velocity, the slope of an $\omega$ vs. $t$ graph gives angular acceleration, the area under an $\omega$ vs. $t$ graph gives angular displacement, and the area under an $\alpha$ vs. $t$ graph gives the change in angular velocity.

How to Use This on the AP Physics 1 Exam

Problem Solving

Pick the rotational kinematic equation based on what you know and what you need:

• Use $\omega = \omega_0 + \alpha t$ when you have time but not displacement.
• Use $\theta = \theta_0 + \omega_0 t + \frac{1}{2} \alpha t^2$ when you need angular displacement over a time interval.
• Use $\omega^2 = \omega_0^2 + 2\alpha(\theta - \theta_0)$ when time is not given.

These only work for constant angular acceleration, so check that condition before plugging in.

Free Response

Be ready to analyze how one quantity depends on another. If a problem doubles the angular acceleration, use the equations to predict how angular displacement or final angular velocity changes, and justify your answer with the relationship rather than just a number. This kind of functional-dependence reasoning shows up in free-response and multiple-choice questions.

Common Trap

Watch your units. Angular quantities use radians, and answers in revolutions need conversion ($1$ revolution $= 2\pi$ radians). A negative angular acceleration does not always mean slowing down; it means acceleration points in the negative direction, which only slows the object if the angular velocity is positive.

Practice Problem 1: Angular Displacement

Solution:

1. Find the angular displacement after 6 seconds.
2. Use the equation: $\theta = \theta_0 + \omega_0 t + \frac{1}{2} \alpha t^2$
3. Given:

• Initial angular displacement $\theta_0 = 0$ (starting from rest)
• Initial angular velocity $\omega_0 = 0$ (starting from rest)
• Angular acceleration $\alpha = 2.5$ rad/s²
• Time $t = 6$ s

1. Substitute: $\theta = 0 + 0 + \frac{1}{2} \times 2.5 \times 6^2$ $\theta = \frac{1}{2} \times 2.5 \times 36$ $\theta = 45 \text{ radians}$
2. Convert to revolutions by dividing by $2\pi$: Number of revolutions = $\frac{45}{2\pi} \approx 7.16 \text{ revolutions}$

The wheel completes about 7.16 revolutions in the first 6 seconds.

Practice Problem 2: Angular Velocity

Solution:

1. Use the equation: $\omega^2 = \omega_0^2 + 2\alpha(\theta - \theta_0)$

2. Given:

• Initial angular velocity $\omega_0 = 25$ rad/s
• Final angular velocity $\omega = 0$ rad/s (stopped)
• Angular displacement $\theta - \theta_0 = 125$ rad

1. Substitute: $0^2 = 25^2 + 2\alpha \times 125$ $0 = 625 + 250\alpha$ $-625 = 250\alpha$ $\alpha = -2.5 \text{ rad/s}^2$
2. The negative sign means the acceleration points opposite the initial velocity, which fits since the flywheel is slowing down.

The angular acceleration of the flywheel is -2.5 rad/s².

Practice Problem 3: Using Angular Velocity and Acceleration

Solution:

1. Use the equation: $\omega = \omega_0 + \alpha t$
2. Given:

• Initial angular velocity $\omega_0 = 4$ rad/s
• Angular acceleration $\alpha = 3$ rad/s²
• Time $t = 5$ s

1. Substitute: $\omega = 4 + (3)(5) = 19 \text{ rad/s}$

The final angular velocity of the disk is 19 rad/s.

Common Misconceptions

• Angular displacement is not the same as the linear distance traveled. Displacement is an angle in radians; the actual path length of a point depends on its distance from the axis.
• Every point on a rigid rotating system shares the same angular velocity and angular acceleration, even though points farther from the axis move faster in linear terms.
• A negative angular acceleration does not automatically mean the object is slowing down. It only slows the object when the angular velocity has the opposite sign.
• Degrees and radians are not interchangeable in these equations. The rotational kinematic equations assume radians, so convert before solving.
• The constant-acceleration equations only apply when angular acceleration is constant. If $\alpha$ changes, you cannot use them directly.
