2.1 Plate Tectonics and Landform Formation

Plate Tectonics and Earth's Surface

Earth's surface is constantly reshaped by plate tectonics. This process drives the formation of mountains, ocean basins, valleys, and volcanic chains. It also triggers earthquakes and volcanic eruptions. Understanding plate tectonics is essential for this unit because it connects the lithosphere to climate patterns, water systems, and ecosystems across the planet.

Plate Tectonics Theory

The theory of plate tectonics explains that Earth's outer shell, the lithosphere, is broken into several large plates that slowly move and interact over time. The lithosphere includes both the crust and the rigid upper portion of the mantle. These plates float on the asthenosphere, a hotter, more fluid layer of the mantle beneath them.

What drives this movement? Convection currents in the mantle transfer heat from Earth's interior toward the surface. As hot mantle material rises and cooler material sinks, it creates a slow circulation that drags the plates along.

Over millions of years, plate movement has rearranged continents and oceans, built mountain ranges, and determined where volcanoes and earthquake zones exist today.

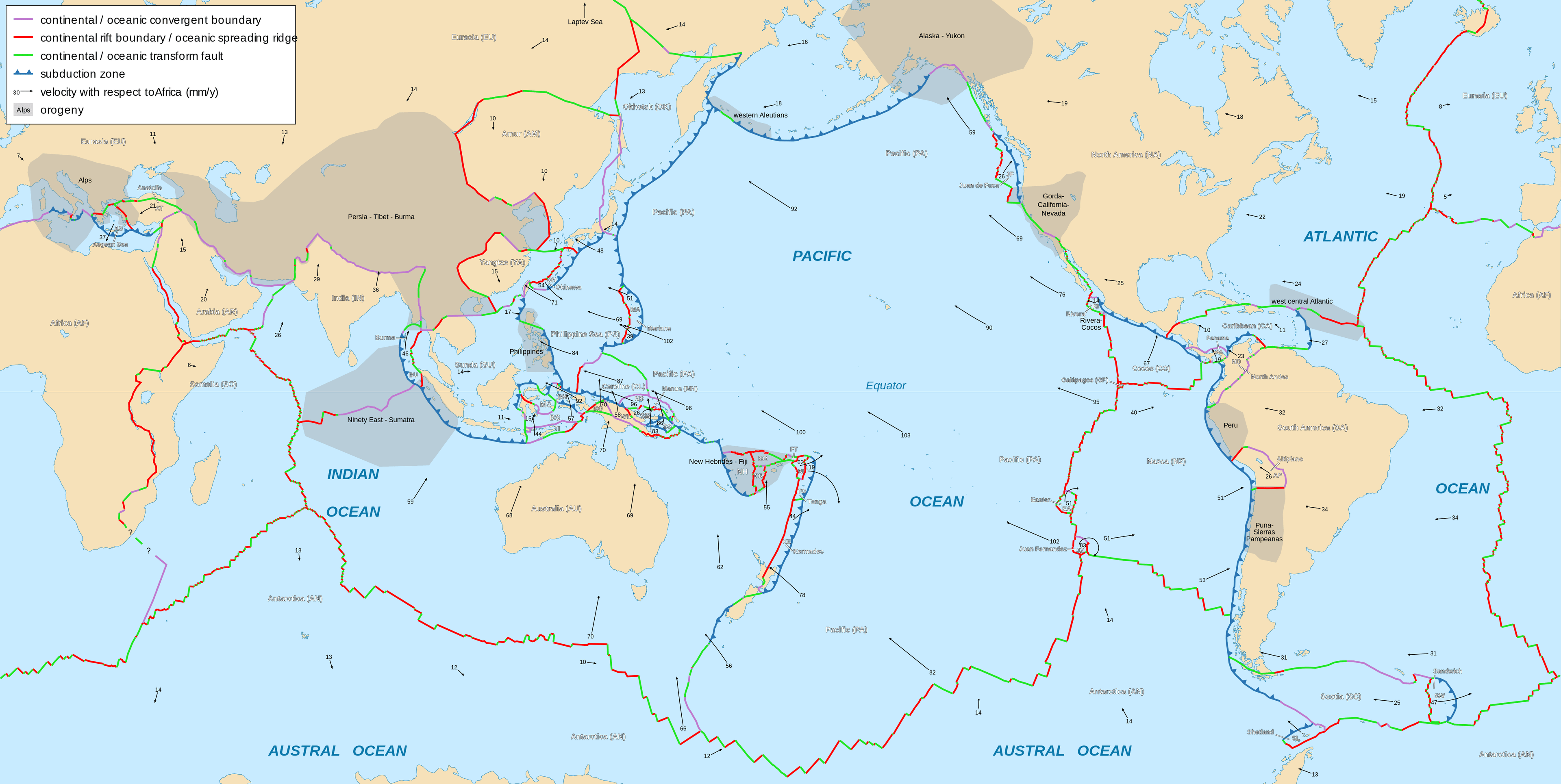

Plate Boundaries and Interactions

Plates interact at three main types of boundaries, each producing distinct geological features:

• Divergent boundaries: plates move apart
• Convergent boundaries: plates collide
• Transform boundaries: plates slide past each other

Some regions don't fit neatly into one category. Plate boundary zones, like the Mediterranean, involve complex interactions between multiple plates and can feature a mix of boundary types and landforms in a relatively small area.

Plate Boundaries and Landforms

Divergent Boundaries

At divergent boundaries, two plates move away from each other. Magma rises from the mantle to fill the gap, creating new oceanic crust as it cools and solidifies.

Key landforms and features:

• Mid-ocean ridges: underwater mountain chains formed by rising magma along the boundary. The Mid-Atlantic Ridge runs roughly down the center of the Atlantic Ocean and is the longest mountain range on Earth.
• Rift valleys: where divergence occurs on land, the crust stretches and drops, forming a valley. The East African Rift Valley is an active example where the African plate is slowly splitting apart.
• Basaltic volcanism: the lava at divergent boundaries tends to be low-viscosity basalt, producing broad, relatively gentle eruptions. Iceland sits directly on the Mid-Atlantic Ridge and owes its volcanic landscape to this process.
• Hydrothermal vents: superheated water escapes through cracks in the new ocean floor, supporting unique deep-sea ecosystems

Earthquakes at divergent boundaries are typically shallow and relatively mild compared to other boundary types.

Convergent Boundaries

At convergent boundaries, two plates collide. What happens next depends on the type of crust involved, because oceanic crust is denser than continental crust.

• Oceanic-continental convergence: The denser oceanic plate dives beneath the continental plate in a process called subduction. This creates a deep-sea trench, a volcanic arc on the continent, and an accretionary wedge of scraped-off sediment. The Andes Mountains formed this way, with the Nazca Plate subducting beneath the South American Plate.
• Oceanic-oceanic convergence: The denser of the two oceanic plates subducts beneath the other, forming a deep-sea trench and a chain of volcanic islands called an island arc. The Mariana Trench (the deepest point on Earth at about 11,000 meters) and the nearby Mariana Islands are a classic example.
• Continental-continental convergence: Neither plate subducts easily because both are relatively buoyant. Instead, the crust crumples, thickens, and is pushed upward. The Himalayas formed from the ongoing collision between the Indian and Eurasian plates, and they're still rising today.

Convergent boundaries produce the most powerful earthquakes (both shallow and deep), intense volcanic activity, and metamorphic rocks created under extreme pressure and heat.

Transform Boundaries

At transform boundaries, two plates slide horizontally past each other along strike-slip faults. No crust is created or destroyed.

The San Andreas Fault in California is the most well-known example. Here, the Pacific Plate moves northwest relative to the North American Plate. The movement isn't smooth; stress builds up along the fault until it's released suddenly as an earthquake.

Key characteristics of transform boundaries:

• Shallow but often intense earthquakes
• Linear valleys or ridges along the fault line
• No volcanic activity (since no magma is generated)
• Can offset other features, such as segments of mid-ocean ridges

Mountain Building, Volcanism, and Earthquakes

Mountain Building Processes

Mountain building, or orogeny, happens primarily at convergent boundaries through several related processes:

1. Subduction-related orogeny: As an oceanic plate subducts, it melts at depth. The resulting magma rises to form a volcanic arc parallel to the trench. Over time, repeated eruptions and uplift build a mountain range. The Andes are the prime example.
2. Collision-related orogeny: When two continental plates collide, the crust thickens and is forced upward. The Himalayas are the result of the Indian Plate pushing into the Eurasian Plate over roughly 50 million years.
3. Terrane accretion: Smaller fragments of crust, called terranes, can be carried by a plate and plastered onto the edge of a continent during convergence. Much of western North America grew through the accretion of terranes over hundreds of millions of years.

Volcanic Activity

Volcanism occurs at divergent boundaries, convergent boundaries, and at hot spots within plates. In each setting, the type of eruption and the resulting landforms differ.

• Divergent boundary volcanism: Basaltic lava with low viscosity produces relatively gentle eruptions, forming shield volcanoes and extensive lava flows. Iceland is a good example.
• Convergent boundary volcanism: Magma generated by subduction tends to be more viscous and gas-rich, leading to explosive eruptions. This produces stratovolcanoes (steep, layered cones) and sometimes calderas (large collapse craters). Mount St. Helens in Washington and Krakatoa in Indonesia are both convergent-boundary volcanoes.
• Hot spot volcanism: A hot spot is a stationary plume of unusually hot mantle material. As a plate moves over the hot spot, a chain of volcanoes forms. The Hawaiian Islands were created this way, with the Big Island currently sitting over the hot spot. Yellowstone is a continental hot spot responsible for massive past eruptions.

Earthquake Distribution and Characteristics

Earthquakes concentrate along plate boundaries, and their characteristics vary by setting:

• Transform boundaries: Shallow, often intense earthquakes from sudden stress release along strike-slip faults (San Andreas Fault).
• Convergent boundaries (subduction zones): Both shallow and deep earthquakes. Deeper quakes originate within the subducting slab as it descends into the mantle. The Cascadia Subduction Zone off the Pacific Northwest coast is capable of producing magnitude 9+ earthquakes.
• Intraplate earthquakes: These occur away from plate boundaries, often along ancient fault zones or areas of crustal weakness. The New Madrid Seismic Zone in the central United States produced some of the strongest earthquakes in recorded North American history (1811-1812), despite being far from any plate boundary.

The global pattern of earthquake distribution closely traces plate boundaries and was one of the key pieces of evidence supporting the theory of plate tectonics.

Tectonic Activity and Human Impact

Risks and Hazards

Tectonic events pose serious threats to human populations:

• Volcanic eruptions can destroy communities through lava flows, pyroclastic density currents (fast-moving clouds of hot gas and rock), and heavy ash fall that collapses roofs and disrupts air travel.
• Earthquakes damage buildings, roads, and infrastructure. The level of destruction depends heavily on building construction and population density.
• Tsunamis are generated by large underwater earthquakes or landslides. The 2004 Indian Ocean tsunami killed over 230,000 people across multiple countries, illustrating how far-reaching these events can be.

Hazard Assessment and Mitigation

The severity of tectonic hazards depends on magnitude, depth, proximity to populated areas, and how well-prepared a community is. Reducing risk involves several strategies:

1. Hazard assessment: Study the geological history of an area, monitor current seismic and volcanic activity, and create hazard maps showing which areas face the greatest risk.
2. Building codes: Enforce earthquake-resistant construction standards. Japan and Chile, both highly seismic countries, have strict codes that save lives.
3. Land-use planning: Avoid building critical infrastructure in high-risk zones like floodplains near coasts vulnerable to tsunamis.
4. Early warning systems: Seismic networks can provide seconds to minutes of warning before earthquake shaking arrives. Tsunami warning systems monitor ocean conditions after large quakes.
5. Public education: Communities that understand the risks and know how to respond (evacuation routes, drop-cover-hold procedures) fare better during events.

Long-term Impacts and Adaptations

Tectonic processes also shape human life over longer timescales:

• Tectonic uplift creates plateaus and high-elevation landscapes that affect climate, vegetation, and settlement patterns. The Tibetan Plateau, formed by the India-Eurasia collision, influences monsoon patterns across all of South and East Asia.
• Coastal subsidence in subduction zones gradually lowers the land surface, increasing vulnerability to flooding and sea-level rise. Communities in these areas may need coastal protection infrastructure or managed retreat.
• Fertile volcanic soils attract agriculture and settlement despite volcanic risk. Java, Indonesia, is one of the most densely populated islands on Earth in part because volcanic ash weathers into nutrient-rich soil that supports intensive farming.

These long-term effects show that tectonic activity isn't just about sudden disasters. It fundamentally shapes where and how people live.
