9.5 Cluster expansions

Fundamentals of Cluster Expansions

Cluster expansions give you a systematic way to calculate thermodynamic properties of interacting many-particle systems by breaking the problem into contributions from pairs, triplets, and larger groups of particles. The core idea: instead of trying to solve the full N-body problem at once, you expand the partition function (or free energy) as a series where each term captures the effect of a specific "cluster" of interacting particles. This makes the intractable tractable, at least when interactions aren't too strong.

Definition and Purpose

The partition function for an interacting system involves a massive integral over all particle positions, weighted by the Boltzmann factor of the total potential energy. Cluster expansions rewrite this integral as a series of terms, each involving integrals over clusters of 2, 3, 4, ... particles. This lets you:

• Express macroscopic quantities (pressure, free energy, compressibility) directly in terms of molecular interaction potentials
• Systematically improve accuracy by including larger clusters

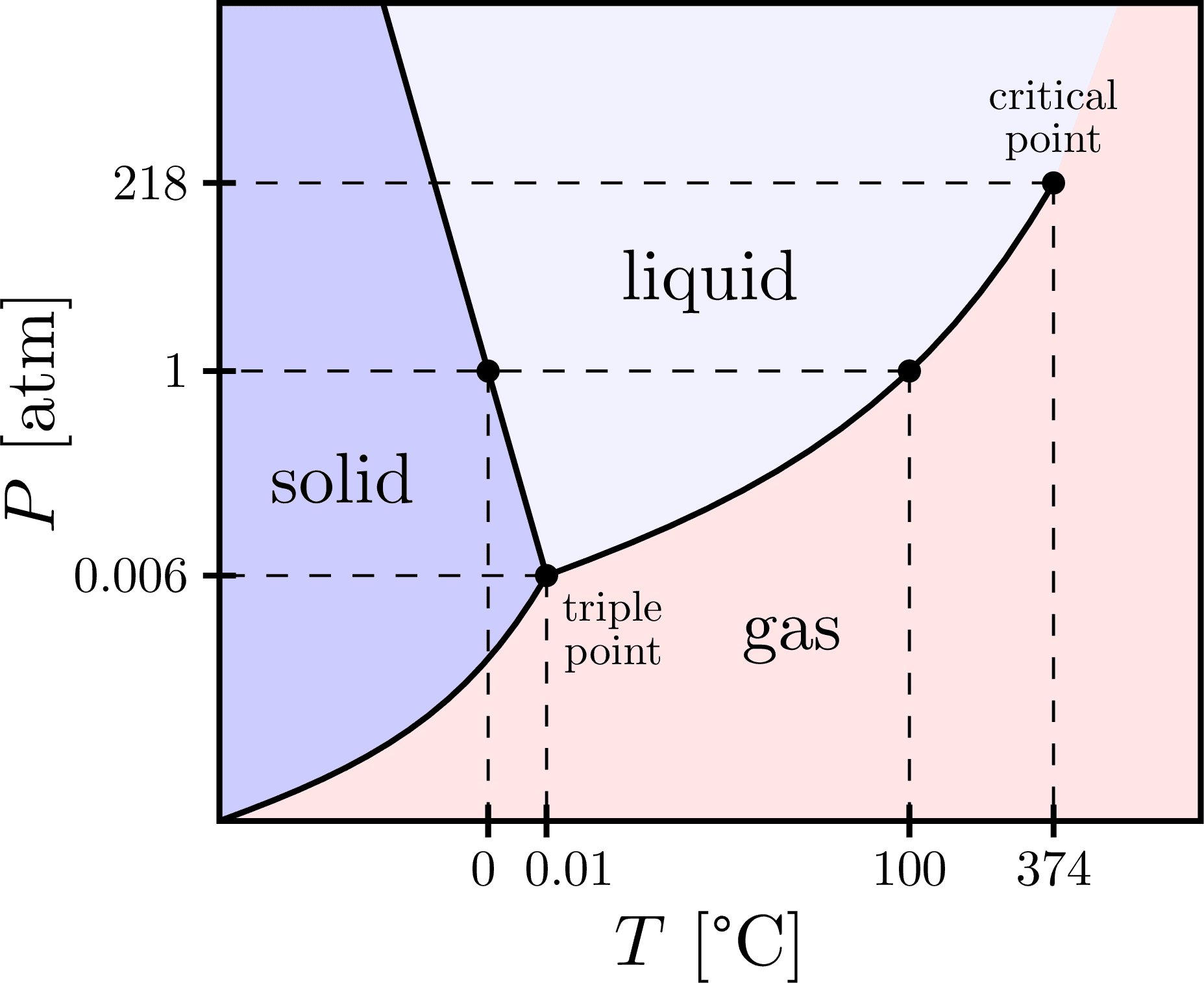

• Provide a theoretical framework for understanding phase transitions and deviations from ideal behavior

Historical Development

• Ursell (1927) introduced cluster functions that decompose many-body correlation functions into products of lower-order ones.
• Mayer and Mayer (1930s) developed the cluster expansion formalism for imperfect gases, introducing the Mayer f-function and diagrammatic methods.
• Kirkwood, Born, and Green (1940s) extended these ideas to liquid-state theory and derived integral equations for correlation functions.
• Percus and Yevick (1958) proposed an approximate closure to the Ornstein-Zernike equation, yielding analytically solvable results for hard spheres.

Applications in Statistical Mechanics

• Deriving equations of state for non-ideal gases (the virial expansion is a direct product of cluster methods)
• Calculating pair correlation functions and thermodynamic properties of liquids
• Providing the theoretical underpinning for understanding gas-liquid phase transitions and critical phenomena
• Connecting microscopic pair potentials to measurable quantities like the second virial coefficient

Mathematical Formulation

The mathematical machinery of cluster expansions converts the full many-body partition function into a series of progressively more complex but individually manageable integrals.

Partition Function Representation

For a classical system of N identical particles with pairwise interactions, the configurational partition function is:

$Z_N = \frac{1}{N!} \int \prod_{i=1}^{N} d\mathbf{r}_i \prod_{i<j} e^{-\beta U(r_{ij})}$

The key step is to rewrite each Boltzmann factor using the Mayer function (defined below), which separates the "ideal" contribution from the interaction contribution. This turns the product of exponentials into a sum over all possible ways particles can be grouped into interacting clusters.

Each term in the resulting series corresponds to a specific cluster configuration: isolated particles (ideal gas term), interacting pairs, interacting triplets, and so on.

Mayer Functions

The Mayer f-function for a pair of particles i and j is defined as:

$f_{ij} = e^{-\beta U(r_{ij})} - 1$

where $U(r_{ij})$ is the pair interaction potential and $\beta = 1/k_BT$.

This function has a clear physical meaning: it measures the deviation from ideal gas behavior for a given pair. When particles are far apart, $U(r_{ij}) \to 0$, so $f_{ij} \to 0$. The function is only significant when particles are close enough to interact. By substituting $e^{-\beta U} = 1 + f_{ij}$ into the partition function, you can expand the product over all pairs and collect terms by the number of f-bonds, which is exactly what generates the cluster series.

Cluster Integrals

Cluster integrals are the coefficients that appear when you collect terms in the expansion. The $n$-th cluster integral, often denoted $b_n$, involves integrating products of Mayer functions over the positions of $n$ particles:

$b_n = \frac{1}{n! \, V} \int d\mathbf{r}_1 \cdots d\mathbf{r}_n \sum_{\text{connected graphs}} \prod_{\text{bonds}} f_{ij}$

The sum runs over all topologically distinct connected graphs on $n$ labeled vertices. For example, $b_2$ involves just one pair:

$b_2 = \frac{1}{2V} \int d\mathbf{r}_1 \, d\mathbf{r}_2 \, f(r_{12})$

These integrals directly determine the virial coefficients and encode how clusters of different sizes contribute to thermodynamic properties.

Types of Cluster Expansions

Different expansion schemes are suited to different physical regimes and mathematical formulations. The choice depends on what variable you expand in and what system you're studying.

Virial Expansion

The virial expansion writes the equation of state as a power series in the number density $\rho = N/V$:

$\frac{P}{k_BT} = \rho + B_2(T)\rho^2 + B_3(T)\rho^3 + \cdots$

Each virial coefficient $B_n(T)$ is related to the cluster integrals and captures the effect of n-body correlations. The second virial coefficient $B_2(T)$ depends only on the pair potential:

$B_2(T) = -\frac{1}{2} \int d\mathbf{r} \, f(r) = -\frac{1}{2} \int_0^{\infty} \left(e^{-\beta U(r)} - 1\right) 4\pi r^2 \, dr$

This expansion works well for moderately dense gases where higher-order terms converge. It becomes unreliable at high densities or near phase transitions.

Ursell-Mayer Expansion

This formulation expands the grand canonical partition function in powers of the activity (fugacity) $z = e^{\beta \mu}/\Lambda^3$, where $\Lambda$ is the thermal de Broglie wavelength:

• Uses Ursell functions to decompose many-body distribution functions into connected correlation contributions
• Provides a natural framework for studying phase transitions, since the activity expansion can signal condensation through singularities
• The cluster integrals $b_n$ appear directly as coefficients in the expansion of pressure in powers of $z$

Percus-Yevick Approximation

Rather than a direct series expansion, this is a closure approximation for the Ornstein-Zernike equation, which relates the total correlation function $h(r)$ to the direct correlation function $c(r)$:

$h(r_{12}) = c(r_{12}) + \rho \int d\mathbf{r}_3 \, c(r_{13}) \, h(r_{32})$

The Percus-Yevick closure sets $c(r) = (1 - e^{\beta U(r)}) \cdot (1 + h(r) - c(r))$. For hard spheres, this yields an analytical solution (the Wertheim-Thiele result), making it one of the most successful approximations in liquid-state theory. It can be understood as a specific partial resummation of the full cluster expansion.

Diagrammatic Techniques

Diagrams provide a visual language for organizing and simplifying the many terms that appear in cluster expansions. They turn bookkeeping nightmares into pattern recognition.

Cluster Diagrams

Each term in the cluster expansion corresponds to a graph:

• Nodes (dots) represent particles whose positions are integrated over
• Bonds (lines) represent Mayer f-functions connecting pairs of particles
• A diagram with $n$ nodes and specific bonds represents a particular integral over $n$ particle positions

For example, a triangle diagram (three nodes, each connected to the other two) represents the three-body cluster integral involving $f_{12}f_{13}f_{23}$. Drawing all topologically distinct diagrams at each order gives you every term you need to evaluate.

Topological Reduction

Many diagrams that look different are actually equivalent under relabeling of particles. Topological reduction identifies these symmetries:

1. Draw all possible diagrams at a given order.
2. Group diagrams that are topologically identical (same connectivity pattern).
3. Assign a symmetry factor to each distinct topology to account for the number of equivalent labelings.

This dramatically reduces the number of integrals you actually need to compute. For instance, at third order there are several labeled diagrams but only a few distinct topologies.

Irreducible Cluster Integrals

An irreducible (or "star") cluster integral cannot be disconnected by removing a single node. These are the fundamental building blocks:

• All reducible diagrams can be factored into products of irreducible ones
• The virial coefficients $B_n$ are expressed entirely in terms of irreducible cluster integrals
• Working with irreducible integrals avoids double-counting and provides a cleaner mathematical structure
• Systematic inclusion of higher-order irreducible integrals improves the approximation

Applications to Physical Systems

Imperfect Gases

Cluster expansions were originally developed to describe real gases. The virial expansion directly gives corrections to the ideal gas law:

• The second virial coefficient $B_2(T)$ captures the leading correction due to pair interactions. For a Lennard-Jones potential, $B_2$ is negative at low temperatures (attraction dominates) and positive at high temperatures (repulsion dominates). The temperature where $B_2 = 0$ is the Boyle temperature.
• Higher virial coefficients account for three-body and multi-body effects.
• The van der Waals equation can be understood as a rough resummation of the virial series.
• Predictions of gas-liquid coexistence curves and critical points emerge from analyzing the singularity structure of the expansion.

Liquid State Theory

For liquids, cluster expansions provide the theoretical basis for calculating structural and thermodynamic properties:

• The radial distribution function $g(r)$, which describes the probability of finding a particle at distance $r$ from another, can be expressed through cluster diagrams
• Thermodynamic quantities (pressure, internal energy, compressibility) follow from $g(r)$ via exact statistical mechanical relations
• Integral equation theories (Percus-Yevick, HNC) are specific resummations of the cluster series tailored to dense systems

Critical Phenomena

Near a critical point, density fluctuations become correlated over very long distances, and simple truncations of the cluster expansion break down. However, cluster expansion ideas remain relevant:

• They reveal how long-range correlations emerge from short-range interactions
• The divergence of certain cluster sums signals the onset of phase transitions
• Renormalization group methods (discussed below) can be viewed as sophisticated resummations of the cluster series that correctly capture universal scaling behavior and critical exponents

Computational Methods

Evaluating cluster integrals analytically is only possible for the simplest potentials and lowest orders. For realistic systems, computational methods are essential.

Monte Carlo Integration

High-dimensional cluster integrals are natural candidates for Monte Carlo evaluation:

1. Generate random configurations of particle positions within the integration volume.
2. Evaluate the integrand (products of Mayer functions) for each configuration.
3. Average over many configurations to estimate the integral, with statistical error decreasing as $1/\sqrt{N_{\text{samples}}}$.

This approach scales much better than grid-based numerical integration for the high-dimensional integrals that appear at higher cluster orders.

Molecular Dynamics Simulations

While not a direct evaluation of cluster integrals, molecular dynamics (MD) provides complementary information:

• Simulates the trajectories of many interacting particles by numerically integrating Newton's equations
• Yields correlation functions and thermodynamic averages that can be compared against cluster expansion predictions
• Provides benchmarks for testing the accuracy of truncated expansions
• Accesses dynamical properties (diffusion, viscosity) that cluster expansions alone cannot predict

Density Functional Theory

Classical density functional theory (DFT) represents the free energy as a functional of the spatially varying density $\rho(\mathbf{r})$:

• Cluster expansions provide a systematic route to constructing the excess free energy functional (the part due to interactions)
• The second-order functional Taylor expansion of the excess free energy around a uniform reference state involves $c(r)$, the direct correlation function, which is itself a resummed cluster quantity
• DFT is especially powerful for studying inhomogeneous systems: fluids near walls, in pores, or at interfaces

Limitations and Challenges

Convergence Issues

The virial series and related expansions are not guaranteed to converge for all conditions:

• For the virial expansion, the radius of convergence in density is finite and typically corresponds roughly to the density where condensation occurs
• Near phase transitions, fluctuations at all length scales make any finite truncation inadequate
• Resummation techniques (Padé approximants, Borel summation) can extend the useful range but don't eliminate the fundamental limitation
• Careful analysis of how results change with truncation order is always necessary

High-Density Systems

At liquid-like densities, many-body correlations become so important that low-order cluster expansions lose accuracy:

• Higher-order cluster integrals become large and difficult to compute (the number of distinct diagrams grows combinatorially with order)
• Integral equation theories, which effectively resum infinite subsets of diagrams, often perform better than direct truncation
• Simulation methods (MC, MD) become the most reliable approach for quantitative predictions in dense systems

Complex Molecular Interactions

Real molecules have interactions that go beyond simple pairwise-additive spherical potentials:

• Three-body forces (e.g., Axilrod-Teller interactions) require explicit treatment of higher-order cluster integrals
• Anisotropic potentials (for non-spherical molecules) make the angular integrations in cluster integrals much more involved
• Long-range interactions (Coulombic, dipolar) require special handling because the standard Mayer function doesn't decay fast enough for integrals to converge straightforwardly

Advanced Topics

Renormalization Group Methods

The renormalization group (RG) provides a way to handle the divergences that plague cluster expansions near critical points:

• Systematically integrates out short-wavelength fluctuations to obtain an effective theory at longer length scales
• Reveals that critical behavior depends only on symmetry and dimensionality (universality), not on microscopic details of the potential
• Yields critical exponents that agree with experiment, unlike mean-field or low-order cluster results
• Can be understood as a sophisticated, scale-dependent resummation of the cluster series

Resummation Techniques

When the raw cluster series converges slowly or diverges, resummation methods extract useful information:

• Padé approximants replace the truncated power series with a ratio of two polynomials, often dramatically improving convergence
• Borel summation transforms a divergent series into a convergent integral
• Conformal mapping techniques remap the complex plane to enlarge the region of convergence
• These methods extend the predictive power of cluster expansions to higher densities and lower temperatures than the raw series allows

Cluster Expansions in Quantum Systems

Classical cluster expansions generalize to quantum systems with important modifications:

• The thermal density matrix replaces the classical Boltzmann factor, and path integral representations are often used
• Quantum statistics matter: exchange effects lead to additional cluster contributions that distinguish bosons from fermions
• The quantum second virial coefficient includes bound-state contributions (Beth-Uhlenbeck formula)
• Applications include dilute quantum gases (where virial expansions work well), superfluid helium, and nuclear matter

Connections to Other Theories

Density Functional Theory

Cluster expansions and classical DFT are deeply intertwined:

• The exact excess free energy functional can in principle be constructed from the full set of direct correlation functions, which are cluster expansion quantities
• Weighted-density approximations and fundamental measure theory for hard spheres draw on insights from cluster and integral equation methods
• Combining DFT with cluster-level input for the correlation functions yields accurate theories for inhomogeneous fluids

Integral Equation Theories

The Ornstein-Zernike equation, combined with a closure relation, is the workhorse of liquid-state theory. Its connection to cluster expansions is direct:

• The direct correlation function $c(r)$ can be defined as the sum of all irreducible diagrams in the cluster expansion
• Different closures (Percus-Yevick, HNC, MSA) correspond to different partial resummations of the diagrammatic series
• Improving the closure systematically means including more diagram topologies

Perturbation Theory

Thermodynamic perturbation theory treats the interaction potential as a reference part plus a perturbation:

• The reference system (often hard spheres) is solved exactly or via integral equations
• Corrections due to the perturbation (e.g., attractive tail of the potential) are computed order by order
• This is closely related to cluster expansions: the perturbation series can be organized using the same diagrammatic techniques
• Weeks-Chandler-Andersen (WCA) theory is a prominent example that splits the Lennard-Jones potential into repulsive and attractive parts

Experimental Validation

Equation of State Measurements

Precision PVT measurements on real gases provide the most direct test of cluster expansion predictions:

• Second virial coefficients $B_2(T)$ have been measured for many gases (argon, nitrogen, water vapor, etc.) across wide temperature ranges
• Comparison with $B_2(T)$ calculated from known pair potentials tests both the potential model and the cluster expansion framework
• Third and higher virial coefficients are harder to extract experimentally but provide stringent tests of three-body interaction models

Structural Properties

The radial distribution function $g(r)$ predicted by cluster-based theories can be compared with scattering experiments:

• X-ray diffraction and neutron scattering measure the static structure factor $S(q)$, which is the Fourier transform of $g(r)$
• For simple liquids like argon, the Percus-Yevick solution for hard spheres (with appropriate diameter) matches experimental $g(r)$ remarkably well
• Discrepancies point to the importance of attractive interactions and three-body effects

Thermodynamic Quantities

Bulk thermodynamic measurements validate the overall consistency of cluster expansion theories:

• Heat capacities, isothermal compressibilities, and speed of sound measurements all connect to derivatives of the free energy
• These quantities can be computed from cluster expansion results and compared with calorimetric and acoustic data
• Agreement (or lack thereof) across multiple thermodynamic properties simultaneously provides a strong test of the underlying theory
