The ergodic hypothesis bridges the gap between what a single system does over time and what a large collection of identical systems looks like at a single moment. In statistical mechanics, you almost never track one system for an eternity. Instead, you calculate averages over an ensemble and assume those match what you'd get from watching one system long enough. The ergodic hypothesis is what justifies that leap.

Without ergodicity, the entire framework of equilibrium statistical mechanics loses its foundation. You couldn't use the microcanonical ensemble, couldn't define temperature statistically, and couldn't connect microscopic dynamics to thermodynamic quantities.

Ergodic vs non-ergodic systems

An ergodic system is one that, given enough time, visits every accessible microstate consistent with its macroscopic constraints (like total energy). In such a system, time averages and ensemble averages give the same result.

A non-ergodic system gets stuck in some subset of its allowed phase space and never fully explores the rest. The time average for such a system depends on where it started, which means it won't match the ensemble average.

Ergodic examples: ideal gases, dilute fluids, simple harmonic oscillator systems
Non-ergodic examples: structural glasses (molecules get trapped in disordered configurations), spin glasses (frustrated magnetic interactions prevent full exploration of spin states)

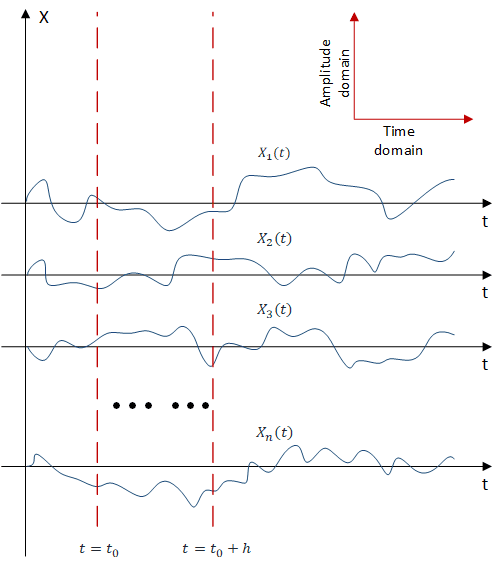

Time averages vs ensemble averages

These are two fundamentally different ways to compute the expected value of an observable $f$ :

Time average: Follow a single system along its trajectory for a long time and average $f$ over that trajectory.
Ensemble average: Take a snapshot of many identical copies of the system at one instant and average $f$ across all copies, weighted by the probability distribution $\rho(x)$ .

The ergodic hypothesis states that these two averages converge in the long-time limit:

$\lim_{T \to \infty} \frac{1}{T} \int_0^T f(x(t))\, dt = \int f(x)\, \rho(x)\, dx$

The left side is the time average; the right side is the ensemble average. This equality is what lets you replace an impossibly long measurement with a tractable statistical calculation.

Phase space exploration

Phase space is the space of all possible states of a system, with one axis for each position and momentum coordinate. For $N$ particles in 3D, phase space has $6N$ dimensions.

In an ergodic system, the trajectory wanders through the entire accessible region of phase space, eventually covering it with uniform density. Think of it like a gas molecule bouncing around a container: given enough time, it visits every corner.

Key properties of ergodic phase space exploration:

The trajectory doesn't get trapped in any subregion
The fraction of time spent in any region is proportional to that region's volume
Mixing strengthens this: nearby trajectories diverge, so the system "forgets" its initial conditions
Non-ergodic systems remain confined to lower-dimensional subsets (sometimes called attractors or metastable basins)

Mathematical formulation

The ergodic hypothesis has a precise mathematical backbone rooted in dynamical systems theory and measure theory. These results turn the intuitive idea of "exploring all states" into rigorous, provable statements.

Birkhoff's ergodic theorem

Proved by George Birkhoff in 1931, this is the central rigorous result behind the ergodic hypothesis. It states that for a measure-preserving dynamical system, the time average of any integrable function $f$ along a trajectory exists almost everywhere and equals the space average:

$\lim_{T \to \infty} \frac{1}{T} \int_0^T f(T^t x)\, dt = \int f(x)\, d\mu(x)$

Here $T^t$ is the time-evolution operator and $\mu$ is the invariant measure. The theorem guarantees convergence but only if the system is truly ergodic with respect to $\mu$ . You can think of it as a generalization of the law of large numbers: instead of averaging independent random samples, you're averaging along a deterministic but sufficiently "wandering" trajectory.

Liouville's theorem connection

Liouville's theorem states that phase space volume is conserved under Hamiltonian dynamics. If you track a cloud of initial conditions evolving in time, the cloud may deform and stretch, but its total volume never changes.

Mathematically, the phase space density $\rho$ satisfies:

$\frac{\partial \rho}{\partial t} + \{\ \rho, H \} = 0$

where $\{\ \rho, H \}$ is the Poisson bracket with the Hamiltonian. This is equivalent to the continuity equation $\frac{d\rho}{dt} = 0$ along trajectories.

Why this matters for ergodicity: Liouville's theorem ensures that the uniform distribution over an energy surface (the microcanonical ensemble) is a valid invariant measure. Without volume preservation, there'd be no guarantee that the microcanonical measure is stationary, and the ergodic hypothesis would have no natural candidate measure to work with.

Ergodic measure

An ergodic measure $\mu$ is an invariant measure that cannot be decomposed into a mixture of other invariant measures. In practical terms, this means the system has only one "type" of long-term statistical behavior.

For an ergodic system, the invariant measure is unique (up to normalization). Every trajectory samples the same statistics.
For non-ergodic systems, multiple invariant measures coexist, and which one describes your system depends on initial conditions.
The ensemble average of any observable is computed as $\langle f \rangle = \int f(x)\, d\mu(x)$ .
Common examples: the uniform (Lebesgue) measure on an energy surface for Hamiltonian systems; Sinai-Ruelle-Bowen (SRB) measures for dissipative chaotic systems.

Applications in statistical mechanics

Ergodic theory isn't just abstract math. It's the reason you can open a textbook, write down a partition function, and trust that the resulting predictions match what happens in a lab.

Ergodic vs non-ergodic systems, Ergodic theory - Wikipedia

Equilibrium systems

For a system in thermal equilibrium, ergodicity is the default assumption. It justifies the equal a priori probability postulate: every accessible microstate is equally likely. This postulate is the starting point for all of equilibrium statistical mechanics.

Ideal gases, paramagnetic materials, and simple liquids are well-described as ergodic
Ensemble averages of energy, pressure, magnetization, etc., match long-time measurements
When ergodicity breaks down (as in glasses below their glass transition temperature), equilibrium statistical mechanics no longer applies, and you need different tools

Microcanonical ensemble

The microcanonical ensemble describes an isolated system with fixed energy $E$ , volume $V$ , and particle number $N$ . It's the most direct application of the ergodic hypothesis.

The construction follows a clear logic:

The system is isolated, so its energy is conserved. The trajectory is confined to a surface of constant energy in phase space.
The ergodic hypothesis says the trajectory visits all points on this energy surface with equal probability.
Therefore, all microstates on the energy surface are equally likely.
The entropy is then $S = k_B \ln \Omega$ , where $\Omega$ is the number of accessible microstates (or the phase space volume of the energy surface).

From the microcanonical ensemble, you can derive the canonical ensemble (by coupling to a heat bath) and the grand canonical ensemble (by allowing particle exchange), each time using the ergodic assumption as the underlying justification.

Boltzmann's ergodic hypothesis

Ludwig Boltzmann originally proposed (in the 1870s-1880s) that the trajectory of a system in phase space passes through every point on the constant-energy surface. This strong form is actually too strong and is known to be false for most systems: a continuous trajectory in a space of more than one dimension cannot literally visit every point.

The modern, weaker version says only that the trajectory comes arbitrarily close to every point on the energy surface (this is called quasi-ergodicity). Even this weaker version isn't proven for most realistic systems. In practice, what matters is that time averages equal ensemble averages for the observables you care about, and this is often verified numerically or assumed on physical grounds.

Ergodicity breaking

When a system fails to explore its full accessible phase space on any reasonable timescale, the ergodic hypothesis breaks down. This isn't a rare curiosity; it happens in many physically important systems.

Causes of non-ergodicity

Energy barriers: High barriers between regions of phase space prevent the system from crossing between them (e.g., a particle trapped in a deep potential well)
Metastable states: The system gets stuck in local energy minima for times far exceeding observation times
Symmetry breaking: Below a phase transition, the system "chooses" one of several equivalent ground states and stays there (e.g., a ferromagnet picking a magnetization direction)
Quantum effects: At low temperatures, quantum tunneling rates may be too slow, or many-body localization can prevent thermalization entirely
Long-range interactions: Systems with long-range forces can develop collective traps that restrict phase space exploration

Glassy systems

Glasses are the textbook example of ergodicity breaking. When a liquid is cooled rapidly enough to avoid crystallization, it falls out of equilibrium and becomes a glass.

The key features of glassy dynamics:

The energy landscape is extremely rugged, with a vast number of local minima separated by high barriers
The system's relaxation time grows dramatically (often faster than exponentially) as temperature drops
Aging occurs: the system's properties keep changing slowly as it gradually explores nearby regions of phase space
Time averages depend on when you start measuring and how long you wait
Spin glasses (disordered magnetic systems with frustrated interactions) show similar behavior and have been central to developing the theory of ergodicity breaking

Describing glassy systems requires non-equilibrium statistical mechanics, replica theory, or other specialized frameworks.

Quantum ergodicity

Classical ergodicity has a quantum counterpart, though the concepts translate differently because quantum mechanics doesn't have trajectories in phase space.

In a quantum ergodic system, energy eigenstates are spread uniformly over the accessible phase space (in the semiclassical limit). This is captured by the Shnirelman theorem.
The Berry-Tabor conjecture proposes that integrable quantum systems have Poisson-distributed energy level spacings, while the Bohigas-Giannoni-Schmit conjecture links chaotic (ergodic) quantum systems to random matrix level statistics.
Eigenstate thermalization hypothesis (ETH): In ergodic quantum systems, individual energy eigenstates already encode thermal expectation values. This explains how isolated quantum systems can thermalize without coupling to a bath.
Many-body localization (MBL) is a striking example of quantum ergodicity breaking, where strong disorder prevents a many-body system from thermalizing even at high energy.

Experimental evidence

Ergodic vs non-ergodic systems, Scientific Memo

Molecular dynamics simulations

Molecular dynamics (MD) simulations are the primary computational tool for testing ergodicity. In an MD simulation, you numerically integrate Newton's equations for a collection of interacting particles and track their trajectories through phase space.

You can directly compute both time averages (from one long trajectory) and ensemble averages (from many independent runs) and check whether they agree
For simple fluids like liquid argon, MD confirms ergodic behavior: time and ensemble averages match after modest simulation times
For glassy systems and complex biomolecules (like proteins with many conformational states), MD reveals clear ergodicity breaking: the system gets trapped and different runs give different averages
These simulations have been essential for understanding how fast real systems explore phase space, not just whether they do

Ergodicity in physical systems

Experimental probes of microscopic dynamics provide direct and indirect tests of ergodicity:

NMR relaxation measurements reveal how quickly nuclear spins explore their available states, confirming ergodic behavior in simple liquids
Neutron scattering probes atomic-scale dynamics and can detect the dramatic slowing of relaxation in glassy systems
Single-molecule experiments (e.g., tracking a single fluorescent molecule over time) allow direct comparison of time averages from one molecule with ensemble averages from many molecules. Deviations signal non-ergodic behavior.
Non-ergodic behavior has been observed in colloidal glasses, certain quantum systems, and driven granular materials

Limitations and criticisms

Poincaré recurrence theorem

The Poincaré recurrence theorem states that almost every trajectory in a bounded, measure-preserving system will eventually return arbitrarily close to its initial state. At first glance, this seems to support ergodicity: the system keeps coming back, so it must be exploring phase space.

The catch is the recurrence time. For a macroscopic system, the Poincaré recurrence time is astronomically large, often exceeding the age of the universe by many orders of magnitude. So while recurrence is mathematically guaranteed, it's physically irrelevant for any finite observation.

This creates a tension: the ergodic hypothesis requires the system to explore all of phase space, but Poincaré recurrence times suggest that full exploration takes far longer than any experiment. In practice, statistical mechanics works because systems explore phase space well enough on accessible timescales, not because they literally visit every microstate.

Relaxation time considerations

The ergodic hypothesis involves a limit $T \to \infty$ , but real experiments and simulations run for finite times. What matters in practice is the relaxation time $\tau$ : the characteristic timescale for the system to lose memory of its initial conditions and settle into its equilibrium statistical behavior.

If your observation time $t_{\text{obs}} \gg \tau$ , the system behaves effectively ergodic
If $t_{\text{obs}} \lesssim \tau$ , you'll see history-dependent, non-ergodic behavior
Systems with multiple timescales (e.g., fast vibrations and slow conformational changes in a protein) can appear ergodic on short timescales but non-ergodic on intermediate ones
Glassy systems have relaxation times that grow so rapidly with decreasing temperature that they effectively become infinite, making the system permanently non-ergodic in practice

Ergodic hierarchy

Not all "chaotic" or "random-looking" systems are ergodic in the same way. The ergodic hierarchy classifies dynamical systems by the strength of their mixing properties, from weakest to strongest:

Ergodic: Time averages equal space averages. The system visits all regions of phase space, but nearby trajectories don't necessarily separate.
Mixing: Correlations between any two observables decay to zero over time. The system "forgets" its initial state. This is stronger than plain ergodicity.
K-system (Kolmogorov): The system has positive Kolmogorov-Sinai entropy, meaning it generates information at a constant rate. This implies mixing.
Bernoulli: The system is isomorphic to an independent random process. This is the strongest form of randomness a deterministic system can exhibit.

Each level implies all levels below it (a Bernoulli system is also a K-system, which is also mixing, which is also ergodic). Most physically relevant systems in statistical mechanics are believed to be at least mixing, which is actually what you need for the approach to equilibrium, not just bare ergodicity.

Importance in thermodynamics

Justification of statistical ensembles

The entire program of equilibrium statistical mechanics rests on replacing time averages with ensemble averages. Here's the logical chain:

You want to predict the macroscopic value of some observable (pressure, magnetization, etc.).
The macroscopic value is the time average of the microscopic observable over a long measurement.
The ergodic hypothesis says this time average equals the ensemble average.
The ensemble average can be calculated from the partition function using standard techniques.

Without step 3, there's no reason to believe that the canonical or grand canonical ensemble gives physically correct results. Ergodicity is the bridge between dynamics and statistics.

Entropy and ergodicity

The statistical definition of entropy, $S = k_B \ln \Omega$ , counts the number of accessible microstates. But "accessible" only means something if the system actually visits those microstates, which is exactly what ergodicity guarantees.

Boltzmann's H-theorem shows that the quantity $H = \int f \ln f \, d\mathbf{v}$ decreases over time for a dilute gas, corresponding to entropy increase. The proof relies on the assumption of molecular chaos (Stosszahlansatz), which is closely related to ergodicity.
In an ergodic system, entropy increases because the system spreads through phase space over time, exploring more microstates.
In a non-ergodic system, the system may remain confined to a small region of phase space, and the entropy calculated from the full ensemble overestimates the true entropy accessible to the system.
These issues connect directly to the arrow of time: why macroscopic processes appear irreversible even though the underlying dynamics are time-reversible.

Fluctuation-dissipation theorem

The fluctuation-dissipation theorem (FDT) connects a system's spontaneous fluctuations in equilibrium to its response when you push it slightly out of equilibrium. It relies on ergodicity and time-reversal symmetry.

One common form relates the imaginary part of the susceptibility $\chi''(\omega)$ to the spectral density of fluctuations $S(\omega)$ :

$\chi''(\omega) = \frac{\omega}{2k_BT} S(\omega)$

This tells you that if you know how a system fluctuates on its own, you can predict how it will respond to a small external perturbation, and vice versa. The FDT underpins linear response theory and is used to calculate transport coefficients (viscosity, thermal conductivity, electrical conductivity) from equilibrium simulations.

When ergodicity breaks down (as in aging glasses), the FDT is violated. Measuring these violations is actually one way experimentalists detect and quantify non-ergodic behavior.
