8.2 Mean free path

Definition of mean free path

The mean free path ($\lambda$) is the average distance a particle travels between successive collisions. It connects microscopic particle behavior to macroscopic gas properties like viscosity, thermal conductivity, and diffusion.

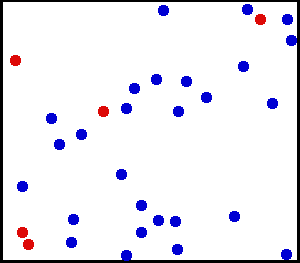

Concept in kinetic theory

This idea comes from the kinetic theory of gases developed by Maxwell and Boltzmann. The core assumption is straightforward: particles move in straight lines between collisions, and those collisions are essentially random. By analyzing these random paths statistically, you can predict bulk gas properties from molecular-level behavior. This relies on the molecular chaos (Stosszahlansatz) assumption, which says particle velocities are uncorrelated before each collision.

Average distance between collisions

The mean free path quantifies the typical uninterrupted path length of a particle moving through a medium. Two factors shrink it: more particles packed into a given volume, and larger effective target areas for collisions.

The simplest expression is:

$\lambda = \frac{1}{n\sigma}$

where $n$ is the number density (particles per unit volume) and $\sigma$ is the collision cross-section (the effective target area for a collision). This formula doesn't yet account for the fact that other particles are also moving, which is handled in the full derivation below.

The mean free path varies enormously across states of matter. In air at sea level, it's roughly 70 nm. In high-vacuum systems, it can reach meters or kilometers. In liquids, it shrinks to roughly the size of a molecular diameter.

Calculation methods

Mathematical formulation

A proper derivation integrates over all possible particle velocities (weighted by the Maxwell-Boltzmann distribution) and all collision geometries. The key quantity you're after is the average distance traveled before the probability of not having collided drops to $1/e$.

Derivation from kinetic theory

Here's how the standard result comes together:

1. Start with an ideal gas. Assume $N$ identical hard-sphere molecules of diameter $d$ in a volume $V$.
2. Define the collision cross-section. Two spheres of diameter $d$ collide when their centers come within distance $d$, so $\sigma = \pi d^2$.
3. Consider one "test" particle moving at speed $v$. In time $\Delta t$, it sweeps out a cylinder of volume $\sigma \cdot v \Delta t$ and collides with any particle whose center lies inside that cylinder.
4. Account for relative motion. The other particles aren't stationary. When you average over the Maxwell-Boltzmann distribution, the mean relative speed between two particles is $\bar{v}_{\text{rel}} = \sqrt{2}\,\bar{v}$. This factor of $\sqrt{2}$ is critical.
5. Compute the collision rate. The number of collisions per unit time is $\nu = n \sigma \sqrt{2}\,\bar{v}$.
6. Divide average speed by collision rate to get the mean free path:

$\lambda = \frac{\bar{v}}{\nu} = \frac{1}{\sqrt{2}\, n \sigma} = \frac{1}{\sqrt{2}\,\pi d^2 n}$

Using the ideal gas law ($P = nkT$) to replace $n$:

$\lambda = \frac{kT}{\sqrt{2}\,\pi d^2 P}$

where $k$ is the Boltzmann constant, $T$ is temperature, $d$ is the particle diameter, and $P$ is pressure.

Factors affecting mean free path

Particle size

Larger particles have bigger collision cross-sections ($\sigma = \pi d^2$), so they collide more often and have shorter mean free paths. Doubling the particle diameter cuts $\lambda$ by a factor of four. Particle size also directly affects transport properties: bigger molecules transfer more momentum per collision, influencing viscosity and thermal conductivity.

Temperature dependence

From $\lambda = \frac{kT}{\sqrt{2}\,\pi d^2 P}$, you can see that at constant pressure, $\lambda \propto T$. Higher temperature means lower number density (the gas expands), so particles have more room between collisions.

At constant volume (fixed $n$), however, $\lambda = \frac{1}{\sqrt{2}\,\pi d^2 n}$ has no temperature dependence at all. The mean free path depends on temperature only because temperature changes the density at fixed pressure. This distinction trips up a lot of students.

Pressure effects

At constant temperature, $\lambda \propto \frac{1}{P}$. Double the pressure and you halve the mean free path, because you've doubled the number density. This inverse relationship is why vacuum systems have such long mean free paths and why gas behavior changes dramatically at high pressures (deep-sea environments, dense planetary atmospheres).

Applications in statistical mechanics

Gas dynamics

The Knudsen number ($Kn = \lambda / L$, where $L$ is a characteristic length scale of the system) determines which flow regime applies:

• $Kn < 0.01$: Continuum flow (ordinary fluid mechanics works)
• $0.01 < Kn < 0.1$: Slip flow (boundary corrections needed)
• $0.1 < Kn < 10$: Transitional flow
• $Kn > 10$: Free molecular flow (particle-by-particle analysis needed)

This classification matters for designing gas turbines, rocket nozzles, and microelectromechanical systems (MEMS), and it explains phenomena like thermal transpiration where gas flows through narrow channels due to temperature gradients.

Transport phenomena

The mean free path ties directly to three major transport coefficients:

• Diffusion: how fast particles spread through a medium
• Viscosity: resistance to shear flow, caused by momentum transfer between gas layers
• Thermal conductivity: heat transfer via molecular collisions

All three scale with $\lambda$, which is why measuring one transport property lets you estimate the others.

Mean free path in different media

Gases vs. liquids

In gases at standard conditions, mean free paths are tens of nanometers and scale dramatically with pressure. At the top of the atmosphere or in interstellar space, $\lambda$ can reach kilometers.

In liquids, particles are nearly in contact at all times. The mean free path is roughly one molecular diameter (a few angstroms), and the concept becomes less cleanly defined since particles are always interacting with neighbors rather than traveling freely between discrete collisions.

Solids and plasmas

In solids, the relevant "mean free path" usually refers to electrons or phonons (quantized lattice vibrations), not whole atoms. The electron mean free path in a metal determines its electrical conductivity: longer paths mean fewer scattering events and lower resistivity.

In plasmas, long-range Coulomb interactions between charged particles complicate things. The effective collision cross-section is much larger than the physical particle size, and the mean free path depends on the Debye length (the screening distance for electric fields in the plasma).

Relationship to other parameters

Collision frequency

The collision frequency $\nu$ is how many collisions a particle experiences per unit time:

$\nu = \frac{\bar{v}}{\lambda}$

where $\bar{v}$ is the mean particle speed. Higher collision frequency means faster energy and momentum exchange, which controls how quickly a gas reaches equilibrium after a disturbance.

Diffusion coefficient

The diffusion coefficient $D$ describes how fast particles spread through a medium:

$D = \frac{1}{3}\lambda\bar{v}$

The factor of $1/3$ comes from averaging over three spatial dimensions. This result connects a microscopic quantity ($\lambda$) to a directly measurable macroscopic rate (how fast a gas mixes or a scent spreads across a room).

Viscosity

Gas viscosity $\eta$ arises from momentum transfer between adjacent layers moving at different speeds:

$\eta = \frac{1}{3}\rho\bar{v}\lambda$

where $\rho$ is the gas density. A striking prediction from this formula: gas viscosity is independent of pressure. Increasing pressure raises $\rho$ but decreases $\lambda$ by the same factor, so they cancel. Maxwell predicted this counterintuitive result, and experiments confirmed it over a wide pressure range. Gas viscosity does increase with temperature, because $\bar{v}$ increases.

Experimental measurements

Techniques for determination

• Transport property measurements: Measuring viscosity or thermal conductivity and working backward through the kinetic theory formulas to extract $\lambda$
• Molecular beam experiments: Sending a collimated beam of molecules through a gas and measuring attenuation as a function of distance
• Spectroscopic methods: Collision broadening of spectral lines gives information about collision rates and cross-sections
• Neutron scattering: Used in condensed matter to probe mean free paths of neutrons in solids and liquids

Historical experiments

• Maxwell (1860s): Measured gas viscosity and used kinetic theory to infer molecular collision properties. His prediction that viscosity is pressure-independent was a major triumph.
• Knudsen (early 1900s): Studied gas flow through narrow tubes and small apertures, directly probing the transition between continuum and free molecular flow.
• Millikan (1909): His oil drop experiment required corrections for the mean free path of air molecules around the tiny droplets (the Cunningham correction factor).
• Langmuir (1910s-1920s): Studied gas behavior at surfaces and in low-pressure environments, contributing to vacuum science and surface chemistry.

Limitations and approximations

Ideal gas assumption

The standard formula assumes hard-sphere particles with no intermolecular forces. This works well for dilute gases at moderate temperatures but breaks down when:

• Pressure is high enough that molecular volume matters
• Temperature is low enough that attractive forces between molecules become significant
• Particles are light enough (hydrogen, helium at low $T$) that quantum effects alter collision dynamics

Non-ideal behavior considerations

For real gases, you need to account for finite molecular size and intermolecular attractions. The effective collision diameter becomes temperature-dependent because attractive forces pull particles into collisions they would otherwise miss, while high-energy collisions probe the repulsive core more closely. More sophisticated equations of state (virial expansions, van der Waals corrections) are needed near critical points or at high densities.

Mean free path in quantum systems

Quantum mechanical effects

At very low temperatures or for very light particles, wave-particle duality changes the collision picture. The de Broglie wavelength of particles becomes comparable to the interparticle spacing, and you can no longer treat collisions as classical billiard-ball events. Quantum tunneling allows particles to penetrate potential barriers, enabling collisions that classical mechanics would forbid. These effects become important in ultracold gases and superfluid helium.

Fermi gases

Electrons in metals form a Fermi gas governed by quantum statistics. The Pauli exclusion principle restricts which collisions are allowed: only electrons near the Fermi energy can scatter, because lower-energy states are already occupied. This makes the electron mean free path in metals much longer than you'd expect from classical estimates.

At low temperatures, electron-phonon scattering dominates, and the mean free path grows as the temperature drops (fewer phonons to scatter off). This is why metals conduct electricity better when cold. The electron mean free path directly determines electrical and thermal conductivity through the Wiedemann-Franz law.

Importance in technological applications

Thin film deposition

In techniques like sputtering and chemical vapor deposition (CVD), the mean free path relative to the source-to-substrate distance determines film quality. If $\lambda$ is much larger than this distance, atoms travel in straight lines from source to substrate (line-of-sight deposition). If $\lambda$ is shorter, atoms undergo many collisions and arrive from random directions, producing more uniform but potentially less dense films. Controlling chamber pressure to tune $\lambda$ is a standard part of semiconductor and optical coating manufacturing.

Vacuum technology

The mean free path defines the practical meaning of "vacuum":

• Low vacuum ($\lambda \ll$ chamber size): gas behaves as a continuum fluid
• High vacuum ($\lambda \gg$ chamber size): molecules bounce wall-to-wall without hitting each other

This distinction affects pump selection, chamber design, and achievable base pressures. Particle accelerators and space simulation chambers require ultra-high vacuum where $\lambda$ exceeds kilometers.

Mean free path in astrophysics

Interstellar medium

The interstellar medium has particle densities as low as $\sim 1 \text{ particle/cm}^3$, giving mean free paths on the order of $10^{13}$ meters or more. At these scales, collisions between individual atoms are extremely rare, and collective electromagnetic effects dominate the physics. The mean free path of cosmic rays through the interstellar medium determines how they propagate and how much energy they deposit in molecular clouds, which in turn affects star formation.

Stellar atmospheres

Inside a star, conditions change drastically from core to surface. In the dense core, photon mean free paths are extremely short (millimeters), so energy transport is slow and radiative. In the outer convective layers, the mean free path of both photons and particles affects whether energy moves by radiation or convection. The photon mean free path at the stellar surface (the photosphere) determines which spectral lines form and how the star appears to outside observers.
