Plate tectonics drive the deformation of Earth's crust, producing everything from towering mountain ranges to deep ocean trenches. Structural geology is the branch of geology that studies these deformation features to reconstruct how and why the crust changed shape over time. This section connects tectonic settings to the specific structures they produce and introduces the tools geologists use to interpret that history.
Tectonic Settings and Crustal Deformation
Tectonic settings for crustal deformation
Each type of plate boundary generates a characteristic style of deformation. The boundary type tells you what kind of stress dominates and what structures to expect.
- Convergent plate boundaries involve two plates moving toward each other.
- Subduction zones form where a denser oceanic plate descends beneath another plate.
- Oceanic-continental convergence produces volcanic arcs on the overriding continent and accretionary wedges of scraped-off sediment at the trench. The Andes Mountains are a classic example.
- Oceanic-oceanic convergence produces island arcs (chains of volcanic islands) and deep-sea trenches. The Mariana Trench, Earth's deepest point at about 11,000 m, formed this way.

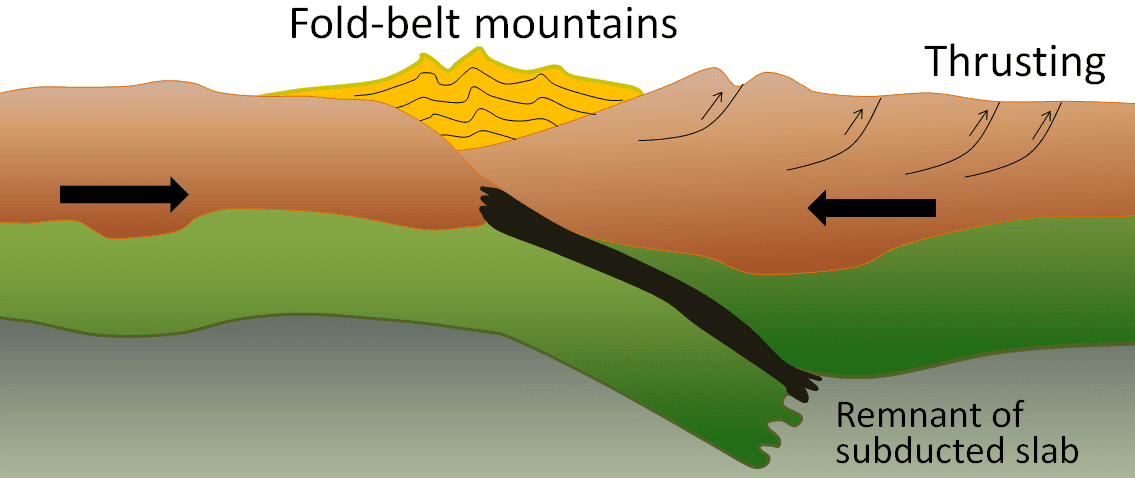

- Continental-continental collision happens when two buoyant continental plates collide. Neither plate subducts easily, so the crust crumples and thickens, building high mountain ranges. The Himalayas formed from the ongoing collision of the Indian and Eurasian plates.
- Subduction zones form where a denser oceanic plate descends beneath another plate.
- Divergent plate boundaries involve two plates moving apart.
- Mid-ocean ridges are underwater mountain chains where new oceanic crust forms through seafloor spreading. The Mid-Atlantic Ridge runs roughly down the center of the Atlantic Ocean.
- Continental rifting occurs when a continent is stretched and thinned, creating rift valleys. The East African Rift is an active example where the African plate is splitting apart.
- Transform plate boundaries involve plates sliding horizontally past each other.
- Strike-slip faults accommodate this lateral motion. The San Andreas Fault in California and the North Anatolian Fault in Turkey are well-known examples.
Structural geology in geologic features
The large-scale features you see on a landscape are shaped by the type of stress acting on the crust and how long that stress has been at work.
- Mountain ranges form primarily from compressional forces at convergent boundaries. Rock layers fold and fault under compression, and the crust thickens and is uplifted. Over time, erosion sculpts the range into the shapes we see at the surface.
- Basins form where the crust is being stretched (extensional forces) or weighed down.
- As the crust stretches and thins, the surface subsides, creating a low area that collects sediment over time.
- Rift basins form in extensional settings (like the basins within the East African Rift). Foreland basins form adjacent to mountain ranges, where the weight of the mountains pushes the crust downward.
- Plateaus are broad, elevated regions of relatively flat-lying rock. The Colorado Plateau and the Tibetan Plateau are both products of tectonic uplift, though by different mechanisms.
- Domes are circular or elliptical uplifts where rock layers dip away from a central high point. The Black Hills of South Dakota are a well-known structural dome.
Stress Fields and Structural Features
Regional stress and structural development
The type of stress acting on the crust determines which structures form. There are three main stress types, and each produces a predictable set of features.
- Compressional stress squeezes and shortens the crust, producing thrust faults and folds.
- Extensional stress stretches and thins the crust, producing normal faults and down-dropped blocks called grabens.
- Shear stress moves blocks of crust laterally past each other, producing strike-slip faults.
Folds form under compression when rock layers bend rather than break:
- Anticlines arch upward, with the oldest rocks in the center of the fold.
- Synclines sag downward, with the youngest rocks in the center.
Faults form when rock breaks and blocks move relative to each other. The type of fault depends on the stress:
- Normal faults form under extension. The hanging wall (the block above the fault plane) drops down relative to the footwall.
- Reverse faults form under compression. The hanging wall moves up relative to the footwall. Low-angle reverse faults are called thrust faults.
- Strike-slip faults form under shear stress. Blocks move horizontally past each other.
Joints are fractures in rock where no displacement has occurred. They often form in sets that reflect the regional stress field and are among the most common structures you'll see in the field.
Interpreting geologic history through structure
Geologists use structural features as clues to reconstruct what happened to the crust over millions of years. Several tools and approaches make this possible:
- Field observations are the starting point. Measuring the orientation of rock layers, identifying folds and faults, and noting how structures relate to one another all provide evidence of past deformation events.
- Geologic cross-sections are diagrams that show the subsurface geology as if you sliced through the Earth. By drawing cross-sections, geologists can interpret the sequence and timing of deformation events, since younger structures typically cut across or overprint older ones.
- Stereographic projections are a way to represent 3D orientation data (like the tilt of a rock layer or the trend of a fault) on a flat, 2D diagram. They're especially useful for analyzing the geometry of folds and faults across a region.
- Tectonic reconstruction integrates structural data with other evidence (fossils, magnetic data, rock ages) to piece together past plate positions and deformation history. This is how geologists reconstructed the supercontinent Pangaea and traced how it broke apart into the continents we see today.
