4.1 Types of volcanoes and eruption styles

Types of Volcanoes and Eruption Styles

Volcanoes form when molten rock reaches Earth's surface, but the way they erupt and the shapes they build vary dramatically. The differences come down to three key factors: magma composition, gas content, and viscosity. Understanding these factors helps you predict whether a volcano will quietly pour out lava or blow its top in a catastrophic explosion.

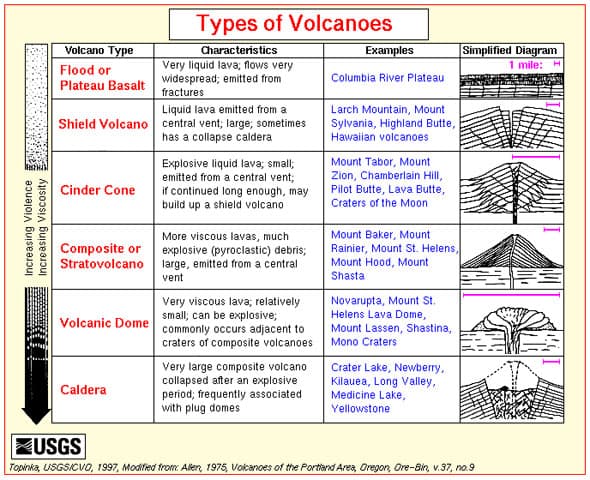

Types of Volcanoes

Distinguish between the main types of volcanoes, including shield, composite, and cinder cones, based on their characteristics and eruptive styles

Shield volcanoes have broad, gently sloping flanks built up by repeated flows of fluid, low-viscosity basaltic lava. Because the lava flows easily, it spreads out over wide areas rather than piling up steeply. These volcanoes produce effusive eruptions with low explosivity. Mauna Loa and Kilauea in Hawaii are classic examples. Mauna Loa is actually the largest active volcano on Earth by volume, even though its gentle slopes make it look less dramatic than other types.

Composite volcanoes (also called stratovolcanoes) have steep, conical shapes formed by alternating layers of lava flows, volcanic ash, and pyroclastic material. They're built from intermediate to felsic magma with higher viscosity, which means the lava doesn't flow as far before cooling. These volcanoes generate explosive eruptions with occasional lava flows. Mount St. Helens, Mount Fuji, and Mount Vesuvius are all composite volcanoes. Their layered structure (strato = layers) is what gives them their name.

Cinder cones are the smallest and simplest type. They're steep-sided conical hills built from the accumulation of ejected tephra (fragments of rock and lava blown into the air). Formed by mafic to intermediate magma through Strombolian-style eruptions with moderate explosivity, they tend to be short-lived compared to the other types. Parícutin in Mexico famously grew from a cornfield starting in 1943, reaching about 336 meters in just nine years. Sunset Crater in Arizona is another well-known example.

Describe the various eruption styles, such as effusive, explosive, and phreatic, and their associated volcanic products

Effusive eruptions involve the relatively gentle outpouring of fluid, low-viscosity lava, typically basaltic in composition. Because gases can escape easily from this runny magma, pressure doesn't build up. Volcanic products include:

• Lava flows that travel across the surface (sometimes for many kilometers)
• Lava tubes, which form when the outer surface of a flow cools and hardens while lava continues flowing inside
• Lava plateaus, broad flat regions built by massive flood basalt eruptions over time

Explosive eruptions involve the violent fragmentation and ejection of magma and rock. These are associated with intermediate to felsic magma, where high viscosity traps gases until pressure forces a violent release. Products include:

• Pyroclastic material of varying sizes: fine ash, lapilli (pebble-sized fragments), and volcanic bombs (large chunks)
• Pyroclastic flows, fast-moving currents of hot gas and volcanic matter that race down slopes at speeds that can exceed 100 km/h
• Lahars, volcanic mudflows created when pyroclastic material mixes with water

Phreatic eruptions (also called steam-blast eruptions) occur when groundwater or surface water comes into contact with magma or extremely hot rock. No fresh magma actually reaches the surface. The water flashes to steam, expanding rapidly and blasting out steam, ash, and rock fragments. These eruptions can be dangerous because they often happen with little warning.

Factors Influencing Eruption Styles

Explain the factors that influence the type of volcanic eruption, including magma composition, gas content, and magma viscosity

Magma composition is the most fundamental control on eruption style because it determines viscosity:

1. Mafic magma (basaltic) has low silica content (about 45–52% $SiO_2$), low viscosity, and produces effusive eruptions
2. Intermediate magma (andesitic) has moderate silica content (about 52–63% $SiO_2$) and viscosity, producing a mix of effusive and explosive behavior
3. Felsic magma (rhyolitic) has high silica content (above 63% $SiO_2$), high viscosity, and generates explosive eruptions

The pattern to remember: more silica means more viscosity, which means more explosive potential.

Gas content directly influences explosivity. Volcanic gases (mainly water vapor, $CO_2$, and $SO_2$) are dissolved in magma under pressure. Higher gas content provides more energy for explosive eruptions. Lower gas content results in quieter, effusive eruptions.

Magma viscosity determines whether those gases can escape peacefully or get trapped:

• Low-viscosity magma lets gases bubble out easily, like carbonation leaving an open soda. The result is effusive eruptions.
• High-viscosity magma traps gases, like shaking a sealed soda bottle. Pressure builds until the magma fragments explosively.

These three factors are closely linked. Felsic magma tends to be both gas-rich and highly viscous, which is why felsic eruptions are typically the most dangerous.

Distribution of volcanoes worldwide

Volcanoes aren't randomly scattered across the globe. Their locations correspond to plate tectonic settings, which also control the type of magma produced:

• Divergent plate boundaries (mid-ocean ridges): Plates pull apart, and basaltic magma rises to fill the gap. This produces shield volcanoes and effusive eruptions. Iceland sits on the Mid-Atlantic Ridge and is a great place to observe this. The East Pacific Rise is another example.
• Convergent plate boundaries (subduction zones): One plate dives beneath another, and the resulting melting produces andesitic to rhyolitic magma. This is where you find composite volcanoes and explosive eruptions. The Pacific Ring of Fire is the most famous example, including the Andes in South America and the Cascades in the Pacific Northwest.
• Intraplate hotspots: Plumes of hot material rise from deep in the mantle, independent of plate boundaries. These produce basaltic magma and shield volcanoes. The Hawaiian Islands formed as the Pacific Plate moved over a hotspot. Yellowstone is also hotspot-related, though it produces more silica-rich and explosive volcanism, making it an important exception to the typical hotspot pattern.
