11.2 Plate boundaries and their characteristics

Types of Plate Boundaries and Their Characteristics

Plate boundaries are the zones where Earth's tectonic plates meet and interact. These interactions drive most of the geological activity on our planet, from earthquakes to volcanic eruptions to mountain building. There are three main types of boundaries: divergent, convergent, and transform, each defined by how the plates move relative to each other.

Types of Plate Boundaries

Divergent boundaries form where plates move apart from each other. As the plates separate, hot mantle material rises to fill the gap, creating new crust as it cools and solidifies. The Mid-Atlantic Ridge and the East African Rift are classic examples.

Convergent boundaries form where plates move toward each other. Depending on the type of crust involved, one plate may dive beneath the other (subduction) or the two may crumple together in a collision. The Andes Mountains formed through subduction, while the Himalayas formed through continent-continent collision.

Transform boundaries form where plates slide horizontally past each other. No crust is created or destroyed at these boundaries. The San Andreas Fault in California is the most well-known example.

Features of Each Boundary Type

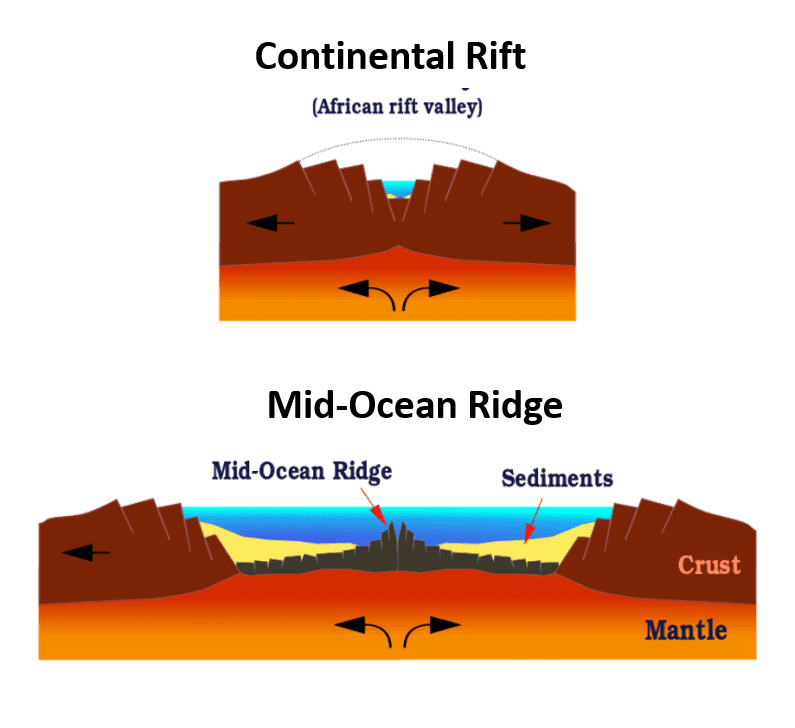

Divergent boundaries produce two main landforms:

• Mid-ocean ridges are underwater mountain chains that form where magma wells up between separating oceanic plates. They're associated with shallow earthquakes, volcanic activity, seafloor spreading, and alternating magnetic anomalies preserved in the new rock.
• Rift valleys are elongated depressions on land where continental crust stretches and thins. The East African Rift is an active continental rift, and the Red Sea represents a more advanced stage where rifting has progressed enough to form a narrow ocean basin.

Convergent boundaries produce different features depending on what type of crust is involved:

• Subduction zones occur when oceanic crust (which is denser) dives beneath continental or other oceanic crust. This produces deep-ocean trenches (like the Mariana Trench, the deepest point on Earth's surface), volcanic arcs on the overriding plate (like the Andes), accretionary wedges of scraped-off sediment, and earthquakes ranging from shallow to very deep (down to about 700 km).
• Collision zones occur when two plates carrying continental crust converge. Because continental crust is too buoyant to subduct, the crust crumples, folds, and thickens, building major mountain ranges. The Himalayas are still rising today as the Indian Plate pushes into the Eurasian Plate. Earthquakes here range from shallow to intermediate depth.

Transform boundaries feature vertical fault planes where plates grind past each other. This produces shallow earthquakes from friction along the fault and can offset surface features like streams and roads. There is no volcanic activity at transform boundaries because no magma is being generated.

Boundaries and Geological Events

Earthquakes occur at all three boundary types, but their character differs:

1. Divergent boundaries produce only shallow earthquakes, caused by the stretching and fracturing of crust as plates pull apart.
2. Convergent boundaries produce earthquakes at all depths. At subduction zones, earthquakes get progressively deeper along the sinking slab. Collision zones generate shallow to intermediate earthquakes.
3. Transform boundaries produce shallow earthquakes from the friction of plates grinding past each other.

Volcanism is tied to divergent and convergent boundaries but not transform boundaries:

• At divergent boundaries, volcanism is basaltic (low-silica, fluid lava) because the magma comes directly from the mantle rising into the gap between plates.
• At convergent boundaries (subduction zones), volcanism tends to be andesitic to rhyolitic (higher silica, more explosive). Water released from the subducting slab lowers the melting point of the overlying mantle, generating magma that feeds volcanic arcs.
• Transform boundaries have no associated volcanism.

Mountain building is primarily a convergent boundary process:

• Subduction zones build volcanic arcs and accretionary wedges (e.g., the Andes).
• Collision zones produce intense folding, thrust faulting, and crustal thickening (e.g., the Himalayas).
• Transform boundaries can cause localized uplift and deformation near the fault zone, but they don't build major mountain ranges.

Analyzing Plate Motions

Scientists use several techniques to measure and visualize how plates move. These methods confirm that plates are in constant motion and help predict geological hazards.

• GPS (Global Positioning System) measures precise positions on Earth's surface over time. By tracking how GPS stations shift year after year, scientists can determine the direction and rate of plate motion, often just a few centimeters per year.
• Satellite imagery and remote sensing monitor changes in surface features near plate boundaries. A technique called InSAR (Interferometric Synthetic Aperture Radar) can detect ground deformation as small as millimeters, which is useful for tracking fault movement and volcanic inflation.
• Seismic tomography uses earthquake waves to build 3D images of Earth's interior, similar to how a medical CT scan images the body. This reveals subducting slabs, hot mantle plumes, and convection patterns deep below the surface.

Calculating Plate Motions

Plate motions on a sphere are described mathematically using Euler vectors, which define the angular velocity and rotation axis for a plate's movement. The velocity of any point on a plate relative to another plate can be calculated with:

$v = \omega \times r$

• $v$ is the velocity of the point on the plate relative to another plate
• $\omega$ is the angular velocity vector (the Euler vector)
• $r$ is the position vector from the Euler pole to the point of interest

This cross-product relationship means that plate velocity varies with location: points farther from the Euler pole move faster, while points near the pole move very slowly. That's why the same plate boundary can have different spreading or convergence rates along its length.
