4.4 Monitoring and predicting volcanic activity

Volcanic Activity Monitoring and Prediction

Predicting when a volcano will erupt is one of the hardest problems in geology, but scientists have developed several monitoring techniques that detect warning signs days, weeks, or even months before an eruption. Understanding these methods matters because millions of people live near active volcanoes, and early warnings save lives.

Methods of Volcanic Monitoring

Seismic monitoring is the most widely used technique. As magma forces its way upward through rock, it generates earthquakes. Seismometers placed on and around a volcano detect these ground vibrations, allowing scientists to pinpoint where magma is moving and how deep it sits. A sudden swarm of small earthquakes beneath a volcano is often the first sign that something is changing underground.

Ground deformation measurements track changes in the physical shape of a volcano. When magma accumulates in a chamber beneath the surface, the ground above it swells outward, a process called volcano inflation. Scientists detect this using:

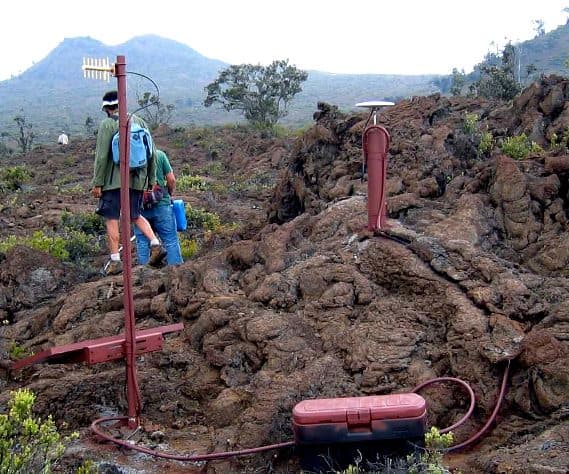

• GPS stations placed on the volcano's slopes to measure precise position changes
• Tiltmeters that detect subtle changes in the angle of the ground surface
• Satellite radar interferometry (InSAR), which compares satellite images taken at different times to map ground movement across the entire volcano

Even a few centimeters of swelling can signal that magma is building up below.

Gas emissions monitoring analyzes volcanic gases escaping from vents and fumaroles. The key gases scientists watch for are sulfur dioxide ($SO_2$), carbon dioxide ($CO_2$), and hydrogen sulfide ($H_2S$). A spike in $SO_2$ is especially telling because it indicates that fresh magma is rising close to the surface and releasing dissolved gases. Scientists measure these emissions using ground-based sensors, drones, and satellite instruments.

Indicators of Impending Eruptions

No single measurement confirms an eruption is coming. Instead, volcanologists look for multiple signals changing at the same time:

• Increased seismic activity: A jump in both the frequency and magnitude of earthquakes beneath the volcano. Two specific types to know are volcano-tectonic earthquakes (caused by rock fracturing as magma pushes through) and long-period events (caused by fluid movement in cracks and conduits).
• Rapid ground deformation: Accelerating inflation, especially if new cracks or fissures appear on the volcano's surface. This suggests magma is actively forcing open a pathway toward the surface.
• Changing gas emissions: A sudden increase in $SO_2$ concentration or the appearance of new fumaroles (steam vents) where none existed before.

When seismic, deformation, and gas data all shift together, scientists have much stronger evidence that an eruption may be imminent. This combined approach also helps them distinguish between magma actually rising (magmatic unrest) and non-eruptive causes like hydrothermal activity or regional tectonic earthquakes.

Challenges in Eruption Prediction

Even with good monitoring, eruption prediction is far from reliable. Here's why:

• Every volcano is different. A pattern that preceded an eruption at Mount St. Helens may not apply to Mount Pinatubo. There's no universal threshold of earthquake frequency or ground swelling that means "eruption now."
• Limited historical data. Many volcanoes erupt only once every few centuries or longer. With so few past eruptions to study, it's hard to recognize patterns. Some volcanoes have only been monitored with modern instruments for a few decades.
• Inconsistent warning signs. Some volcanoes give clear, escalating signals over weeks. Others show subtle precursors or almost none at all. And sometimes monitoring data looks alarming but no eruption follows, leading to false alarms that can erode public trust.
• Rapid onset eruptions. Certain eruptions happen with very little advance warning, leaving almost no time for evacuation. This is especially dangerous for communities living on or near the volcano's flanks.

Importance of Early Warning Systems

Despite these challenges, monitoring and early warning systems remain the best tools for reducing volcanic risk.

• Hazard mapping and risk assessment: Monitoring data helps scientists identify which areas face the greatest danger from specific hazards like lava flows, pyroclastic density currents, and lahars (volcanic mudflows). These maps guide land-use planning and evacuation route design.
• Evacuation and emergency response: Timely alerts give communities the critical hours or days needed to evacuate. This requires close coordination between monitoring scientists, emergency managers, and local authorities. The 1991 eruption of Mount Pinatubo in the Philippines is a well-known success story: monitoring and early evacuation saved tens of thousands of lives.
• Public education: Sharing monitoring information with the public helps people understand the risks they face and what to do during an emergency, from knowing evacuation routes to recognizing official alert levels.
• Advancing scientific understanding: Every monitored eruption adds to the global dataset, helping scientists refine forecasting models and develop better monitoring technology for the future.
