Seismic Hazards and Risk
Earthquakes don't just shake the ground. They trigger a chain of hazards that can level buildings, reshape landscapes, and disrupt entire regions. Understanding these hazards, and how we assess and reduce the risks they pose, is central to protecting communities in seismically active areas.
Primary Seismic Hazards
Ground shaking is the most direct hazard. Seismic waves radiate outward from the earthquake's focus, and the intensity of shaking at any given location depends on three main factors: the earthquake's magnitude, the distance from the epicenter, and local geology. Soft sediments (like clay or fill) amplify shaking compared to solid bedrock, which is why two neighborhoods in the same city can experience very different levels of damage from the same earthquake.
Liquefaction happens when seismic waves pass through water-saturated, loosely packed sediments like sand or silt. The shaking causes the grains to lose contact with each other, and the ground temporarily behaves like a liquid. The results can be dramatic:
- Foundations sink or tilt as the soil loses its ability to support weight
- Lateral spreading shifts blocks of ground sideways, cracking roads and breaking pipelines
- Sand boils form when pressurized sand and water erupt through the surface
The 1964 Niigata, Japan earthquake is a classic example: apartment buildings toppled over nearly intact because the ground beneath them liquefied.

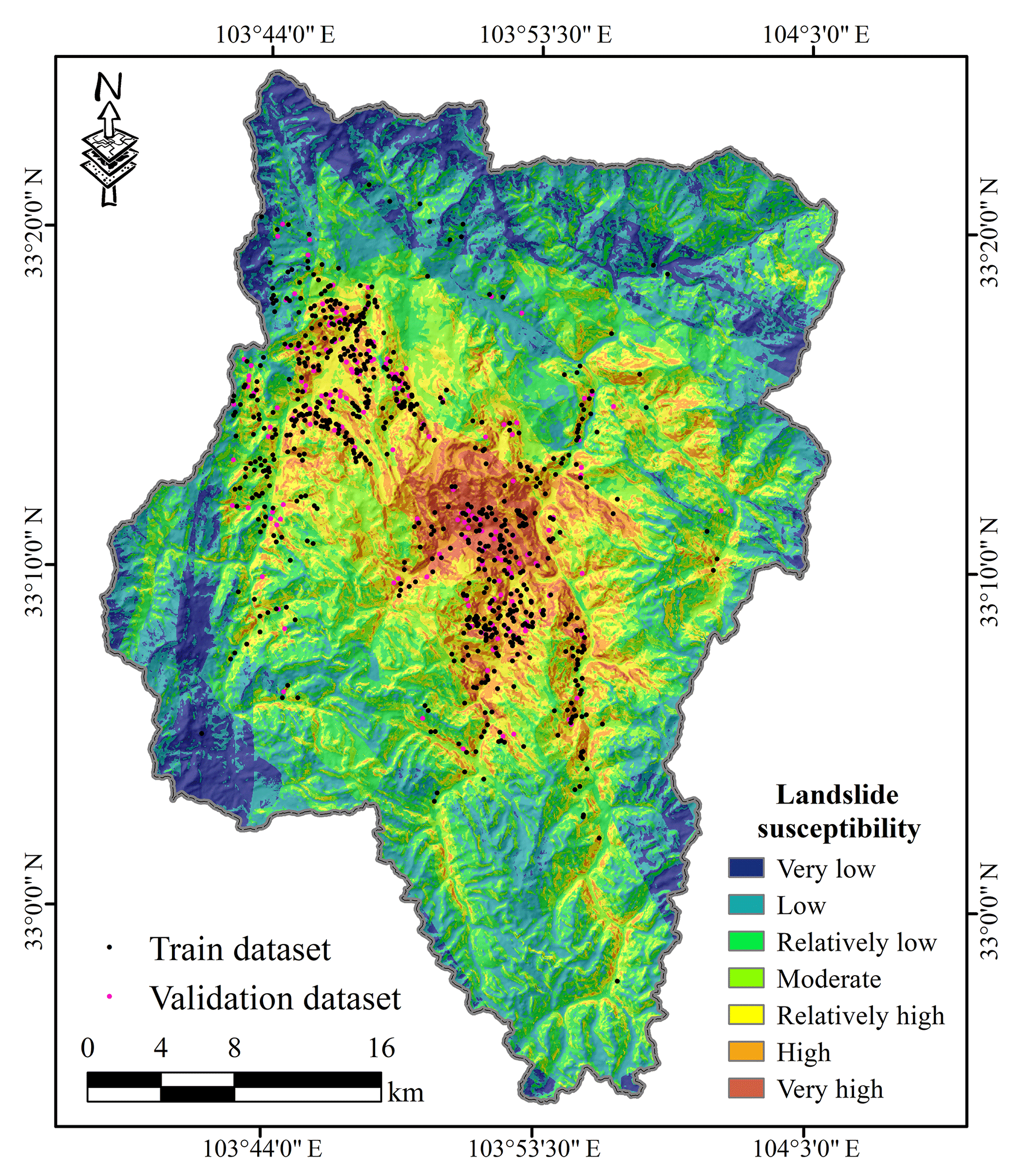

Earthquake-triggered landslides occur on steep, unstable slopes. These include rockfalls, debris flows, and slumps (rotational slides where a mass of earth rotates along a curved failure surface). Landslide risk increases when slopes are already weakened by heavy rainfall, deforestation, or human modifications like road cuts.
Factors in Seismic Risk
Seismic risk isn't just about how strong an earthquake is. It's defined by the combination of three elements:
- Hazard — the likelihood and intensity of earthquake shaking at a location
- Vulnerability — how susceptible buildings, infrastructure, and people are to damage
- Exposure — how many people and how much property are in the affected area
A powerful earthquake in a remote desert poses far less risk than a moderate one beneath a densely populated city with aging buildings. That's why risk assessment considers all three factors together.
Several things increase vulnerability and exposure:
- Population density — Urban areas and megacities concentrate people and economic assets, raising the potential for casualties and losses.
- Infrastructure quality — Unreinforced masonry buildings and older bridges are far more susceptible to collapse. Damage to critical facilities like hospitals, power plants, and transportation networks can amplify an earthquake's impact well beyond the shaking itself.
- Building codes and enforcement — Regions with inadequate or poorly enforced codes face much higher vulnerability. Many developing countries and older urban cores have buildings that were never designed for seismic loads.
Seismic Hazard Assessment and Mitigation
Methods of Hazard Assessment
Geologists and engineers use two main analytical approaches to evaluate seismic hazards:
Probabilistic Seismic Hazard Analysis (PSHA) estimates the probability that ground shaking will exceed a certain intensity over a defined time window. A typical question PSHA answers: What is the chance of experiencing a given level of shaking in the next 50 years? It incorporates historical earthquake records, fault characteristics, and ground motion prediction equations. Results are often expressed in terms of a return period (for example, shaking expected to occur once every 475 years on average).
Deterministic Seismic Hazard Analysis (DSHA) takes a different approach. Instead of probabilities, it models a specific earthquake scenario, such as the maximum credible earthquake on a nearby fault, and calculates the expected ground motion at a site. This gives a "worst-case" estimate, which is especially useful for critical structures like dams or nuclear facilities.
Both methods feed into seismic hazard maps, which show the spatial distribution of expected shaking intensity across a region. The USGS National Seismic Hazard Maps are a well-known example. These maps guide land-use planning, building code development, and emergency response preparation.
Strategies for Risk Mitigation
Once hazards are assessed, several strategies reduce the risk:
- Building codes set minimum standards for earthquake-resistant design and construction. The International Building Code (IBC) is widely adopted and regularly updated as seismology and engineering advance. Seismic design features include base isolation (decoupling a building from ground motion) and moment-resisting frames (flexible steel or concrete frames that absorb energy without collapsing).
- Retrofitting strengthens existing structures that predate modern codes. Common techniques include adding shear walls, steel braces, or base isolation systems like friction pendulum bearings. This is especially important for older unreinforced masonry buildings.
- Land-use planning steers development away from the most dangerous areas. California's Alquist-Priolo Earthquake Fault Zoning Act, for example, restricts construction near active fault traces by establishing setback distances and zoning regulations.
- Early warning systems detect the fast-moving but less damaging P-waves from an earthquake and send alerts before the slower, more destructive S-waves and surface waves arrive. Those extra seconds allow automated responses like slowing trains, shutting off gas lines, and triggering public alerts. Japan's system and the U.S. ShakeAlert system are leading examples.
- Public education and preparedness programs teach communities how to respond before, during, and after an earthquake. Events like the annual Great ShakeOut drill give millions of people practice with "Drop, Cover, and Hold On" and help build a culture of preparedness.
