9.1 Stress, strain, and rock deformation

Stress, Strain, and Rock Deformation

Stress and strain are the foundation of structural geology. Every fold, fault, and fracture you see in rock started with forces acting on that rock and the rock responding in a specific way. Understanding how and why rocks deform helps you interpret the structures that shape Earth's crust.

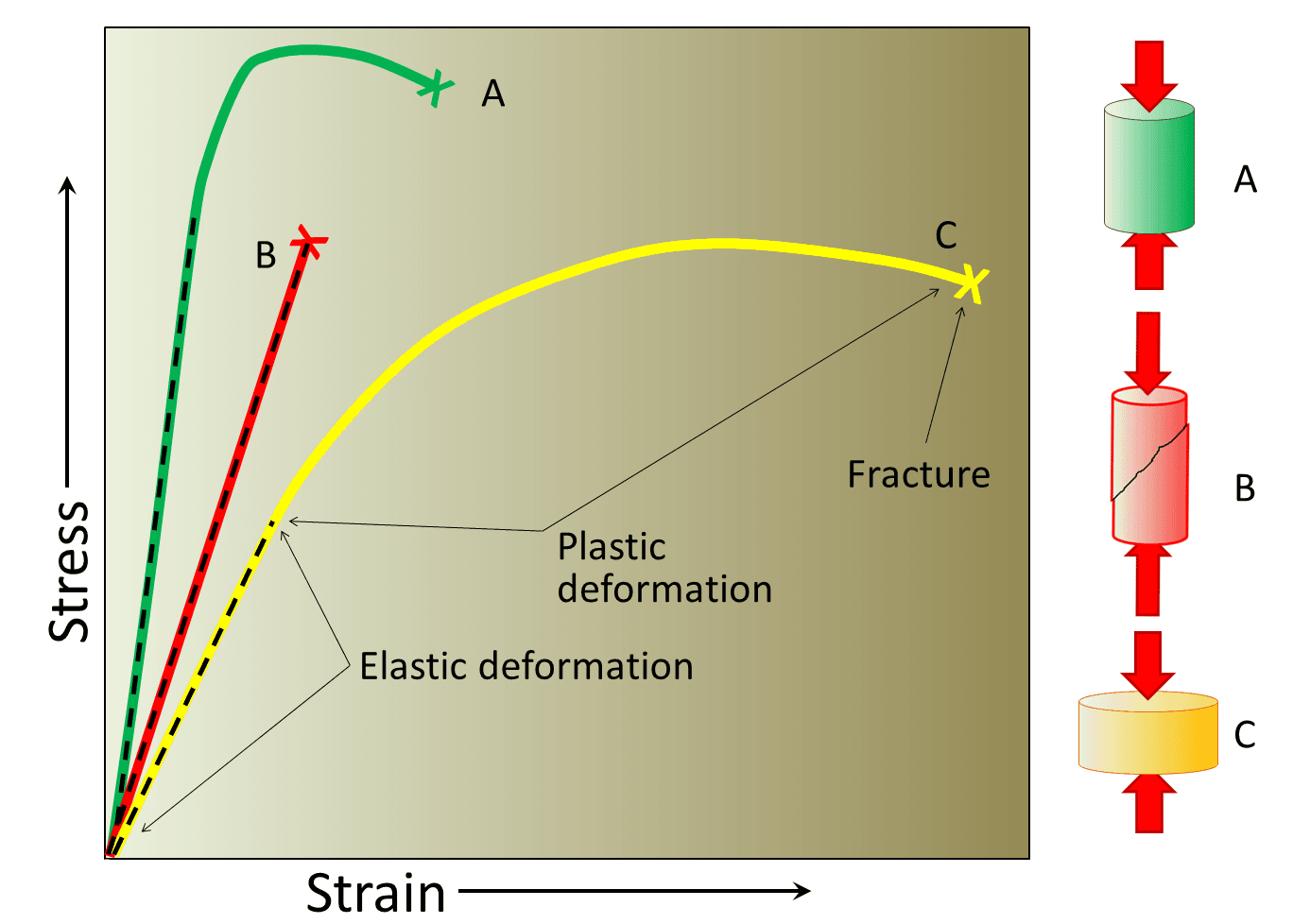

Stress and Strain Relationship

Stress is the force applied per unit area on a rock, measured in pascals (Pa) or megapascals (MPa). Strain is the rock's response: the change in its shape or volume caused by that stress.

The type and amount of strain a rock experiences depends on several factors working together:

• The magnitude of the applied stress (how strong the force is)
• The duration of the stress (how long the force acts)
• The type of stress (compression, tension, or shear)
• The rock's own properties (composition, temperature, depth)

Strain comes in three flavors:

• Elastic strain is temporary. Remove the stress and the rock snaps back to its original shape, like a rubber band.
• Ductile strain is permanent but the rock stays intact. It flows or bends without breaking, like modeling clay.
• Brittle strain is also permanent, but the rock fractures or shatters, like a ceramic plate dropped on the floor.

Types of Geological Stress

Three main types of stress act on rocks in Earth's crust, and each one produces characteristic structures.

Compressional stress squeezes rock from opposite sides, shortening it. Think of pushing the ends of an accordion together. Compression can produce folding (bent or buckled layers), thrust faulting (where one block of rock is pushed over another), and ductile deformation at depth.

Tensional stress pulls rock apart, stretching and lengthening it. This commonly produces normal faults (where one block drops down relative to another, creating a step-like offset), joints (fractures with no offset), and brittle deformation near the surface.

Shear stress pushes different parts of a rock in opposite directions, causing them to slide past one another. The classic result is a strike-slip fault, where blocks move horizontally past each other. Shear can also cause folding and ductile deformation under the right conditions.

Rock Behavior Under Stress

How a rock behaves under stress falls along a spectrum from elastic to ductile to brittle. The key is understanding when each behavior occurs.

Elastic behavior happens at low stress levels applied for short durations. The rock deforms slightly, then returns to its original shape when the stress is removed. This relationship follows Hooke's Law:

$\sigma = E \epsilon$

where $\sigma$ is stress, $E$ is Young's modulus (a constant that measures the rock's stiffness), and $\epsilon$ is strain. A higher Young's modulus means the rock is stiffer and resists deformation more.

Ductile behavior takes over when rocks are subjected to high temperatures, high confining pressures, and slow strain rates. These conditions are typical deep in the crust. Instead of breaking, the rock flows and bends permanently. You can recognize ductile deformation by:

• Folding: layers that are bent or wavy
• Metamorphic foliation: minerals aligned in parallel bands from directed pressure
• Stretched grains: individual mineral grains that are visibly elongated or flattened

Brittle behavior dominates at low temperatures, low confining pressures, and high strain rates, which are conditions typical near Earth's surface. The rock fractures rather than bending. Common results include:

• Faulting: fractures with measurable offset on either side
• Jointing: fractures with no offset (the rock cracks but the pieces don't move apart)
• Cataclasis: mechanical crushing and grinding of rock into smaller fragments

The transition between brittle and ductile behavior is gradual, not a sharp line. The same rock type (say, granite) can behave in a brittle way at the surface but flow ductilely if buried deep enough where temperatures and pressures are high.

Rock Strength and Influences

Rock strength is the maximum stress a rock can withstand before it fails (either by fracturing or flowing permanently). Several factors control how strong a given rock is.

Composition plays a major role. Quartz-rich rocks like granite are generally much stronger than clay-rich rocks like shale. Fine-grained rocks like basalt tend to be stronger than coarse-grained rocks like pegmatite because their tightly interlocking small crystals resist deformation more effectively. Well-cemented sedimentary rocks (like a tightly cemented sandstone) are far stronger than their poorly cemented or unconsolidated equivalents.

Texture matters too. Angular grains interlock better than rounded grains, so a breccia (angular fragments) is stronger than loose beach sand. Well-sorted rocks with uniform grain sizes (like wind-deposited sandstone) pack together more efficiently than poorly sorted rocks (like glacial till). Tightly packed rocks like dense limestone are stronger than porous rocks like pumice.

Preexisting structures can create planes of weakness. Bedding planes in sedimentary rocks, foliation in metamorphic rocks, and existing joints or fractures all make it easier for a rock to fail when stress is applied parallel to those surfaces.

Environmental conditions shift rock behavior significantly:

• Higher temperatures and confining pressures (found at greater depths) increase ductility but decrease overall strength, making rocks more likely to flow than fracture.
• Fluids like water or hydrocarbons in pore spaces increase pore pressure, which reduces the effective stress holding grains together. This weakens the rock and can trigger failure at lower applied stresses than you'd otherwise expect.
