9.4 Interpreting geologic maps and cross-sections
3 min read•july 22, 2024
Geologic maps are powerful tools for understanding Earth's structure and history. They use symbols, colors, and patterns to represent rock types, formations, and features on the surface. By interpreting these maps, geologists can visualize the 3D arrangement of rocks beneath our feet.
Cross-sections provide a vertical slice through Earth's crust, revealing subsurface relationships. By combining map data with structural geology principles, geologists can reconstruct the sequence of events that shaped an area over millions of years, from rock formation to deformation and erosion.
Geologic Maps
Geologic map interpretation techniques
Top images from around the web for Geologic map interpretation techniques
Reading a Geologic Map – Physical Geology Laboratory View original
Is this image relevant?
Reading a Geologic Map – Physical Geology Laboratory View original
Is this image relevant?
Reading a Geologic Map – Physical Geology Laboratory View original
Is this image relevant?
Reading a Geologic Map – Physical Geology Laboratory View original
Is this image relevant?
1 of 2
Top images from around the web for Geologic map interpretation techniques
Reading a Geologic Map – Physical Geology Laboratory View original
Is this image relevant?
Reading a Geologic Map – Physical Geology Laboratory View original
Is this image relevant?
Reading a Geologic Map – Physical Geology Laboratory View original
Is this image relevant?
Reading a Geologic Map – Physical Geology Laboratory View original
Is this image relevant?
1 of 2

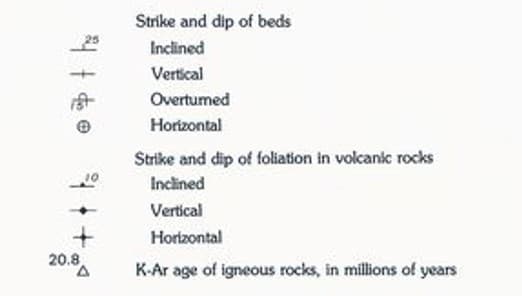

- Map symbols represent different geologic features
- Points indicate locations of specific features (outcrops, springs, mines)
- Lines depict contacts between rock units, faults, and fold axes
- Polygons show areas of specific rock units or formations
- Colors and patterns distinguish rock types and geologic units
- Different colors represent various rock types or geologic units
- Patterns (dots, stripes, cross-hatching) differentiate rock units or indicate specific features
- Map scale and orientation provide spatial context
- Scale relates map distance to actual distance on Earth's surface
- Orientation is shown by a north arrow or compass rose
- Topographic contours illustrate elevation and land surface shape
- represent elevation
- Closely spaced contours signify steep slopes; widely spaced contours indicate gentle slopes
Construction of geologic cross-sections
- Geologic cross-sections are vertical slices through Earth's crust
- Show subsurface arrangement of rock units and structures
- Constructed perpendicular to the strike of rock units or structures
- Steps in constructing cross-sections
- Determine the line of section on the
- Project surface geology onto the cross-section plane
- Use topographic contours to draw land surface profile
- Interpret and draw subsurface geometry of rock units and structures based on map data and field observations
- Interpreting cross-sections reveals geologic relationships
- Identify rock units, thicknesses, and relationships
- Recognize geologic structures (faults, , )
- Infer geologic history and sequence of events
Structural Geology and Geologic History
3D geometry from 2D maps
- Folds are characterized by their shape and orientation
- are upward-arching folds with oldest rocks in the core
- are downward-arching folds with youngest rocks in the core
- is the angle between fold axis and horizontal plane
- are sides of a fold that dip away from hinge line
- Faults are planar fractures with displacement
- have hanging wall moving down relative to footwall (extensional stress)
- have hanging wall moving up relative to footwall (compressional stress)
- exhibit horizontal movement of fault blocks (shear stress)
- is angle between fault plane and horizontal plane
- Unconformities represent gaps in the geologic record
- Caused by non- or erosion
- Types include , ,
Synthesis of geologic information
- Relative ages of rock units determined by stratigraphic principles
- Superposition: in undisturbed sequence, younger rocks overlie older rocks
- Cross-cutting relationships: younger features (faults, intrusions) cut across older features
- Reconstruct sequence of geologic events
- Deposition of sedimentary rocks
- Deformation events (folding, faulting)
- Igneous intrusions or extrusions
- Periods of erosion or non-deposition
- Interpret tectonic setting and geologic environment
- Recognize patterns and associations of rock types and structures
- Consider regional geologic context and correlations with nearby areas
- Integrate data from multiple sources
- Geologic maps, cross-sections, field observations, well logs
- Geophysical data (seismic, gravity, magnetic)
- Geochemical and geochronological data
Key Terms to Review (27)
Absolute dating: Absolute dating is a method used to determine the actual age of a rock, fossil, or geologic event in years, as opposed to relative dating, which places events in sequence without providing numerical ages. This technique often relies on the decay of radioactive isotopes within minerals to provide a precise age, making it crucial for understanding the timeline of Earth's history and geological events.
Angular unconformity: An angular unconformity is a geological feature that occurs when tilted or folded sedimentary rocks are overlain by younger, horizontal layers of sedimentary rock. This indicates a significant period of erosion and tectonic activity before the deposition of the newer layers. Angular unconformities are important for understanding geological history, as they represent gaps in the rock record where significant geological processes took place.
Anticlines: Anticlines are arch-like folds in rock layers where the oldest rocks are found at the core, and the layers slope downward on either side. They are significant in understanding geological structures as they often indicate the presence of oil and gas reservoirs, making them important in resource exploration and geologic mapping.
Contour lines: Contour lines are lines on a map that connect points of equal elevation, representing the three-dimensional shape of the terrain in a two-dimensional format. These lines help visualize the slope and relief of the land, showing where the ground rises and falls. The spacing of contour lines indicates the steepness of the terrain; closely spaced lines signify steep slopes, while widely spaced lines indicate gentle slopes.
Deposition: Deposition is the geological process in which sediments, soil, and other particles settle out of a fluid, such as water or air, and accumulate in a new location. This process is crucial in the formation of sedimentary rocks and shapes various landforms by contributing to the layering of materials over time.
Disconformity: Disconformity is a type of unconformity in geology where layers of sedimentary rock are parallel but separated by an erosional surface. This indicates a period of non-deposition or erosion, which creates a gap in the geological record. Understanding disconformities is crucial for interpreting the history of sediment deposition and correlating rock layers across different regions.
Fault dip: Fault dip refers to the angle at which a fault plane inclines relative to the horizontal surface of the Earth. It is an important characteristic of faults, indicating how steeply the fault is oriented and affecting the movement of rocks during seismic events. Understanding fault dip is crucial for interpreting geologic maps and cross-sections, as it helps geologists assess the geometry of faults and predict potential earthquake hazards in a given area.
Field mapping: Field mapping is the process of collecting geological data in the natural environment to create accurate representations of rock formations, structures, and the distribution of geological features. This method involves physically navigating through an area, making observations, and recording findings that can be translated into geologic maps and cross-sections, which are essential for understanding the Earth's geology and processes.
Folds: Folds are geological structures that occur when rock layers bend or warp due to tectonic forces, resulting in various formations like anticlines and synclines. These structures are crucial for understanding the Earth's crust and play significant roles in the formation of mountain ranges, influencing the distribution of minerals and resources.
Geologic map: A geologic map is a representation of the distribution and relationship of various geological features across a specific area, illustrating rock types, faults, folds, and other geological formations. These maps are essential tools for understanding the geological history and structure of an area, allowing geologists to interpret past geological events and make predictions about future geological activity.
Geological cross-section: A geological cross-section is a representation that shows the arrangement of different rock layers and geological features below the earth's surface as if a vertical slice has been made through the ground. This visual tool helps to illustrate the relationships between various rock types, structural features, and geological formations, which are crucial for understanding both structural geology and the interpretation of geologic maps.
Legend: In the context of geologic maps and cross-sections, a legend is a key that explains the symbols, colors, and patterns used on the map to represent various geological features. This crucial element helps users quickly identify and understand different types of rocks, faults, folds, and other geological structures by decoding the visual information presented.
Limbs: In geology, limbs refer to the sides or arms of a fold in rock layers, often seen in structures like anticlines and synclines. They play a crucial role in understanding the geometry and orientation of geological formations, which is essential for interpreting geologic maps and cross-sections. Recognizing the limbs of folds allows geologists to visualize subsurface structures and comprehend how tectonic forces have shaped the Earth's crust over time.
Lithology: Lithology is the study of the physical and chemical characteristics of rocks, particularly their mineral composition, grain size, texture, and color. Understanding lithology is crucial when interpreting geological maps and cross-sections, as it helps identify different rock types and their distribution in the Earth's crust. This knowledge allows geologists to make inferences about the geological history and processes that shaped a particular area.
Nonconformity: Nonconformity refers to a geological relationship where sedimentary rocks are deposited on top of eroded igneous or metamorphic rocks. This indicates a significant gap in the geological record, reflecting a period of erosion or non-deposition that separates two distinct rock types. Understanding nonconformities helps geologists reconstruct the history of an area, revealing the processes and events that have shaped the landscape over time.
Normal faults: Normal faults are fractures in the Earth's crust where the hanging wall moves downward relative to the footwall, typically caused by extensional forces that pull the crust apart. These faults are significant because they can create rift valleys and are commonly associated with tectonic plate movements, making them crucial for understanding the geologic history and structure of an area. Recognizing normal faults on geologic maps and cross-sections helps in interpreting the landscape and understanding the processes that shape it.
Plunge: Plunge refers to the angle at which a geologic feature, such as a fold or fault, tilts downward from the horizontal plane. Understanding plunge is essential in interpreting the orientation of geological structures, as it helps in visualizing how these features behave beneath the Earth's surface and their relationships to other geological formations.
Relative Dating: Relative dating is a method used to determine the chronological order of geological events and formations without assigning exact numerical dates. This technique relies on the principles of stratigraphy and the relationships between rock layers, fossils, and geological features to establish a sequence of events in Earth's history.
Remote sensing: Remote sensing is the process of acquiring information about objects or areas from a distance, typically using satellite or aerial imagery. This technique allows scientists to collect data on various geological features, including landforms, mineral deposits, and tectonic structures, without direct contact. By analyzing these images and data, researchers can interpret and understand the Earth's surface and processes more effectively.
Reverse faults: Reverse faults are a type of fault where the hanging wall moves up relative to the footwall, caused by compressional forces that shorten and thicken the Earth's crust. These faults are often found in regions experiencing tectonic plate convergence, leading to mountain-building processes. The identification of reverse faults is crucial in interpreting geologic maps and cross-sections, as they provide insights into the structural features and history of the geological formations involved.
Sedimentary rock: Sedimentary rock is a type of rock that forms from the accumulation and compaction of mineral and organic particles, often in layers, over time. These rocks are crucial for understanding Earth's history, as they often contain fossils and provide insights into past environments. Their formation is closely tied to processes like erosion, sedimentation, and diagenesis, which play a significant role in shaping geological features.
Strata: Strata are distinct layers of sedimentary rock or soil that are stacked upon one another, often characterized by different compositions, colors, or grain sizes. These layers form over time as sediments accumulate in various environments, such as riverbeds, lakes, or ocean floors. Understanding strata is crucial for interpreting geological history and processes.
Strike and Dip: Strike and dip are geological terms used to describe the orientation of rock layers, faults, or other geological features in three-dimensional space. Strike refers to the direction of the line formed by the intersection of a horizontal plane with an inclined surface, while dip indicates the angle at which that surface descends relative to the horizontal. Understanding strike and dip is crucial for accurately interpreting geologic maps and cross-sections, as it provides essential information about the geometry and arrangement of geological formations.
Strike-slip faults: Strike-slip faults are fractures in the Earth's crust where two blocks of rock slide past one another horizontally. This type of faulting occurs due to shear stress, typically associated with tectonic plate movements. Understanding strike-slip faults is essential for interpreting geologic maps and cross-sections, as they influence landforms and can provide insights into the tectonic history of an area.
Synclines: Synclines are geological formations that occur when rock layers bend downward, creating a trough-like structure. This feature is typically formed by tectonic forces, resulting in the folding of the Earth's crust. In synclines, the youngest rock layers are located at the core of the fold, while older layers are positioned on the outer sides. Understanding synclines is crucial for interpreting geological maps and cross-sections, as they provide insights into the structural geology and the history of an area.
Topographic map: A topographic map is a detailed representation of the Earth's surface that illustrates landforms and elevations using contour lines, symbols, and colors. These maps provide essential information about terrain features such as hills, valleys, rivers, and roads, allowing for a better understanding of the physical landscape. They play a crucial role in various fields, including geology, environmental studies, and land use planning.
Unconformities: Unconformities are surfaces or gaps in the geological record that represent a period where deposition stopped, erosion occurred, or both. They indicate a discontinuity in the geologic time scale and can be crucial for understanding the history of rock layers and the processes that shaped them over time. Recognizing unconformities helps geologists piece together the chronology of earth's history and is essential for correlating different strata.
