4.2 Energy balance calculations

Energy balance equations for systems

Energy balance calculations let you track where energy goes in a chemical process. They're built on the first law of thermodynamics and give you the tools to figure out heat duties, work requirements, and efficiency for real equipment. This section covers the core equations for closed and open systems, then walks through how to apply them.

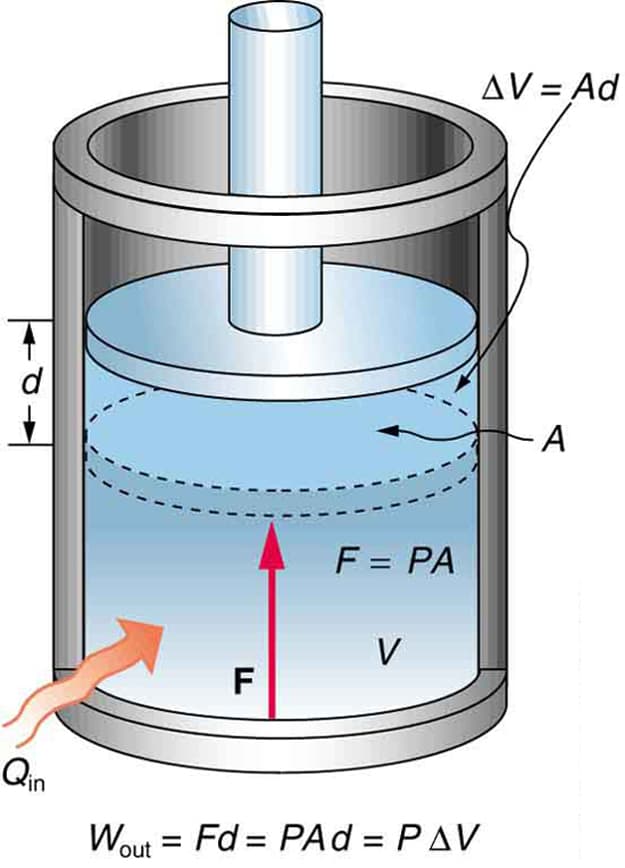

First law of thermodynamics and general energy balance equation

The first law of thermodynamics states that energy cannot be created or destroyed, only converted from one form to another. Every energy balance equation you'll use in this course comes back to this principle.

The general energy balance equation is:

$\Delta E = Q - W$

• $\Delta E$ = change in total energy of the system
• $Q$ = heat added to the system (positive when heat flows in)
• $W$ = work done by the system (positive when the system does work on its surroundings)

Pay close attention to the sign conventions here. Different textbooks use different conventions, so always check whether your course defines $W$ as work done by the system or work done on the system. Getting the sign wrong is one of the most common mistakes on exams.

Closed system energy balance equation

A closed system does not exchange mass with its surroundings. Think of a sealed pressure vessel or a batch reactor. For these systems, the energy balance simplifies to:

$\Delta U = Q - W$

• $\Delta U$ = change in internal energy of the system

Since no mass crosses the boundary, you don't need to worry about enthalpy of flowing streams. You're only tracking how heat transfer and work (like expansion or compression work) change the internal energy of whatever is inside the system.

Open system energy balance equation

An open system allows mass to flow in and out. Most continuous chemical processes (heat exchangers, pumps, continuous reactors) are open systems. The steady-state energy balance for an open system is:

$Q - W_s = \sum \dot{m}_e H_e - \sum \dot{m}_i H_i$

• $W_s$ = shaft work (mechanical work from equipment like pumps or turbines)
• $\dot{m}_i$ and $\dot{m}_e$ = mass flow rates of inlet and exit streams
• $H_i$ and $H_e$ = specific enthalpies of inlet and exit streams

At steady state, nothing accumulates in the system, so the equation says: the net energy added by heat and shaft work equals the difference in enthalpy between what flows out and what flows in. Notice that enthalpy ($H$) replaces internal energy ($U$) here because enthalpy already accounts for the flow work needed to push mass into and out of the system.

Kinetic and potential energy considerations

The equations above leave out kinetic energy ($\frac{1}{2}mv^2$) and potential energy ($mgz$). For most chemical engineering problems, changes in velocity and elevation are small enough that these terms are negligible.

You should include them when:

• Fluid velocities are very high (e.g., high-speed gas flows through nozzles)
• There are large elevation changes (e.g., processes involving tall distillation columns or pumping fluids to significant heights)

If the problem doesn't mention velocity changes or elevation differences, it's generally safe to drop these terms.

Solving energy balance problems

Problem-solving process

A systematic approach keeps you from missing energy flows or making sign errors. Follow these steps:

1. Draw and label the system. Sketch the process, draw the system boundary, and label every stream crossing that boundary with its flow rate, temperature, pressure, and composition.

2. Choose your system type. Decide whether the system is open or closed, and whether it's at steady state.

3. Write the appropriate energy balance equation. Use $\Delta U = Q - W$ for closed systems or the open-system enthalpy balance for flow processes.

4. List knowns and unknowns. Identify which variables you have values for and which you need to find.

5. Look up or calculate thermodynamic properties. Find specific enthalpies from steam tables, heat capacity data, or enthalpy of formation tables as needed.

6. Substitute and solve. Plug in known values and solve for the unknown(s). Check that your units are consistent throughout.

Accounting for multiple streams

When multiple streams enter or exit a system, you must account for the enthalpy carried by each one.

• Total enthalpy in: $\sum \dot{m}_i H_i = \dot{m}_1 H_1 + \dot{m}_2 H_2 + \dots$
• Total enthalpy out: $\sum \dot{m}_e H_e = \dot{m}_3 H_3 + \dot{m}_4 H_4 + \dots$

For example, a heat exchanger typically has two inlet streams (hot fluid in, cold fluid in) and two outlet streams (hot fluid out, cold fluid out). Your energy balance needs to include all four streams. If the heat exchanger has no shaft work and negligible heat loss to the surroundings, the equation becomes:

$\dot{m}_{hot}(H_{hot,in} - H_{hot,out}) = \dot{m}_{cold}(H_{cold,out} - H_{cold,in})$

This just says: the energy lost by the hot stream equals the energy gained by the cold stream.

Incorporating energy sources

External energy inputs and outputs appear as $Q$ and $W_s$ terms in your balance.

• Heat sources/sinks: A fired heater, steam jacket, or cooling water system contributes to $Q$. Heat added to the system is positive; heat removed is negative.
• Work sources/sinks: A pump adds shaft work to a fluid ($W_s < 0$ if you define $W_s$ as work done by the system). A turbine extracts shaft work ($W_s > 0$).

For example, an electrically heated reactor vessel would include the electrical power input as a $Q$ term (since the electrical energy is converted to heat inside the system).

Energy efficiency analysis of processes

Defining energy efficiency

Energy efficiency measures how much of the total energy input to a process ends up as useful output. The general formula is:

$\eta = \frac{\text{Useful energy output}}{\text{Total energy input}} \times 100\%$

A power plant that converts 40% of its fuel energy into electricity has $\eta = 40\%$. The remaining 60% is lost as waste heat. This metric gives you a single number to compare different designs or operating conditions.

Identifying sources of energy loss

Energy balance calculations are useful for pinpointing where energy is being wasted. Common sources of loss include:

• Heat loss to surroundings from hot pipes, vessels, and equipment surfaces
• Inefficiencies in energy conversion such as friction in pumps or incomplete combustion in furnaces
• Mixing of streams at different temperatures without recovering the heat

Once you quantify these losses through your energy balance, you can target the biggest ones for improvement. A simple example: insulating a bare steam pipe might recover a large fraction of the heat currently being lost to the ambient air.

Pinch analysis for heat exchanger network optimization

Pinch analysis is a systematic method for designing heat exchanger networks that maximize heat recovery between process streams. The core idea is to figure out the minimum amount of external heating and cooling your process actually needs.

The method works by:

1. Identifying all hot streams (that need cooling) and cold streams (that need heating)
2. Constructing composite temperature-enthalpy curves
3. Finding the "pinch point," which is the temperature where heat transfer between streams is most constrained
4. Designing the heat exchanger network so that heat transfers across the pinch are minimized

Pinch analysis can significantly reduce steam and cooling water consumption in a plant by making better use of the heat already available within the process.

Exergy analysis for assessing process efficiency

While energy balances tell you how much energy is conserved, they don't tell you about the quality of that energy. Exergy analysis combines the first and second laws of thermodynamics to measure the maximum useful work obtainable from a system relative to its surroundings.

Exergy analysis identifies where irreversibilities (friction, mixing, heat transfer across large temperature differences) destroy the potential to do useful work. This helps you prioritize which parts of a process to improve first. For instance, an exergy analysis of a distillation column might reveal that most exergy destruction occurs at the reboiler, pointing you toward that unit for optimization.

Limitations of energy balance calculations

Energy balances are powerful, but they rely on assumptions that don't always hold. Knowing these limitations helps you judge how much to trust your results.

Steady-state assumption

Most energy balance problems in this course assume steady state, meaning system properties don't change with time. This works well for continuous processes running at stable conditions, but it breaks down during start-up, shutdown, or any transient operation. Modeling the start-up of a chemical reactor, for example, requires a dynamic energy balance that includes time-dependent accumulation terms.

Ideal mixing assumption

Energy balances typically assume that the contents of a vessel or stream are perfectly mixed, with uniform temperature and composition throughout. Real equipment can have temperature gradients and dead zones, especially in large tanks with poor agitation. These non-idealities cause discrepancies between your calculated and actual energy flows.

Heat loss estimation

Many calculations either neglect heat loss to the surroundings or use rough estimates. For well-insulated equipment at moderate temperatures, this is reasonable. For high-temperature equipment like furnaces or poorly insulated piping, the actual heat loss can be substantial. Accurate estimation requires knowing insulation thickness, surface area, ambient temperature, and convective conditions.

Input data accuracy

Your energy balance is only as good as the data you put into it. Inaccurate thermodynamic properties, imprecise flow measurements, or uncertain temperature readings all propagate errors into your results. Sensitivity analysis (varying input values to see how much the answer changes) is a useful way to assess how much input uncertainty affects your conclusions.

Limitations of the first law of thermodynamics

The first law tells you that energy is conserved, but it says nothing about which direction processes naturally go. It won't tell you that heat flows spontaneously from hot to cold (never the reverse), or that no heat engine can be 100% efficient. Those constraints come from the second law of thermodynamics. This is exactly why exergy analysis, which incorporates the second law, provides a more complete picture of process performance than an energy balance alone.
