3.4 Recycle and bypass streams

Recycle and bypass streams let you route material around or back through parts of a process. Recycle streams send material backward to an earlier step for reprocessing, while bypass streams skip material forward past one or more units. Both show up constantly in real chemical processes, and you need to handle them correctly when writing material balances.

This topic builds directly on the overall and component balance techniques you've already learned. The new challenge is that recycle and bypass streams create interdependencies between parts of the flowsheet, which means your balance equations become coupled.

Recycle and Bypass Streams in Process Flow Diagrams

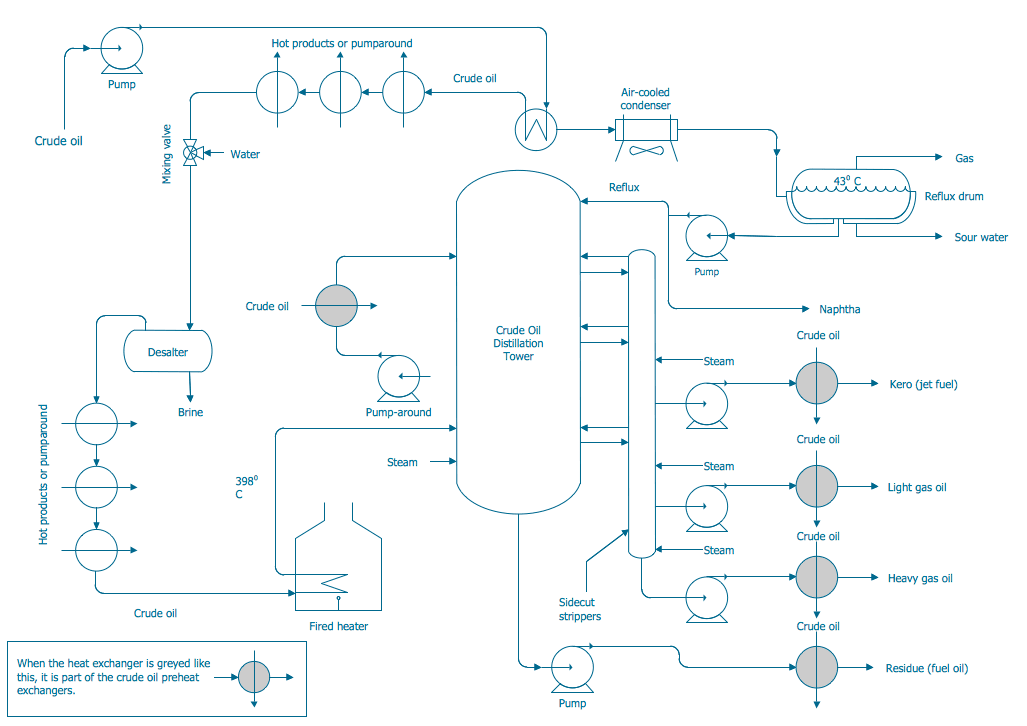

Identifying Recycle and Bypass Streams

Recycle streams carry material from a downstream point back to an earlier point in the process. On a PFD, you'll see an arrow pointing backward (against the main flow direction). Common reasons to recycle:

• Recover unreacted reactants. If a reactor only achieves 60% conversion per pass, the remaining reactants in the exit stream can be separated and sent back to the reactor inlet.
• Recover valuable materials like solvents or catalysts that would otherwise be lost.
• Control process conditions such as temperature, composition, or pressure at a specific point.

Bypass streams split off from the main flow, skip one or more process units, and rejoin downstream. On a PFD, you'll see an arrow that routes around a unit. Common reasons to bypass:

• Control outlet conditions. For example, if a heat exchanger would overheat the entire stream, you can bypass a fraction of the flow and blend it back to hit a target temperature.
• Reduce load on a unit that would otherwise be oversized or overworked.
• Avoid unwanted reactions or degradation that would occur in a particular unit.

Characterizing Recycle and Bypass Streams

To write material balances, you need to know (or solve for) the following properties of every stream, including recycle and bypass streams:

• Flow rate (mass or molar)
• Composition (mass or mole fractions of each component)
• Temperature and pressure (relevant for energy balances and phase behavior)

In practice, these are measured with flow meters, sampling/analysis, and sensors. In a textbook problem, some of these will be given and others will be your unknowns.

Material Balances for Recycle and Bypass

Recycle Stream Material Balances

The key idea: the recycle stream adds flow back into an earlier part of the process, so the feed to a unit is no longer just the fresh feed. You have to account for both.

Consider a simple process where fresh feed enters, mixes with a recycle stream, passes through a reactor, then goes to a separator. The separator splits the reactor effluent into a product stream and a recycle stream that returns to the reactor inlet.

For the mixing point before the reactor:

$\dot{m}_{\text{reactor inlet}} = \dot{m}_{\text{fresh feed}} + \dot{m}_{\text{recycle}}$

For a specific component $A$:

$\dot{m}_{\text{reactor inlet}} \, x_{A,\text{reactor inlet}} = \dot{m}_{\text{fresh feed}} \, x_{A,\text{fresh feed}} + \dot{m}_{\text{recycle}} \, x_{A,\text{recycle}}$

The recycle stream composition depends on what happens in the reactor and separator, so these equations are coupled with the balances on those units.

Bypass Stream Material Balances

With a bypass, a single stream splits into two: one fraction goes through the process unit, and the rest skips it. Both portions then recombine downstream.

If the bypass fraction is $f$ (the fraction of the feed that bypasses the unit):

• Bypass stream flow rate: $\dot{m}_{\text{bypass}} = f \cdot \dot{m}_{\text{feed}}$
• Flow through the unit: $\dot{m}_{\text{unit}} = (1 - f) \cdot \dot{m}_{\text{feed}}$

At the recombination point:

$\dot{m}_{\text{combined}} = \dot{m}_{\text{unit outlet}} + \dot{m}_{\text{bypass}}$

The bypass stream has the same composition as the feed (it doesn't go through anything), but the stream exiting the unit may have a different composition. The component balance at the recombination point reflects this difference.

Accounting for Composition Changes

The recycle or bypass stream composition won't always match the main process stream. Composition changes happen because of:

• Chemical reactions in the reactor (reactants consumed, products formed)
• Separations (distillation, absorption, membrane units) that concentrate or remove specific components
• Phase changes (vaporization, condensation)

You handle these by writing balances around each individual unit, incorporating reaction stoichiometry and conversion, separation factors, or split fractions as appropriate. The balances on individual units then connect through the shared streams.

Solving Material Balance Problems with Recycle and Bypass

Algebraic Methods

For simpler problems (one recycle or bypass loop, no reactions or known conversion), you can solve everything algebraically:

1. Draw and label the PFD. Identify every stream and assign variables to unknown flow rates and compositions.
2. Write overall and component balances around the entire process (the overall system boundary). This often lets you find fresh feed and product relationships directly, since the recycle stream doesn't cross the overall system boundary.
3. Write balances around individual units (reactor, separator, mixing point, splitter) to get additional equations.
4. Solve the system of equations by substitution or matrix methods.

A useful tip: the overall balance (drawn around the entire process including the recycle loop) eliminates the recycle stream entirely, because it's internal to the system. This is often the best place to start. You can find the product flow rate and composition from the overall balance, then work inward to find recycle stream properties.

Iterative Methods

When the process has multiple recycle loops or complex interactions, you may not be able to solve all equations simultaneously in closed form. Iterative methods handle this:

Tear Stream Method (most common in this course):

1. Identify a "tear stream" to break the recycle loop. This is a stream whose properties you'll guess initially.
2. Assume initial values for the tear stream's flow rate and composition.
3. Solve the material balances sequentially around each unit, working through the flowsheet in order.
4. Compare the calculated tear stream properties to your assumed values.
5. If they don't match, update your guess (often by using the calculated values as the new guess) and repeat from step 3.
6. Stop when the assumed and calculated values converge (agree within a specified tolerance).

For intro-level problems, you'll typically only need the algebraic approach. Iterative methods become essential in more complex flowsheets and in process simulation software like Aspen Plus or HYSYS.

Impact of Recycle and Bypass on Process Performance

Benefits and Drawbacks of Recycle Streams

Benefits:

• Reduces raw material consumption by reusing unreacted feed
• Increases overall conversion (even if single-pass conversion is low, recycling pushes overall conversion much higher)
• Minimizes waste by recovering solvents or byproducts

Drawbacks:

• Requires additional equipment (separators, pumps, piping), increasing capital cost
• Increases energy consumption for pumping and separation
• Inerts or trace impurities can accumulate in the recycle loop if there's no purge stream to remove them. This is a classic problem: without a purge, inerts build up until the process can't operate.

Benefits and Drawbacks of Bypass Streams

Benefits:

• Provides a simple way to control outlet temperature or composition
• Reduces the size (and cost) of process equipment by only processing part of the stream
• Prevents unwanted side reactions or thermal degradation

Drawbacks:

• The bypassed material doesn't get processed, which can reduce overall efficiency
• Adds piping and control complexity
• Changes in bypass fraction affect downstream flow rates and compositions, which can propagate through the process

Analyzing and Optimizing Process Performance

You can evaluate the effect of recycle and bypass using a few key metrics:

• Overall conversion: How much of the raw material fed to the process ends up as product (accounts for recycling).
• Single-pass conversion: How much reacts in one trip through the reactor (lower than overall conversion when recycle is present).
• Recycle ratio: $\text{Recycle ratio} = \frac{\dot{m}_{\text{recycle}}}{\dot{m}_{\text{fresh feed}}}$. A higher ratio means more material is being recirculated.
• Bypass fraction: The fraction of feed that skips a unit. Adjusting this lets you tune outlet conditions.

Sensitivity analysis (varying the recycle ratio or bypass fraction and observing the effect on conversion, cost, or product quality) helps identify the best operating point. In practice, process simulators handle these calculations for complex flowsheets, but you should be comfortable doing them by hand for simple systems.
