3.2 Material balance calculations
4 min readâĸaugust 14, 2024
Material balance calculations are the backbone of chemical engineering. They help us track mass flow through processes, ensuring nothing is created or destroyed. This fundamental principle allows engineers to design efficient systems and troubleshoot issues.
Understanding material balances is crucial for optimizing chemical processes. By mastering these calculations, you'll be able to analyze complex systems, identify inefficiencies, and make informed decisions about process improvements. It's a vital skill for any aspiring chemical engineer.
Material balance equations for processes
Conservation of mass and material balance equations
Top images from around the web for Conservation of mass and material balance equations
Introduction to Unsteady-state Operations â Foundations of Chemical and Biological Engineering I View original
Is this image relevant?

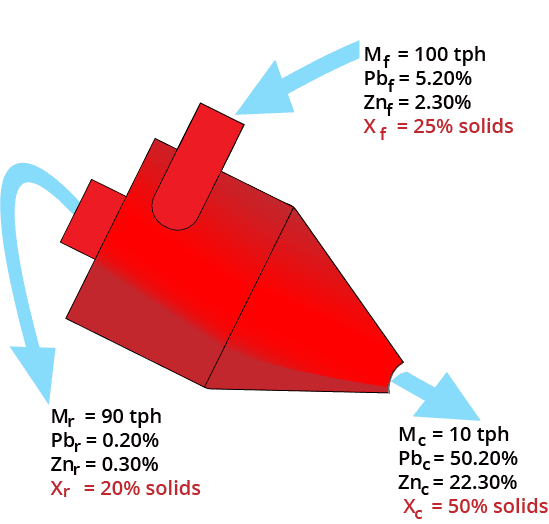

AMIT 135: Lesson 2 Circuit Mass Balancing â Mining Mill Operator Training View original
Is this image relevant?
Unit Operations and Material Balances â Foundations of Chemical and Biological Engineering I View original
Is this image relevant?
Introduction to Unsteady-state Operations â Foundations of Chemical and Biological Engineering I View original
Is this image relevant?
AMIT 135: Lesson 2 Circuit Mass Balancing â Mining Mill Operator Training View original
Is this image relevant?
1 of 3
Top images from around the web for Conservation of mass and material balance equations
Introduction to Unsteady-state Operations â Foundations of Chemical and Biological Engineering I View original
Is this image relevant?
AMIT 135: Lesson 2 Circuit Mass Balancing â Mining Mill Operator Training View original
Is this image relevant?
Unit Operations and Material Balances â Foundations of Chemical and Biological Engineering I View original
Is this image relevant?
Introduction to Unsteady-state Operations â Foundations of Chemical and Biological Engineering I View original
Is this image relevant?
AMIT 135: Lesson 2 Circuit Mass Balancing â Mining Mill Operator Training View original
Is this image relevant?
1 of 3
- The states that mass is neither created nor destroyed in a chemical process, and the total mass of all inputs must equal the total mass of all outputs
- are based on the principle and account for all material streams entering and leaving a
- The general material balance equation is:
- Steady-state processes have no accumulation, while unsteady-state processes involve changes in the mass or composition of the system over time
Types of processes and material balance considerations
- A involves only one process unit or operation (distillation column), while a involves two or more interconnected process units or operations (reactor followed by a separator)
- , , and are common in multiple-unit processes and must be accounted for in material balance equations
- Material balances can be performed on a , a , or a , depending on the available data and the desired output (total , component mass balance for a specific chemical species, molar balance for reacting systems)
Assumptions for material balance calculations
Common assumptions to simplify material balances
- Assumptions are often necessary to simplify complex processes and make material balance calculations tractable
- Common assumptions include:
- Steady-state operation: no accumulation of mass within the system over time
- Ideal mixing: perfect mixing of streams, resulting in uniform composition
- Negligible changes in density or volume: simplifies calculations by assuming constant density or volume
- Negligible losses or side reactions: assumes no unaccounted for losses or undesired side reactions
- Applying appropriate assumptions can reduce the number of variables and equations required to solve a material balance problem
Assessing the validity of assumptions
- The validity of assumptions should be assessed based on the specific process conditions and the desired accuracy of the results
- Assumptions should be clearly stated and justified when presenting the results of material balance calculations
- In some cases, more rigorous material balance calculations may be necessary, relaxing certain assumptions to improve accuracy (e.g., accounting for non-ideal mixing or volume changes)
Degrees of freedom in material balance
Calculating degrees of freedom
- The in a material balance problem represent the number of independent variables that must be specified to solve the problem
- The degrees of freedom can be calculated using the equation:
- Independent equations include material balance equations, component balance equations, and any additional constraints or relationships between variables
- To solve a material balance problem, the degrees of freedom must be zero, meaning that all variables are either specified or can be calculated from the available equations
Specifying input data and resolving degrees of freedom
- If the degrees of freedom are positive, additional input data or assumptions are required to solve the problem
- Input data required for material balance calculations may include flow rates, compositions, densities, temperatures, pressures, and reaction stoichiometry
- If the degrees of freedom are negative, the problem is over-specified, and some equations may be redundant or inconsistent
- In this case, the consistency of the input data and equations should be checked, and any redundant or conflicting information should be resolved
Interpretation of material balance results
Key performance indicators and process evaluation
- Material balance results provide valuable information about the performance and efficiency of a chemical process
- Key performance indicators derived from material balance calculations include:
- Product yield: the amount of desired product obtained per unit of raw material consumed
- Reactant conversion: the fraction of reactant converted into products
- Selectivity: the ratio of the desired product formed to the total amount of products formed
- Material utilization efficiency: the fraction of input materials that are converted into useful products
- Material balance results can be used to identify process bottlenecks, optimize operating conditions, and evaluate the impact of process changes or improvements
Decision-making and communication of results
- Sensitivity analysis can be performed to assess the impact of uncertainties or variability in input data on the material balance results
- Economic analysis can be combined with material balance results to evaluate the profitability and sustainability of a chemical process
- Material balance calculations can inform decisions related to process design, equipment sizing, waste minimization, and environmental compliance
- Effective communication and visualization of material balance results are important for decision-making and collaboration among process engineers and stakeholders (e.g., using flow diagrams, tables, and graphs to present results)
Key Terms to Review (27)
Accumulation Equation: The accumulation equation is a fundamental expression in chemical engineering that quantifies the change in the amount of a substance within a system over a specific time period. It integrates the concepts of input, output, generation, and consumption of materials, allowing engineers to assess how the amount of a substance varies in processes such as reactors, separators, and storage units. This equation is critical for analyzing material balances, ensuring that the principles of conservation are upheld in both continuous and batch processes.
Batch Process Balance: A batch process balance is a method used to calculate the input, output, and accumulation of materials in a system that operates in discrete time intervals, meaning that materials are processed in specific, separate batches rather than continuously. This concept is crucial for understanding how materials are managed throughout each stage of production, ensuring that all inputs are accounted for and that the desired outputs are achieved efficiently.
Bypass streams: Bypass streams are portions of flow in a system that do not participate in the primary processing or reaction pathways, instead moving around the main operation without undergoing the intended transformations. This concept is essential for understanding material balance calculations, as it affects the overall efficiency and yield of a chemical process by influencing how mass is conserved and distributed within the system.
Closed System: A closed system is a type of thermodynamic system that does not exchange matter with its surroundings but can exchange energy in the form of heat or work. This means that while the mass within the system remains constant, energy can flow in and out, influencing the internal state of the system. Understanding closed systems is crucial for analyzing various engineering principles, particularly in relation to mass conservation, material balances, and energy transformations.
Component mass basis: Component mass basis refers to the practice of expressing material balances and calculations relative to the mass of individual components in a mixture or process stream, rather than the total mass of the system. This approach allows for a clearer understanding of the contributions and proportions of different substances within a system, which is essential for effective material balance calculations and analysis.
Conservation of Mass: Conservation of mass is a fundamental principle in science stating that mass cannot be created or destroyed in a closed system through ordinary chemical reactions or physical transformations. This means that the total mass of substances before and after any process must remain constant, forming the backbone of material balance calculations. Understanding this principle is crucial for analyzing processes and ensuring that all inputs and outputs are accounted for in engineering applications.
Continuity Equation: The continuity equation is a mathematical expression that represents the conservation of mass in a flowing fluid. It states that the mass flow rate of a fluid must remain constant from one cross-section of a flow system to another, ensuring that mass is neither created nor destroyed as it moves through a system. This principle is foundational for understanding various processes involving fluids, allowing engineers to analyze and design systems effectively.
Control Volume: A control volume is a specified region in space used in engineering analysis to study the behavior of mass and energy. It serves as a boundary for analyzing the flow of materials and energy into or out of a system, helping to simplify complex processes by focusing on a specific part of a process. This concept is foundational for performing material balance calculations, where inputs, outputs, and accumulations are tracked to ensure conservation principles are maintained.
Degrees of Freedom: Degrees of freedom refer to the number of independent variables or parameters that can change in a system without violating any constraints. In the context of material balance calculations, it helps determine how many variables can be independently specified, thus guiding the analysis and design of chemical processes by ensuring that all necessary equations are satisfied.
Inlet Flow: Inlet flow refers to the quantity of material entering a system or process over a specific period of time. This concept is crucial in understanding how mass is conserved and managed within a system, particularly when conducting calculations related to material balances. Accurately measuring and accounting for inlet flow is essential for determining overall system performance and efficiency, as it directly influences the mass balance equations used in engineering processes.
Input-Output Analysis: Input-output analysis is a systematic method used to understand the relationships between different components of a system, particularly focusing on the flow of materials and energy. It examines how inputs are transformed into outputs within a given process, ensuring that all material contributions and losses are accounted for. This concept is deeply connected to the principles of conservation of mass and material balance calculations, as it relies on tracking the movement of materials through processes to maintain a coherent understanding of system behavior.
Law of Conservation of Mass: The law of conservation of mass states that mass cannot be created or destroyed in a chemical reaction, meaning the total mass of the reactants must equal the total mass of the products. This principle underpins many concepts in chemical engineering, emphasizing that all materials in a system must be accounted for in any process. Understanding this law is crucial when performing calculations to ensure that mass balances are maintained throughout chemical processes.
Mass Balance: Mass balance is a fundamental concept in chemical engineering that involves the accounting of mass entering, leaving, and accumulating within a system. It provides a systematic approach to analyze processes by ensuring that mass is conserved, which is essential for process design, optimization, and troubleshooting.
Material Balance Equations: Material balance equations are mathematical expressions that account for the flow of materials into and out of a system, ensuring that mass is conserved during a process. These equations are fundamental in chemical engineering as they help analyze processes by establishing relationships between input, output, accumulation, and consumption of materials. By applying these equations, engineers can design and optimize processes to ensure efficiency and safety.
Molar basis: Molar basis refers to a method of expressing quantities of substances in terms of moles, which provides a common scale for measuring and comparing chemical reactions and processes. This approach is essential in understanding material balances, as it allows for the consistent tracking of reactants and products across various stages of a process, ensuring that conversions and stoichiometry are accurately represented.
Multiple-Unit Process: A multiple-unit process refers to a chemical engineering approach where a production system is comprised of several interconnected units or equipment, allowing for flexibility and scalability in operations. This setup enhances the ability to control and optimize the overall production by using smaller, modular units that can be adjusted independently, which is particularly useful in material balance calculations where variations in flow rates and compositions can be managed effectively.
Open System: An open system is a type of system that allows both matter and energy to cross its boundaries, interacting with its surroundings. This means that substances can enter or leave the system, allowing for continuous exchange. Understanding open systems is crucial because it helps analyze real-world processes where mass and energy are transferred, which is key in various scientific fields.
Outlet Flow: Outlet flow refers to the quantity of material exiting a system or process over a specific period of time. It is a critical component in material balance calculations, where it helps to determine how much material is leaving compared to what is entering, allowing for the analysis of system efficiency and performance.
Process Simulators: Process simulators are advanced software tools used in chemical engineering to model and analyze complex chemical processes. They allow engineers to visualize the behavior of chemical reactions, material flows, and energy balances within a system, making it easier to perform material balance calculations and optimize designs without physical experimentation.
Purge Streams: Purge streams are the portions of a process stream that are intentionally removed to prevent the accumulation of undesired components, typically in chemical processes. This removal helps maintain desired operating conditions and product quality by minimizing contaminants or unreacted materials in a system, making them essential in the context of material balance calculations.
Reactor design: Reactor design is the process of creating a system that facilitates chemical reactions under controlled conditions, optimizing parameters like temperature, pressure, and concentration. This involves applying principles such as conservation of mass, energy balance, and mass transfer to ensure efficient production and safety in chemical processes. Understanding these principles helps engineers develop reactors that maximize yield while minimizing waste and energy consumption.
Recycle Streams: Recycle streams refer to the portions of materials or products that are taken from a process and returned to an earlier stage in the same process for reprocessing. This practice is essential for improving overall efficiency and reducing waste in chemical engineering processes. By reintegrating these streams, facilities can optimize resource utilization, minimize environmental impact, and maintain economic viability.
Separation Processes: Separation processes are techniques used to divide a mixture into its individual components or to remove impurities from a substance. These processes are crucial in chemical engineering as they allow for the purification of products, recovery of valuable materials, and efficient management of resources. They are connected to essential concepts like material balances, which help in understanding how components move and change during the separation, and diffusion principles that explain how substances migrate and interact at a molecular level.
Single-unit process: A single-unit process is a fundamental concept in chemical engineering that refers to an individual operation within a manufacturing system, where a specific transformation or processing of materials occurs. These processes can involve unit operations such as mixing, separation, reaction, or heat exchange, often functioning independently or as part of a larger sequence of operations. Understanding single-unit processes is essential for performing accurate material balance calculations, as they help in analyzing inputs, outputs, and transformations of substances within the system.
Spreadsheet Modeling: Spreadsheet modeling refers to the use of spreadsheet software to create representations of complex systems or processes, allowing for calculations and data manipulation to aid in decision-making. This approach is particularly valuable for performing material balance calculations, as it enables engineers to easily input data, visualize relationships, and analyze outcomes through various scenarios and sensitivity analyses.
System Boundary: A system boundary is a conceptual line that separates a defined system from its surroundings, indicating what is included within the system and what is considered external. Understanding this boundary is crucial as it helps identify the inputs and outputs, allowing for accurate calculations and analyses regarding material and energy flow. By clearly defining the system boundary, it becomes easier to apply various principles, such as conservation laws and balance equations, leading to better understanding and control of processes.
Total mass basis: Total mass basis refers to a method of evaluating a system where all mass quantities are considered as fractions of the total mass within the system. This approach simplifies calculations and comparisons by allowing for an easy understanding of how each component contributes to the overall mass balance, particularly useful in material balance calculations.
