12.3 Inherently safer design

Inherently safer design is an approach in chemical engineering that aims to eliminate or reduce hazards at their source, rather than relying on add-on safety systems to manage them. Instead of asking "how do we protect against this hazard?", you ask "how do we remove the hazard entirely?" The approach rests on four core principles: minimization, substitution, moderation, and simplification.

Inherently Safer Design Principles

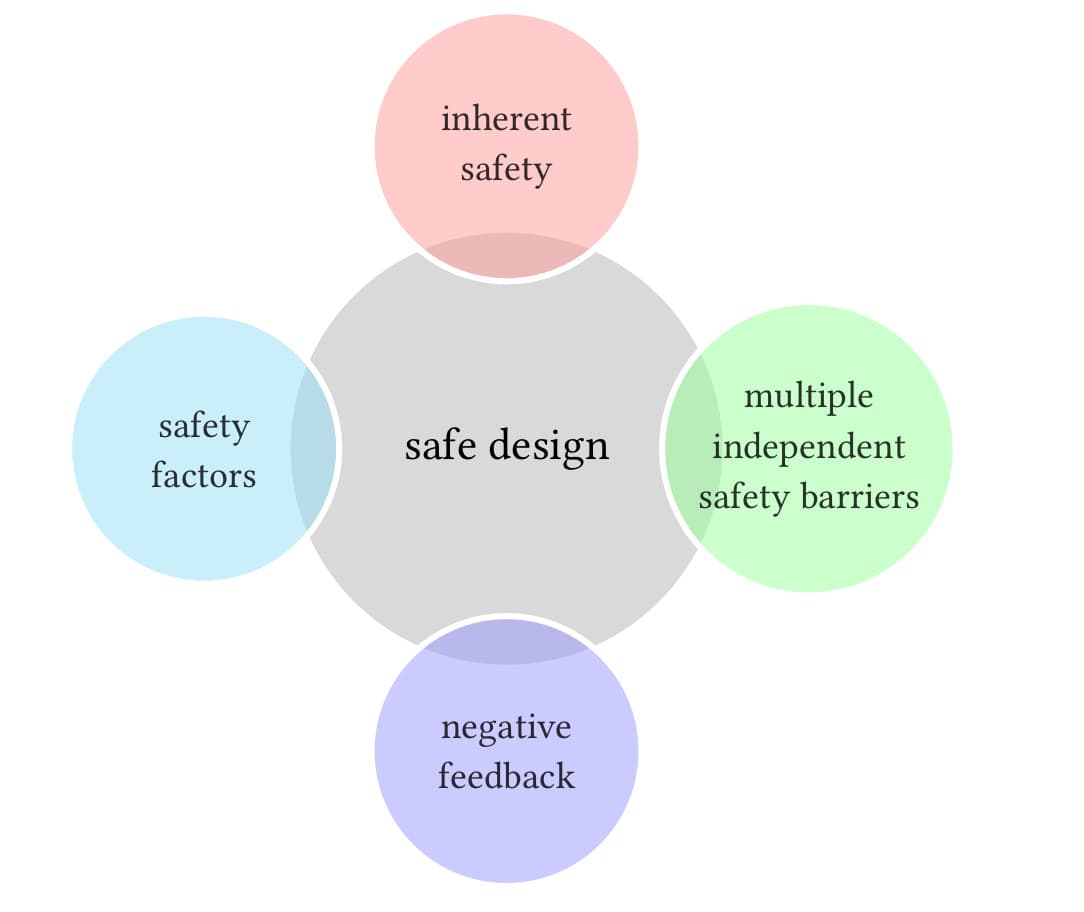

Eliminating or Reducing Hazards at the Source

The key idea is straightforward: a hazard that doesn't exist can't hurt anyone. Traditional safety engineering adds layers of protection (alarms, relief valves, emergency shutdowns) to control hazards that remain in the process. Inherently safer design takes a different path by removing or reducing the hazard itself.

For example, if a process uses a highly toxic intermediate chemical, an add-on approach would install gas detectors and emergency ventilation. An inherently safer approach would redesign the chemistry so that toxic intermediate is never produced in the first place. This distinction between managing a hazard and eliminating it is the foundation of the whole concept.

The Four Main Principles of Inherently Safer Design

Minimization reduces the quantities of hazardous materials or the size of equipment, limiting the potential consequences if something goes wrong.

• Keeping smaller inventories of flammable solvents means less fuel available if a fire breaks out
• A smaller reactor vessel contains the effects of a runaway reaction more effectively than a large one, simply because there's less reacting material

Substitution replaces hazardous materials or processes with safer alternatives that achieve the same function.

• Using water-based cleaning agents instead of flammable organic solvents reduces fire risk
• Replacing a toxic catalyst with a less hazardous one minimizes the potential for worker exposure

Moderation uses less hazardous process conditions (lower temperatures, lower pressures, more dilute concentrations) to reduce the severity of potential incidents.

• Operating a reactor at a lower temperature reduces the likelihood of a runaway reaction
• Running at atmospheric pressure instead of high pressure limits the consequences of a leak, since there's less driving force pushing material out

Simplification streamlines processes and equipment to reduce complexity. Fewer components and simpler designs mean fewer things that can go wrong and fewer opportunities for human error.

• A process with fewer steps has fewer potential failure points
• Standardized equipment and instrumentation simplify maintenance and troubleshooting, reducing the chance of mistakes

Applying Safer Design Strategies

Process Intensification and Containment

Process intensification is one of the most practical ways to apply minimization. Techniques like microreactors and spinning disc reactors shrink equipment size while improving performance.

• Microreactors have very high surface-area-to-volume ratios, which means much better heat transfer. This directly reduces the risk of runaway reactions because heat can be removed faster than it builds up.
• Spinning disc reactors intensify mixing and heat transfer, making it safer to handle highly exothermic reactions that would be dangerous in conventional batch reactors.

Containment strategies prevent hazardous materials from reaching workers or the environment:

• Sealed transfer lines and closed sampling systems prevent fugitive emissions and accidental releases
• Glove boxes and fume hoods provide containment during handling of hazardous materials

Designing for Inherent Safety and Early Implementation

Some processes can be designed with built-in self-limiting properties, so they naturally resist dangerous conditions without requiring external intervention.

• Selecting reactions with inherent kinetic or thermodynamic limitations can prevent uncontrolled acceleration. For instance, a reaction that naturally slows as temperature rises (negative temperature coefficient) has a built-in safety mechanism.
• Using reactants that decompose into inert products at elevated temperatures provides another form of self-regulation.

Timing matters significantly. Applying inherently safer design principles early in a project is far more cost-effective than retrofitting later:

1. During conceptual design and lab-scale testing, identify potential hazards and explore safer chemistries or process routes
2. During pilot plant and scale-up, confirm that inherently safer choices work at larger scales
3. During detailed engineering, it becomes progressively more expensive to make fundamental changes

The further along a project is, the more locked-in the design becomes. A chemistry change at the conceptual stage might cost almost nothing; the same change during construction could cost millions. This is sometimes called the "cost of change curve," and it's a major reason why safety thinking needs to start on day one of a project.

Trade-offs in Safer Design

Balancing Safety, Efficiency, and Cost

Inherently safer designs sometimes require higher upfront capital costs for specialized equipment or materials, but they often lead to long-term savings.

• Advanced process control systems and high-quality materials of construction enhance safety while reducing maintenance needs over time
• Inherently safer facilities can benefit from lower insurance premiums and avoid the enormous costs of accidents or unplanned shutdowns

That said, trade-offs are real. A safer design choice may reduce efficiency or productivity:

• A less reactive but safer solvent may require longer processing times or lower yields
• Operating at lower temperatures or pressures may require larger equipment or more energy input to achieve the same throughput

These trade-offs don't mean you avoid inherently safer design. They mean you need to evaluate the full picture, weighing reduced risk against any loss in performance or increase in cost.

Risk Assessment and Stakeholder Engagement

A thorough risk assessment and cost-benefit analysis helps identify which inherently safer strategies give you the most risk reduction for the investment.

• Quantitative risk analysis techniques like fault tree analysis and event tree analysis can prioritize safety improvements based on how much risk they actually reduce
• Life cycle costing provides a comprehensive view of long-term financial implications, not just the initial price tag

Engaging a broad range of stakeholders in the decision-making process makes inherently safer designs more practical and more likely to succeed:

• Front-line operators and maintenance personnel bring hands-on experience that engineers at a desk may not have. They often spot practical issues with proposed designs early.
• Management and financial stakeholders help align safety initiatives with business objectives and budgets

Safer Design Throughout the Lifecycle

Continuous Improvement and Integration with Safety Management Systems

Inherently safer design isn't a one-time activity at the start of a project. It should be revisited at every stage of the process lifecycle: conceptual design, R&D, detailed engineering, construction, and ongoing operation.

• Process simulation and optimization studies can reveal inherently safer design alternatives that weren't obvious initially
• HAZOP studies (Hazard and Operability studies) during detailed engineering help ensure that inherently safer principles are applied consistently across the design. In a HAZOP, a team systematically examines each part of the process using guide words (like "more," "less," "reverse") to identify deviations from normal operation and their potential consequences.

Once a plant is operating, the work continues:

• A management of change (MOC) process should evaluate the safety implications of any process modification, ensuring that changes don't introduce new hazards
• Staying connected to industry forums and benchmarking studies provides exposure to emerging inherently safer technologies and lessons learned from other facilities

Training and Safety Culture

Integrating inherently safer design into your process safety management systems makes it part of routine practice rather than an afterthought.

• Including inherently safer design criteria in process hazard analysis (PHA) protocols ensures that safer alternatives are systematically evaluated during every review
• Investigating near misses and incidents through an inherently safer design lens can reveal opportunities for fundamental improvements, not just better protective systems

Training is what makes all of this work in practice. Employees who understand the principles can spot opportunities that formal reviews might miss.

• Case studies and hands-on exercises help people develop the ability to recognize where inherently safer solutions could apply
• Recognizing employees who propose and implement inherently safer improvements reinforces the idea that safety is everyone's responsibility, not just the safety department's
