Hazards in Chemical Processes
Hazard identification is the first step in keeping a chemical plant safe. Before you can manage risk, you need to know what can go wrong. That means systematically cataloging every way a process, substance, or piece of equipment could cause harm.
Types of Hazards

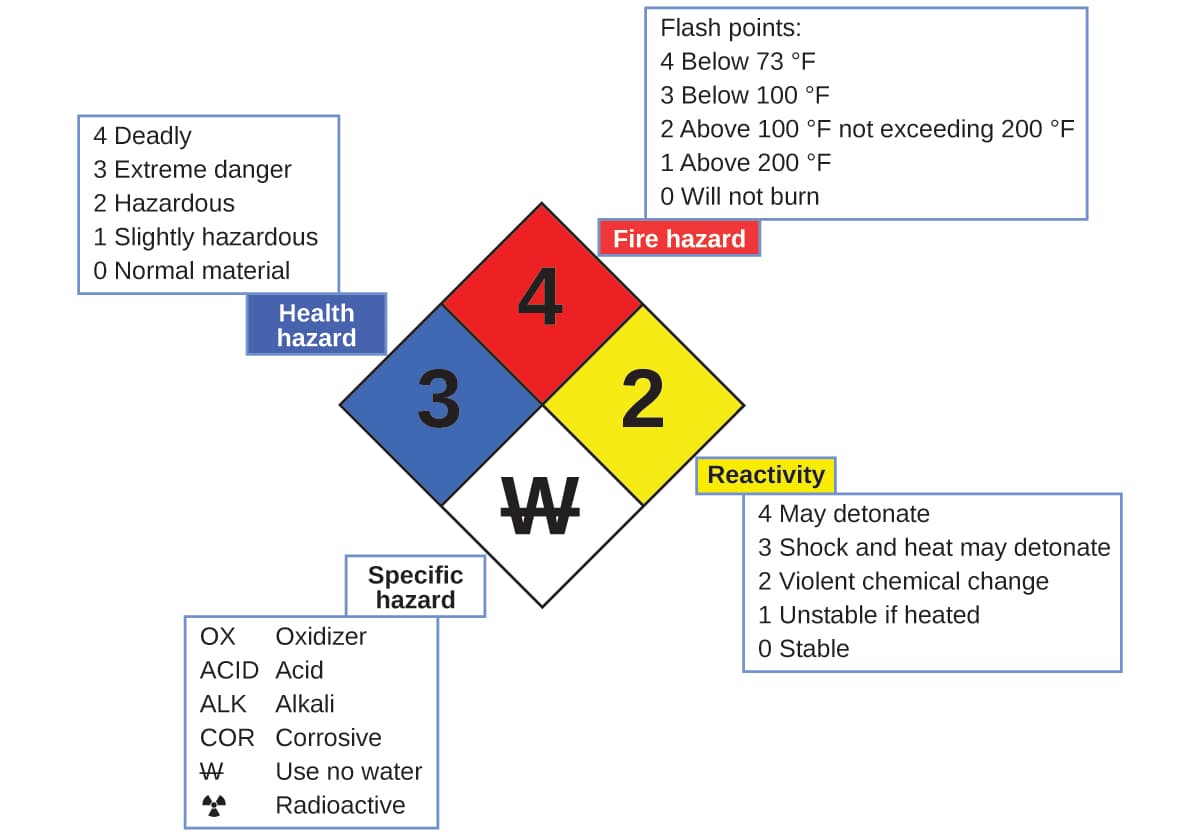

Chemical hazards stem from the properties of the substances you're working with: flammability, toxicity, reactivity, and corrosivity. A solvent that's both flammable and toxic (like benzene) presents multiple chemical hazards simultaneously.
Physical hazards involve energy sources that can cause injury or damage:
- High pressure or high temperature in vessels and piping
- Mechanical energy from rotating equipment (pumps, compressors)
- Noise and radiation exposure
Process hazards arise from the nature of the chemistry or operations themselves. Exothermic reactions can become runaway reactions if heat removal fails. Uncontrolled mixing of incompatible streams is another classic process hazard.
Equipment hazards relate to how hardware is designed, operated, and maintained. Leaking valves, corroded pipes, and reactor malfunctions all fall here. These often overlap with other hazard types; a corroded pipe carrying a toxic fluid is both an equipment hazard and a chemical hazard.
Human and Environmental Factors
Human factors are involved in a large share of process safety incidents. Operator error, fatigue, and inadequate training can turn a manageable situation into a dangerous one. Common examples include improper handling of hazardous materials and failure to follow established safety procedures.
Environmental hazards involve releases that affect the surroundings. Toxic chemical releases into air, water, or soil can harm ecosystems and public health. Greenhouse gas emissions from chemical processes also fall under this category.
Risk Assessment for Chemical Hazards
Risk assessment takes the hazards you've identified and asks two questions: How likely is this to happen? and How bad would it be? The answers determine where to focus your resources.
Qualitative and Quantitative Methods
The fundamental relationship is:
Qualitative methods use descriptive scales rather than precise numbers. A hazard matrix, for example, plots likelihood (rare to almost certain) against severity (minor to catastrophic) and assigns each combination a risk category (low, medium, or high), often color-coded green, yellow, and red. These are fast and useful for initial screening.
Quantitative methods use numerical data and statistical techniques to estimate probabilities and consequences more precisely:
- Fault tree analysis (FTA) works backward from an undesired event to identify combinations of failures that could cause it
- Event tree analysis (ETA) works forward from an initiating event to map out possible outcomes depending on whether each safety barrier succeeds or fails
- Outputs include metrics like probability of failure on demand (PFD) for safety systems, Fatal Accident Rate (FAR), and F-N curves that plot frequency against the number of fatalities
Modeling and Risk Reduction
Consequence modeling predicts the physical impacts of hazardous events. Gaussian dispersion models estimate how a toxic gas cloud spreads downwind. Vapor cloud explosion (VCE) models predict blast overpressures from flammable gas releases. These models help determine safe distances and emergency planning zones.
Risk assessment distinguishes between inherent risk (risk without any safeguards) and residual risk (risk remaining after safeguards are in place). The gap between the two tells you how effective your controls are.
The ALARP principle (As Low As Reasonably Practicable) guides how far you need to go with risk reduction. If a risk falls in the ALARP region, you must reduce it further unless you can demonstrate that the cost of additional measures is grossly disproportionate to the benefit. This involves cost-benefit analysis of risk reduction options.
Risk Mitigation Strategies
Once risks are assessed, you need to decide how to control them. Not all controls are equally effective, and chemical engineering uses a structured approach to prioritize them.
Hierarchy of Controls
The hierarchy of controls ranks risk reduction measures from most to least effective:
- Elimination — Remove the hazard entirely (e.g., redesigning a process so a hazardous intermediate is never formed)
- Substitution — Replace a hazardous substance or process with a less hazardous one (e.g., using a less toxic solvent)
- Engineering controls — Add physical safeguards (covered below)
- Administrative controls — Rely on procedures and human behavior (covered below)
- PPE — Protect individual workers as a last line of defense
The top of the hierarchy is always preferred because it doesn't depend on people doing the right thing every time.
Inherently safer design (ISD) principles align closely with the top of this hierarchy:
- Minimization — Reduce the quantity of hazardous material present (smaller reactors, less inventory in storage)
- Substitution — Use less hazardous chemicals or reactions
- Moderation — Use less extreme conditions (lower temperatures, dilute concentrations)
- Simplification — Reduce complexity to minimize opportunities for error
Engineering and Administrative Controls
Engineering controls are physical systems that prevent, detect, or mitigate hazardous events without relying on human action:
- Safety instrumented systems (SIS) automatically shut down a process when dangerous conditions are detected
- Pressure relief valves prevent overpressure in vessels and piping
- Process automation, containment systems (dikes, secondary containment), and gas detection systems
Administrative controls depend on people following established rules:
- Standard operating procedures (SOPs) for safe handling of hazardous materials
- Permit-to-work systems for high-risk activities like confined space entry or hot work
- Training programs and emergency response plans
Personal protective equipment (PPE) is the last resort. Chemical-resistant gloves and suits protect against corrosive chemicals. Self-contained breathing apparatus (SCBA) protects against toxic atmospheres. PPE is ranked last because it only protects the individual wearing it, and only if worn correctly.
Layers of protection analysis (LOPA) is a semi-quantitative method that evaluates how multiple independent protection layers combine to reduce risk. The process works like this:
- Identify an initiating event (e.g., a cooling water pump fails)
- Identify the consequence if nothing intervenes (e.g., runaway reaction)
- List each independent protection layer between the initiating event and the consequence (alarms, SIS, relief valves, etc.)
- Assign a PFD to each layer
- Multiply the initiating event frequency by each layer's PFD to get the mitigated event frequency
If the mitigated frequency is still too high, additional layers are needed.
Importance of Hazard Identification
Process Safety Management
Process safety is distinct from personal or occupational safety. It focuses specifically on preventing catastrophic events like fires, explosions, and large toxic releases. A worker tripping on a staircase is an occupational safety issue; a reactor explosion is a process safety issue.
Process hazard analysis (PHA) is a systematic approach to identifying hazards in a chemical process. It's typically conducted during design and repeated periodically throughout the life of the facility. Two widely used PHA methods:
- HAZOP (Hazard and Operability study) — A team systematically applies guide words (e.g., "more," "less," "no," "reverse") to each process parameter to identify deviations from normal operation and their consequences
- FMEA (Failure Modes and Effects Analysis) — Examines each piece of equipment to identify how it could fail and what the effects of that failure would be
Regular hazard identification helps prioritize risks, track how risk levels change over time, and verify that existing controls remain effective.
Change Management and Incident Investigation
Management of change (MOC) procedures ensure that any modification to a process, equipment, or materials is evaluated for safety impact before implementation. Even seemingly minor changes (swapping a gasket material, adjusting a setpoint) can introduce new hazards. MOC requires assessing the risks, updating safety documentation, and retraining affected personnel.
Incident investigation and root cause analysis dig into why things went wrong. Techniques like the 5 Whys (asking "why?" repeatedly until you reach the root cause) and Ishikawa (fishbone) diagrams (categorizing potential causes) help move beyond surface-level explanations. The goal is to identify corrective actions and share lessons learned across the organization.
None of these systems work without a strong process safety culture. That means leadership visibly commits to safety, employees feel comfortable reporting concerns without fear of blame, and the organization treats safety as something that continuously improves rather than a box to check.
