13.3 Renewable energy and alternative fuels

Renewable energy and alternative fuels are reshaping how chemical engineers think about powering processes and sourcing feedstocks. Understanding these technologies matters because the chemical industry is one of the largest industrial energy consumers, and the shift away from fossil fuels creates both engineering challenges and career opportunities you'll encounter throughout your career.

This section covers the major renewable energy sources, alternative fuel production methods, and the technical and economic factors involved in integrating them into chemical engineering operations.

Renewable Energy Sources for Chemical Engineering

Solar, Wind, and Hydropower

Solar energy can be harnessed in two main ways for chemical processes:

• Photovoltaic (PV) cells convert sunlight directly into electricity using semiconductor materials like silicon. This electricity can then power equipment or drive electrochemical reactions.
• Concentrated solar power (CSP) systems use mirrors or lenses to focus sunlight onto a receiver, generating high-temperature heat. CSP is particularly relevant to chemical engineering because many industrial processes need heat, not just electricity.

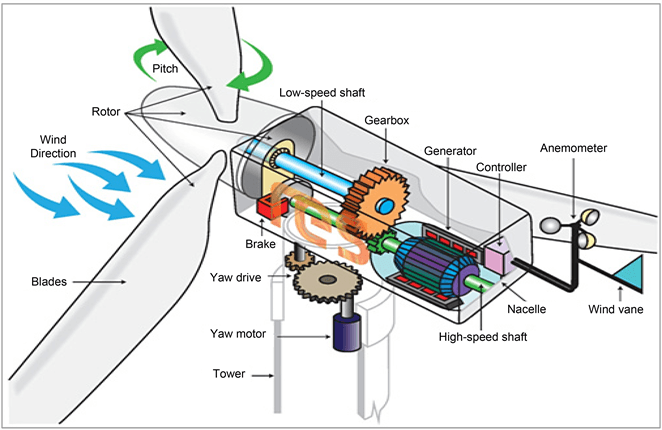

Wind energy is captured using turbines that convert the kinetic energy of moving air into electrical energy. A typical turbine consists of blades, a rotor, a generator, and a tower. Offshore wind farms can tap into stronger, more consistent winds over open water, which makes them attractive for large-scale power generation near coastal industrial zones.

Hydropower uses the energy of falling or flowing water to generate electricity:

• Conventional hydropower involves damming rivers to create reservoirs and driving turbines with the released water.
• Pumped storage hydroelectricity acts as a giant battery: water is pumped uphill when excess electricity is available, then released through turbines when demand rises. This is one of the oldest and most widely deployed forms of grid-scale energy storage.

Geothermal and Biomass Energy

Geothermal energy taps heat from the Earth's interior for power generation or direct process heating:

• Hydrothermal systems use naturally occurring hot water or steam reservoirs to drive turbines or supply process heat.
• Enhanced geothermal systems (EGS) inject water into hot, dry rock formations to create artificial reservoirs. EGS expands where geothermal energy can be used, but the drilling and engineering costs are significant.

Biomass includes organic waste and purpose-grown energy crops, and it can be converted into several forms of bioenergy:

• Biogas is produced through anaerobic digestion of organic waste, yielding a mixture of mostly methane and carbon dioxide. It can fuel heat and power generation.
• Bioethanol comes from fermenting sugars, while biodiesel is made by transesterification of vegetable oils or animal fats (more on both below).
• Biomass can also serve as a renewable feedstock for chemical production, replacing petroleum-derived inputs for products like bio-based plastics or specialty chemicals.

Alternative Fuels: Production, Storage, and Use

Biofuels Production and Utilization

Biofuels are liquid fuels derived from biomass that can substitute for fossil fuels in transportation and industrial processes. The two most common types are:

• Bioethanol is produced by fermenting sugars from crops like corn or sugarcane. It can be blended with gasoline (E10, E85 blends) or used as a standalone fuel in flex-fuel engines.
• Biodiesel is produced by reacting vegetable oils or animal fats with an alcohol (typically methanol) in a reaction called transesterification. It can run in standard diesel engines with little or no modification.

A major limitation of these "first-generation" biofuels is that they compete with food crops for land. Advanced biofuels aim to solve this problem:

• Cellulosic ethanol uses non-food biomass like agricultural residues, switchgrass, or miscanthus. The challenge is breaking down tough cellulose and lignin structures into fermentable sugars.
• Algae-based biofuels grow microalgae on non-arable land or in wastewater. Algae can produce far more oil per unit area than traditional crops, though scaling up production economically remains difficult.

Hydrogen Production, Storage, and Fuel Cells

Hydrogen is a versatile alternative fuel and chemical feedstock. How it's produced determines its environmental footprint:

• Steam methane reforming (SMR) of natural gas is currently the most common production method (~95% of global hydrogen), but it generates $CO_2$ as a byproduct. This is sometimes called "grey hydrogen."
• Electrolysis splits water into hydrogen and oxygen using electricity. When powered by renewables, this produces "green hydrogen" with zero carbon emissions. The key reaction is: $2H_2O \rightarrow 2H_2 + O_2$

Hydrogen storage is a critical engineering challenge because hydrogen has very low volumetric energy density (it takes up a lot of space for the energy it carries):

• Compressed gas storage at 350–700 bar is the most common approach.
• Liquefied hydrogen offers higher density but requires cryogenic temperatures (below $-253°C$) and well-insulated tanks.
• Solid-state storage in metal hydrides or other materials can provide compact, safer storage, though weight and release kinetics are ongoing research areas.

Fuel cells convert hydrogen's chemical energy directly into electricity through an electrochemical reaction, producing only water and heat as byproducts:

• Proton exchange membrane (PEM) fuel cells operate at low temperatures (~80°C) with fast startup, making them well-suited for vehicles.
• Solid oxide fuel cells (SOFC) run at high temperatures (600–1000°C) and can use various fuels beyond pure hydrogen, which makes them attractive for stationary power generation and industrial applications.

Renewable Energy and Alternative Fuels: Impacts

Economic and Environmental Considerations

The economic viability of renewable energy depends on technology costs, resource availability, market demand, and government policy. A key comparison metric is the levelized cost of energy (LCOE), which accounts for capital costs, operating expenses, and fuel costs over a project's entire lifetime. Solar PV and onshore wind have seen dramatic cost drops and are now cost-competitive with fossil fuels in many regions.

Environmental impact is typically assessed using life cycle assessment (LCA), which evaluates an energy system's footprint from raw material extraction through manufacturing, operation, and end-of-life disposal. Renewables generally produce far fewer greenhouse gas emissions and air pollutants than fossil fuels over their full life cycle.

Biofuels deserve a closer look, though. While they can reduce greenhouse gas emissions compared to petroleum fuels, their true sustainability depends on:

• Whether production drives land use change (e.g., clearing forests for cropland, which releases stored carbon)
• Impacts on biodiversity and water consumption
• The energy inputs required for farming, processing, and transportation

Socio-Economic Impacts and Just Transition

The shift to renewable energy can generate significant benefits:

• Job creation in manufacturing, installation, and maintenance of technologies like solar panels and wind turbines
• Improved energy security by reducing dependence on imported fossil fuels and diversifying energy sources
• Lower health costs from reduced air pollution, especially in urban and industrial areas

However, this transition also creates disruption. Communities dependent on fossil fuel industries face job losses and economic decline. A just transition means actively addressing these effects by:

• Providing retraining and new employment opportunities for workers in declining fossil fuel sectors
• Supporting regional economic diversification
• Ensuring equitable access to the benefits of the energy transition, particularly for marginalized or disadvantaged communities

Challenges and Opportunities in Renewable Energy Integration

Technical and Logistical Challenges

Plugging renewable energy into existing chemical processes isn't straightforward. Two major hurdles stand out:

• Intermittency: Solar and wind output fluctuates with weather and time of day. Chemical processes often need a stable, continuous energy supply. This may require energy storage systems, backup power, or redesigning processes to tolerate variable inputs.
• Retrofitting costs: Adapting existing chemical plants to use renewable energy inputs can demand significant capital investment and process redesign.

Process intensification strategies can help by reducing energy demand and increasing operational flexibility:

• Modular, decentralized production units can be sited near local renewable energy sources, cutting transportation costs.
• Microreactors and miniaturized processes enhance heat and mass transfer, leading to more efficient, compact operations that pair well with variable renewable inputs.

Power-to-X and Energy Storage Technologies

Power-to-X (PtX) is a family of technologies that convert renewable electricity into storable chemical products:

• Power-to-hydrogen: Renewable electricity drives water electrolysis to produce green hydrogen for use as a feedstock or fuel.
• Power-to-methanol and power-to-ammonia: These processes combine renewable electricity with captured $CO_2$ or nitrogen from air to synthesize methanol or ammonia. Both serve as energy carriers and valuable chemical products.

Energy storage technologies bridge the gap between when renewables generate power and when chemical processes need it:

• Batteries (lithium-ion, flow batteries) store electrical energy for on-demand use.
• Thermal energy storage uses materials like molten salts or phase change materials to capture excess heat from renewable sources and release it later.
• Hydrogen storage (discussed above) allows renewable energy to be stored as a flexible chemical energy carrier.

Innovative Processes and Market Opportunities

The chemical industry has real opportunities to build new processes around renewable energy and alternative feedstocks:

• $CO_2$ utilization converts captured carbon dioxide from industrial emissions or direct air capture into value-added chemicals or fuels, supporting a circular economy.
• Biomass valorization transforms renewable biomass into chemical products like bio-based plastics, specialty chemicals, or even pharmaceuticals.
• Electrification of chemical reactions uses renewable electricity directly as an energy source for reactions, enabling novel pathways that don't rely on fossil fuel-derived heat.

These approaches contribute to decarbonizing the chemical sector while opening new markets. Growing consumer and regulatory demand for sustainable products is driving companies to develop renewable chemical products, build partnerships across the value chain (from renewable energy providers to end-users), and explore business models that prioritize resource efficiency and circularity.
