11.1 Stagnation Properties and Isentropic Flow

Stagnation Properties and Isentropic Flow

Stagnation properties and isentropic flow are foundational concepts in compressible fluid dynamics. They give you a consistent reference framework for tracking how temperature, pressure, and density change as a gas accelerates or decelerates through devices like nozzles, diffusers, and turbine stages. Understanding these relationships is essential for designing and analyzing any system where gas velocities are high enough that compressibility effects matter.

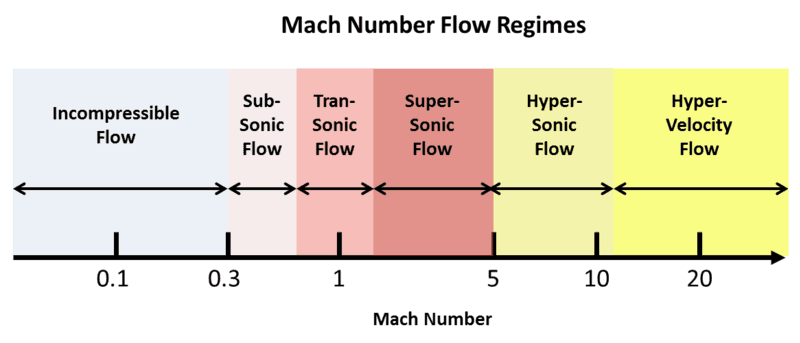

Stagnation Properties in Compressible Flow

Definition and Significance

A stagnation property is the value a fluid property would reach if the flow were brought to rest isentropically (no heat transfer, no friction, no entropy change). Think of it as the "total" energy state of the fluid: it bundles together both the static (thermodynamic) state and the kinetic energy of the flow into a single reference value.

Why stagnation properties are so useful:

• They provide a fixed reference state for comparing fluid conditions at different locations in a flow field (inlet, throat, exit).
• In steady, adiabatic, inviscid flow, stagnation properties remain constant along a streamline. That constancy is what makes them powerful for analysis.
• The ratio of any static property to its stagnation value depends only on the local Mach number and the specific heat ratio $\gamma$, which directly quantifies how strong compressibility effects are at that point.

Stagnation Temperature, Pressure, and Density

Each stagnation property represents what you'd measure if you isentropically decelerated the flow to zero velocity at that point:

• Stagnation temperature $T_0$: accounts for the kinetic energy converted back into internal energy.
• Stagnation pressure $p_0$: the maximum pressure recoverable from the flow.
• Stagnation density $\rho_0$: the corresponding density at that recovered state.

The key relations linking static properties to stagnation properties through Mach number are:

$\frac{T}{T_0} = \left(1 + \frac{\gamma - 1}{2} Ma^2\right)^{-1}$

$\frac{p}{p_0} = \left(1 + \frac{\gamma - 1}{2} Ma^2\right)^{-\frac{\gamma}{\gamma - 1}}$

$\frac{\rho}{\rho_0} = \left(1 + \frac{\gamma - 1}{2} Ma^2\right)^{-\frac{1}{\gamma - 1}}$

Notice the pattern: the temperature relation is the base expression, and the pressure and density ratios follow from the isentropic relations $p \propto T^{\gamma/(\gamma-1)}$ and $\rho \propto T^{1/(\gamma-1)}$. If you remember the temperature ratio, you can derive the other two.

For air ($\gamma = 1.4$), at $Ma = 2$, the static-to-stagnation temperature ratio is $T/T_0 = 1/1.8 \approx 0.556$, meaning the static temperature is only about 56% of the stagnation temperature. The pressure ratio drops even more steeply: $p/p_0 \approx 0.1278$.

Isentropic Flow Relations

Assumptions and Derivation

Isentropic flow means the entropy of each fluid element remains constant throughout the process. This requires two conditions simultaneously:

• Adiabatic: no heat transfer to or from the fluid.
• Reversible: no friction, no shock waves, no mixing losses.

The isentropic flow relations are derived by combining:

1. Conservation of energy (the steady-flow energy equation, which gives the stagnation temperature relation).
2. The isentropic process equation $p/\rho^\gamma = \text{const}$, which connects pressure and density changes to temperature changes.
3. Conservation of mass (continuity), which ties velocity and density changes to area changes.

Together, these let you determine how velocity, temperature, pressure, and density vary along a streamline as the cross-sectional area changes.

Critical Mach Number and Flow Properties

The critical condition (denoted by a superscript $*$) is defined as the state where the local flow velocity equals the local speed of sound, i.e., $Ma = 1$. Setting $Ma = 1$ in the stagnation-property ratios gives the critical ratios:

$\frac{T^*}{T_0} = \frac{2}{\gamma + 1}$

$\frac{p^*}{p_0} = \left(\frac{2}{\gamma + 1}\right)^{\frac{\gamma}{\gamma - 1}}$

$\frac{\rho^*}{\rho_0} = \left(\frac{2}{\gamma + 1}\right)^{\frac{1}{\gamma - 1}}$

For air ($\gamma = 1.4$), these evaluate to:

• $T^*/T_0 = 0.8333$
• $p^*/p_0 = 0.5283$
• $\rho^*/\rho_0 = 0.6340$

These critical ratios are especially important because they define the conditions at the throat of a converging-diverging nozzle when the nozzle is choked.

Compressible Flow Through Nozzles

Converging-Diverging Nozzles

A converging-diverging (de Laval) nozzle is the only geometry that can accelerate a compressible flow from subsonic to supersonic speeds in a steady, isentropic process. Here's how the flow develops through each section:

1. Converging section ($Ma < 1$): As the area decreases, the subsonic flow accelerates. Pressure, temperature, and density all decrease as kinetic energy increases.
2. Throat ($Ma = 1$): At the minimum cross-sectional area, the flow reaches sonic velocity. The properties here equal the critical values ($T^*$, $p^*$, $\rho^*$).
3. Diverging section ($Ma > 1$): If the pressure conditions downstream are right, the supersonic flow continues to accelerate. Pressure, temperature, and density keep decreasing.

A subtle but important point: in subsonic flow, decreasing area accelerates the fluid (just like incompressible flow). But in supersonic flow, increasing area accelerates the fluid. This reversal is why you need a diverging section after the throat to reach supersonic speeds.

Area-Mach Number Relation

The relationship between the local cross-sectional area $A$ and the Mach number is:

$\frac{A}{A^*} = \frac{1}{Ma}\left[\frac{2}{\gamma+1}\left(1+\frac{\gamma-1}{2}Ma^2\right)\right]^{\frac{\gamma+1}{2(\gamma-1)}}$

where $A^*$ is the throat area (the area where $Ma = 1$).

Key features of this relation:

• For any given $A/A^* > 1$, there are two solutions: one subsonic and one supersonic. Which one the flow actually follows depends on the back pressure.
• At the throat, $A/A^* = 1$ by definition, and $Ma = 1$.
• The back-pressure-to-stagnation-pressure ratio ($p_b/p_0$) determines the flow regime in the nozzle. As you lower the back pressure, the flow progresses from fully subsonic, to choked at the throat with subsonic flow in the diverging section, to fully supersonic in the diverging section.

Critical Conditions and Choking

Critical Conditions

Critical conditions occur at any location in the flow where $Ma = 1$. At this state:

• The flow velocity $V^*$ equals the local speed of sound $a^*$.
• The mass flux $\rho V$ (mass flow per unit area) reaches its maximum possible value. This is a direct consequence of the competing effects of increasing velocity and decreasing density: at $Ma = 1$, the product $\rho V$ peaks.
• The critical temperature, pressure, and density are calculated from the critical ratios given above.

Choking Phenomenon

Choking occurs when the mass flow rate through a passage reaches its maximum and becomes independent of downstream conditions. Once a nozzle is choked:

• The throat is at $Ma = 1$, and the mass flow rate depends only on the upstream stagnation conditions ($p_0$, $T_0$) and the throat area $A^*$.
• The choked mass flow rate for an ideal gas is:

$\dot{m} = A^* p_0 \sqrt{\frac{\gamma}{R T_0}} \left(\frac{2}{\gamma+1}\right)^{\frac{\gamma+1}{2(\gamma-1)}}$

• Lowering the back pressure below the critical value $p^*$ does not increase the mass flow rate. It only changes what happens in the diverging section (supersonic expansion, possible shock waves).

The critical pressure ratio $p^*/p_0 = \left(\frac{2}{\gamma+1}\right)^{\gamma/(\gamma-1)}$ is the threshold. If the back pressure drops below $p^*$, the throat is choked and the diverging section can support supersonic flow. If the back pressure is between $p^*$ and $p_0$, the flow remains entirely subsonic.

When the back pressure is low enough for supersonic flow in the diverging section but not low enough to match the fully expanded supersonic exit pressure, normal shock waves form inside the nozzle to adjust the flow to the imposed downstream conditions. This is a common scenario in off-design nozzle operation.

Choking is a critical design constraint in rocket nozzles, gas turbine stages, and gas pipelines, since it sets an upper limit on the mass flow rate for a given throat geometry and supply conditions.
