11.3 Nozzles and Diffusers Analysis
4 min read•july 30, 2024
Nozzles and diffusers are crucial components in compressible fluid flow systems. They control fluid velocity and pressure, playing key roles in propulsion, power generation, and flow control applications. Understanding their behavior is essential for optimizing system performance and efficiency.
This topic dives into the analysis of nozzles and diffusers, exploring their geometry, flow regimes, and performance characteristics. We'll examine critical pressure ratios, generation, efficiency metrics, and design considerations for both subsonic and supersonic flows.
Flow through Converging-Diverging Nozzles
Nozzle Geometry and Flow Regimes
Top images from around the web for Nozzle Geometry and Flow Regimes
de Laval nozzle - Wikipedia View original
Is this image relevant?
De Laval nozzle - Knowino View original
Is this image relevant?
de Laval nozzle - Wikipedia View original
Is this image relevant?
De Laval nozzle - Knowino View original
Is this image relevant?
1 of 2
Top images from around the web for Nozzle Geometry and Flow Regimes
de Laval nozzle - Wikipedia View original
Is this image relevant?
De Laval nozzle - Knowino View original
Is this image relevant?
de Laval nozzle - Wikipedia View original
Is this image relevant?
De Laval nozzle - Knowino View original
Is this image relevant?
1 of 2

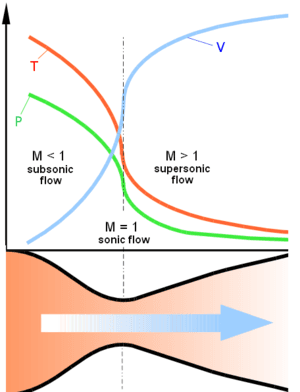

- Converging-diverging nozzles consist of a converging section followed by a diverging section, connected by a throat where the cross-sectional area is minimum
- The flow through a can be subsonic, sonic, or supersonic, depending on the pressure ratio between the inlet and the outlet
- In a converging-diverging nozzle, the flow accelerates in the converging section, reaches sonic velocity (Mach number = 1) at the throat, and further accelerates to supersonic velocities in the diverging section when the pressure ratio is sufficiently high
Critical Pressure Ratio and Flow Conditions
- The is the ratio of the outlet pressure to the inlet pressure at which the flow becomes choked (Mach number = 1) at the throat. For pressure ratios below the critical value, the flow remains subsonic throughout the nozzle
- When the pressure ratio is above the critical value but below the design pressure ratio, the flow is overexpanded, leading to shock waves and in the diverging section
- When the pressure ratio is equal to the design pressure ratio, the flow is perfectly expanded, and the exit pressure matches the ambient pressure, resulting in optimal performance
- When the pressure ratio is above the design pressure ratio, the flow is underexpanded, and expansion waves occur at the nozzle exit to match the ambient pressure (rocket nozzles)
Nozzles: Performance Characteristics
Thrust and Specific Impulse
- Thrust is the force generated by a nozzle due to the change in momentum of the fluid passing through it. It is a critical performance parameter for propulsion systems (, rockets)
- Thrust can be calculated using the , considering the mass flow rate, exit velocity, and pressure difference between the nozzle exit and the ambient conditions
- is a measure of , defined as the thrust generated per unit mass flow rate of the propellant. It represents the effective exhaust velocity of the nozzle
Nozzle Efficiency and Optimization
- Nozzle efficiency is affected by factors such as flow separation, shock waves, and divergence losses in the nozzle
- The is a dimensionless parameter that relates the actual thrust generated by a nozzle to the ideal thrust based on isentropic flow conditions
- Nozzle contours, such as bell-shaped or parabolic designs, can be optimized to minimize flow separation and improve nozzle efficiency (aerospike nozzles, dual-bell nozzles)
- Computational Fluid Dynamics (CFD) simulations are often used to analyze and optimize nozzle designs for specific operating conditions and requirements
Diffusers in Compressible Flow
Purpose and Working Principles
- Diffusers are devices used to decelerate and compress a fluid flow while increasing its static pressure. They are commonly used in compressors, turbines, and other compressible flow systems
- The primary purpose of a is to convert the kinetic energy of the flow into static pressure, which is essential for achieving high efficiency in compressible flow systems
- Diffusers work on the principle of gradually increasing the cross-sectional area of the flow path, causing the fluid velocity to decrease and the static pressure to increase
Subsonic and Supersonic Diffusers
- Subsonic diffusers are used when the inlet flow is subsonic (Mach number < 1), and they typically have a gradually increasing cross-sectional area to avoid flow separation
- Supersonic diffusers are used when the inlet flow is supersonic (Mach number > 1), and they often employ a combination of oblique shock waves and a subsonic diffuser to decelerate the flow and increase the static pressure
- The performance of a diffuser is influenced by factors such as the (outlet to inlet), the , and the inlet flow conditions (Mach number, boundary layer state)
Diffuser Performance vs System Efficiency
Performance Metrics
- The performance of a diffuser is assessed based on its ability to efficiently convert kinetic energy into static pressure while minimizing total pressure losses
- The is a key performance metric for diffusers, defined as the ratio of the static pressure rise to the inlet dynamic pressure. A higher pressure recovery coefficient indicates better diffuser performance
- The quantifies the irreversible losses in a diffuser due to factors such as flow separation, shock waves, and friction. Minimizing total pressure losses is crucial for achieving high diffuser efficiency
Design Considerations and Optimization
- The area ratio and divergence angle of a diffuser must be carefully selected to balance the pressure recovery and flow stability. Excessive divergence angles can lead to flow separation and reduced performance
- techniques, such as vortex generators or bleed systems, can be employed to delay flow separation and improve diffuser performance (inlet diffusers in jet engines)
- The efficiency of a diffuser directly impacts the overall efficiency of the compressible flow system, as it affects the pressure ratio and the work required by the compressor or the power output of the turbine
- Diffuser design optimization involves finding the optimal shape and dimensions that maximize pressure recovery while minimizing losses, considering the specific flow conditions and system requirements (annular diffusers in gas turbines, supersonic inlets in ramjets)
Key Terms to Review (23)
Area ratio: Area ratio is the ratio of the cross-sectional area at two different points in a fluid flow system, such as a nozzle or diffuser. This concept is crucial in understanding how changes in the area affect fluid velocity and pressure, impacting the performance and efficiency of flow devices.
Boundary Layer Control: Boundary layer control refers to techniques used to manage the behavior of fluid flow near a solid surface, enhancing performance in devices such as nozzles and diffusers. Effective control of the boundary layer can reduce drag, improve efficiency, and enhance stability by manipulating how the fluid interacts with surfaces. In the context of nozzles and diffusers, this control can significantly influence performance characteristics like pressure recovery and flow separation.
Choking: Choking occurs when the flow of a compressible fluid, such as air or gas, reaches its maximum speed in a nozzle, leading to a condition where the flow cannot increase even if the downstream pressure is lowered. This phenomenon is essential in the analysis of nozzles and diffusers, where understanding how choking impacts flow behavior can help in optimizing performance and efficiency in various applications, such as jet engines and rocket propulsion systems.
Converging-Diverging Nozzle: A converging-diverging nozzle is a type of nozzle designed to accelerate fluid flow to supersonic speeds by first converging and then diverging the flow path. This design is crucial in applications such as rocket engines and supersonic jets, where achieving high velocities and efficient mass flow rates are necessary for performance.
Critical Pressure Ratio: The critical pressure ratio is the specific ratio of the downstream pressure to the upstream pressure in a flow process, particularly through nozzles and diffusers, that determines whether the flow is choked. When this ratio reaches a certain value, further decreases in downstream pressure do not increase the mass flow rate of the fluid. This concept is crucial for understanding the performance and efficiency of nozzles and diffusers in thermodynamic systems.
Diffuser: A diffuser is a device designed to slow down the flow of a fluid while increasing its pressure, often used in various engineering applications, particularly in fluid dynamics. It typically works by converting kinetic energy into potential energy, allowing for better distribution of the fluid and improved performance in systems like turbines and compressors. Understanding how diffusers operate is essential for optimizing the efficiency of these systems.
Divergence angle: The divergence angle is the angle at which a fluid stream expands as it flows through a nozzle or diffuser, influencing the velocity and pressure of the fluid. This angle is crucial because it affects how efficiently the fluid can be accelerated or decelerated, impacting the performance of devices like nozzles and diffusers. A well-designed divergence angle helps optimize flow characteristics and energy efficiency.
Flow separation: Flow separation occurs when the boundary layer of fluid flowing over a surface detaches from that surface, leading to a loss of smooth flow and potential turbulence. This phenomenon can significantly affect the performance of devices like nozzles and diffusers by impacting pressure distribution, flow efficiency, and overall fluid dynamics. Understanding flow separation is crucial in optimizing designs for efficient energy transfer and minimizing drag.
Isentropic relations: Isentropic relations refer to the mathematical expressions that relate various thermodynamic properties of a fluid undergoing an isentropic (constant entropy) process. These relations are particularly useful in analyzing the behavior of fluids in nozzles and diffusers, where energy conversion occurs without any heat transfer or irreversibilities. Understanding these relationships helps in predicting changes in pressure, temperature, and velocity of the fluid as it passes through these devices.
Jet engines: Jet engines are a type of combustion engine that propels an aircraft by expelling jet streams of hot gases. They operate on the principle of Newton's third law, where the action of expelling air backwards creates an equal and opposite reaction that moves the aircraft forward. The efficiency and power of jet engines are crucial for high-speed flight and are closely linked to the analysis of nozzles and diffusers, which play vital roles in controlling the flow and pressure of gases within the engine.
Momentum equation: The momentum equation is a fundamental principle in fluid mechanics that expresses the conservation of momentum for a fluid flow system. It accounts for the changes in momentum due to forces acting on the fluid, making it crucial for analyzing how fluids behave in various devices, including nozzles and diffusers. This equation relates the mass flow rate and velocity of the fluid to pressure changes and external forces, highlighting its importance in understanding energy transfer and fluid dynamics.
Nozzle efficiency: Nozzle efficiency is a measure of how effectively a nozzle converts the energy from a fluid's pressure into kinetic energy, resulting in an increase in fluid velocity. This term is crucial when analyzing nozzles because it indicates the performance of the nozzle in directing and accelerating flow, and it plays a vital role in assessing how close the actual performance comes to the ideal or theoretical performance.
Pressure Recovery Coefficient: The pressure recovery coefficient is a dimensionless number that quantifies the effectiveness of a diffuser in recovering static pressure from dynamic pressure in a fluid flow system. A higher coefficient indicates better recovery, which is essential in optimizing performance and efficiency in applications like turbines and compressors, where energy conversion occurs.
Shock wave: A shock wave is a type of disturbance that moves faster than the speed of sound in a given medium, creating a sharp change in pressure, temperature, and density. It is typically produced by supersonic objects, such as aircraft flying at high speeds or explosions, resulting in a sudden and dramatic increase in pressure that can affect the surrounding environment. Understanding shock waves is crucial for analyzing compressible flow behavior in nozzles and diffusers.
Sonic flow: Sonic flow refers to the condition in a fluid dynamics system where the flow velocity reaches the speed of sound in that medium. This phenomenon is critical in analyzing nozzles and diffusers, as it determines how the fluid behaves when it accelerates or decelerates through these devices, influencing efficiency and performance.
Specific Impulse: Specific impulse is a measure of the efficiency of rocket and jet engines, defined as the thrust produced per unit weight flow of propellant. It indicates how effectively a propulsion system converts fuel into thrust and is a critical parameter in evaluating engine performance. Higher specific impulse values suggest a more efficient engine, allowing for greater thrust while consuming less propellant over time.
Subsonic flow: Subsonic flow refers to the movement of a fluid, typically air, at speeds less than the speed of sound in that medium. This type of flow is characterized by low velocities where compressibility effects are minimal, allowing for simpler analyses and predictions of fluid behavior. Subsonic flow is essential in understanding how nozzles and diffusers operate efficiently, as it dictates the pressure, temperature, and density relationships within these devices.
Supersonic flow: Supersonic flow occurs when a fluid's velocity exceeds the speed of sound in that medium. This type of flow is crucial for understanding how nozzles and diffusers operate, as it influences pressure, temperature, and density changes within the fluid. In supersonic conditions, shock waves are generated, and the behavior of the fluid becomes highly non-linear and complex, which is essential for designing efficient aerodynamic systems.
Throat area: The throat area is the narrowest section of a nozzle or diffuser, where the flow of fluid accelerates or decelerates due to changes in cross-sectional area. This region is critical in determining the performance of nozzles and diffusers, as it significantly influences the flow velocity and pressure characteristics within the device.
Thrust: Thrust is the force that propels an object forward, generated by engines or propulsion systems through the expulsion of mass. This force is crucial in understanding the performance of various devices, such as rockets and jet engines, where the conversion of energy into kinetic energy produces motion. In fluid dynamics, thrust is also influenced by factors such as pressure and velocity changes in nozzles and diffusers.
Thrust Coefficient: The thrust coefficient is a dimensionless number that quantifies the effectiveness of a propulsion system, particularly in nozzles and diffusers, by relating the thrust produced to the dynamic pressure of the flow. It helps in understanding how efficiently a nozzle converts thermal energy into kinetic energy, which is crucial for determining the performance of various jet propulsion devices. The thrust coefficient provides insights into the relationship between mass flow rate, exit velocity, and specific impulse of propulsion systems.
Total Pressure Loss Coefficient: The total pressure loss coefficient is a dimensionless number that quantifies the loss of total pressure in a fluid flow system, particularly in nozzles and diffusers. It reflects how efficiently a device converts kinetic energy into pressure and indicates the extent of energy dissipation due to friction and turbulence as the fluid flows through the system. Understanding this coefficient is essential for analyzing the performance of nozzles and diffusers, which are critical components in many engineering applications involving fluid dynamics.
Turbomachinery: Turbomachinery refers to devices that transfer energy between a fluid and a rotating element, often using blades or rotors to create work. This technology is essential in various applications, such as engines, compressors, and pumps, where it plays a critical role in converting mechanical energy into fluid flow or vice versa. Understanding turbomachinery is crucial for analyzing the performance of nozzles and diffusers, as these components influence the efficiency and effectiveness of energy transfer in fluid systems.
