1.1 First Law of Thermodynamics and Energy Balance
6 min read•july 30, 2024
The is a fundamental principle in . It states that energy can't be created or destroyed, only transformed. This law helps us understand how energy moves and changes in various systems, from engines to refrigerators.
Applying the First Law involves calculating , heat, and energy interactions in thermodynamic processes. By analyzing these energy transfers, we can determine system efficiency and performance. This knowledge is crucial for optimizing energy use in real-world applications.
Thermodynamics of Systems
First Law of Thermodynamics
Top images from around the web for First Law of Thermodynamics
The First Law of Thermodynamics and Some Simple Processes | Physics View original
Is this image relevant?
The First Law of Thermodynamics | Boundless Physics View original
Is this image relevant?
5.13 The First Law of Thermodynamics – Douglas College Physics 1207 View original
Is this image relevant?
The First Law of Thermodynamics and Some Simple Processes | Physics View original
Is this image relevant?
The First Law of Thermodynamics | Boundless Physics View original
Is this image relevant?
1 of 3
Top images from around the web for First Law of Thermodynamics
The First Law of Thermodynamics and Some Simple Processes | Physics View original
Is this image relevant?
The First Law of Thermodynamics | Boundless Physics View original
Is this image relevant?
5.13 The First Law of Thermodynamics – Douglas College Physics 1207 View original
Is this image relevant?
The First Law of Thermodynamics and Some Simple Processes | Physics View original
Is this image relevant?
The First Law of Thermodynamics | Boundless Physics View original
Is this image relevant?
1 of 3
- The first law of thermodynamics is a statement of the conservation of energy principle
- Energy cannot be created or destroyed, only transformed from one form to another
- For a , the change in (ΔU) equals the sum of the heat (Q) added to the system and the work (W) done by the system: ΔU = Q + W
- For an , the change in energy (ΔE) equals the sum of the heat (Q) added to the system, the work (W) done by the system, and the net energy transfer due to mass flow across the system boundaries (ΣmΔh): ΔE = Q + W + ΣmΔh
Applying the First Law to Thermodynamic Processes
- The first law can be applied to various thermodynamic processes to determine the changes in system properties and energy interactions
- Isothermal processes occur at constant temperature
- Isobaric processes occur at constant pressure
- Isochoric processes occur at constant volume
- Adiabatic processes occur without between the system and surroundings
- The first law can be used to analyze the performance of thermodynamic devices by evaluating the energy balance and efficiency
- Heat engines convert thermal energy into mechanical work (internal combustion engines, steam turbines)
- Refrigerators and heat pumps transfer thermal energy from a low-temperature reservoir to a high-temperature reservoir (air conditioners, refrigerators)
Work, Heat, and Energy Interactions
Calculating Work and Heat
- Work (W) is the energy transfer associated with a force acting through a distance

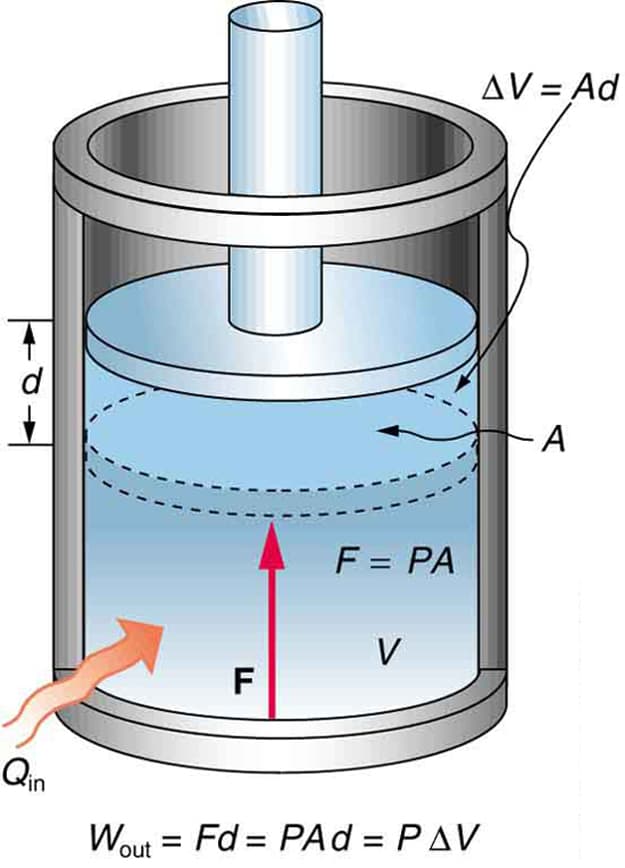

- For a quasi-static process, work can be calculated as the product of pressure (P) and change in volume (ΔV): W = -PΔV
- Negative sign indicates work done by the system on the surroundings
- Heat (Q) is the energy transfer due to a temperature difference between a system and its surroundings
- Heat can be calculated using the capacity (c) and the change in temperature (ΔT): Q = mcΔT
- Specific heat capacity is the amount of heat required to raise the temperature of a unit mass of a substance by one degree (water, air)
Internal Energy, Enthalpy, and Ideal Gas Behavior
- The change in internal energy (ΔU) can be determined using the first law of thermodynamics, considering the work and heat interactions in a process: ΔU = Q + W
- For an ideal gas, the change in internal energy depends only on the change in temperature and can be calculated using the specific heat at constant volume (cv): ΔU = ncvΔT
- Ideal gases follow the ideal gas law: PV = nRT (air at room temperature and pressure)
- The change in (ΔH) is a measure of the total heat content of a system and can be calculated using the specific heat at constant pressure (cp): ΔH = ncpΔT
- Enthalpy is useful for analyzing processes at constant pressure (isobaric processes)
Graphical Representations of Thermodynamic Processes
- The work, heat, and energy interactions can be represented graphically on pressure-volume (P-V) and temperature-entropy (T-s) diagrams to visualize the thermodynamic processes
- P-V diagrams show the relationship between pressure and volume during a process (isothermal, isobaric, isochoric, adiabatic)
- T-s diagrams show the relationship between temperature and entropy during a process (, )
- Graphical representations help in understanding the direction and magnitude of energy transfers and the net work done during a thermodynamic cycle
Energy Balance Calculations
Applying Energy Balance to Thermodynamic Systems
- Energy balance calculations involve applying the first law of thermodynamics to determine the net change in energy for a system, considering all energy interactions (work, heat, and mass flow)
- For a closed system undergoing a cyclic process, the net change in internal energy is zero (ΔU = 0), and the net work done by the system equals the net heat added to the system: Wnet = Qnet
- Cyclic processes return the system to its initial state (Carnot cycle, Rankine cycle)
- For an open system at steady state, the net change in energy is zero (ΔE = 0), and the energy balance equation simplifies to: 0 = Q + W + Σmh
- Steady-state systems have constant properties over time (power plants, refrigeration systems)
Energy Balance in Thermodynamic Devices
- Energy balance calculations can be applied to various thermodynamic devices to determine the energy transfer and efficiency of these components
- transfer thermal energy between two fluids at different temperatures (radiators, condensers)
- Turbines convert the energy of a flowing fluid into mechanical work (steam turbines, gas turbines)
- Compressors increase the pressure of a fluid by doing work on the system (air compressors, refrigerant compressors)
- Nozzles convert the pressure energy of a fluid into kinetic energy (jet engines, rocket nozzles)
Efficiency and Performance of Thermodynamic Systems
- The efficiency of a heat engine (ηth) is defined as the ratio of the net work output to the heat input: ηth = Wnet/Qin
- The efficiency of a heat engine is always less than 100% due to irreversibilities and heat losses (Carnot efficiency)
- The efficiency of a refrigerator or heat pump (COP) is defined as the ratio of the desired energy transfer to the work input
- COPref = Qc/Win for refrigerators, where Qc is the heat removed from the cold reservoir
- COPhp = Qh/Win for heat pumps, where Qh is the heat delivered to the hot reservoir
- Energy balance calculations can be used to optimize the performance of thermodynamic systems by minimizing energy losses and maximizing the desired energy transfer
- Improving insulation, reducing friction, and increasing component efficiencies can enhance overall system performance
Forms of Energy and Transformations
Types of Energy
- Kinetic energy (KE) is the energy associated with the motion of an object, given by: KE = (1/2)mv^2, where m is the mass and v is the velocity of the object
- Examples include a moving car, a flowing fluid, or a rotating turbine
- Potential energy (PE) is the energy associated with the position or configuration of an object in a force field
- Gravitational potential energy depends on the height of an object in a gravitational field (hydroelectric dams)
- Elastic potential energy is stored in deformed elastic materials (springs, rubber bands)
- Internal energy (U) is the sum of the kinetic and potential energies of the particles within a system
- Internal energy depends on the temperature, pressure, and volume of the system
- Internal energy changes during thermodynamic processes due to heat and work interactions
Chemical and Electrical Energy
- Chemical energy is the energy stored in the bonds between atoms in a molecule
- Chemical energy can be released or absorbed during chemical reactions (combustion, photosynthesis)
- Fuels such as gasoline, natural gas, and coal store chemical energy that can be converted to thermal energy through combustion
- Electrical energy is the energy associated with the movement of charged particles, such as electrons in a circuit
- Electrical energy can be converted to other forms of energy, such as mechanical energy in motors or thermal energy in resistors
- Batteries store chemical energy and convert it to electrical energy to power devices
Thermal and Mechanical Energy
- Thermal energy is the energy associated with the random motion of particles in a substance
- Thermal energy is related to the temperature of the system
- Heat is the transfer of thermal energy between systems due to a temperature difference
- Mechanical energy is the sum of the kinetic and potential energies of an object or system
- Mechanical energy can be converted to other forms of energy through work (turbines, engines)
- Mechanical energy is conserved in the absence of non-conservative forces such as friction
Energy Transformations and Conservation
- The law of conservation of energy states that energy cannot be created or destroyed, only converted from one form to another
- Energy transformations occur in various thermodynamic processes
- Heat engines convert thermal energy to mechanical energy (internal combustion engines, steam turbines)
- Refrigerators and heat pumps convert mechanical energy to thermal energy to transfer heat from a low-temperature reservoir to a high-temperature reservoir
- Electric generators convert mechanical energy to electrical energy (wind turbines, hydroelectric generators)
- Solar cells convert solar energy (electromagnetic radiation) to electrical energy (photovoltaic panels)
- Understanding energy transformations is crucial for designing and analyzing efficient and sustainable energy systems
Key Terms to Review (17)
Carnot Cycle: The Carnot cycle is an idealized thermodynamic cycle that provides a standard of performance for all heat engines, demonstrating the maximum possible efficiency that can be achieved when converting heat into work. This cycle consists of four reversible processes: two isothermal processes and two adiabatic processes, and it highlights the fundamental limits imposed by the second law of thermodynamics on real-world engines.
Carnot's Theorem: Carnot's Theorem states that no heat engine operating between two heat reservoirs can be more efficient than a Carnot engine, which is an idealized engine that operates on a reversible cycle. This theorem establishes a fundamental limit on the efficiency of all real-world engines and highlights the importance of temperature differences in energy conversion processes.
Closed System: A closed system is a physical system that does not exchange matter with its surroundings but can exchange energy in the form of heat or work. This concept allows for the analysis of energy transfers while keeping the mass constant, making it essential for understanding various thermodynamic processes and principles.
Energy conservation: Energy conservation refers to the principle of using less energy by adjusting habits and improving efficiency to reduce overall energy consumption. This concept is essential in understanding how energy can be transformed and utilized within a system while ensuring that it is not wasted, aligning closely with the First Law of Thermodynamics, which states that energy cannot be created or destroyed, only transformed. In this context, energy conservation emphasizes the importance of maintaining an energy balance within a system to achieve desired outcomes efficiently.
Enthalpy: Enthalpy is a thermodynamic property that represents the total heat content of a system, defined as the sum of its internal energy and the product of its pressure and volume. It is often used to describe energy changes in processes involving heat transfer, especially in fluid systems and thermodynamic cycles.
Enthalpy Change: Enthalpy change refers to the amount of heat absorbed or released during a chemical reaction or a physical process at constant pressure. It reflects the total energy content of a system and can indicate whether a reaction is exothermic (releases heat) or endothermic (absorbs heat). This concept is crucial for understanding energy exchanges in reactions and is linked to the principles of thermodynamics, which govern how energy is conserved and transformed.
First Law of Thermodynamics: The First Law of Thermodynamics states that energy cannot be created or destroyed, only transformed from one form to another, which establishes the principle of energy conservation. This concept is essential in understanding how energy transfers occur in various systems, including heat engines and refrigeration cycles, and it is a foundational aspect of analyzing thermal processes and cycles.
Heat exchangers: Heat exchangers are devices that facilitate the transfer of thermal energy between two or more fluids at different temperatures, without mixing them. They are essential in various engineering applications, allowing systems to efficiently manage energy and maintain desired temperatures. By utilizing principles of heat transfer, these devices help to enhance energy efficiency and minimize energy loss in processes such as heating, cooling, and refrigeration.
Heat transfer: Heat transfer is the process of thermal energy moving from one object or system to another due to a temperature difference. This fundamental concept is essential in understanding how energy flows in thermodynamic systems and is influenced by mechanisms such as conduction, convection, and radiation. It plays a critical role in determining the efficiency of processes and devices, especially when evaluating their reversibility and energy balance.
Internal energy: Internal energy is the total energy contained within a system, which includes the kinetic and potential energy of its molecules. It plays a crucial role in understanding how energy transfers affect a system's temperature and state, influencing phase changes and thermodynamic processes. Changes in internal energy are key to applying the first law of thermodynamics, which asserts that energy cannot be created or destroyed but can change forms.
Open System: An open system is a thermodynamic system that can exchange both energy and matter with its surroundings. This exchange allows for continuous flow processes, making open systems essential in various applications, such as engines, refrigeration, and biological systems. Understanding how energy and mass are transported into and out of an open system is crucial for analyzing performance, efficiency, and the overall behavior of thermodynamic processes.
Q - w = δu: The equation $$q - w = \, \delta u$$ represents the First Law of Thermodynamics, which states that the change in internal energy (δu) of a system is equal to the heat added to the system (q) minus the work done by the system (w). This relationship illustrates how energy is conserved in thermodynamic processes and is fundamental in understanding energy transfer, system interactions, and energy balance.
Rankine Cycle: The Rankine cycle is a thermodynamic cycle that converts heat into work, typically using water as the working fluid. This cycle operates in four main processes: isothermal expansion, adiabatic expansion, isothermal compression, and adiabatic compression, making it fundamental in power generation systems and steam engines.
Refrigeration cycles: Refrigeration cycles are thermodynamic processes that involve the transfer of heat from a low-temperature reservoir to a high-temperature reservoir, effectively removing heat from a designated area to achieve cooling. These cycles utilize the principles of the first law of thermodynamics, which states that energy cannot be created or destroyed, but can change forms. The efficiency of these cycles is often evaluated using the coefficient of performance (COP), which measures how effectively energy is used for cooling.
Specific Heat: Specific heat is the amount of heat required to raise the temperature of a unit mass of a substance by one degree Celsius. This property is crucial in understanding how different materials absorb and store energy during processes like heating and cooling. It plays a vital role in analyzing energy balances and efficiency in various thermodynamic cycles, particularly when examining fuel combustion and heat transfer in engines.
Work: Work, in thermodynamics, refers to the energy transfer that occurs when a force is applied to an object, causing it to move. It is a crucial concept that helps to understand how energy is transformed and conserved within a system, highlighting the interactions between systems and their surroundings. Work can be mechanical, electrical, or even associated with expansion and compression processes in a thermodynamic context, making it essential for analyzing energy balance and efficiency.
Zeroth Law: The Zeroth Law of Thermodynamics states that if two systems are each in thermal equilibrium with a third system, then they are in thermal equilibrium with each other. This fundamental principle lays the groundwork for the definition of temperature and establishes a basis for temperature measurement, allowing us to compare thermal states of different systems reliably.
