Gas turbines are evolving rapidly, with new tech boosting efficiency and cutting emissions. Multi-stage compressors, advanced cooling, and optimized combustion chambers are key improvements. High-tech materials like ceramic matrix composites and 3D printing are pushing the envelope.

Integrating gas turbines with renewables is a hot trend. Solar thermal systems can preheat air, while biomass fuels offer a greener alternative. These advancements are reshaping power generation, aviation, and marine propulsion, making energy production cleaner and more efficient.

Gas turbine advancements

Latest developments in gas turbine technology

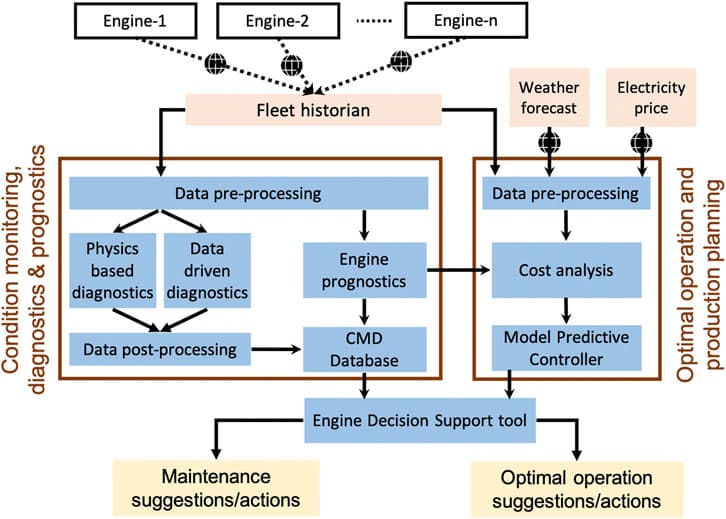

Top images from around the web for Latest developments in gas turbine technology
Top images from around the web for Latest developments in gas turbine technology
  • Gas turbine technology has advanced significantly in recent years, with improvements in efficiency, power output, and emissions reduction
  • Advanced gas turbine designs incorporate features such as:
    • Multi-stage compressors compress air more efficiently, increasing pressure ratio and overall efficiency
    • Advanced cooling systems protect components from high temperatures, enabling higher turbine inlet temperatures and improved performance
    • Optimized combustion chambers promote complete fuel combustion and reduce emissions
  • The development of advanced materials has enabled gas turbines to operate at higher temperatures, improving efficiency and power output
    • Ceramic matrix composites (CMCs) offer high-temperature stability, low density, and thermal shock resistance
    • Single crystal superalloys eliminate grain boundaries, enhancing creep resistance and thermal fatigue life
  • Additive manufacturing techniques, such as 3D printing, are being applied to gas turbine component production, allowing for more complex geometries and improved cooling effectiveness

Integration of gas turbines with renewable energy sources

  • The integration of gas turbines with renewable energy sources is being explored to reduce the carbon footprint of power generation
  • Gas turbines can be combined with solar thermal power systems
    • Solar energy is used to preheat the compressed air before it enters the combustion chamber, reducing fuel consumption
    • Concentrated solar power (CSP) plants can utilize gas turbines for backup power generation during periods of low solar irradiance
  • Biomass-fueled gas turbines are being developed to utilize renewable fuel sources
    • Biomass, such as wood chips or agricultural waste, can be gasified and used as fuel in gas turbines
    • Co-firing of biomass with natural gas can reduce the overall carbon footprint of power generation
  • Advancements in gas turbine technology have implications for power generation, aviation, and marine propulsion, enabling more efficient and environmentally friendly energy production and transportation

Improving gas turbine efficiency

Strategies for increasing turbine inlet temperature (TIT)

  • Increasing the turbine inlet temperature (TIT) is a key strategy for improving gas turbine efficiency, as higher temperatures enable greater work extraction from the expanding gases
  • Advanced cooling techniques are employed to protect turbine components from the high-temperature environment and allow for higher TITs
    • Film cooling involves the injection of cool air through small holes in the component surface to create a protective layer of cool air
    • Transpiration cooling uses a porous material to allow coolant to seep through the component surface, providing a more uniform cooling effect
    • Internal cooling passages, such as serpentine channels and pin fins, are used to extract heat from the component interior
  • Thermal barrier coatings (TBCs) are applied to turbine components to reduce heat transfer and protect the underlying metal from the high-temperature environment
    • TBCs typically consist of a ceramic top coat, such as yttria-stabilized zirconia (YSZ), and a metallic bond coat to improve adhesion and oxidation resistance

Emission reduction technologies

  • Lean premixed combustion systems are used to reduce NOx emissions by operating at lower flame temperatures and ensuring thorough mixing of fuel and air prior to combustion
    • Lean combustion refers to the use of excess air in the combustion process, which lowers the flame temperature and reduces NOx formation
    • Premixing of fuel and air ensures a homogeneous mixture, avoiding localized fuel-rich zones that can lead to high NOx emissions
  • Selective catalytic reduction (SCR) systems can be employed to further reduce NOx emissions by converting them into nitrogen and water using a catalyst and ammonia injection
    • SCR systems typically use a honeycomb-structured catalyst, such as titanium dioxide or vanadium pentoxide, to promote the reduction reactions
    • Ammonia is injected into the exhaust gas stream upstream of the catalyst, reacting with NOx to form nitrogen and water
  • Dry low emission (DLE) combustion systems are designed to minimize CO and unburned hydrocarbon emissions by promoting complete combustion and avoiding fuel-rich zones
    • DLE systems employ staged combustion, where the primary combustion zone operates under lean conditions, followed by a secondary combustion zone to ensure complete burnout
    • Advanced fuel injection systems, such as multi-point fuel injection or air-blast atomizers, are used to achieve fine fuel atomization and uniform fuel-air mixing
  • Combined heat and power (CHP) systems can improve overall efficiency by utilizing the waste heat from gas turbines for heating or industrial processes
    • CHP systems capture the high-temperature exhaust gases from the gas turbine and use them to generate steam or hot water for district heating, industrial processes, or additional power generation
    • By utilizing the waste heat, CHP systems can achieve overall thermal efficiencies of up to 80-90%, significantly higher than standalone gas turbine power plants

Advanced materials in gas turbines

High-temperature alloys and composites

  • Nickel-based superalloys are widely used in gas turbine components due to their excellent high-temperature strength and creep resistance
    • Superalloys, such as Inconel or Hastelloy, maintain their mechanical properties at elevated temperatures, enabling them to withstand the harsh operating conditions in gas turbines
    • Precipitation-hardened superalloys contain fine precipitates, such as gamma prime (γ') particles, which provide additional strength and creep resistance
  • Single crystal superalloys, which eliminate grain boundaries, are used in turbine blades to enhance creep resistance and thermal fatigue life
    • Grain boundaries are weak points in polycrystalline materials, prone to creep deformation and crack initiation at high temperatures
    • Single crystal superalloys are manufactured using directional solidification techniques, resulting in a continuous crystal structure without grain boundaries
  • Ceramic matrix composites (CMCs) are being developed for use in high-temperature components, such as combustion liners and turbine blades, due to their low density, high-temperature stability, and thermal shock resistance
    • CMCs consist of a ceramic matrix, such as silicon carbide (SiC) or alumina (Al2O3), reinforced with ceramic fibers, such as SiC or carbon fibers
    • The ceramic matrix provides high-temperature stability and oxidation resistance, while the fibers impart fracture toughness and thermal shock resistance
    • CMCs can operate at temperatures several hundred degrees higher than conventional superalloys, enabling higher turbine inlet temperatures and improved efficiency

Thermal barrier coatings (TBCs) and cooling techniques

  • Thermal barrier coatings (TBCs) are applied to turbine components to reduce heat transfer and protect the underlying metal from the high-temperature environment
    • TBCs typically consist of a ceramic top coat, such as yttria-stabilized zirconia (YSZ), which has low thermal conductivity and high-temperature stability
    • A metallic bond coat, such as MCrAlY (M = Ni, Co, or Fe), is applied between the ceramic top coat and the substrate to improve adhesion and provide oxidation resistance
    • TBCs can reduce the metal surface temperature by up to 200°C, allowing for higher turbine inlet temperatures and improved efficiency
  • Advanced cooling techniques are used to maintain component temperatures within acceptable limits
    • Film cooling involves the injection of cool air through small holes in the component surface to create a protective layer of cool air
      • The coolant air is typically bled from the compressor and directed through internal passages in the turbine blades or vanes before being ejected through the film cooling holes
      • The coolant film reduces the heat transfer from the hot gas stream to the component surface, lowering the metal temperature
    • Transpiration cooling uses a porous material to allow coolant to seep through the component surface, providing a more uniform cooling effect
      • The porous material, such as a sintered metal or ceramic, allows the coolant to permeate through the component wall, creating a continuous layer of cool air on the surface
      • Transpiration cooling provides a more efficient cooling mechanism compared to film cooling, as it eliminates the need for discrete cooling holes and reduces coolant flow requirements
    • Internal cooling passages, such as serpentine channels and pin fins, are used to extract heat from the component interior
      • Serpentine channels are tortuous passages that maximize the surface area for heat transfer while promoting turbulent flow for enhanced cooling effectiveness
      • Pin fins are small cylindrical protrusions that extend into the cooling passages, increasing the surface area for heat transfer and promoting mixing of the coolant flow

Combined cycle power plants

Integration of gas turbines with steam turbines

  • Combined cycle power plants (CCPPs) integrate gas turbines with steam turbines to improve overall power plant efficiency
  • In a CCPP, the hot exhaust gases from the gas turbine are used to generate steam in a heat recovery steam generator (HRSG), which then drives a steam turbine for additional power generation
    • The HRSG consists of a series of heat exchangers that extract heat from the exhaust gases to produce high-pressure, high-temperature steam
    • The steam is then expanded in a steam turbine, which drives a generator to produce additional electricity
    • The steam turbine exhaust is condensed and returned to the HRSG as feedwater, completing the steam cycle
  • The thermodynamic advantage of CCPPs lies in their ability to utilize the high-temperature exhaust gases from the gas turbine, which would otherwise be wasted in a simple cycle configuration
    • In a simple cycle gas turbine, the exhaust gases are typically discharged to the atmosphere at temperatures around 500-600°C, representing a significant loss of thermal energy
    • By recovering this waste heat in the HRSG, CCPPs can generate additional power from the same fuel input, improving overall plant efficiency

Thermodynamic advantages and efficiency improvements

  • By combining the Brayton cycle (gas turbine) and the Rankine cycle (steam turbine), CCPPs can achieve thermal efficiencies of over 60%, significantly higher than either cycle alone
    • The Brayton cycle, which operates at higher temperatures, provides a high-quality heat source for the Rankine cycle, enabling more efficient steam generation
    • The Rankine cycle, which operates at lower temperatures, can utilize the low-grade heat rejected from the Brayton cycle, maximizing the overall heat recovery and power generation
  • The higher efficiency of CCPPs results in reduced fuel consumption and lower greenhouse gas emissions per unit of electricity generated compared to single-cycle power plants
    • The improved fuel utilization in CCPPs leads to a reduction in CO2 emissions, as less fuel is burned to generate the same amount of electricity
    • The lower fuel consumption also results in reduced emissions of other pollutants, such as NOx and SO2, as well as lower operating costs for the power plant
  • The flexibility of CCPPs allows them to respond quickly to changes in power demand, making them suitable for load-following and peaking applications
    • The gas turbine can be rapidly started and ramped up to meet sudden increases in power demand, while the steam turbine provides a stable base load
    • The ability to efficiently operate at partial loads enables CCPPs to adapt to the variability of renewable energy sources, such as wind and solar, by providing backup power when needed
  • Advanced CCPP designs, such as those incorporating reheat and regeneration, can further enhance efficiency and reduce emissions
    • Reheat involves the addition of a second combustion stage in the gas turbine, where the partially expanded gases are reheated before being expanded in the low-pressure turbine section
      • Reheat increases the average temperature of heat addition, improving the thermodynamic efficiency of the cycle
      • The higher exhaust gas temperature from the reheat stage also enhances the steam generation in the HRSG, increasing the overall power output
    • Regeneration involves the use of a heat exchanger to preheat the compressed air entering the combustion chamber using the hot exhaust gases from the gas turbine
      • By recovering the waste heat from the exhaust gases, regeneration reduces the fuel consumption and increases the cycle efficiency
      • Regenerative CCPPs can achieve thermal efficiencies approaching 65%, further reducing fuel consumption and emissions compared to non-regenerative designs

Key Terms to Review (19)

Aerodynamics: Aerodynamics is the study of the behavior of air as it interacts with solid objects, particularly when those objects are in motion. This field examines how forces such as lift, drag, and thrust influence the performance and efficiency of vehicles like aircraft and gas turbines. Understanding aerodynamics is essential for optimizing designs in advanced technologies that require efficient fluid flow management.
Biofuels: Biofuels are renewable energy sources derived from biological materials, such as plants and organic waste, that can be used as alternatives to fossil fuels. They can be produced through various processes, including fermentation and transesterification, making them relevant for combustion analysis, improving gas power cycles, and advancing turbine technologies.
Blade cooling: Blade cooling refers to the process of managing the temperature of turbine blades in gas turbines to prevent them from overheating and failing. This technique is essential for improving the efficiency and performance of advanced gas turbine technologies, as it allows for higher operating temperatures that enhance overall efficiency while ensuring the blades remain structurally sound during operation.
Carbon capture: Carbon capture is a technology designed to capture carbon dioxide (CO2) emissions produced from the use of fossil fuels in electricity generation and industrial processes, preventing the gas from entering the atmosphere. This technology is crucial for reducing greenhouse gas emissions and combating climate change, as it allows for the continued use of fossil fuels while minimizing their environmental impact. It can be applied in various systems, particularly in energy generation and advanced turbine technologies.
Ceramic matrix composites: Ceramic matrix composites are materials made by combining ceramic fibers with a ceramic matrix to enhance their mechanical properties, such as strength and toughness. This combination allows for improved performance in high-temperature environments, making them ideal for applications like gas turbines, where thermal stability and resistance to oxidation are critical.
Combined cycle power plants: Combined cycle power plants are power generation systems that utilize both gas and steam turbines to maximize efficiency by recovering waste heat from the gas turbine to generate steam for the steam turbine. This dual cycle approach significantly improves the overall thermal efficiency of electricity generation, typically achieving efficiencies greater than 60%. By integrating two types of turbines, these plants exemplify advancements in energy conversion technologies.
Combustor: A combustor is a component in gas turbine systems where fuel is burned with compressed air to produce high-temperature, high-pressure combustion gases. This process is crucial for converting chemical energy from the fuel into thermal energy, which drives the turbine. The efficiency and emissions of a gas turbine depend significantly on the design and operation of the combustor.
Compressor: A compressor is a mechanical device that increases the pressure of a gas by reducing its volume, playing a crucial role in various thermodynamic cycles. It facilitates the movement and transformation of refrigerants in refrigeration and air-conditioning systems, as well as in gas turbine systems and heat pumps, impacting efficiency and performance.
Emissions control: Emissions control refers to the measures and technologies implemented to reduce the release of pollutants and greenhouse gases into the atmosphere from various sources, particularly in energy production and transportation. It aims to minimize environmental impact and improve air quality, addressing the growing concerns over climate change and public health. Effective emissions control is essential in advancing sustainable practices and meeting regulatory standards.
High bypass ratio engines: High bypass ratio engines are a type of jet engine designed to produce thrust by accelerating a larger volume of air around the engine core compared to the amount of air passing through the core itself. This design improves fuel efficiency and reduces noise, making them ideal for commercial aviation and some military applications. With a bypass ratio typically greater than 4:1, these engines utilize a significant amount of airflow in the bypass duct, providing higher thrust with lower specific fuel consumption.
Hybrid Power Cycles: Hybrid power cycles are energy generation systems that combine two or more thermodynamic cycles to improve efficiency and performance. By integrating different technologies, such as gas turbines and steam cycles, hybrid systems can optimize energy conversion and minimize fuel consumption while increasing overall output. This approach leverages the strengths of each cycle, resulting in enhanced operational flexibility and reduced emissions.
Isentropic process: An isentropic process is a thermodynamic process that occurs at constant entropy, meaning it is both adiabatic and reversible. This type of process is important in analyzing the efficiency of various thermodynamic cycles and systems, allowing engineers to simplify complex calculations and understand ideal behavior under specific conditions.
Natural gas: Natural gas is a fossil fuel primarily composed of methane (CH₄) that forms from the remains of ancient marine organisms buried under layers of sediment and rock. It is a versatile energy source used for electricity generation, heating, and as a feedstock for various chemicals, making it an essential component in modern energy systems.
Open Cycle Gas Turbines: Open cycle gas turbines are a type of internal combustion engine that converts chemical energy from fuel into mechanical energy through a cycle that does not reuse the exhaust gases. In this system, air is drawn in, compressed, mixed with fuel, ignited, and then expelled after performing work, making it efficient for power generation and propulsion in various applications.
Second Law of Thermodynamics: The Second Law of Thermodynamics states that the total entropy of an isolated system can never decrease over time, and any reversible process must increase the entropy of the universe. This principle highlights the directionality of processes, indicating that energy transformations are inherently inefficient and that some energy is always lost as waste heat.
Specific Fuel Consumption: Specific fuel consumption (SFC) is a measure of the fuel efficiency of an engine design, typically expressed in terms of the amount of fuel consumed per unit of power produced per hour. It is a critical parameter in assessing the performance of engines, particularly gas turbines, as it provides insight into how effectively an engine converts fuel into useful work and how this efficiency can vary based on different configurations and technologies.
Superalloys: Superalloys are advanced metallic materials specifically designed to withstand extreme environments, especially high temperatures and stresses. These materials are primarily used in critical applications like gas turbines, where their ability to maintain strength and resist deformation at elevated temperatures is crucial for performance and reliability.
Thermal efficiency: Thermal efficiency is a measure of how effectively a system converts heat energy into useful work or output. It is defined as the ratio of the work output of a thermodynamic process to the heat input into that process, typically expressed as a percentage. A higher thermal efficiency indicates a more effective conversion of energy, which is crucial for optimizing performance in various engineering applications.
Turbine: A turbine is a mechanical device that converts fluid energy, typically from steam, gas, or water, into mechanical work through rotational motion. Turbines play a crucial role in various energy conversion cycles, making them essential components in power generation and propulsion systems.
