The -energy principle is a powerful tool in Engineering Mechanics - Dynamics. It connects work done on a system to changes in its energy, offering an alternative to Newton's laws for solving complex motion problems. This principle builds on energy conservation and provides a scalar approach to predicting system behavior.
By integrating concepts of work, kinetic energy, and , the work-energy principle simplifies analysis of dynamic systems. It's particularly useful for problems where only initial and final states matter, allowing engineers to solve complex scenarios without detailed motion paths.
Definition of work-energy principle
Fundamental concept in Engineering Mechanics - Dynamics linking work done on a system to changes in its energy
Provides an alternative approach to solving dynamics problems, often simplifying complex motion analyses
Builds upon principles of and Newton's laws of motion
Conservation of energy basics
Top images from around the web for Conservation of energy basics
Work energy and Power 12 – Physical sciences break 1.0 View original
Is this image relevant?

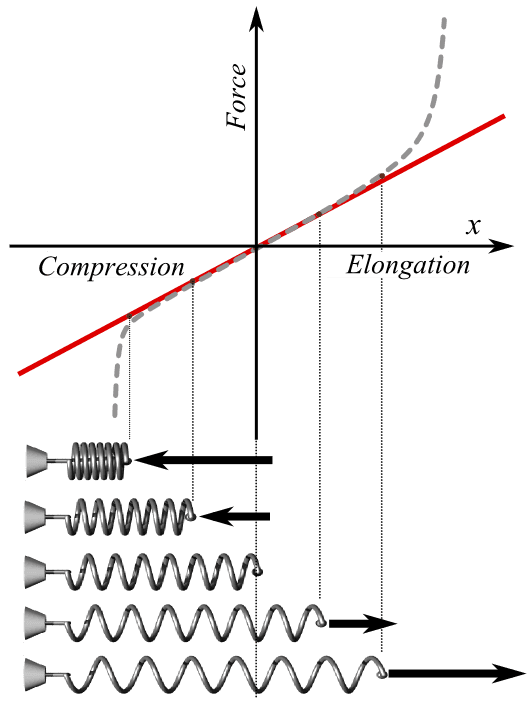

7.21: Potential Energy and Conservation of Energy - Physics LibreTexts View original
Is this image relevant?
Kinetic Energy and the Work-Energy Theorem | Physics View original
Is this image relevant?
Work energy and Power 12 – Physical sciences break 1.0 View original
Is this image relevant?
7.21: Potential Energy and Conservation of Energy - Physics LibreTexts View original
Is this image relevant?
1 of 3
Top images from around the web for Conservation of energy basics
Work energy and Power 12 – Physical sciences break 1.0 View original
Is this image relevant?
7.21: Potential Energy and Conservation of Energy - Physics LibreTexts View original
Is this image relevant?
Kinetic Energy and the Work-Energy Theorem | Physics View original
Is this image relevant?
Work energy and Power 12 – Physical sciences break 1.0 View original
Is this image relevant?
7.21: Potential Energy and Conservation of Energy - Physics LibreTexts View original
Is this image relevant?
1 of 3
States that energy cannot be created or destroyed, only converted between different forms
Applies to closed systems where no energy crosses the system boundary
Encompasses various forms of energy (kinetic, potential, thermal, etc.)
Crucial for understanding energy transformations in dynamic systems
Work-energy theorem
Relates the net work done on a particle to its change in kinetic energy
Expressed mathematically as Wnet=ΔKE=KEf−KEi
Applies to both linear and rotational motion
Serves as a foundation for more complex work-energy analyses in Engineering Mechanics
Components of work-energy principle
Integrates concepts of work, energy, and motion to analyze dynamic systems
Provides a scalar approach to solving problems, often simpler than vector-based methods
Allows engineers to predict system behavior without detailed knowledge of motion paths
Kinetic energy
Energy possessed by an object due to its motion
For linear motion, calculated using KE=21mv2
For rotational motion, given by KE=21Iω2
Depends on mass (or moment of inertia) and velocity (or angular velocity)
Plays a crucial role in analyzing collisions and impacts in dynamic systems
Potential energy
Energy stored in a system due to its configuration or position
Common forms include:
Gravitational potential energy: PEg=mgh
Elastic potential energy: PEe=21kx2
Can be converted to kinetic energy as objects move or deform
Important for analyzing systems with varying heights or elastic components
Work done by forces
Measure of energy transfer when a acts on an object over a
Calculated as the dot product of force and displacement vectors: W=F⋅d
Can be positive (energy added to system) or negative (energy removed from system)
Includes work done by both external and internal forces in a system
Application to particle systems
Extends work-energy principles to analyze more complex mechanical systems
Allows for simplified analysis of multi-body problems in Engineering Mechanics
Provides insights into energy transfer and conservation within systems
Single particle analysis
Applies work-energy principle to a single object or point mass
Useful for problems involving projectile motion, simple pendulums, or sliding objects
Considers all forces acting on the particle and their associated work
Often involves calculating changes in kinetic and potential energy between two states
Multi-particle systems
Extends analysis to systems composed of multiple interconnected particles
Requires consideration of both external and internal forces and their work
Utilizes concept of center of mass for simplified analysis in some cases
Applies to problems like multi-body collisions, connected pendulums, or gear systems
Work calculations
Essential component of work-energy analysis in Engineering Mechanics - Dynamics
Involves determining energy transfer due to forces acting on objects
Requires careful consideration of force directions and displacement paths
Work by constant forces
Simplest case where force magnitude and direction remain unchanged
Calculated using W=Fdcosθ, where θ is angle between force and displacement
Applies to problems involving gravity, constant friction, or idealized spring forces
Often used as a starting point for more complex work calculations
Work by variable forces
Involves forces that change in magnitude or direction along the path of motion
Requires integration to calculate total work: W=∫x1x2F(x)dx
Examples include realistic spring forces, air resistance, or tension in a variable-length cable
May necessitate numerical integration techniques for complex force functions
Work in different coordinate systems
Adapts work calculations to various coordinate systems based on problem geometry
Common systems include:
Cartesian coordinates: W=∫(Fxdx+Fydy+Fzdz)
Polar coordinates: W=∫(Frdr+Fθrdθ)
Choosing appropriate coordinates can simplify work calculations for certain force fields
Important for analyzing motion along curved paths or in three-dimensional space
Energy calculations
Fundamental to applying the work-energy principle in dynamic systems
Involves quantifying various forms of energy present in a system
Enables analysis of energy transformations and conservation in mechanical problems
Kinetic energy formulas
Translational kinetic energy: KEt=21mv2
Rotational kinetic energy: KEr=21Iω2
For combined translation and rotation: KEtotal=21mv2+21Iω2
Applies to rigid bodies, particles, and systems of particles in motion
Elastic potential energy: PEe=21kx2 (for linear springs)
Electric potential energy: PEe=kq1q2/r (for point charges)
Magnetic potential energy: PEm=−m⋅B (for magnetic dipoles in a field)
Total mechanical energy
Sum of kinetic and potential energies in a system: Etotal=KE+PE
Remains constant in conservative systems (no )
Used to analyze energy transformations between kinetic and potential forms
Crucial for solving problems involving oscillations, pendulums, or orbital motion
Conservation of energy
Fundamental principle stating that total energy remains constant in isolated systems
Provides a powerful tool for analyzing complex dynamic systems in Engineering Mechanics
Allows for prediction of final states without detailed knowledge of intermediate steps
Conservative vs non-conservative forces
:
Work done is path-independent (gravity, ideal springs)
Enable definition of potential energy functions
Total is conserved when only conservative forces act
:
Work done depends on the path taken (friction, air resistance)
Cannot be associated with potential energy functions
Result in energy dissipation or input to the system
Energy dissipation
Occurs due to non-conservative forces like friction or air resistance
Results in conversion of mechanical energy to other forms (heat)
Quantified by calculating work done by non-conservative forces
Important for realistic modeling of dynamic systems (damped oscillations, braking systems)
Problem-solving strategies
Systematic approaches to applying work-energy principles in Engineering Mechanics
Enable efficient solution of complex dynamics problems
Require careful consideration of system boundaries and energy transformations
Work-energy vs Newton's laws
Work-energy approach:
Scalar method, often simpler for complex motions
Useful when only initial and final states are of interest
Particularly effective for problems involving energy conservation
Newton's laws approach:
Vector-based method, provides detailed motion information
Necessary when force variations or accelerations are required
More suitable for problems with constrained motion or time-dependent forces
Step-by-step approach
Define system boundaries and identify relevant forces
Choose appropriate coordinate system for analysis
Identify initial and final states of interest
Apply or conservation of energy principle
Calculate work done by all forces (both conservative and non-conservative)
Solve for unknown quantities using energy equations
Verify results using dimensional analysis and physical intuition
Real-world applications
Demonstrates practical relevance of work-energy principles in Engineering Mechanics
Illustrates how theoretical concepts translate to solving real engineering problems
Highlights importance of understanding energy transformations in dynamic systems
Engineering examples
Vehicle braking systems: Analysis of kinetic energy dissipation through friction
Roller coasters: Design based on conservation of mechanical energy
Hydroelectric power plants: Conversion of gravitational potential energy to electrical energy
Spacecraft orbital maneuvers: Utilizing changes in potential and kinetic energy
Vibration isolation systems: Managing energy transfer in mechanical systems
Limitations and assumptions
Idealized models may neglect real-world factors (air resistance, material deformations)
Assumption of rigid bodies may not hold for highly flexible or fluid systems
Neglecting thermal effects can lead to inaccuracies in high-speed or high-friction scenarios
Point mass approximations may break down for extended bodies with significant rotations
Challenges in accurately modeling complex non-conservative forces in real systems
Advanced concepts
Extends basic work-energy principles to more sophisticated analyses in Engineering Mechanics
Introduces additional tools for analyzing energy transfer and system performance
Bridges gap between fundamental principles and advanced engineering applications
Power and efficiency
Power: Rate of energy transfer or work done, calculated as P=dW/dt=F⋅v
Average power over an interval: Pavg=W/t
Efficiency: Ratio of useful output energy to total input energy, expressed as a percentage
Applies to various engineering systems (engines, motors, pumps)
Crucial for optimizing energy utilization in mechanical and electrical systems
Impulse-momentum vs work-energy
: FΔt=mΔv
Work-energy theorem: W=ΔKE
Impulse-momentum useful for analyzing collisions and impacts
Work-energy more suitable for problems involving displacement or energy transformations
Both principles derived from Newton's second law but offer different perspectives on motion
Numerical methods
Computational approaches to solving complex work-energy problems in Engineering Mechanics
Enable analysis of systems too complicated for analytical solutions
Provide tools for simulating and optimizing dynamic systems in engineering design
Energy-based simulations
Utilize conservation of energy principles to model system behavior over time
Implement numerical integration techniques (Runge-Kutta, Verlet) to solve equations of motion
Allow for incorporation of complex force models and energy dissipation mechanisms
Useful for analyzing multi-body systems, non-linear dynamics, and long-term system behavior
Enable visualization of energy transformations and system trajectories
Computational tools
Finite element analysis (FEA) software for structural dynamics and energy dissipation
Multibody dynamics simulation packages for complex mechanical systems
MATLAB or Python for custom energy-based simulations and data analysis
Computer-aided engineering (CAE) tools for optimizing energy efficiency in design
High-performance computing resources for large-scale energy simulations in engineering research
Key Terms to Review (18)
Closed system: A closed system is a physical system that does not exchange matter with its surroundings but can exchange energy in the form of work or heat. This concept is crucial for analyzing the behavior of systems in mechanics, especially when focusing on energy transfer and conservation principles, as it allows for the application of the work-energy principle and conservation of energy without the complexities introduced by mass transfer.
Collision analysis: Collision analysis refers to the study of the interactions that occur when two or more bodies collide, focusing on the effects of forces, changes in momentum, and energy transformations during the impact. Understanding this concept is crucial for analyzing how objects behave during collisions, including elastic and inelastic impacts, as well as the resultant motion and energy distribution.
Conservation of Energy: Conservation of energy states that energy cannot be created or destroyed, only transformed from one form to another. This principle is crucial in understanding how systems behave, as it allows us to track the total energy within a closed system through different processes, revealing insights into potential energy changes, work done, and the efficiency of energy transfers.
Conservative forces: Conservative forces are forces for which the work done by the force on an object moving from one point to another is independent of the path taken. This means that when an object moves in a closed loop, the total work done by a conservative force is zero. These forces are crucial in understanding energy conservation, as they allow for the formulation of work-energy principles and enable the derivation of relationships between kinetic and potential energy.
Displacement: Displacement is the vector quantity that represents the change in position of an object from its initial point to its final point. It not only accounts for the distance traveled but also the direction of that travel, making it crucial for understanding the motion of objects in various contexts. This concept ties together aspects like work done on an object, how objects move in translation, their equations of motion, and their paths in rectilinear motion.
Energy dissipation: Energy dissipation refers to the process where energy is transformed from one form to another, often resulting in a loss of usable energy, typically as heat. This concept is crucial when analyzing systems, as it helps in understanding how energy is lost during various interactions and movements, impacting the overall efficiency of a system.
Force: Force is an interaction that causes an object to change its state of motion or shape, defined quantitatively as mass times acceleration ($$F = ma$$). It plays a critical role in determining how work is done and the power involved in various systems. Understanding force helps explain how energy is transferred and transformed, which directly relates to efficiency and the work-energy principle.
Impulse-Momentum Theorem: The impulse-momentum theorem states that the impulse applied to an object is equal to the change in its momentum. This relationship connects the forces acting on an object over a time interval to the resulting change in its velocity, making it a crucial concept in understanding how objects behave under various forces.
Isolated System: An isolated system is a physical system that does not exchange matter or energy with its surroundings, allowing it to be analyzed independently. This concept is crucial because it simplifies the study of mechanical systems by enabling the application of fundamental principles like conservation laws without considering external influences. Understanding isolated systems helps clarify how energy and momentum behave within confined boundaries, which is essential for analyzing various physical scenarios.
Kinetic Energy (ke): Kinetic energy, represented by the formula $$ke = 0.5 * m * v^2$$, is the energy an object possesses due to its motion. This term connects mass (m) and velocity (v) to quantify how much energy is associated with the motion of an object, illustrating that kinetic energy increases with the square of the velocity, making it crucial in understanding energy transfer and conservation in dynamic systems.
Mechanical Energy: Mechanical energy is the sum of potential energy and kinetic energy in a system, representing the energy associated with the motion and position of an object. This concept plays a crucial role in understanding how work is done on an object and how energy is transferred between different forms during motion or interaction with forces. It helps in analyzing various physical scenarios, from simple machines to complex dynamic systems.
Non-conservative forces: Non-conservative forces are forces that do work on an object and depend on the path taken, meaning the work done by these forces cannot be fully recovered as potential energy. They differ from conservative forces, which have work that is independent of the path and can be completely converted into potential energy. This property makes non-conservative forces crucial in analyzing systems where energy is lost to processes like friction or air resistance.
Pe = m * g * h: The equation pe = m * g * h defines gravitational potential energy, which is the energy an object possesses due to its height above a reference level. In this equation, 'pe' stands for potential energy, 'm' is the mass of the object, 'g' is the acceleration due to gravity, and 'h' represents the height. This relationship illustrates how energy is stored in an object based on its position in a gravitational field.
Potential Energy: Potential energy is the energy stored in an object due to its position or configuration, which can be converted into kinetic energy when the object moves. This concept is crucial for understanding how energy transfers occur in mechanical systems, as it relates directly to the work done on or by the system and its equilibrium state.
Thermal energy: Thermal energy is the internal energy present in a system due to the random motion of its particles. It plays a crucial role in understanding how heat transfer occurs, influencing various physical processes like work done by or on a system when thermal interactions happen. This energy can be converted into other forms, affecting the overall energy balance and efficiency in systems.
W = f * d: The equation w = f * d defines work (w) as the product of force (f) applied to an object and the distance (d) that the object moves in the direction of the force. This relationship highlights how work is a measure of energy transfer when a force causes displacement. Understanding this equation is crucial, as it connects the concepts of force, movement, and energy in various physical systems.
Work: Work is defined as the transfer of energy that occurs when a force acts on an object to cause displacement. It is a fundamental concept in physics that connects the force applied to an object with the distance over which that force is applied, ultimately influencing the object's energy. Understanding work is crucial because it forms the basis for the work-energy principle, which relates the work done on an object to its kinetic and potential energy changes.
Work-energy theorem: The work-energy theorem states that the work done by the net force acting on an object is equal to the change in its kinetic energy. This principle connects the concepts of work and energy, allowing for a deeper understanding of motion and dynamics.
