2.4 Free-body diagrams
7 min read•august 21, 2024
Free-body diagrams are essential tools in dynamics, visually representing forces and moments acting on isolated systems. They simplify complex problems, enabling engineers to apply Newton's laws and predict object behavior in various scenarios.
These diagrams include force vectors, moment arrows, and coordinate systems. They help identify , distinguish between contact and , and convert distributed loads to for easier analysis.
Definition and purpose
- Free-body diagrams serve as visual representations of all forces and moments acting on an in Engineering Mechanics – Dynamics
- These diagrams provide a crucial foundation for analyzing motion and equilibrium in
- Understanding free-body diagrams enables engineers to simplify complex problems and apply Newton's laws effectively
Importance in dynamics
Top images from around the web for Importance in dynamics
5.7 Drawing Free-Body Diagrams | University Physics Volume 1 View original
Is this image relevant?

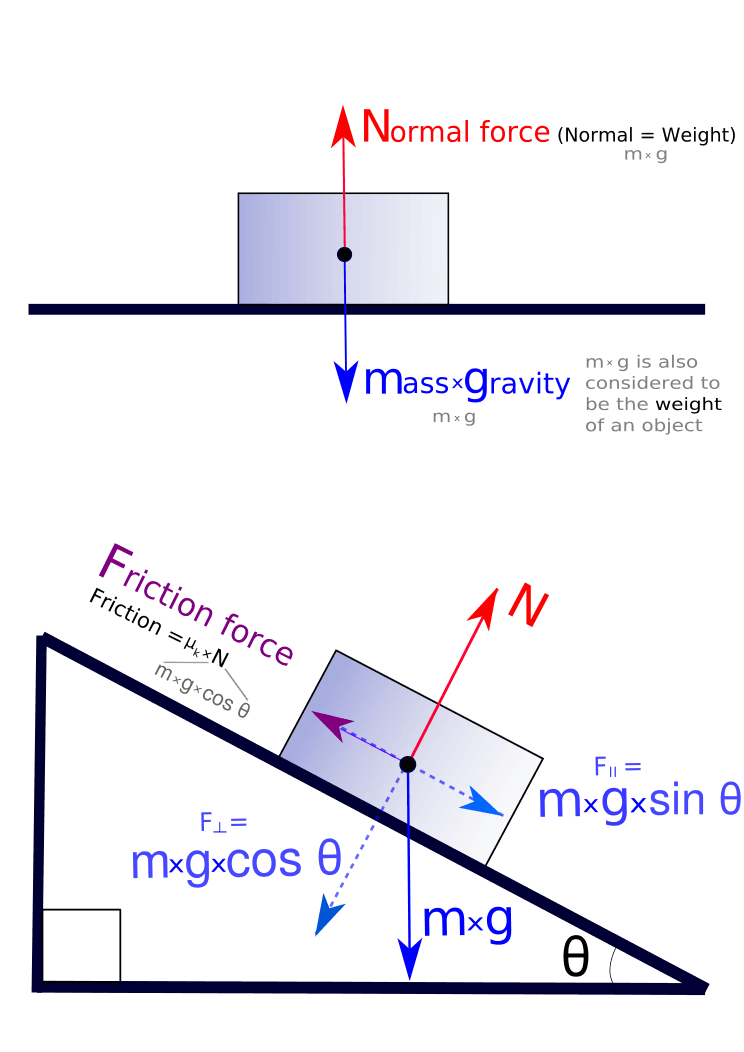

4.6: Vector Nature of Forces - Physics LibreTexts View original
Is this image relevant?
HendricksPhysics - • Mechanics & Motion in fields View original
Is this image relevant?
5.7 Drawing Free-Body Diagrams | University Physics Volume 1 View original
Is this image relevant?
4.6: Vector Nature of Forces - Physics LibreTexts View original
Is this image relevant?
1 of 3
Top images from around the web for Importance in dynamics
5.7 Drawing Free-Body Diagrams | University Physics Volume 1 View original
Is this image relevant?
4.6: Vector Nature of Forces - Physics LibreTexts View original
Is this image relevant?
HendricksPhysics - • Mechanics & Motion in fields View original
Is this image relevant?
5.7 Drawing Free-Body Diagrams | University Physics Volume 1 View original
Is this image relevant?
4.6: Vector Nature of Forces - Physics LibreTexts View original
Is this image relevant?
1 of 3
- Facilitates the application of of Motion to predict object behavior
- Allows for systematic analysis of forces and moments in complex mechanical systems
- Helps identify all relevant forces acting on a body, ensuring no critical factors are overlooked
- Serves as a bridge between physical problems and mathematical equations of motion
Components of free-body diagrams
- Isolated body or system represented as a simplified shape (point, line, or outline)
- Force vectors drawn as arrows indicating magnitude and direction
- Moment arrows showing rotational effects
- for reference
- Labels and annotations for clarity
Types of forces
External vs internal forces
- External forces originate from sources outside the system boundary
- Include gravity, applied loads, and reactions from other bodies
- occur between components within the system
- Examples include tension in a cable or compression in a beam
- Only external forces appear in free-body diagrams of the entire system
- Internal forces become relevant when analyzing subsystems or components
Contact vs field forces
- result from direct physical interaction between bodies
- , friction, and tension fall into this category
- Require physical contact to transmit force
- Field forces act at a distance without direct contact
- Gravitational and electromagnetic forces are common examples
- Can influence objects without touching them
- Both types can appear in free-body diagrams depending on the system
Distributed vs concentrated forces
- act over an area or volume of the body
- Pressure, wind loads, and fluid drag are typical distributed forces
- Often simplified as equivalent concentrated forces in analysis
- Concentrated forces act at a specific point on the body
- Represented as single arrows in free-body diagrams
- Include forces like weight concentrated at the center of mass
- Converting distributed to concentrated forces may involve integration
Drawing free-body diagrams
Isolating the system
- Define clear system boundaries to separate the body of interest
- Remove all surrounding objects and replace their effects with forces
- Consider whether to include or exclude certain components based on the problem
- Ensure all relevant external influences are accounted for as forces or moments
Identifying force vectors
- Analyze all points of contact and field effects on the isolated body
- Determine the direction of each force based on physical principles
- Estimate relative magnitudes of forces when possible
- Include both known and unknown forces, using variables for unknowns
- Consider friction forces at sliding contacts
Coordinate system selection
- Choose a coordinate system that simplifies the analysis
- Align axes with major force directions or geometric features when possible
- Use Cartesian coordinates for linear motion, polar for rotational problems
- Ensure consistency in coordinate system throughout the problem-solving process
- Consider non-inertial frames for problems involving accelerating reference frames
Common forces in dynamics
Gravitational force
- Acts downward towards the center of the Earth
- Calculated using the formula , where m is mass and g is gravitational acceleration
- Typically assumed constant near Earth's surface ()
- Applied at the center of mass for extended bodies
- Varies with altitude and location on Earth, becoming significant in aerospace applications
Normal force
- Perpendicular to the surface of contact between two objects
- Prevents objects from penetrating each other
- Magnitude varies based on other and object orientation
- Does not always equal the weight of the object (inclined planes, accelerating elevators)
- Can be zero in free-fall situations
Friction force
- Resists relative motion between surfaces in contact
- Static friction prevents motion, kinetic friction opposes ongoing motion
- Governed by the equation , where μ is the coefficient of friction
- Direction always opposes motion or impending motion
- Magnitude can vary up to the maximum value determined by the normal force
Applied forces
- Intentionally exerted forces in a system (pushes, pulls, tensions)
- Can vary in magnitude, direction, and point of application
- Often the driving forces in dynamic problems
- May be constant or time-varying (harmonic, impulsive)
- Include forces from actuators, motors, and human input in mechanical systems
Moments and couples
Moment arm identification
- defined as perpendicular distance from force line of action to axis of rotation
- Crucial for calculating the rotational effect of a force
- Can change as the configuration of a system changes
- Proper identification essential for accurate moment calculations
- Use vector cross product for 3D problems:
Couple representation
- consists of two equal and opposite parallel forces
- Produces pure rotation without translation
- Represented by a curved arrow in free-body diagrams
- Moment of a couple is force magnitude times perpendicular distance between forces
- Independent of the point of reference, making it a "free vector"
Multiple-body systems
Interaction forces
- Forces between connected bodies always occur in equal and opposite pairs (Newton's Third Law)
- Include tensions in cables, contact forces at joints, and friction between moving parts
- Crucial for analyzing systems with multiple components
- Often unknown and solved for using equations of motion
- Can be internal or external depending on system boundary definition
Constraints and connections
- Limit the degrees of freedom of bodies in a system
- Include pin joints, sliders, and various types of supports
- Generate reaction forces and moments that must be included in free-body diagrams
- Determine the equations needed to solve for unknown forces
- Can be idealized (frictionless, rigid) or realistic (with friction, deformable)
Free-body diagrams for particles
Point mass representation
- Simplify objects to dimensionless points when size is negligible compared to motion
- Applicable when rotational effects can be ignored
- All forces act through the center of mass
- Simplifies analysis by eliminating moment considerations
- Useful for problems involving projectile motion, orbital mechanics, and particle dynamics
Simplification techniques
- Neglect forces that are significantly smaller than dominant forces
- Combine multiple forces into a single resultant force when possible
- Use symmetry to reduce the number of unknown forces
- Represent distributed forces as equivalent concentrated forces
- Consider whether air resistance or other environmental factors can be ignored
Free-body diagrams for rigid bodies
Extended body considerations
- Account for the spatial distribution of mass and forces
- Include moments and couples acting on the body
- Consider the location of the center of mass for weight and other body forces
- Analyze rotational motion in addition to translational motion
- May require multiple coordinate systems for different parts of the body
Center of mass location
- Crucial point for applying the weight force in rigid body diagrams
- Serves as the reference point for rotational motion analysis
- Can be calculated for complex shapes using integration or determined experimentally
- May not coincide with the geometric center for non-uniform bodies
- Simplifies equations of motion when used as the reference point
Common mistakes
Missing forces
- Overlooking reaction forces at supports or
- Forgetting to include friction when relevant
- Neglecting field forces like gravity in certain scenarios
- Omitting internal forces when analyzing subsystems
- Failing to consider forces due to acceleration in non-inertial frames
Incorrect force directions
- Drawing normal forces not perpendicular to surfaces
- Misaligning friction forces with respect to motion or impending motion
- Reversing action-reaction pairs between interacting bodies
- Incorrectly orienting constraint forces in mechanisms
- Misrepresenting the direction of drag forces in fluid dynamics problems
Neglecting moments
- Forgetting to include couples in rigid body analysis
- Overlooking the moment caused by off-center forces
- Ignoring gyroscopic effects in rotating systems
- Failing to account for moments due to distributed loads
- Neglecting the change in moment arms during motion analysis
Applications in problem-solving
Equation derivation
- Use free-body diagrams to identify all forces and moments acting on a system
- Apply Newton's Second Law to relate forces to acceleration:
- Utilize moment equations for rotational motion:
- Develop constraint equations based on the geometry and connections in the system
- Combine equations to form a complete set for solving unknown quantities
Equilibrium analysis
- Set all accelerations to zero in the equations of motion
- Solve for unknown forces and moments in static configurations
- Useful for structural analysis and stationary mechanical systems
- Apply conditions and for equilibrium
- Analyze stability by considering small perturbations from equilibrium
Motion prediction
- Use free-body diagrams to set up differential equations of motion
- Solve equations to determine position, velocity, and acceleration as functions of time
- Analyze both linear and angular motion in complex systems
- Predict trajectories and final states of dynamic systems
- Incorporate initial conditions and boundary conditions into solutions
Advanced considerations
3D free-body diagrams
- Extend analysis to three-dimensional space
- Use 3D coordinate systems (Cartesian, cylindrical, or spherical)
- Consider forces and moments in all three principal directions
- Apply vector operations for force and moment calculations
- Analyze complex spatial mechanisms and robotic systems
Non-inertial reference frames
- Account for fictitious forces in accelerating reference frames
- Include Coriolis and centrifugal forces for rotating frames
- Modify Newton's Second Law to include acceleration of the reference frame
- Analyze motion relative to moving platforms or vehicles
- Apply to problems involving rotating machinery or Earth's rotation effects
Key Terms to Review (31)
Applied Forces: Applied forces are external forces that are applied to an object by a person or another object. These forces can cause the object to accelerate, change direction, or deform, playing a crucial role in analyzing motion and equilibrium. Understanding applied forces is essential for creating free-body diagrams, which visually represent all the forces acting on an object to help predict its behavior under various conditions.
Concentrated Forces: Concentrated forces are forces that are applied at a single point or along a very small area, resulting in a localized effect on the structure or body they act upon. This type of force is often used in analysis for simplification, allowing engineers to focus on the specific impact a force has without needing to consider its distribution over a larger area. They are crucial in creating free-body diagrams, which visually represent the forces acting on an object to aid in problem-solving and understanding of static and dynamic systems.
Constraints: Constraints are the conditions or limitations that restrict the motion and behavior of a system or body in dynamics. They play a crucial role in analyzing systems by defining how forces and moments interact and how bodies can move, ensuring that the equations of motion are properly set up. Understanding constraints helps identify the relationships between different elements in a system, leading to more accurate free-body diagrams and analyses.
Contact Forces: Contact forces are the forces that occur when two or more objects are in direct physical contact with each other. These forces arise due to interactions between surfaces and can include friction, tension, normal force, and applied force. Understanding contact forces is crucial for analyzing the motion of objects and is commonly represented in free-body diagrams to illustrate the various forces acting on a system.
Coordinate System: A coordinate system is a framework that uses numerical values to uniquely determine the position of points in space. It provides a means to describe the location and orientation of objects, which is crucial for analyzing forces, movements, and interactions in physical systems. In dynamics, selecting an appropriate coordinate system simplifies problem-solving and enhances the clarity of free-body diagrams.
Couple: A couple is a pair of equal and opposite forces whose lines of action do not coincide, creating a rotational effect on a body without causing any translational motion. In mechanics, this term is crucial as it helps in understanding how forces interact to produce moments or torques, which are essential for analyzing the rotational motion of objects. Couples are represented in free-body diagrams to illustrate their influence on an object's equilibrium and overall motion.
Distributed Forces: Distributed forces refer to forces that are spread out over an area or volume rather than being concentrated at a single point. This concept is crucial in understanding how structures and objects respond to loads, as these forces can vary in magnitude and direction across the surface they act upon. Recognizing distributed forces is essential for creating accurate free-body diagrams, which help visualize and analyze the effects of these forces on structures or systems.
Dynamic Systems: Dynamic systems refer to a set of interconnected components that evolve over time due to the influence of various forces and interactions. These systems are characterized by their changing state and behavior, which can be analyzed using principles from physics and mathematics. Understanding dynamic systems is crucial for analyzing real-world phenomena where motion and forces play a significant role, particularly in mechanical contexts.
Equilibrium Condition: The equilibrium condition refers to the state where all the forces and moments acting on a system are balanced, resulting in no net force or acceleration. In this state, an object remains at rest or moves at a constant velocity, highlighting the fundamental principles of static and dynamic equilibrium. Understanding this concept is crucial for analyzing systems and ensuring stability in engineering applications.
External Forces: External forces are influences or interactions from outside a system that can cause a change in the motion or state of that system. These forces are crucial for understanding how objects respond to their environment, as they directly affect the dynamics of systems in motion, which is foundational to analyzing movements, equilibrium, momentum, and impact behaviors in rigid bodies.
Field Forces: Field forces refer to the types of forces that act on a body without direct contact, such as gravitational, electric, and magnetic forces. These forces are represented as vectors in free-body diagrams, allowing for a clear visualization of the interactions between a body and the environment. Understanding field forces is essential for analyzing motion and equilibrium in various engineering mechanics scenarios.
Fixed Support: A fixed support is a type of structural support that prevents any translation or rotation of a structure at the point of attachment. It provides resistance against vertical and horizontal forces, as well as moments, making it crucial in maintaining the stability of structures and analyzing their behavior under loads.
Force Summation: Force summation refers to the process of combining all individual forces acting on an object to determine the net force that influences its motion. Understanding force summation is essential for analyzing how objects behave under various forces, and it forms the foundation for developing free-body diagrams that visually represent these forces. By accurately summing forces, one can predict the resultant motion of the object and solve dynamic problems effectively.
Force Vector: A force vector is a mathematical representation of a force that includes both its magnitude and direction, typically illustrated using arrows in diagrams. The direction indicates where the force is applied, while the length of the arrow represents the force's strength. This concept is crucial for analyzing the effects of forces on objects in various scenarios.
Free-body diagram: A free-body diagram is a graphical representation that shows all the external forces acting on an isolated body. It is essential for visualizing the mechanics of a system, helping to apply fundamental principles like Newton's laws to analyze motion. By simplifying complex scenarios into clearer visuals, free-body diagrams serve as a critical tool in understanding interactions, equilibrium, and motion of rigid bodies under various forces.
Free-body notation: Free-body notation is a method used to represent the forces acting on a body in a simplified manner. This approach is essential for analyzing the dynamics of the body by visually depicting all external forces and moments acting upon it, allowing for easier application of Newton's laws of motion. Understanding free-body notation is key to creating free-body diagrams that illustrate these forces in a clear and organized way.
Friction force: Friction force is the resistance that one surface or object encounters when moving over another. This force plays a crucial role in motion, as it can either oppose the movement or provide the necessary grip for motion to occur. Understanding friction is essential for analyzing forces in dynamics and effectively using free-body diagrams to illustrate how these forces interact.
Gravitational force: Gravitational force is the attractive force that exists between any two masses, drawing them together. This fundamental force is responsible for a wide range of phenomena, from keeping planets in orbit around stars to the motion of objects on Earth. It plays a key role in understanding motion, equilibrium, and orbits, particularly how bodies interact within gravitational fields.
Horizontal component: The horizontal component refers to the projection of a vector along the horizontal axis in a coordinate system. This term is essential for analyzing forces acting on an object, as it helps to break down vectors into their respective components, enabling a clearer understanding of how these forces influence motion and equilibrium in a two-dimensional context.
Interaction Forces: Interaction forces are the forces that arise between two objects when they interact with each other. These forces can be either contact forces, like friction and tension, or non-contact forces, like gravitational and electromagnetic forces. Understanding these interactions is crucial when analyzing the motion and equilibrium of objects in various scenarios.
Internal Forces: Internal forces are the forces that act within a system or structure, affecting the motion and equilibrium of its parts but not causing any motion of the system as a whole. These forces play a crucial role in determining how structures respond to external loads and how rigid bodies interact internally. Understanding internal forces is essential for analyzing the stability and strength of various engineering systems, particularly in dynamics and mechanics.
Isolated System: An isolated system is a physical system that does not exchange matter or energy with its surroundings, allowing it to be analyzed independently. This concept is crucial because it simplifies the study of mechanical systems by enabling the application of fundamental principles like conservation laws without considering external influences. Understanding isolated systems helps clarify how energy and momentum behave within confined boundaries, which is essential for analyzing various physical scenarios.
Moment analysis: Moment analysis is a method used in engineering mechanics to evaluate the rotational effect of forces acting on a body or system. It involves calculating the moments, or torques, produced by these forces about a specified point, which is crucial for understanding how objects will behave under various loading conditions. This analysis helps in determining equilibrium states and is essential for designing structures and mechanisms.
Moment Arm: The moment arm is the perpendicular distance from the line of action of a force to the axis of rotation. It plays a critical role in determining the torque produced by that force, as the torque is calculated by multiplying the magnitude of the force by its moment arm. Understanding this concept helps to analyze how forces create rotational motion and how they affect equilibrium in free-body diagrams.
Moment arrow: A moment arrow is a graphical representation used in free-body diagrams to indicate the direction and magnitude of a moment or torque acting on a body. This arrow visually conveys how a force causes rotation about a point or axis, providing an intuitive way to understand the rotational effects of forces in mechanics.
Newton's Second Law: Newton's Second Law states that the acceleration of an object is directly proportional to the net force acting on it and inversely proportional to its mass. This relationship is often expressed with the formula $$F = ma$$, where $$F$$ is the net force, $$m$$ is the mass, and $$a$$ is the acceleration. Understanding this law connects to analyzing forces, motion, and how objects respond dynamically under various conditions.
Normal Force: Normal force is the perpendicular force exerted by a surface to support the weight of an object resting on it. This force acts opposite to the direction of gravity and helps maintain an object's position on a surface, preventing it from accelerating downward. It's crucial for understanding how objects interact with surfaces, especially when considering forces in equilibrium and motion.
Roller support: A roller support is a type of structural support that allows for vertical forces to be transferred while permitting horizontal movement and rotation. This feature makes roller supports essential in engineering, especially in structures that experience thermal expansion or contraction, as it helps to accommodate such movements without causing damage to the structure.
Static Equilibrium: Static equilibrium refers to the condition of a physical system where all forces and torques acting on it are balanced, resulting in no net force or net torque, meaning the system remains at rest. In this state, the sum of all forces is zero, and the sum of all moments about any point is also zero, ensuring that the object does not move or rotate. This concept is essential for understanding various principles in mechanics, including how objects interact with forces and how they behave under different conditions.
Vector Representation: Vector representation is a way of illustrating physical quantities that have both magnitude and direction using arrows or coordinate systems. This method allows for a clear visualization of forces, velocities, and other dynamic properties, making it easier to analyze the relationships between different vectors in a system.
Vertical Component: The vertical component refers to the part of a vector that acts in the upward or downward direction, relative to a defined coordinate system. It plays a crucial role in analyzing forces, motions, and trajectories, particularly when dealing with objects that move in two dimensions, such as projectiles. Understanding this component allows for better predictions of motion and the effects of gravity on an object's movement.
