8.4 Euler's equations
9 min read•august 21, 2024
are fundamental in Engineering Mechanics – Dynamics, describing rotational motion of rigid bodies in 3D space. They're crucial for analyzing complex systems in aerospace, robotics, and mechanical engineering, providing a framework for understanding gyroscopic effects and conservation.
These equations connect angular momentum principles, conservation laws, and concepts to practical applications. By expressing rotational dynamics in body-fixed coordinates, Euler's equations simplify the analysis of rotating systems, enabling engineers to predict and control complex rotational behaviors in various fields.
Euler's equations overview
- Fundamental equations in Engineering Mechanics – Dynamics describe rotational motion of rigid bodies in three-dimensional space
- Crucial for analyzing complex rotational systems in aerospace, robotics, and mechanical engineering applications
- Provide mathematical framework for understanding gyroscopic effects and angular momentum conservation in rotating bodies
Angular momentum principles
Top images from around the web for Angular momentum principles

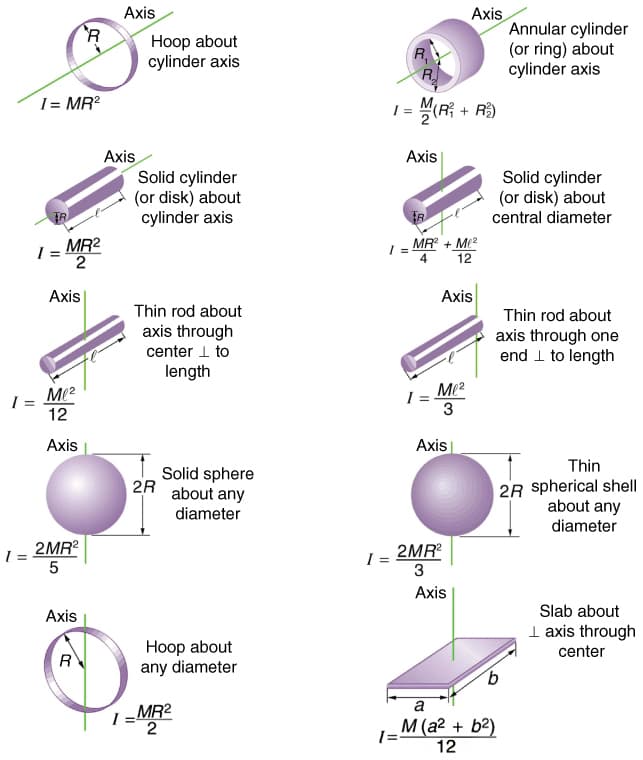

Gyroscopic Effects: Vector Aspects of Angular Momentum | Physics View original
Is this image relevant?
Angular Momentum and Its Conservation | Physics View original
Is this image relevant?
Angular momentum - Wikipedia View original
Is this image relevant?
Gyroscopic Effects: Vector Aspects of Angular Momentum | Physics View original
Is this image relevant?
Angular Momentum and Its Conservation | Physics View original
Is this image relevant?
1 of 3
Top images from around the web for Angular momentum principles
Gyroscopic Effects: Vector Aspects of Angular Momentum | Physics View original
Is this image relevant?
Angular Momentum and Its Conservation | Physics View original
Is this image relevant?
Angular momentum - Wikipedia View original
Is this image relevant?
Gyroscopic Effects: Vector Aspects of Angular Momentum | Physics View original
Is this image relevant?
Angular Momentum and Its Conservation | Physics View original
Is this image relevant?
1 of 3
- Angular momentum vector represents rotational inertia and velocity of a rigid body
- Calculated as the cross product of position vector and linear momentum
- Remains constant in the absence of external torques ()
- Plays a crucial role in understanding the behavior of rotating systems
Conservation of angular momentum
- Fundamental principle states total angular momentum of a closed system remains constant over time
- Applies to systems with no external torques acting on them
- Explains phenomena like figure skater's spin acceleration when arms are pulled in
- Utilized in spacecraft design for attitude control and stability
Moment of inertia tensor
- 3x3 matrix represents distribution of mass in a rotating rigid body
- Describes body's resistance to rotational acceleration about different axes
- Diagonal elements represent moments of inertia about principal axes
- Off-diagonal elements represent products of inertia, indicating mass distribution asymmetry
- Crucial for accurately predicting rotational behavior of complex-shaped objects
Derivation of Euler's equations
- Based on of motion applied to rotational systems
- Accounts for the non-inertial nature of rotating reference frames
- Incorporates the effects of Coriolis and centrifugal forces on rotating bodies
- Provides a set of coupled differential equations describing rotational motion
Rotating reference frame
- Coordinate system that rotates with the rigid body
- Simplifies analysis of rotational motion by expressing equations in body-fixed coordinates
- Introduces additional terms (Coriolis and centrifugal) to account for non-inertial effects
- Allows for easier representation of body's orientation and angular velocity
Inertial vs non-inertial frames
- Inertial frame remains stationary or moves with constant velocity (Newton's laws apply directly)
- Non-inertial frame accelerates or rotates relative to an inertial frame
- Rotating reference frames are non-inertial, requiring consideration of fictitious forces
- Transformation between inertial and non-inertial frames crucial for accurate analysis of rotating systems
Components of Euler's equations
- Set of three coupled differential equations describing rotational motion about three orthogonal axes
- Express the rate of change of angular momentum in terms of applied torques and current angular velocity
- Account for gyroscopic effects and coupling between different axes of rotation
- Form the basis for analyzing complex rotational dynamics in engineering applications
X-axis equation
- Describes rotational motion about the x-axis of the body-fixed coordinate system
- Incorporates moments of inertia, angular velocities, and applied torques
- Accounts for gyroscopic coupling effects from y and z-axis rotations
- Expressed as
Y-axis equation
- Represents rotational dynamics about the y-axis of the body-fixed frame
- Similar structure to x-axis equation, but with components specific to y-axis rotation
- Includes gyroscopic terms from x and z-axis angular velocities
- Formulated as
Z-axis equation
- Describes rotational behavior about the z-axis of the body-fixed coordinate system
- Completes the set of three coupled equations for 3D rotational motion
- Incorporates gyroscopic effects from x and y-axis rotations
- Written as
Principal axes of rotation
- Special set of orthogonal axes for which the products of inertia become zero
- Simplify Euler's equations by diagonalizing the moment of inertia tensor
- Reduce coupling between different axes of rotation in the equations of motion
- Often correspond to axes of symmetry in regularly shaped objects
Diagonal moment of inertia tensor
- Simplified form of the inertia tensor when expressed in principal axis coordinates
- Contains only diagonal elements, representing moments of inertia about principal axes
- Eliminates products of inertia, simplifying rotational analysis
- Reduces computational complexity in solving Euler's equations
Principal moments of inertia
- Eigenvalues of the moment of inertia tensor
- Represent the maximum and minimum moments of inertia for a given body
- Determine stability characteristics of rotation about different axes
- Used to classify rotational behavior (oblate, prolate, or asymmetric rotators)
Applications of Euler's equations
- Widely used in various fields of engineering and physics to analyze rotational dynamics
- Enable precise modeling and control of rotating systems in real-world applications
- Form the basis for advanced simulation tools in engineering design and analysis
- Critical for understanding complex rotational phenomena in natural and engineered systems
Rigid body dynamics
- Analyze motion of solid objects with fixed shape and mass distribution
- Model behavior of (flywheels, gears, robotic arms)
- Predict rotational stability and performance of rotating machinery
- Optimize design of rotating components for improved efficiency and reliability
Spacecraft attitude control
- Design and implement control systems for satellite orientation
- Model and predict spacecraft behavior during maneuvers and orbital adjustments
- Analyze stability of various spacecraft configurations in zero-gravity environments
- Optimize fuel consumption for attitude control in long-duration space missions
Gyroscopic motion
- Study behavior of gyroscopes and their applications in navigation and stabilization
- Analyze precession and nutation of rotating bodies (spinning tops, planets)
- Design inertial measurement units for aerospace and automotive applications
- Model complex rotational systems (helicopter rotors, turbine blades)
Numerical solutions
- Computational methods for solving Euler's equations when analytical solutions are not feasible
- Enable analysis of complex, non-linear rotational systems with time-varying parameters
- Provide accurate predictions of rotational behavior for real-world engineering applications
- Form the basis for advanced simulation software used in engineering design and analysis
Runge-Kutta methods
- Family of iterative algorithms for numerical integration of ordinary differential equations
- Provide higher accuracy compared to simple Euler method by evaluating function at multiple points
- Commonly used for solving Euler's equations in rotational dynamics simulations
- Include various orders of accuracy (RK4 being a popular choice for balance of accuracy and efficiency)
Euler integration vs improved methods
- Euler integration offers simplest numerical approach but can accumulate significant errors
- Improved methods (Runge-Kutta, predictor-corrector) provide better accuracy and stability
- Higher-order methods allow larger time steps while maintaining accuracy
- Trade-off between computational cost and accuracy must be considered for specific applications
Special cases and simplifications
- Particular scenarios where Euler's equations can be simplified or solved analytically
- Reduce computational complexity and provide insights into rotational behavior
- Often applicable to systems with specific symmetries or constraints
- Useful for quick estimations and understanding fundamental rotational principles
Symmetric bodies
- Objects with at least one axis of symmetry exhibit simplified rotational behavior
- Moment of inertia tensor becomes diagonal when aligned with symmetry axes
- Reduce coupling between different axes of rotation in Euler's equations
- Allow for easier analysis of rotational stability and motion (spinning tops, satellites)
Torque-free motion
- Rotational dynamics of bodies in the absence of external torques
- Angular momentum remains constant, simplifying Euler's equations
- Analytical solutions possible for certain symmetric bodies
- Applicable to spacecraft in free-fall or objects rotating in zero-gravity environments
Coupling effects
- Interactions between rotations about different axes in a rotating rigid body
- Result from off-diagonal terms in the moment of inertia tensor
- Lead to complex rotational behaviors and stability characteristics
- Critical for understanding and controlling multi-axis rotational systems
Gyroscopic coupling
- Phenomenon where rotation about one axis induces about perpendicular axis
- Caused by conservation of angular momentum in rotating systems
- Leads to precession and nutation in rotating bodies
- Utilized in gyroscopes for navigation and stabilization applications
Precession and nutation
- Precession describes slow rotation of spin axis around vertical axis
- Nutation refers to small oscillations superimposed on precession motion
- Result from gyroscopic coupling and external torques (gravity)
- Observed in various rotating systems (spinning tops, Earth's rotation, gyroscopes)
Stability analysis
- Assessment of rotational equilibrium and response to perturbations
- Crucial for designing stable rotating systems and predicting long-term behavior
- Involves examining energy distribution and angular momentum conservation
- Utilizes both linear and nonlinear analysis techniques depending on system complexity
Stable vs unstable rotations
- Stable rotations return to equilibrium state when slightly perturbed
- Unstable rotations amplify small disturbances, leading to significant deviations
- Depend on distribution of mass (moment of inertia) and axis of rotation
- Critical for designing reliable rotating machinery and spacecraft attitude control systems
Energy methods for stability
- Analyze total energy (kinetic and potential) of rotating system to assess stability
- Utilize Lyapunov functions to prove stability without solving equations of motion
- Apply principle of minimum potential energy for static stability analysis
- Provide insights into long-term behavior and stability boundaries of rotating systems
Euler angles
- Set of three angles (ψ, θ, φ) describing orientation of rigid body in 3D space
- Represent sequence of rotations about different axes to achieve final orientation
- Widely used in aerospace, robotics, and computer graphics for attitude representation
- Suffer from singularities (gimbal lock) in certain orientations
Rotation matrices
- 3x3 matrices representing rotations in three-dimensional space
- Can be composed to represent complex rotations as product of simple rotations
- Derived from Euler angles or other rotation representations
- Used in transformations between different coordinate systems in rotational dynamics
Euler angle singularities
- Configurations where two rotation axes align, causing loss of one degree of freedom
- Occur when pitch angle approaches ±90 degrees (gimbal lock)
- Lead to numerical instabilities and loss of unique solution in certain orientations
- Motivate use of alternative representations (quaternions) for certain applications
Quaternions in rotational dynamics
- Four-dimensional extension of complex numbers used to represent rotations
- Provide singularity-free representation of orientation in 3D space
- Offer computational advantages in certain rotational dynamics calculations
- Increasingly used in computer graphics, robotics, and spacecraft attitude control
Quaternion algebra basics
- Consist of scalar part and three-dimensional vector part
- Multiplication defined to preserve rotational properties
- Unit quaternions represent pure rotations in 3D space
- Allow for efficient composition of multiple rotations
Quaternions vs Euler angles
- Quaternions avoid singularities present in Euler angle representation
- Provide more compact representation (4 components vs 9 for rotation matrices)
- Offer numerical stability advantages in iterative calculations
- Require conversion to more intuitive representations for human interpretation
Practical examples
- Real-world applications demonstrating the importance of Euler's equations
- Illustrate complex rotational phenomena observed in everyday objects and engineering systems
- Provide context for theoretical concepts in rotational dynamics
- Highlight challenges and solutions in analyzing and controlling rotating systems
Spinning top behavior
- Demonstrates precession and nutation due to gravitational torque
- Illustrates stability characteristics of different rotation axes
- Shows transition between different modes of rotation as angular velocity changes
- Provides intuitive example of gyroscopic effects and angular momentum conservation
Satellite attitude dynamics
- Involves complex rotational behavior due to various environmental torques
- Requires precise control for maintaining desired orientation (Earth observation, communication)
- Demonstrates importance of moment of inertia optimization in spacecraft design
- Illustrates challenges of rotational stability in zero-gravity environments
Limitations and extensions
- Boundaries of applicability for classical Euler's equations in rotational dynamics
- Considerations for more complex systems beyond simple rigid body assumptions
- Extensions and modifications to handle real-world complexities in rotating systems
- Ongoing research areas for improving rotational dynamics modeling and analysis
Non-rigid body considerations
- Account for deformations and internal energy dissipation in rotating bodies
- Include effects of structural flexibility on rotational dynamics (spacecraft solar panels)
- Model energy transfer between rotational and vibrational modes
- Require advanced computational techniques (finite element analysis) for accurate predictions
Multiple body systems
- Analyze rotational dynamics of interconnected rigid or flexible bodies
- Account for constraints and interactions between different components
- Model complex mechanical systems (robotic manipulators, multi-body spacecraft)
- Require advanced formulations (Kane's method, multibody dynamics) beyond classical Euler's equations
Key Terms to Review (16)
Aerospace dynamics: Aerospace dynamics refers to the study of the motion and behavior of aircraft and spacecraft under the influence of various forces, including aerodynamics, propulsion, and gravitational effects. This field integrates principles from mechanics, fluid dynamics, and control theory to analyze how vehicles interact with their environments during flight. Understanding aerospace dynamics is crucial for the design and performance evaluation of aerospace vehicles.
Angular momentum: Angular momentum is a measure of the rotational motion of an object, defined as the product of its moment of inertia and its angular velocity. It plays a crucial role in understanding how objects behave when they rotate, including how they interact with forces and torques.
Centripetal force: Centripetal force is the net force that acts on an object moving in a circular path, directed toward the center of the circle around which the object is traveling. This force is essential for maintaining circular motion, as it continuously pulls the object inward, preventing it from flying off in a straight line due to inertia. Understanding centripetal force is crucial for analyzing the dynamics of various systems, including rotating bodies and celestial orbits.
Conservation of angular momentum: Conservation of angular momentum states that the total angular momentum of a closed system remains constant if no external torques act on it. This principle is crucial for understanding various phenomena in mechanics, especially in systems involving rotation and motion.
Differential Equation: A differential equation is a mathematical equation that relates a function to its derivatives, representing how a quantity changes in relation to another variable. These equations are fundamental in describing various physical phenomena, allowing for the modeling of dynamic systems by capturing rates of change and dependencies between quantities.
Equilibrium conditions: Equilibrium conditions refer to the state in which a system experiences no net change in motion or force, meaning all acting forces and moments are balanced. This concept is crucial in analyzing static systems, ensuring that the sum of forces and the sum of moments about any point are equal to zero. Understanding these conditions allows for the determination of stability and the calculation of unknown forces within a system.
Euler's equations: Euler's equations describe the motion of rigid bodies in rotational dynamics, relating the angular momentum of a system to the external torques acting on it. They form a fundamental framework for understanding how rotational motion changes over time, making them essential in analyzing systems like gyroscopes and other rotating objects.
Leonhard Euler: Leonhard Euler was an 18th-century Swiss mathematician and physicist, renowned for his groundbreaking contributions to various fields, including mechanics, mathematics, and fluid dynamics. His work laid the foundation for many principles in dynamics, such as energy conservation, angular momentum, and rotational motion, which connect deeply with concepts of kinetic and potential energy as well as the behavior of rigid bodies.
Mechanical systems: Mechanical systems refer to a collection of interconnected components that work together to perform specific tasks or functions through the principles of mechanics. These systems can involve forces, motion, energy transfer, and constraints, all contributing to their overall behavior. The understanding of mechanical systems is crucial for analyzing various motions and forces, particularly in contexts such as translation and rotational dynamics.
Moment of inertia: Moment of inertia is a measure of an object's resistance to changes in its rotational motion about an axis. It depends on both the mass of the object and how that mass is distributed relative to the axis of rotation, making it a critical factor in analyzing rotational dynamics, stability, and energy in various mechanical systems.
Newton's Second Law: Newton's Second Law states that the acceleration of an object is directly proportional to the net force acting on it and inversely proportional to its mass. This relationship is often expressed with the formula $$F = ma$$, where $$F$$ is the net force, $$m$$ is the mass, and $$a$$ is the acceleration. Understanding this law connects to analyzing forces, motion, and how objects respond dynamically under various conditions.
Planar motion: Planar motion refers to the movement of a body in a two-dimensional plane, where all points of the body move in parallel planes. This type of motion simplifies the analysis of dynamics by allowing us to focus on translational and rotational aspects within a specific geometric configuration. Understanding planar motion is crucial for various applications, especially when examining the interactions between different coordinate systems, identifying points of zero velocity, and applying equations that govern motion in a plane.
Rigid body dynamics: Rigid body dynamics is the study of the motion of solid objects that do not deform under the influence of forces. It focuses on how these bodies move through space and how forces and torques affect their motion. Understanding this concept is essential for analyzing systems in which both translational and rotational motions occur, and it forms the foundation for various principles in mechanics, including impulse-momentum and angular momentum considerations.
Sir Isaac Newton: Sir Isaac Newton was a renowned English mathematician, physicist, and astronomer, recognized as one of the most influential scientists of all time. His work laid the groundwork for classical mechanics and significantly advanced our understanding of motion and gravitational forces, which are foundational concepts in various fields such as dynamics, fluid mechanics, and rotational dynamics.
Torque: Torque is a measure of the rotational force applied to an object, causing it to rotate about an axis. It is a vector quantity that depends on the magnitude of the force, the distance from the axis of rotation (lever arm), and the angle at which the force is applied, affecting various phenomena including motion, stability, and energy transfer in systems.
Vector calculus: Vector calculus is a branch of mathematics that focuses on vector fields and the differentiation and integration of vector functions. It plays a crucial role in understanding physical phenomena, especially in mechanics, where forces and motion can be represented using vectors. By applying vector calculus, one can analyze various aspects of motion and forces, which are fundamental to the study of dynamics.
