10.2 Precession

Precession describes how a rotating body's spin axis changes orientation over time. It's a central concept in gyroscopic motion and shows up everywhere from spinning tops to spacecraft attitude control to Earth's slow axial wobble. Engineers rely on precession analysis to design stable rotating machinery, navigation systems, and orbital maneuvers.

The core idea: precession arises from the interplay between angular momentum, applied torque, and rotation. When a torque acts perpendicular to a spinning body's angular momentum, the spin axis doesn't tip over. Instead, it sweeps out a cone. This counterintuitive behavior is what makes gyroscopes work and what makes precession worth studying carefully.

Definition of precession

Precession is the gradual change in orientation of a rotating body's spin axis. Think of a tilted spinning top: gravity pulls on it, but instead of falling over, the top's axis slowly traces a circle. That circular sweep of the axis is precession.

This matters in dynamics because any system with significant angular momentum (turbines, satellites, wheels) will exhibit precessional effects when subjected to off-axis torques. Ignoring precession in design can lead to unexpected vibrations, instability, or pointing errors.

Angular momentum in precession

Angular momentum ($\mathbf{L} = I\boldsymbol{\omega}$) is the quantity that governs how a spinning body responds to torques. A few key points:

• Without external torques, the angular momentum vector stays fixed in space. The body may wobble, but $\mathbf{L}$ doesn't change direction.
• When precession occurs, the angular momentum vector traces out a cone. The axis of that cone is set by the direction of the net torque.
• Conservation of angular momentum is what drives the gyroscopic effect. A spinning body "redirects" an applied torque into precessional motion rather than tipping over.
• Higher angular momentum means slower precession for a given torque. This is why a faster-spinning gyroscope is more resistant to disturbance.

Torque in precession

Torque is what initiates and sustains precession. The fundamental relationship is:

$\boldsymbol{\tau} = \frac{d\mathbf{L}}{dt}$

This tells you that torque doesn't change the magnitude of angular momentum during steady precession; it changes its direction. Some specifics:

• The torque vector is perpendicular to the angular momentum vector, which is why the spin axis rotates rather than speeding up or slowing down.
• Gravitational torque is the most common initiator. For a spinning top tilted at angle $\theta$, the gravitational torque is $\tau = mgd\sin\theta$, where $d$ is the distance from the pivot to the center of mass.
• Larger torques produce faster precession rates, all else being equal.

Precession vs. rotation

These two motions are distinct but coexist:

• Rotation is spinning about the body's own axis (the fast spin of a gyroscope rotor).
• Precession is the slower sweeping motion of that spin axis around another direction.
• In real systems, both happen simultaneously, producing complex 3D motion.
• Precession is typically much slower than rotation. For example, a gyroscope spinning at thousands of rpm might precess at only a few degrees per second.

Types of precession

Precession takes different forms depending on whether external torques are present and how they're applied.

Torque-free precession

This occurs when no external torques act on the body. It might seem contradictory, but a freely rotating rigid body can still precess if its moments of inertia are unequal and its spin axis doesn't align with a principal axis.

• Angular momentum $\mathbf{L}$ stays fixed in space, but the body's spin axis wanders around $\mathbf{L}$.
• The tennis racket theorem (or intermediate axis theorem) is a dramatic example: rotation about the axis with the intermediate moment of inertia is unstable, causing the body to tumble unpredictably.
• Torque-free precession is observed in tumbling asteroids and in spacecraft that lose attitude control.

Torque-induced precession

This is the "classic" precession you see in gyroscopes and spinning tops under gravity.

• An external torque (usually gravitational) acts perpendicular to the spin axis.
• The spin axis sweeps around in a cone, with the precession rate given by $\Omega = \tau / (I\omega)$.
• The precession direction is perpendicular to both the torque and the angular momentum vectors, following the right-hand rule.
• Gyrocompasses and inertial navigation systems exploit this type of precession.

Forced precession

Forced precession happens when an external force continuously drives the precessional motion at a specific frequency.

• Common in systems with rotating unbalanced masses or eccentric rotors.
• The precession frequency locks to the driving force frequency.
• If the driving frequency matches the system's natural precession frequency, resonance occurs, potentially causing dangerous vibration amplitudes.
• Avoiding forced precession resonance is a major concern in turbine, engine, and rotor design.

Equations of precession

Precession rate formula

For steady torque-induced precession, the precession rate is:

$\Omega = \frac{\tau}{I\omega}$

where:

• $\Omega$ = precession angular velocity (rad/s)
• $\tau$ = applied torque (N·m)
• $I$ = moment of inertia about the spin axis (kg·m²)
• $\omega$ = spin angular velocity (rad/s)

Two relationships to remember:

• Precession rate is inversely proportional to spin speed. Spin faster, and the axis precesses more slowly.
• Precession rate is directly proportional to applied torque. More torque means faster precession.

This formula assumes steady-state precession with no nutation. It's the starting point for most gyroscope problems.

Nutation frequency equation

Nutation is the rapid "bobbing" oscillation superimposed on the slower precession. For a symmetric top (where two principal moments are equal), the nutation frequency is:

$\omega_n = \frac{I_3}{I_1}\omega$

where:

• $\omega_n$ = nutation frequency
• $I_3$ = moment of inertia about the symmetry (spin) axis
• $I_1$ = moment of inertia about a transverse axis
• $\omega$ = spin angular velocity

Note that nutation frequency increases with spin rate and depends on the ratio $I_3 / I_1$. For a body where $I_3 > I_1$ (like a disk), nutation is faster than the spin. For $I_3 < I_1$ (like a long rod), it's slower.

Euler's equations

Euler's equations describe the full rotational dynamics of a rigid body in the body-fixed (rotating) frame. They're three coupled differential equations:

$I_1\dot{\omega}_1 + (I_3 - I_2)\omega_2\omega_3 = M_1$

$I_2\dot{\omega}_2 + (I_1 - I_3)\omega_3\omega_1 = M_2$

$I_3\dot{\omega}_3 + (I_2 - I_1)\omega_1\omega_2 = M_3$

• $I_1, I_2, I_3$ are the principal moments of inertia.
• $\omega_1, \omega_2, \omega_3$ are angular velocity components about the principal axes.
• $M_1, M_2, M_3$ are the applied torque components about those axes.

The cross-coupling terms (like $(I_3 - I_2)\omega_2\omega_3$) are what produce precession and nutation. These terms vanish only when the body is axially symmetric and spinning about a principal axis. For general 3D rotation problems, you solve these equations numerically.

Precession in gyroscopes

Gyroscopes are the most direct engineering application of precession. A gyroscope is simply a spinning rotor mounted in gimbals so its spin axis can point in any direction.

Gyroscopic principles

• A spinning gyroscope resists changes to its orientation because of its angular momentum. The higher the spin rate and moment of inertia, the stronger this resistance.
• When you apply a torque perpendicular to the spin axis, the gyroscope doesn't tilt in the direction of the torque. Instead, it precesses at 90° to the torque direction.
• The angular momentum vector traces out a cone during precession. This cone is sometimes called the gyroscopic cone.

Precession of a gyroscope

Here's what happens step by step when you apply a torque to a spinning gyroscope:

1. The rotor is spinning with angular momentum $\mathbf{L} = I\boldsymbol{\omega}$.
2. A torque $\boldsymbol{\tau}$ is applied perpendicular to $\mathbf{L}$ (for example, by gravity acting on an offset center of mass).
3. The torque changes the direction of $\mathbf{L}$, causing the spin axis to sweep sideways.
4. Initially, nutation (a rapid bobbing) accompanies the precession.
5. As friction and air resistance damp out the nutation, the gyroscope settles into steady precession at rate $\Omega = \tau / (I\omega)$.

The precession direction follows the right-hand rule: curl your fingers from $\mathbf{L}$ toward $\boldsymbol{\tau}$, and your thumb points along the precession axis.

Applications of gyroscopes

• Inertial navigation systems in aircraft and spacecraft use gyroscopes to track orientation without external references.
• Gyrostabilizers reduce rolling in ships and vibration in vehicles.
• Control moment gyroscopes (CMGs) generate torques for satellite attitude control by tilting spinning rotors.
• Gyrocompasses exploit Earth's rotation to find true north, unlike magnetic compasses.
• MEMS gyroscopes in smartphones and game controllers detect rotation using microscale vibrating structures that exhibit Coriolis-based precession effects.

Precession in celestial mechanics

Precession operates on astronomical scales too, with direct consequences for timekeeping, navigation, and climate science.

Earth's precession

Earth's spin axis precesses with a period of approximately 25,772 years. This happens because:

1. Earth is not a perfect sphere. It has an equatorial bulge (the equatorial radius is about 21 km larger than the polar radius).
2. The gravitational pull of the Sun and Moon on this bulge creates a torque.
3. This torque causes Earth's axis to slowly trace a cone in space.

The result: the North Celestial Pole currently points near Polaris, but 13,000 years from now it will point near the star Vega. Engineers designing long-duration space missions or satellite constellations must account for this drift.

Precession of equinoxes

Because Earth's axis precesses, the points where the celestial equator crosses the ecliptic (the equinoxes) shift gradually westward along the ecliptic.

• This shift completes one full cycle every ~25,772 years.
• It's why the vernal equinox has moved from the constellation Aries (where it was ~2,000 years ago) into Pisces.
• The precession of equinoxes affects star catalogs, celestial coordinate systems, and the long-term accuracy of astronomical observations.

Milankovitch cycles

Earth's orbital and axial parameters vary periodically, and precession is one of three Milankovitch cycles:

• Axial precession (~26,000-year cycle): changes which hemisphere gets more direct sunlight at perihelion.
• Obliquity (~41,000-year cycle): the tilt angle varies between about 22.1° and 24.5°.
• Eccentricity (~100,000-year cycle): Earth's orbit becomes more or less elliptical.

These cycles modulate the distribution of solar radiation across Earth's surface and are strongly correlated with the timing of ice ages. Climate modelers and engineers working on long-term infrastructure planning factor these cycles into their projections.

Precession in engineering

Spinning tops

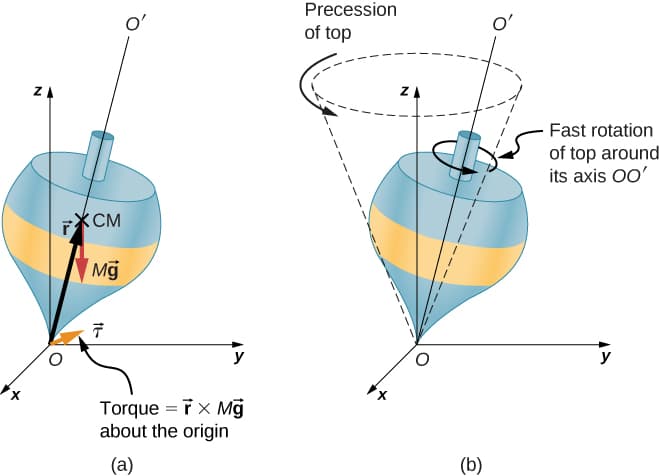

Spinning tops are the simplest demonstration of precession. A tilted spinning top precesses because gravity creates a torque about the contact point. The faster the top spins, the slower and more stable the precession. As friction slows the spin, precession speeds up and the top eventually topples. Nutation (the small "nodding" oscillation) is visible in the early moments after you release a top at an angle.

Rotors and flywheels

Any rotating component in machinery is subject to gyroscopic precession effects:

• Unbalanced rotors generate periodic forces that can drive unwanted precession and vibration.
• Turbine and generator designers must account for gyroscopic loads, especially when the rotor axis changes direction (as in a ship rolling in waves).
• Dual-spin satellites use a spinning rotor section for gyroscopic stability while the platform section remains de-spun for pointing instruments.
• Flywheel energy storage systems must be mounted to handle gyroscopic torques if the vehicle or platform changes orientation.

Spacecraft attitude control

Spacecraft use precession deliberately for orientation control:

• Reaction wheels spin up or slow down to exchange angular momentum with the spacecraft, producing small attitude changes.
• Control moment gyroscopes (CMGs) tilt a spinning rotor to generate large torques through controlled precession. CMGs are used on the International Space Station.
• Spin-stabilized satellites maintain orientation by spinning the entire body, relying on gyroscopic rigidity. Controlled precession reorients the spin axis when needed.
• Engineers must model precession effects carefully when planning orbital maneuvers, especially for spacecraft with large rotating components.

Factors affecting precession

Three parameters dominate the precession rate equation $\Omega = \tau / (I\omega)$. Understanding how each one affects precession gives you control over the system's behavior.

Moment of inertia

Moment of inertia ($I$) measures how mass is distributed relative to the spin axis. A larger $I$ means slower precession for a given torque and spin rate. Engineers exploit this by:

• Concentrating mass at the rim of gyroscope rotors to maximize $I$ without adding total mass.
• Adjusting mass distribution in flywheels to tune gyroscopic response.
• Recognizing that the three principal moments of inertia ($I_1, I_2, I_3$) determine whether torque-free precession is stable or unstable.

Angular velocity

Higher spin rates produce stronger gyroscopic effects and slower precession. This is why:

• A fast-spinning gyroscope barely precesses and holds its orientation firmly.
• A slowing top precesses faster and faster until it falls.
• Engineers specify minimum spin rates for gyroscopic instruments to ensure adequate stability.

External torques

Torques are what drive precession. In engineering systems, torques come from many sources:

• Gravity acting on an offset center of mass (spinning tops, unbalanced rotors).
• Magnetic fields exerting torques on magnetized components.
• Aerodynamic forces on rotating objects moving through fluid (helicopter rotors, turbine blades).
• Deliberate actuation in control systems (CMGs, reaction wheels).

Engineers either minimize unwanted torques (through balancing and shielding) or apply them strategically (in attitude control systems).

Precession measurement techniques

Measuring precession accurately is essential for calibrating navigation systems, diagnosing rotor imbalances, and validating dynamic models.

Optical methods

• High-speed cameras track markers on a rotating body to reconstruct precessional motion frame by frame.
• Laser interferometry measures angular displacements with sub-microradian precision.
• Stroboscopic techniques "freeze" the motion of fast-spinning objects, making slow precession visible.
• Optical encoders provide continuous digital readout of angular position for both spin and precession axes.

Inertial sensors

• Accelerometers detect the linear accelerations that result from precessional motion of a rotating body.
• Rate gyroscopes directly measure the angular velocity of precession.
• Inertial measurement units (IMUs) combine three-axis accelerometers and three-axis gyroscopes to fully characterize rotational and translational motion.
• MEMS-based sensors make precession measurement compact and affordable, enabling use in consumer electronics and small spacecraft.

Laser gyroscopes

Laser gyroscopes measure rotation rate using the Sagnac effect: two counter-propagating laser beams in a closed loop experience a frequency shift proportional to the rotation rate.

• Ring laser gyroscopes (RLGs) use mirrors to form a closed triangular or square laser path. They offer very high accuracy and no moving parts.
• Fiber optic gyroscopes (FOGs) coil hundreds of meters of optical fiber to increase sensitivity. They're more rugged and compact than RLGs.
• Both types are standard in aircraft and spacecraft inertial navigation, where precise precession and rotation measurement is critical.

Precession in quantum mechanics

Precession concepts extend to the quantum scale, where they underpin technologies like MRI and atomic clocks. While this is at the boundary of a dynamics course, the classical analogy carries over remarkably well.

Larmor precession

When a charged particle with a magnetic moment is placed in a uniform magnetic field, its magnetic moment precesses around the field direction. The Larmor frequency is:

$\omega_L = \gamma B$

where $\gamma$ is the gyromagnetic ratio (a property of the particle) and $B$ is the magnetic field strength. This is directly analogous to classical torque-induced precession, with the magnetic torque playing the role of gravity.

Larmor precession is the physical basis for MRI scanners and atomic clocks.

Spin precession

At the quantum level, particle spin behaves like a tiny angular momentum vector that precesses around an applied magnetic field.

• The Bloch equations describe how the spin magnetization vector evolves, including relaxation effects (the spin gradually returning to equilibrium).
• Spin precession is the foundation of electron spin resonance (ESR) and nuclear magnetic resonance (NMR) spectroscopy.
• It also underpins spin-based quantum computing, where qubit states are manipulated by controlling precession with precisely timed magnetic pulses.

Nuclear magnetic resonance

NMR exploits the precession of nuclear spins (typically hydrogen nuclei) in a strong magnetic field:

1. A static magnetic field $B_0$ aligns nuclear spins, which then precess at the Larmor frequency.
2. A radiofrequency (RF) pulse at that exact frequency tips the spins away from equilibrium (resonance condition).
3. As the spins relax back, they emit RF signals that encode information about the molecular environment.
4. In MRI, spatial gradients in $B_0$ map these signals to specific locations in the body, producing images.

Engineers designing NMR and MRI systems must precisely control magnetic field uniformity, RF pulse timing, and gradient coil design, all of which depend on understanding precession.

Precession-related phenomena

Nutation

Nutation is the rapid oscillation of the spin axis that accompanies the onset of precession. If you release a spinning gyroscope at an angle, the axis doesn't immediately settle into smooth precession. Instead, it bobs up and down (nutates) while precessing.

• Nutation frequency is typically much higher than precession frequency.
• In most practical systems, friction damps nutation quickly, leaving only steady precession.
• In precision instruments and spacecraft, engineers actively damp nutation using energy dissipation mechanisms (fluid dampers, flexible structures).

Wobble

Wobble refers to irregular or periodic deviations from smooth rotation, often caused by mass imbalances or external disturbances.

• Polhode motion describes the path traced by the angular velocity vector on the body's surface during torque-free rotation. It's the body-frame view of wobble.
• Earth itself wobbles slightly (the Chandler wobble, with a period of about 433 days), caused by internal mass redistribution.
• In rotating machinery, wobble is controlled through precision balancing and active feedback systems.

Resonance in precession

Resonance occurs when a periodic driving force matches the natural precession frequency of a system. At resonance, even small periodic forces can build up large-amplitude oscillations.

• In rotor dynamics, precession resonance (sometimes called a critical speed) can cause severe vibrations, bearing damage, or structural failure.
• Engineers identify resonance frequencies during the design phase and ensure that operating speeds stay well away from them.
• Damping is added to reduce peak amplitudes if the system must pass through a resonance during startup or shutdown.
