10.5 Applications of gyroscopic motion

8 min read•august 21, 2024

Gyroscopic motion is a fascinating aspect of dynamics, crucial for understanding rotating bodies and their behavior under external forces. It's essential in various mechanical systems, from vehicles to spacecraft, playing a key role in stability and control.

Applications of gyroscopic motion are wide-ranging, impacting navigation, transportation, and industrial processes. Gyroscopes are used in compasses, , and attitude control in spacecraft. They also enhance stability in aircraft, ships, and motorcycles, improving safety and efficiency.

Principles of gyroscopic motion

  • Fundamental concepts in Engineering Mechanics - Dynamics governing rotating bodies and their behavior under external forces
  • Crucial for understanding the stability and control of various mechanical systems, from vehicles to spacecraft

Angular momentum conservation

Top images from around the web for Angular momentum conservation

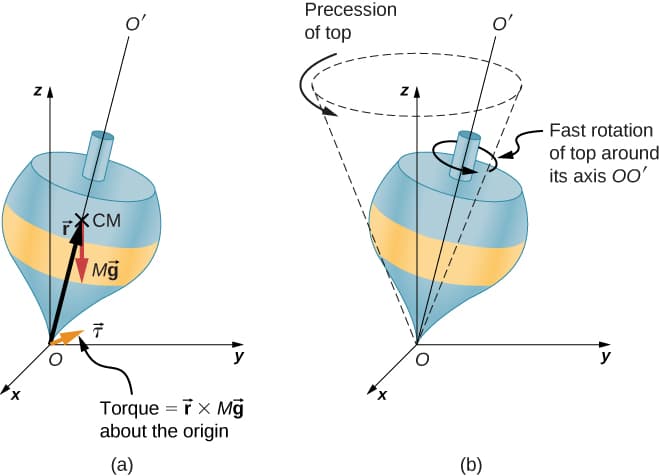

  • Precession of a Gyroscope – University Physics Volume 1 View original

    Is this image relevant?

  • Angular Momentum and Its Conservation | Physics View original

    Is this image relevant?

  • Precession of a Gyroscope – University Physics Volume 1 View original

    Is this image relevant?

1 of 3

Top images from around the web for Angular momentum conservation

  • Precession of a Gyroscope – University Physics Volume 1 View original

    Is this image relevant?

  • Angular Momentum and Its Conservation | Physics View original

    Is this image relevant?

  • Precession of a Gyroscope – University Physics Volume 1 View original

    Is this image relevant?

1 of 3
  • Defines the tendency of a rotating body to maintain its axis of rotation in the absence of external torques
  • Mathematically expressed as L=IωL = I\omega, where L is , I is , and ω is
  • Explains why a spinning top remains upright despite gravitational forces
  • Applications include gyroscopic stabilization in satellites and attitude control in spacecraft

Precession and nutation

  • Precession describes the slow rotation of a spinning object's axis around another axis due to external
  • Nutation refers to small, periodic wobbling motions superimposed on the precessional motion
  • Observed in , gyroscopes, and even Earth's rotational axis
  • Precession rate depends on applied torque, moment of inertia, and angular velocity of the spinning body

Gyroscopic couple

  • Reaction force produced by a rotating body when an external torque attempts to change its axis of rotation
  • Magnitude of given by C=IωΩC = I\omega\Omega, where Ω is the angular velocity of precession
  • Responsible for the counterintuitive behavior of gyroscopes under applied forces
  • Utilized in for navigation and stabilization systems in vehicles

Gyroscopes in engineering

  • Essential components in various engineering applications, particularly in navigation and systems
  • Exploit the principles of angular momentum conservation and gyroscopic effects to measure or maintain orientation

Gyrocompasses vs magnetic compasses

  • Gyrocompasses use Earth's rotation to find true north, unaffected by magnetic interference
  • Operate based on the principle of and the Coriolis effect
  • More accurate and reliable than magnetic compasses, especially in polar regions or near magnetic anomalies
  • Widely used in ships, aircraft, and submarines for navigation and autopilot systems

Inertial navigation systems

  • Self-contained navigation systems that use gyroscopes and accelerometers to track position and orientation
  • Do not rely on external references like GPS satellites or radio signals
  • Calculate position by integrating acceleration and angular velocity measurements over time
  • Applications include missile guidance systems, underwater vehicles, and backup navigation in aircraft

Attitude control in spacecraft

  • Gyroscopes used to maintain or change a spacecraft's orientation in the absence of external reference points
  • (CMGs) generate large torques for rapid attitude changes in satellites
  • Reaction wheels, a type of gyroscopic actuator, provide precise attitude control for space telescopes
  • Essential for maintaining proper orientation of solar panels, antennas, and scientific instruments in space

Applications in transportation

  • Gyroscopic principles play a crucial role in enhancing stability and control in various modes of transportation
  • Improve safety, efficiency, and passenger comfort in aircraft, ships, and motorcycles

Aircraft stabilization

  • Gyroscopic instruments (attitude indicator, heading indicator) provide essential flight information
  • Autopilot systems use gyroscopic sensors to maintain level flight and execute maneuvers
  • Gyro-stabilized platforms used for mounting cameras and sensors in aerial photography and reconnaissance
  • Gyroscopic effects considered in propeller and turbine engine design to counteract unwanted torques

Ship stabilizers

  • use gyroscopic sensors to detect roll motion and counteract it
  • (gyrostabilizers) generate opposing torques to reduce ship rolling
  • Improve passenger comfort, reduce seasickness, and enhance crew efficiency in rough seas
  • Allow for safer operation of sensitive equipment and cargo handling in various sea conditions

Motorcycle dynamics

  • Gyroscopic effects of wheels contribute to motorcycle stability at higher speeds
  • exploits gyroscopic precession for initiating turns
  • Steering head angle and trail designed to optimize and handling characteristics
  • Gyroscopic forces considered in the design of motorcycle suspension systems and frame geometry

Industrial applications

  • Gyroscopic technology extends beyond transportation into various industrial and consumer applications
  • Enhance precision, stability, and measurement capabilities in diverse fields

Gyrostabilizers for cameras

  • Active gyroscopic stabilization systems compensate for camera shake in handheld devices
  • Improve image quality in photography and videography, especially in low-light conditions
  • Used in professional camera rigs for smooth motion shots in film and television production
  • Enable stable imaging from moving platforms (drones, vehicles) for surveillance and inspection tasks

Gyroscopic sensors in robotics

  • Provide real-time orientation and angular velocity data for robot balance and navigation
  • Essential components in humanoid robots for maintaining upright posture and walking stability
  • Used in industrial robotic arms to enhance precision in manufacturing and assembly processes
  • Enable autonomous drones to maintain stable flight and execute complex maneuvers

Gyroscopic vibration absorbers

  • Tuned mass dampers incorporating gyroscopic principles to reduce vibrations in structures
  • Applied in tall buildings and bridges to mitigate wind-induced oscillations
  • Used in precision manufacturing equipment to minimize vibrations and improve machining accuracy
  • Gyroscopic dampers in vehicle suspensions to enhance ride comfort and handling

Mathematical analysis

  • Quantitative tools and equations used to analyze and predict gyroscopic behavior in engineering systems
  • Essential for designing and optimizing gyroscopic devices and understanding their performance limits

Euler's equations of motion

  • Describe the rotational dynamics of rigid bodies in three-dimensional space
  • Expressed as: Ixω˙x+(Iz−Iy)ωyωz=MxI_x\dot{\omega}_x + (I_z - I_y)\omega_y\omega_z = M_x Iyω˙y+(Ix−Iz)ωzωx=MyI_y\dot{\omega}_y + (I_x - I_z)\omega_z\omega_x = M_y Izω˙z+(Iy−Ix)ωxωy=MzI_z\dot{\omega}_z + (I_y - I_x)\omega_x\omega_y = M_z
  • Account for moments of inertia, angular velocities, and applied torques
  • Used to analyze complex gyroscopic systems and predict their behavior under various conditions

Precession rate calculations

  • Determine the rate at which a gyroscope's axis rotates due to applied torques
  • For a simple gyroscope, precession rate given by Ω=τIω\Omega = \frac{\tau}{I\omega}, where τ is applied torque
  • Consider factors such as rotor mass distribution, spin rate, and external forces
  • Critical for designing gyrocompasses and predicting gyroscopic drift in inertial navigation systems

Gyroscopic effect magnitude

  • Quantify the strength of gyroscopic forces in rotating systems
  • Gyroscopic couple magnitude calculated as C=IωΩC = I\omega\Omega
  • Depends on moment of inertia, spin rate, and precession rate of the rotating body
  • Used to determine required motor torques in control moment gyroscopes for spacecraft attitude control

Design considerations

  • Key factors engineers must address when developing gyroscopic devices for various applications
  • Balance performance, reliability, and efficiency to create optimal gyroscopic systems

Material selection for rotors

  • Choose materials with high strength-to-weight ratios to maximize angular momentum
  • Consider thermal expansion properties to maintain precision across temperature ranges
  • Use materials with low magnetic susceptibility for applications sensitive to magnetic fields
  • Balance between density for high inertia and manufacturability for precise balancing

Bearing types and lubrication

  • Select bearings to minimize friction and ensure long-term stability of gyroscope rotation
  • Air bearings used in high-precision gyroscopes to eliminate mechanical contact
  • Magnetic bearings employed in some advanced gyroscopes for reduced wear and friction
  • Proper lubrication critical for maintaining bearing performance and extending operational life

Power requirements and efficiency

  • Optimize motor design to provide necessary torque while minimizing power consumption
  • Consider power source limitations in portable or space-based applications
  • Implement energy recovery systems in control moment gyroscopes to improve overall efficiency
  • Balance between rotor speed and size to achieve required angular momentum with minimal power input

Limitations and challenges

  • Understanding the constraints and potential issues in gyroscopic systems is crucial for effective design and application
  • Engineers must develop strategies to mitigate these limitations in practical implementations

Drift and error accumulation

  • Gradual buildup of errors in gyroscope measurements over time due to various factors
  • Caused by imperfections in manufacturing, environmental influences, and inherent sensor noise
  • Results in degradation of accuracy in inertial navigation systems and gyrocompasses
  • Mitigated through regular calibration, sensor fusion techniques, and advanced error modeling algorithms

Temperature sensitivity

  • Changes in temperature affect material properties and dimensions of gyroscope components
  • Can lead to variations in rotor balance, bearing performance, and sensor characteristics
  • Temperature compensation techniques implemented in high-precision gyroscopes
  • Thermal management systems used in aerospace and military applications to maintain stable operating conditions

Size and weight constraints

  • Miniaturization of gyroscopes challenging due to reduced angular momentum in smaller rotors
  • Trade-offs between size, performance, and power consumption in portable devices
  • Weight limitations in aerospace applications necessitate innovative designs and materials
  • Balancing act between gyroscope effectiveness and overall system weight in vehicle stabilization systems

Advanced gyroscopic systems

  • Cutting-edge technologies pushing the boundaries of gyroscope performance and applications
  • Represent the future of gyroscopic systems in various fields of engineering and science

MEMS gyroscopes

  • miniaturize gyroscopic technology
  • Utilize vibrating structures (tuning forks, rings) to detect rotation through Coriolis effect
  • Widely used in smartphones, tablets, and wearable devices for motion sensing
  • Advantages include small size, low power consumption, and low cost for mass production

Optical gyroscopes

  • and use light interference patterns
  • Detect rotation by measuring phase shifts in counter-propagating laser beams
  • No moving parts, resulting in high reliability and precision
  • Used in high-performance inertial navigation systems for aircraft, spacecraft, and submarines

Quantum gyroscopes

  • Exploit quantum mechanical properties of atoms or subatomic particles for rotation sensing
  • Nuclear magnetic resonance (NMR) gyroscopes use precession of atomic nuclei
  • Atom interferometer gyroscopes measure rotation-induced phase shifts in matter waves
  • Potential for extremely high sensitivity and long-term stability in future navigation systems

Gyroscopic effects in nature

  • Natural occurrences of gyroscopic principles provide insights for biomimetic engineering designs
  • Demonstrate the universality of angular momentum conservation across different scales

Animal locomotion and balance

  • Gyroscopic stabilization observed in the flight of insects (halteres in flies)
  • Semicircular canals in vertebrate inner ears function as biological angular velocity sensors
  • Tail movements in some animals (cats, lizards) exploit angular momentum for balance during falls
  • Understanding of these mechanisms inspires designs for robotic locomotion and stabilization

Planetary motion analogies

  • Precession of Earth's rotational axis analogous to gyroscopic precession (causes seasons)
  • Stability of bicycle wheels at high speeds similar to gyroscopic stabilization of planets
  • in planetary orbits comparable to gyroscopic principles
  • Study of celestial mechanics provides insights for designing spacecraft attitude control systems

Key Terms to Review (28)

Active fin stabilizers: Active fin stabilizers are advanced mechanical systems used primarily in maritime vessels to reduce the rolling motion caused by waves. By adjusting the position and angle of the fins dynamically based on real-time feedback from sensors, these stabilizers help to enhance stability and comfort for passengers and crew onboard. This technology relies on principles of gyroscopic motion, as the fins create opposing forces that counteract the rolling effect, improving overall vessel performance.
Aircraft attitude indicators: Aircraft attitude indicators are essential flight instruments that display the orientation of an aircraft in relation to the horizon. They provide pilots with critical information about the aircraft's pitch and roll, helping them maintain control and situational awareness during flight, particularly in poor visibility conditions where visual references are limited.
Angular momentum: Angular momentum is a measure of the rotational motion of an object, defined as the product of its moment of inertia and its angular velocity. It plays a crucial role in understanding how objects behave when they rotate, including how they interact with forces and torques.
Angular Velocity: Angular velocity is a measure of the rate at which an object rotates about a fixed point or axis, quantified as the angle turned per unit time. It connects the motion of rotating bodies to their linear counterparts, enabling the calculation of kinetic energy, power, and angular momentum in various physical scenarios.
Conservation of angular momentum: Conservation of angular momentum states that the total angular momentum of a closed system remains constant if no external torques act on it. This principle is crucial for understanding various phenomena in mechanics, especially in systems involving rotation and motion.
Control Moment Gyroscopes: Control moment gyroscopes are devices used to control the orientation of a spacecraft or other vehicles by exploiting the principles of angular momentum. These gyroscopes generate gyroscopic torque when they are rotated, which can be used to induce rotational motion or stabilize the vehicle. Their application is crucial for maintaining orientation in space, particularly for spacecraft that require precise attitude control.
Countersteering technique: Countersteering technique is a method used primarily in motorcycle riding and cycling to initiate a lean in the opposite direction of a turn, allowing for sharper and more controlled cornering. When a rider pushes on the handlebar of the side they want to turn towards, it causes the front wheel to momentarily steer away from that direction, creating a lean that facilitates smoother navigation through curves. This technique is essential for maintaining stability and control at higher speeds.
Dynamic equilibrium: Dynamic equilibrium refers to a state where an object in motion continues to move with constant velocity because the net force acting on it is zero, balancing all external forces. This concept is essential in analyzing systems where forces and motions are present, indicating that while motion occurs, there is no change in the system’s overall state.
Euler's equations: Euler's equations describe the motion of rigid bodies in rotational dynamics, relating the angular momentum of a system to the external torques acting on it. They form a fundamental framework for understanding how rotational motion changes over time, making them essential in analyzing systems like gyroscopes and other rotating objects.
Fiber Optic Gyroscopes (FOG): Fiber optic gyroscopes (FOG) are advanced sensors that utilize the interference of light in optical fibers to detect angular rotation. They leverage the principles of gyroscopic motion, providing highly accurate measurements that are critical in applications like navigation and stabilization systems. FOGs are known for their reliability and precision, making them essential in various fields such as aerospace, military, and robotics.
Flywheels in energy storage: Flywheels in energy storage are mechanical devices that store kinetic energy by spinning a rotor at high speeds. As the rotor rotates, it accumulates energy, which can be harnessed when needed, making flywheels an efficient solution for stabilizing and regulating power supply in various applications. Their ability to rapidly release or absorb energy makes them particularly useful in managing fluctuations in energy demand and integrating renewable energy sources.
Gyrocompasses: A gyrocompass is a navigational instrument that uses the principles of gyroscopic motion to determine true north, regardless of the Earth's magnetic field. Unlike magnetic compasses, gyrocompasses rely on the angular momentum of a spinning rotor, allowing for accurate orientation even in harsh conditions. This makes them essential for various applications, especially in maritime navigation and aircraft guidance systems.
Gyroscopes in navigation: Gyroscopes in navigation are devices that utilize the principles of angular momentum and rotational motion to provide orientation and stabilization for vehicles, aircraft, and ships. They help determine the direction and maintain stability by resisting changes in orientation, making them essential for accurate navigation in various modes of transport.
Gyroscopic couple: A gyroscopic couple is a torque that arises when a spinning object, like a gyroscope, experiences a change in orientation. This torque is a result of the angular momentum of the spinning object interacting with an external force, causing the object to precess or change its axis of rotation. Understanding gyroscopic couples is crucial for analyzing stability and control in various mechanical systems, especially those involving rotating bodies.
Gyroscopic precession: Gyroscopic precession is the phenomenon where a spinning object, like a gyroscope, experiences a change in its orientation due to an external torque acting on it. This effect occurs when the axis of rotation of the spinning object shifts in response to forces, leading to a motion that is perpendicular to the direction of the applied torque. Gyroscopic precession is vital in understanding how rotating bodies maintain stability and control in various applications.
Gyroscopic roll stabilizers: Gyroscopic roll stabilizers are devices that use the principles of gyroscopic motion to help maintain stability and reduce unwanted rolling movements in vehicles, particularly in marine and aerial applications. These stabilizers utilize the conservation of angular momentum to counteract the forces that cause rolling, thereby enhancing the comfort and safety of the vehicle's occupants. By maintaining an upright position, these systems improve performance and handling in various conditions.
Gyroscopic stability: Gyroscopic stability refers to the ability of a spinning object, such as a gyroscope, to maintain its orientation and resist changes in its axis of rotation. This phenomenon is due to the conservation of angular momentum, where the spin creates a stabilizing effect that can influence the motion and balance of various mechanical systems. Understanding gyroscopic stability is crucial for applications like navigation and balancing mechanisms in vehicles.
Gyroscopic vibration absorbers: Gyroscopic vibration absorbers are devices that utilize the principles of gyroscopic motion to reduce or eliminate unwanted vibrations in mechanical systems. By harnessing the conservation of angular momentum, these absorbers counteract vibrations through the use of rotating masses, improving stability and performance in various applications such as vehicles, machinery, and aerospace systems.
Inertial navigation systems: Inertial navigation systems (INS) are self-contained navigation technologies that utilize accelerometers and gyroscopes to continuously calculate a vehicle's position, orientation, and velocity without the need for external references. This system relies on measuring the inertial forces acting on the vehicle, allowing for precise tracking in various environments, including underwater or in space, where GPS signals may be unreliable or unavailable.
Microelectromechanical systems (MEMS) gyroscopes: MEMS gyroscopes are miniature devices that utilize microelectromechanical technology to measure angular velocity, providing critical data for navigation and motion detection. These sensors leverage the principles of gyroscopic motion to sense changes in orientation and angular position, making them essential components in various applications such as smartphones, drones, and automotive systems.
Moment of inertia: Moment of inertia is a measure of an object's resistance to changes in its rotational motion about an axis. It depends on both the mass of the object and how that mass is distributed relative to the axis of rotation, making it a critical factor in analyzing rotational dynamics, stability, and energy in various mechanical systems.
Quantum gyroscopes: Quantum gyroscopes are advanced devices that utilize quantum mechanics to measure angular rotation with extreme precision. These gyroscopes exploit the principles of superposition and entanglement to enhance sensitivity and accuracy beyond what classical gyroscopes can achieve. They have a wide range of applications, particularly in navigation and geophysical measurements.
Rate Sensors: Rate sensors are devices used to measure the rate of change of a physical quantity, typically angular velocity or linear acceleration. These sensors are essential in applications involving motion detection and stabilization, providing critical feedback to control systems in various fields, including aviation, robotics, and automotive technology.
Ring Laser Gyroscopes (RLG): A ring laser gyroscope is a type of gyroscope that uses the principles of laser interference to measure angular rotation. By employing two counter-propagating laser beams within a closed loop, it detects the Sagnac effect, where the rotation of the gyroscope causes a difference in the travel times of the beams, enabling precise measurements of orientation and rotation.
Rotational Inertia: Rotational inertia, also known as the moment of inertia, is a measure of an object's resistance to changes in its rotational motion about an axis. It depends on the mass of the object and the distribution of that mass relative to the axis of rotation. A larger rotational inertia means the object will require more torque to change its angular velocity, which is crucial when discussing systems involving gyroscopic motion and precession.
Spinning tops: Spinning tops are toy or mechanical devices that rotate rapidly around a vertical axis, demonstrating the principles of angular momentum and stability. They exhibit fascinating behaviors, including precession, when an external torque is applied, leading to their unique motion. This behavior can be linked to various real-world applications in gyroscopic motion, showcasing how spinning tops serve as a practical demonstration of complex physical concepts.
Stability Control: Stability control refers to the ability of a system to maintain its equilibrium and resist disturbances that could lead to a loss of balance or control. This concept is crucial in understanding how various systems, particularly those involving gyroscopic motion, can effectively manage external forces and maintain a desired orientation or path of motion. It plays a significant role in applications such as vehicle dynamics, aerospace engineering, and robotics, where maintaining stability is essential for safety and performance.
Torque: Torque is a measure of the rotational force applied to an object, causing it to rotate about an axis. It is a vector quantity that depends on the magnitude of the force, the distance from the axis of rotation (lever arm), and the angle at which the force is applied, affecting various phenomena including motion, stability, and energy transfer in systems.
© 2024 Fiveable Inc. All rights reserved.
AP® and SAT® are trademarks registered by the College Board, which is not affiliated with, and does not endorse this website.
Back
Practice QuizGlossary
Practice QuizGlossary
Next guide
