Absolute and analysis forms the backbone of dynamics, allowing engineers to describe object movement in various reference frames. This topic bridges the gap between theoretical physics and practical engineering applications.
By mastering these concepts, students gain the tools to analyze complex systems like rotating machinery, satellites, and vehicles. The ability to switch between reference frames and account for relative motion is crucial for solving real-world engineering problems.
Frames of reference
Fundamental concept in dynamics describing systems from different viewpoints
Critical for analyzing motion of objects in various scenarios
Provides basis for understanding relative and in Engineering Mechanics
Inertial vs non-inertial frames
Top images from around the web for Inertial vs non-inertial frames

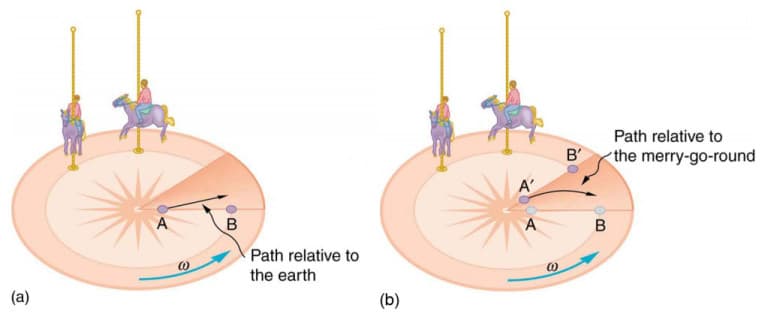

Fictitious Forces and Non-inertial Frames: The Coriolis Force | Physics View original
Is this image relevant?
Fictitious Forces and Non-inertial Frames: The Coriolis Force | Physics View original
Is this image relevant?
Fictitious Forces and Non-inertial Frames: The Coriolis Force · Physics View original
Is this image relevant?
Fictitious Forces and Non-inertial Frames: The Coriolis Force | Physics View original
Is this image relevant?
Fictitious Forces and Non-inertial Frames: The Coriolis Force | Physics View original
Is this image relevant?
1 of 3
Top images from around the web for Inertial vs non-inertial frames
Fictitious Forces and Non-inertial Frames: The Coriolis Force | Physics View original
Is this image relevant?
Fictitious Forces and Non-inertial Frames: The Coriolis Force | Physics View original
Is this image relevant?
Fictitious Forces and Non-inertial Frames: The Coriolis Force · Physics View original
Is this image relevant?
Fictitious Forces and Non-inertial Frames: The Coriolis Force | Physics View original
Is this image relevant?
Fictitious Forces and Non-inertial Frames: The Coriolis Force | Physics View original
Is this image relevant?
1 of 3
Inertial frames move at constant velocity without acceleration
Non-inertial frames experience acceleration or rotation
apply directly in inertial frames
Fictitious forces appear in non-inertial frames to account for acceleration effects
Galilean relativity principle states laws of physics are the same in all inertial frames
Earth-fixed frame
Treats Earth as a stationary reference point for motion analysis
Simplifies calculations for terrestrial applications (buildings, vehicles)
Neglects Earth's rotation and orbital motion around the sun
Introduces small errors in high-precision or long-duration calculations
Suitable for most engineering problems on Earth's surface
Moving reference frames
Attached to moving objects or systems (vehicles, rotating machinery)
Allow analysis of motion relative to the moving frame
Require consideration of additional terms (Coriolis, centrifugal forces)
Useful for studying complex systems with multiple moving parts
Enable simplified analysis of motion within the moving frame
Absolute motion
Describes motion with respect to a fixed, inertial reference frame
Fundamental for understanding true motion in space
Provides basis for comparing motion between different frames
Position vectors
Represent location of a point in space relative to origin
Expressed as r=xi+yj+zk in Cartesian coordinates
Can use spherical or cylindrical coordinates for specific problems
Change in position vectors over time describes motion
Serve as foundation for velocity and acceleration calculations
Velocity in fixed frame
Rate of change of with respect to time
Expressed as v=dtdr in vector notation
Components given by vx=dtdx,vy=dtdy,vz=dtdz
Magnitude represents speed, direction indicates motion path
Used to calculate kinetic energy and momentum of objects
Acceleration in fixed frame
Rate of change of with respect to time
Expressed as a=dtdv=dt2d2r in vector notation
Components given by ax=dt2d2x,ay=dt2d2y,az=dt2d2z
Includes both tangential and normal components in curvilinear motion
Crucial for applying Newton's second law of motion F=ma
Relative motion
Describes motion of objects with respect to
Essential for analyzing complex systems with multiple moving parts
Requires consideration of frame motion in addition to object motion
Position in moving frame
Expressed as vector sum of position in fixed frame and frame displacement
Given by r=r′+R, where r′ is position in moving frame
Allows transformation between fixed and moving frame coordinates
Accounts for both translation and rotation of moving frame
Useful for describing motion of components within larger systems (gears in a transmission)
Velocity in moving frame
Combines velocity in moving frame with frame's translational and
Expressed as v=v′+V+ω×r′
v′ represents velocity observed in moving frame
V denotes translational velocity of moving frame
ω×r′ accounts for rotational effects of moving frame
Applied in analyzing motion of objects on rotating platforms (amusement park rides)
Acceleration in moving frame
Incorporates acceleration in moving frame, frame acceleration, and
Given by a=a′+A+α×r′+ω×(ω×r′)+2ω×v′
a′ represents acceleration observed in moving frame
A denotes translational acceleration of moving frame
α×r′ accounts for angular acceleration effects
ω×(ω×r′) represents centripetal acceleration
2ω×v′ is the Coriolis acceleration term
Critical for accurate analysis of motion in rotating systems (turbomachinery, planetary motion)
Coriolis effect
Apparent deflection of moving objects in a rotating reference frame
Significant in large-scale systems (weather patterns, ocean currents)
Crucial consideration in long-range projectile motion and guidance systems
Definition and significance
Fictitious force arising from Earth's rotation affecting moving objects
Causes rightward deflection in Northern Hemisphere, leftward in Southern Hemisphere
Magnitude depends on latitude, velocity, and rotation rate of reference frame
Influences global wind patterns and ocean currents (trade winds, gyres)
Considered in design of long-range weapons and intercontinental ballistic missiles
Coriolis acceleration formula
Expressed as ac=2ω×v′
ω represents angular velocity vector of rotating frame
v′ denotes velocity of object in rotating frame
Magnitude proportional to sine of latitude, maximum at poles and zero at equator
Direction always perpendicular to both rotation axis and velocity vector
Crucial for accurate predictions in rotating frame dynamics
Examples in nature
Cyclonic rotation of hurricanes and typhoons
Deflection of trade winds driving ocean circulation patterns
Foucault pendulum demonstrating Earth's rotation
Rossby waves in atmospheric and oceanic circulation
Ekman spiral in ocean currents due to wind stress and Coriolis force
Coordinate transformations
Mathematical techniques for converting between different reference frames
Essential for relating motion descriptions in various coordinate systems
Facilitate analysis of complex systems with multiple moving parts
Rotation matrices
Represent rotations between coordinate systems
3x3 matrices for three-dimensional rotations
Orthogonal matrices with determinant of 1 (preserve vector magnitudes)
Composition of multiple rotations achieved through matrix multiplication
Common rotations include:
Rotation about x-axis: Rx(θ)=1000cosθsinθ0−sinθcosθ
Rotation about y-axis: Ry(θ)=cosθ0−sinθ010sinθ0cosθ
Rotation about z-axis: Rz(θ)=cosθsinθ0−sinθcosθ0001
Translation vectors
Represent displacement between origins of different coordinate systems
Added to position vectors after rotation to complete transformation
Expressed as T=[Tx,Ty,Tz]T in Cartesian coordinates
Can vary with time for moving reference frames
Combined with to form homogeneous transformation matrices
Composite transformations
Combination of multiple rotations and translations
Represented by 4x4 homogeneous transformation matrices
General form: T=[R0T1], where R is 3x3 rotation matrix
Allow chaining of transformations through matrix multiplication
Useful for describing motion in complex kinematic chains (robotic arms)
Motion analysis techniques
Methods for solving dynamics problems involving multiple reference frames
Enable efficient calculation of position, velocity, and acceleration
Crucial for analyzing complex mechanical systems and mechanisms
Vector approach
Uses vector algebra to describe motion and forces
Applies vector addition, dot products, and cross products
Preserves physical intuition of motion and force directions
Suitable for problems with few coordinate frames
Requires careful bookkeeping of vector components and reference frames
Matrix method
Employs matrix algebra for coordinate transformations and equations of motion
Efficiently handles multiple coordinate frames and transformations
Suitable for computer implementation and numerical solutions
Includes homogeneous transformations for combined rotations and translations
Facilitates analysis of complex kinematic chains and robotic systems
Graphical representations
Visualize motion and relationships between reference frames
Include velocity and acceleration diagrams
Useful for conceptual understanding and quick problem-solving
Complement analytical methods for verification and intuition
Examples:
Velocity polygons for relative motion analysis
Acceleration diagrams for mechanisms (slider-crank, four-bar linkages)
Applications in dynamics
Practical use of relative motion analysis in engineering problems
Demonstrates importance of choosing appropriate reference frames
Highlights interdisciplinary nature of dynamics in various fields
Rotating machinery
Analysis of centrifugal pumps and compressors
Balancing of rotating shafts and turbines
Vibration analysis of rotating equipment
Gear train dynamics in transmissions and reducers
Design of centrifuges for material separation
Satellite motion
Orbit determination and prediction
Attitude control and stabilization
Rendezvous and docking maneuvers
Interplanetary trajectory planning
Earth observation and remote sensing applications
Vehicle dynamics
Suspension system design and analysis
Tire forces and vehicle stability control
Aircraft flight dynamics and control
Ship motion in waves (heave, pitch, roll)
Autonomous vehicle navigation and path planning
Numerical methods
Computational techniques for solving complex dynamics problems
Essential for systems with many degrees of freedom or nonlinear behavior
Enable simulation and prediction of dynamic system behavior
Time-stepping algorithms
Numerical integration methods for solving equations of motion
Include explicit methods (Euler, Runge-Kutta) and implicit methods (Newmark, HHT)
Trade-off between accuracy, stability, and computational efficiency
Adaptive time-step selection for improved performance
Specialized algorithms for constrained systems (differential-algebraic equations)
Error analysis
Quantification of numerical solution accuracy
Includes truncation error from discretization
Round-off error due to finite precision arithmetic
Stability analysis to ensure solution convergence
Validation against analytical solutions or experimental data
Software tools
Commercial packages (MATLAB, Simulink, Adams)
Open-source alternatives (Python with SciPy, OpenModelica)
Finite element analysis software for structural dynamics (ANSYS, Abaqus)
Custom code development for specialized applications
Practical considerations
Guidelines for effective application of dynamics principles
Strategies for problem-solving and analysis in real-world scenarios
Important factors to consider when applying theoretical concepts
Choosing reference frames
Select frames that simplify equations of motion
Consider symmetry and natural coordinates of the system
Use inertial frames when possible to avoid fictitious forces
Balance between simplicity and accuracy in frame selection
Consistency in frame definitions throughout the analysis
Simplifying assumptions
Neglect small terms or effects when appropriate
Linearization of equations for small oscillations or perturbations
Treat distributed systems as lumped parameters when possible
Consider rigid body assumptions for high-stiffness structures
Quasi-static analysis for slow-moving systems
Common pitfalls
Inconsistent use of units or coordinate systems
Neglecting Coriolis effects in large or fast-rotating systems
Overlooking coupling between translational and rotational motion
Improper treatment of constraints in multi-body systems
Misinterpretation of relative motion effects in moving frames
Key Terms to Review (28)
Absolute motion: Absolute motion refers to the movement of an object as observed from a fixed point in space, independent of any external reference frame. This concept contrasts with relative motion, where the position and movement of an object are described concerning another moving object. Absolute motion is crucial for understanding how objects move in the universe and is often analyzed using coordinate systems to provide precise descriptions of an object's trajectory and velocity.
Acceleration in relative motion: Acceleration in relative motion refers to the change in velocity of an object as observed from a particular reference frame, which may itself be in motion. This concept is crucial for understanding how the motion of one object can affect the perceived acceleration of another object, especially when both are moving with respect to a common reference frame. It helps in analyzing the dynamics of multiple objects, particularly when they are not stationary relative to each other.
Circular motion: Circular motion is the movement of an object along the circumference of a circle or a circular path. This type of motion involves an object maintaining a constant distance from a fixed point, often referred to as the center of the circle, while continuously changing its direction. It is characterized by parameters such as radius, angular velocity, and centripetal acceleration, connecting deeply with various concepts in mechanics.
Composite Transformations: Composite transformations refer to the combination of two or more transformations applied to a single point, vector, or object in a given coordinate system. This concept plays a crucial role in analyzing both absolute and relative motion, as it allows for the description of how objects move in relation to each other by understanding their individual transformations and how they interact.
Coriolis Acceleration Formula: The Coriolis acceleration formula describes the apparent force experienced by an object in motion within a rotating reference frame. This phenomenon is crucial for understanding how the motion of objects, such as air masses or ocean currents, is influenced by the rotation of the Earth, leading to a deviation from their intended path. It plays a significant role in analyzing both absolute and relative motion, especially when comparing the observed motion of objects from different frames of reference.
Coriolis Effect: The Coriolis Effect is the apparent deflection of moving objects when viewed from a rotating reference frame, such as the Earth. This phenomenon causes moving air and water to turn and twist in specific patterns due to the Earth's rotation, significantly influencing weather patterns, ocean currents, and even projectiles. The understanding of this effect is crucial for analyzing motion in both absolute and relative terms, especially when different coordinate systems are in play.
Dynamic Analysis: Dynamic analysis refers to the examination of the forces and motions acting on a system over time, allowing engineers to understand how structures or mechanical systems respond to dynamic loads. This concept is crucial for analyzing systems that experience changing conditions, such as vibrations, impacts, or movements, and it provides insights into their stability and performance under real-world conditions.
Earth-fixed frame: An earth-fixed frame is a reference frame that remains stationary relative to the Earth’s surface, allowing for the analysis of motion as observed from this fixed point. This type of frame simplifies the study of absolute and relative motion by providing a stable backdrop against which the movements of various objects can be measured, making it particularly useful for calculations involving forces, velocities, and trajectories in engineering mechanics.
Frame of Reference: A frame of reference is a set of criteria or stated values in relation to which measurements or judgments can be made. It provides a context for understanding motion, as it determines how the position and movement of objects are observed and described, making it essential in analyzing both absolute and relative motion.
Graphical representations: Graphical representations are visual tools used to convey information about the motion and relationships of objects in space. They play a crucial role in simplifying complex concepts, allowing for easier understanding and analysis of both absolute and relative motion. By using diagrams, charts, and other visual formats, graphical representations help to clarify the interactions between moving bodies, making it easier to interpret data and assess dynamic systems.
Inertial Frame: An inertial frame is a reference frame in which an object not subjected to external forces moves with a constant velocity, meaning it follows Newton's first law of motion. In this frame, the laws of physics, particularly the equations of motion, take on their simplest forms. Understanding inertial frames is crucial for analyzing motion, as it allows for clear distinctions between absolute and relative motion, which is essential for correctly applying equations of motion and coordinate systems.
Kinematic analysis: Kinematic analysis is the study of the motion of objects without considering the forces that cause that motion. It focuses on parameters such as position, velocity, and acceleration to understand how different components of a system interact over time. This analysis is crucial for determining relationships between moving parts, particularly in systems where motion is dependent on the configuration and movement of interconnected bodies.
Matrix method: The matrix method is a systematic approach used to analyze absolute and relative motion of rigid bodies in a concise mathematical format. By organizing motion parameters into matrices, this technique simplifies the calculations involved in determining position, velocity, and acceleration relationships among interconnected systems. It provides a clear framework for solving complex problems involving multiple bodies and is particularly useful in dynamic analysis.
Motion in a straight line: Motion in a straight line refers to the movement of an object along a linear path without any change in direction. This concept is fundamental in understanding the behavior of objects, as it simplifies the analysis of their movement by focusing solely on position, velocity, and acceleration along a single axis.
Moving reference frames: Moving reference frames are coordinate systems that are in motion relative to a fixed or inertial frame of reference. They are crucial for analyzing the motion of objects from different perspectives and understanding how forces, velocities, and accelerations can vary between observers in different frames. This concept is essential for addressing dynamic equilibrium, formulating equations of motion for rigid bodies, and conducting absolute and relative motion analysis.
Newton's Laws of Motion: Newton's Laws of Motion are three fundamental principles that describe the relationship between the motion of an object and the forces acting on it. These laws form the foundation of classical mechanics, explaining how objects move in response to forces, and they play a critical role in understanding various motion scenarios such as dependent and relative motions, rotations about axes, and straight-line movements.
Non-inertial frame: A non-inertial frame is a reference frame that is accelerating or rotating, meaning that objects within it experience fictitious forces that do not arise from any physical interaction. In these frames, the laws of motion are not as straightforward as in inertial frames, requiring additional forces to explain the observed motion of objects. This concept connects to various aspects of motion, including how different coordinate systems represent motion, how relative motion is perceived, and how equations of motion are formulated in three dimensions.
Observer effect: The observer effect refers to changes that the act of observation can make on a phenomenon being observed. This concept is especially relevant in dynamics, where the measurement of a system can alter its state or behavior. Understanding this effect helps in distinguishing between absolute motion, which is measured without influence from external observers, and relative motion, which depends on the frame of reference and may be affected by the act of measuring.
Position Vector: A position vector is a mathematical representation that describes the location of a point in space relative to a specified origin. It is often expressed in terms of its coordinates within a particular coordinate system, making it essential for analyzing motion and determining the relationship between different points in space. Understanding position vectors allows for clearer insights into motion, trajectories, and relative positioning of objects.
Principle of superposition: The principle of superposition states that in a linear system, the net response at a given time or location is equal to the sum of the individual responses caused by each input or force acting on the system. This principle allows for the analysis of complex motion by breaking it down into simpler components, which can then be analyzed individually and combined to find the overall effect.
Relative motion: Relative motion refers to the calculation of the motion of an object as observed from another moving object. It helps us understand how the positions and velocities of objects change when analyzed from different reference frames, which is essential for analyzing complex systems in dynamics. By examining how one object's motion relates to another, we can gain insights into both translational dynamics and the instantaneous centers of motion, facilitating a deeper understanding of motion analysis.
Relative velocity: Relative velocity is the velocity of one object as observed from another object. It emphasizes how the motion of an object can be understood in relation to another, which is crucial for analyzing interactions between moving bodies, determining collision outcomes, and understanding the dynamics of systems in motion.
Rotation matrices: Rotation matrices are mathematical constructs used to represent the rotation of points in a coordinate system. They are essential in transforming vectors from one orientation to another and are particularly useful in analyzing the motion of objects in space. These matrices play a crucial role in understanding both absolute and relative motion, as well as providing a foundation for describing complex rotations using Euler angles.
Rotational motion: Rotational motion refers to the movement of an object around a central point or axis, where every point on the object moves in a circular path. This type of motion is characterized by parameters such as angular displacement, angular velocity, and angular acceleration, which relate closely to linear motion concepts like displacement, velocity, and acceleration. Understanding rotational motion is crucial for analyzing the dynamics of rigid bodies and their interactions under various forces and torques.
Translation Vectors: Translation vectors are mathematical representations used to describe the displacement of an object from one position to another in a coordinate system. They indicate both the direction and magnitude of movement, serving as essential tools for understanding the motion of bodies in space. Translation vectors allow for the transformation of points in a coordinate system and are crucial for analyzing both absolute and relative motion.
Translational motion: Translational motion refers to the movement of an object in which every point of the object moves in the same direction and with the same speed. This type of motion is essential in understanding how rigid bodies interact under various forces, including their acceleration, velocity, and overall energy transformations.
Vector Approach: The vector approach is a method used in mechanics to analyze the motion of objects by representing physical quantities, such as displacement, velocity, and acceleration, as vectors. This technique simplifies the understanding of relative motion and the interactions between objects by allowing for the consideration of both magnitude and direction. By employing vector representations, it becomes easier to perform calculations and visualize the relationships among various forces and motions acting on an object or system.
Velocity vector: The velocity vector is a mathematical representation that describes the rate of change of an object's position with respect to time, encompassing both the speed and direction of the object's motion. This concept is essential in analyzing how objects move in three-dimensional space, understanding their motion relative to other objects, and characterizing orbital paths in celestial mechanics.
