8.5 Rotation about a fixed point

Rotation about a fixed point is a fundamental concept in dynamics, describing the motion of objects around a stationary axis. This topic covers angular position, velocity, and acceleration, as well as the principles of torque, moment of inertia, and angular momentum.

Understanding rotation is crucial for analyzing various engineering systems, from spinning machinery to spacecraft orientation. The principles explored here form the basis for more complex rotational dynamics and have wide-ranging applications in mechanical and aerospace engineering.

Angular position and displacement

• Rotation about a fixed point forms the foundation of many dynamic systems in engineering mechanics
• Understanding angular motion provides insights into the behavior of rotating machinery, spacecraft orientation, and robotic arm movements

Radians vs degrees

Top images from around the web for Radians vs degrees

•

  Work and Power for Rotational Motion – University Physics Volume 1 View original

  Is this image relevant?

•

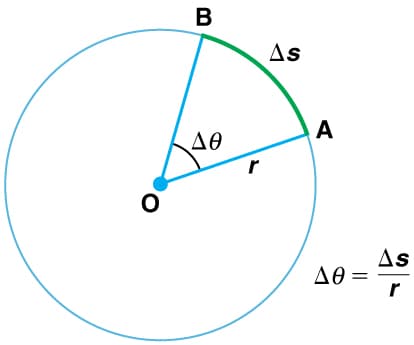

  Rotation Angle and Angular Velocity | Physics View original

  Is this image relevant?

•

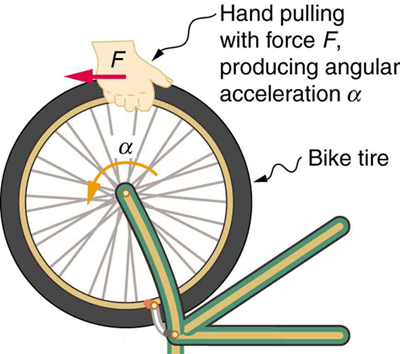

  Dynamics of Rotational Motion: Rotational Inertia | Physics View original

  Is this image relevant?

•

  Work and Power for Rotational Motion – University Physics Volume 1 View original

  Is this image relevant?

•

  Rotation Angle and Angular Velocity | Physics View original

  Is this image relevant?

1 of 3

Top images from around the web for Radians vs degrees

•

  Work and Power for Rotational Motion – University Physics Volume 1 View original

  Is this image relevant?

•

  Rotation Angle and Angular Velocity | Physics View original

  Is this image relevant?

•

  Dynamics of Rotational Motion: Rotational Inertia | Physics View original

  Is this image relevant?

•

  Work and Power for Rotational Motion – University Physics Volume 1 View original

  Is this image relevant?

•

  Rotation Angle and Angular Velocity | Physics View original

  Is this image relevant?

1 of 3

• Radians measure angles as the ratio of arc length to radius
• One radian equals approximately 57.3 degrees
• Radians simplify many rotational equations and are preferred in engineering calculations
• Conversion formula: $\theta_{radians} = \theta_{degrees} \times \frac{\pi}{180}$

Direction of rotation

• Positive rotation follows the right-hand rule convention
• Counterclockwise rotation viewed from the positive axis direction considered positive
• Clockwise rotation viewed from the positive axis direction considered negative
• Crucial for consistent vector analysis in 3D rotational problems

Angular velocity

• Describes the rate of change of angular position with respect to time
• Plays a critical role in analyzing rotating machinery and turbine performance

Average vs instantaneous

• Average angular velocity calculated over a finite time interval: $\omega_{avg} = \frac{\Delta\theta}{\Delta t}$
• Instantaneous angular velocity defined as the limit as time interval approaches zero: $\omega = \lim_{\Delta t \to 0} \frac{\Delta\theta}{\Delta t} = \frac{d\theta}{dt}$
• Instantaneous angular velocity crucial for analyzing non-uniform rotational motion

Vector nature of angular velocity

• Angular velocity represented as a vector along the axis of rotation
• Magnitude equals the rate of rotation
• Direction follows the right-hand rule convention
• Vector representation allows for 3D analysis of complex rotational systems

Angular acceleration

• Quantifies the rate of change of angular velocity over time
• Essential for understanding the dynamics of rotating systems under varying torques

Tangential vs normal components

• Tangential component causes change in speed of rotation
• Normal component causes change in direction of rotation
• Total angular acceleration vector: $\vec{\alpha} = \vec{\alpha_t} + \vec{\alpha_n}$
• Tangential component relates to linear tangential acceleration: $a_t = r\alpha$

Relationship to linear acceleration

• Linear acceleration of a point on a rotating body has two components
• Tangential acceleration: $a_t = r\alpha$
• Centripetal acceleration: $a_c = r\omega^2$
• Total linear acceleration: $\vec{a} = \vec{a_t} + \vec{a_c}$

Equations of rotational motion

• Analogous to linear motion equations, but using angular quantities
• Fundamental for analyzing and predicting rotational behavior in engineering systems

Constant angular acceleration

• Angular displacement: $\theta = \theta_0 + \omega_0t + \frac{1}{2}\alpha t^2$
• Angular velocity: $\omega = \omega_0 + \alpha t$
• Relationship between angular velocity and displacement: $\omega^2 = \omega_0^2 + 2\alpha(\theta - \theta_0)$

Variable angular acceleration

• Requires calculus-based approaches for complex rotational systems
• Angular velocity as a function of time: $\omega(t) = \omega_0 + \int_0^t \alpha(t) dt$
• Angular displacement as a function of time: $\theta(t) = \theta_0 + \int_0^t \omega(t) dt$

Moment of inertia

• Measures a body's resistance to rotational acceleration
• Analogous to mass in linear motion, crucial for analyzing rotational dynamics

Definition and units

• Defined as the sum of mass elements multiplied by the square of their distance from the axis of rotation
• Mathematical expression: $I = \sum m_i r_i^2$
• SI units: kg⋅m²
• Varies depending on the axis of rotation and mass distribution

Parallel axis theorem

• Allows calculation of moment of inertia about any axis parallel to a known axis
• Theorem states: $I = I_{cm} + Md^2$
• I_{cm} represents moment of inertia about the center of mass
• M denotes the total mass of the object
• d signifies the perpendicular distance between the parallel axes

Torque

• Rotational equivalent of force in linear motion
• Causes changes in angular velocity and is fundamental to understanding rotational dynamics

Definition and calculation

• Torque defined as the cross product of position vector and applied force
• Mathematical expression: $\vec{\tau} = \vec{r} \times \vec{F}$
• Magnitude of torque: $\tau = rF\sin\theta$
• θ represents the angle between the position vector and force vector

Relationship to angular acceleration

• Net torque directly proportional to angular acceleration
• Rotational analog of Newton's Second Law: $\sum \vec{\tau} = I\vec{\alpha}$
• Crucial for analyzing the rotational behavior of mechanical systems under applied torques

Angular momentum

• Rotational equivalent of linear momentum
• Conserved quantity in the absence of external torques, important for analyzing rotating systems

Conservation of angular momentum

• Total angular momentum of a system remains constant when net external torque is zero
• Mathematical expression: $\vec{L} = \vec{L_0}$ (when $\sum \vec{\tau}_{ext} = 0$)
• Explains phenomena like figure skater spins and satellite orientation control

Relationship to moment of inertia

• Angular momentum defined as the product of moment of inertia and angular velocity
• Mathematical expression: $\vec{L} = I\vec{\omega}$
• Changes in moment of inertia affect angular velocity to conserve angular momentum

Work and energy in rotation

• Rotational counterparts to work and energy concepts in linear motion
• Essential for analyzing energy transfer and conservation in rotating systems

Rotational kinetic energy

• Energy possessed by a rotating body due to its angular motion
• Mathematical expression: $KE_{rot} = \frac{1}{2}I\omega^2$
• Analogous to translational kinetic energy ($\frac{1}{2}mv^2$)

Work-energy theorem for rotation

• Work done by torque equals change in rotational kinetic energy
• Mathematical expression: $W = \int \tau d\theta = \Delta KE_{rot}$
• Applies to systems with varying moments of inertia or angular velocities

Gyroscopic motion

• Complex rotational behavior exhibited by rotating bodies
• Crucial for understanding the dynamics of spinning objects in engineering applications

Precession

• Slow rotation of the spin axis about a vertical axis
• Caused by external torque acting perpendicular to the spin axis
• Precession rate: $\Omega = \frac{\tau}{I\omega}$
• Observed in spinning tops, gyroscopes, and Earth's rotation

Nutation

• Small oscillations superimposed on the precession motion
• Results from misalignment between the spin axis and the axis of symmetry
• Frequency of nutation related to the spin rate and moment of inertia ratios
• Affects the stability and accuracy of gyroscopic devices

Applications in engineering

• Rotational dynamics principles find widespread use in various engineering fields
• Understanding these concepts crucial for designing and analyzing rotating machinery

Flywheels and governors

• Flywheels store rotational kinetic energy to smooth out power fluctuations
• Moment of inertia key factor in flywheel design for energy storage capacity
• Governors use centrifugal force to regulate rotational speed in engines
• Angular velocity and acceleration principles applied in governor mechanism design

Gyroscopes in navigation

• Utilize conservation of angular momentum to maintain orientation
• Precession and nutation effects considered in gyroscope design and calibration
• Applied in inertial navigation systems for aircraft, ships, and spacecraft
• Micro-electromechanical system (MEMS) gyroscopes used in modern smartphones and tablets
