Newton's laws of motion form the cornerstone of dynamics, describing how forces affect object motion. These fundamental principles explain , force-acceleration relationships, and action-reaction pairs, providing a framework for analyzing dynamic systems.

Engineers apply Newton's laws to solve real-world problems, from particle dynamics to complex multi-body systems. Understanding their limitations and using numerical methods and experimental validation techniques are crucial for accurate dynamic analysis in engineering applications.

Newton's first law

  • Fundamental principle in Engineering Mechanics - Dynamics governing the motion of objects
  • Establishes the concept of inertia and its role in maintaining an object's state of motion
  • Provides the foundation for understanding conditions in dynamic systems

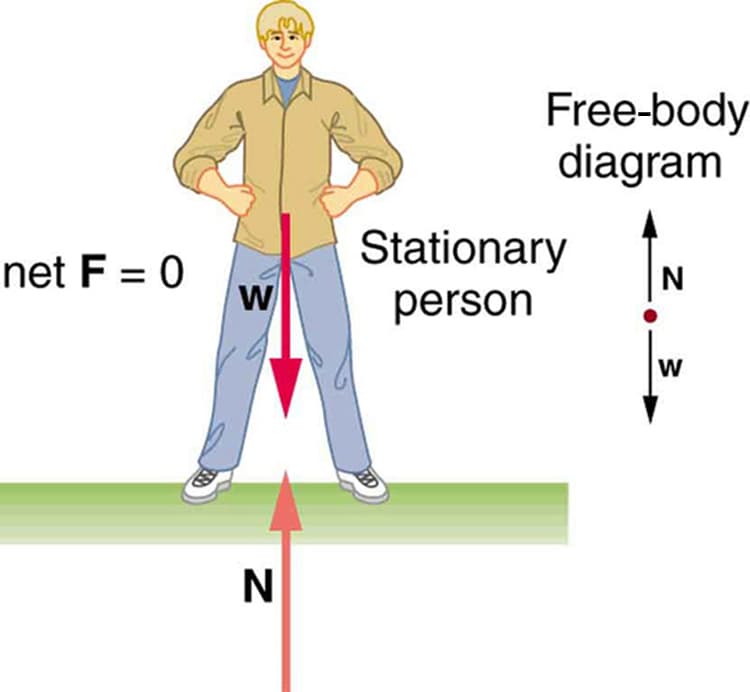

Inertia and equilibrium

Top images from around the web for Inertia and equilibrium

  • Examples of Static Equilibrium – University Physics Volume 1 View original

    Is this image relevant?

  • The Second Condition for Equilibrium | Physics View original

    Is this image relevant?

  • Examples of Static Equilibrium – University Physics Volume 1 View original

    Is this image relevant?

1 of 3

Top images from around the web for Inertia and equilibrium

  • Examples of Static Equilibrium – University Physics Volume 1 View original

    Is this image relevant?

  • The Second Condition for Equilibrium | Physics View original

    Is this image relevant?

  • Examples of Static Equilibrium – University Physics Volume 1 View original

    Is this image relevant?

1 of 3
  • Inertia defined as the resistance of an object to changes in its motion
  • Objects at rest tend to stay at rest unless acted upon by an external force
  • Moving objects maintain constant velocity in the absence of external forces
  • Equilibrium occurs when the acting on an object equals zero

Force-free motion

  • Objects in force-free environments continue moving in straight lines at constant velocities
  • Concept of applies in the absence of external forces
  • Friction and air resistance often mask force-free motion in real-world scenarios
  • Space environments provide closest approximations to force-free motion (satellites)

Reference frames

  • Newton's first law holds true in inertial reference frames
  • Inertial frames move at constant velocity relative to one another
  • Non-inertial frames (accelerating or rotating) require additional considerations
  • Earth's surface approximates an inertial frame for many engineering applications
  • Importance of selecting appropriate reference frames in dynamic analysis

Newton's second law

  • Quantifies the relationship between force, mass, and acceleration in dynamic systems
  • Central to predicting and analyzing motion in Engineering Mechanics - Dynamics
  • Provides the mathematical foundation for solving complex dynamics problems

Force and acceleration relationship

  • Net force on an object produces acceleration directly proportional to the force
  • Acceleration occurs in the same direction as the applied net force
  • Mathematical expression: F⃗=ma⃗\vec{F} = m\vec{a}
  • Vector nature of force and acceleration crucial in multi-dimensional problems
  • Allows prediction of object motion given known forces and initial conditions

Mass vs weight

  • Mass represents the amount of matter in an object, remains constant
  • Weight is the force exerted on an object due to gravity, varies with location
  • Relationship between mass and weight: W=mgW = mg
  • Importance of distinguishing between mass and weight in dynamic analysis
  • Mass determines an object's resistance to acceleration, weight affects motion in gravitational fields

System of particles

  • Newton's second law applies to individual particles and systems of particles
  • Center of mass motion governed by the net external force on the system
  • Internal forces between particles cancel out in the system's equation of motion
  • Useful for analyzing complex structures and multi-body systems in engineering

Newton's third law

  • Describes the mutual interaction between objects in dynamic systems
  • Essential for understanding force pairs and their effects in Engineering Mechanics - Dynamics
  • Provides insights into the conservation of momentum and energy in collisions

Action-reaction pairs

  • For every action force, there exists an equal and opposite reaction force
  • Action and reaction forces always act on different objects
  • Forces occur in pairs, simultaneously and with equal magnitude
  • Examples include rocket propulsion, recoil in firearms, and walking mechanics

Internal vs external forces

  • Internal forces occur between components within a system (tension in a rope)
  • External forces act on the system from the outside environment (gravity, applied loads)
  • Internal forces cancel out when considering the motion of the entire system
  • External forces determine the overall motion of the system's center of mass

Applications in dynamics

  • Crucial for analyzing collisions and impacts in engineering design
  • Explains the transfer of momentum between objects during interactions
  • Utilized in the design of safety systems (airbags, crumple zones)
  • Applies to the analysis of multi-body systems and mechanical linkages

Vector form of Newton's laws

  • Expresses Newton's laws using vector notation for more comprehensive analysis
  • Enables the study of motion in three-dimensional space
  • Essential for solving complex dynamics problems in Engineering Mechanics

Force vectors

  • Forces represented as vectors with magnitude and direction
  • Net force calculated through vector addition of all individual forces
  • Components of force vectors often expressed in Cartesian coordinates (i, j, k)
  • Vector form allows for easy decomposition and analysis of forces in 3D space

Momentum formulation

  • Linear momentum defined as the product of mass and velocity: p⃗=mv⃗\vec{p} = m\vec{v}
  • Newton's second law expressed in terms of momentum: F⃗=dp⃗dt\vec{F} = \frac{d\vec{p}}{dt}
  • Useful for analyzing systems with varying mass (rockets, conveyor belts)
  • Conservation of momentum principle derived from this formulation

Impulse and change in momentum

  • Impulse defined as the time integral of force: J⃗=∫F⃗dt\vec{J} = \int \vec{F} dt
  • Impulse-momentum theorem: J⃗=Δp⃗\vec{J} = \Delta\vec{p}
  • Relates the change in momentum to the applied impulse
  • Applicable in impact analysis and design of protective equipment (helmets)

Constraints and free-body diagrams

  • Essential tools for analyzing forces and motion in Engineering Mechanics - Dynamics
  • Help simplify complex systems by isolating individual components
  • Enable the application of Newton's laws to solve for unknown forces and accelerations

Identifying constraints

  • Constraints limit the motion of objects in a system
  • Types include smooth surfaces, rough surfaces, pins, and rigid connections
  • Proper identification crucial for determining reaction forces and allowable motions
  • Examples include wheels on a track, hinged joints, and sliding contacts

Drawing free-body diagrams

  • Graphical representation of all forces acting on an isolated object
  • Include known forces, unknown reactions, and the object's weight
  • Indicate coordinate systems and positive directions for analysis
  • Crucial step in solving dynamics problems using Newton's laws

Constraint forces and moments

  • Reaction forces arise from constraints to maintain specified motion
  • Normal forces perpendicular to surfaces prevent penetration
  • Friction forces parallel to surfaces resist relative motion
  • Moments (couples) result from force pairs acting on rigid bodies
  • Constraint equations derived from the nature of connections (pin joints, sliding contacts)

Applications of Newton's laws

  • Newton's laws form the foundation for solving diverse problems in Engineering Mechanics - Dynamics
  • Enable engineers to analyze and predict motion in various mechanical systems
  • Critical for designing safe and efficient structures, vehicles, and machines

Particle dynamics

  • Analysis of objects treated as point masses with negligible size
  • Applicable to problems involving projectile motion, orbital mechanics, and vibrations
  • Equations of motion derived from Newton's second law: ∑F⃗=ma⃗\sum \vec{F} = m\vec{a}
  • Examples include modeling the motion of satellites, analyzing particle collisions

Rigid body dynamics

  • Study of motion for objects with fixed shape and size
  • Incorporates rotational motion and moments of inertia
  • Newton-Euler equations describe translational and rotational motion
  • Applications in robotics, vehicle dynamics, and mechanism design

Multi-body systems

  • Analysis of interconnected rigid bodies or particles
  • Utilizes constraint equations to model joints and connections
  • Requires simultaneous solution of multiple equations of motion
  • Examples include biomechanics, spacecraft dynamics, and complex machinery

Limitations of Newton's laws

  • Understanding the boundaries of Newtonian mechanics crucial for engineers
  • Awareness of limitations ensures appropriate application in Engineering Mechanics - Dynamics
  • Highlights the need for advanced theories in certain scenarios

Non-inertial reference frames

  • Newton's laws do not directly apply in accelerating or rotating frames
  • Fictitious forces (Coriolis, centrifugal) must be introduced for analysis
  • Earth's rotation affects long-range projectiles and large-scale fluid motion
  • Requires careful consideration in the design of rotating machinery and global navigation systems

Relativistic effects

  • Newton's laws break down at velocities approaching the speed of light
  • Special relativity introduces corrections for high-speed dynamics
  • Mass increases with velocity, affecting momentum and energy calculations
  • Relevant in particle accelerators and space exploration

Quantum mechanics considerations

  • Newton's laws fail at atomic and subatomic scales
  • Quantum mechanics governs behavior of particles at these scales
  • Heisenberg uncertainty principle limits simultaneous knowledge of position and momentum
  • Impacts nanotechnology and semiconductor device physics

Numerical methods

  • Essential tools for solving complex dynamics problems in Engineering Mechanics
  • Enable analysis of systems too complicated for analytical solutions
  • Provide approximate solutions with controllable accuracy

Euler's method

  • Simple first-order numerical integration technique
  • Approximates solution by taking small time steps
  • Update rule: xn+1=xn+vnΔt,vn+1=vn+anΔtx_{n+1} = x_n + v_n \Delta t, \quad v_{n+1} = v_n + a_n \Delta t
  • Prone to accumulating errors over long time intervals
  • Useful for quick estimates and understanding basic numerical integration concepts

Runge-Kutta methods

  • Family of higher-order numerical integration techniques
  • Fourth-order Runge-Kutta (RK4) widely used in engineering applications
  • Provides improved accuracy compared to Euler's method
  • Involves multiple evaluations of derivatives per time step
  • Suitable for solving ordinary differential equations in dynamics problems

Verlet integration

  • Commonly used in molecular dynamics simulations
  • Provides good energy conservation properties
  • Basic velocity Verlet algorithm: xn+1=xn+vnΔt+12anΔt2x_{n+1} = x_n + v_n \Delta t + \frac{1}{2} a_n \Delta t^2 vn+1=vn+12(an+an+1)Δtv_{n+1} = v_n + \frac{1}{2}(a_n + a_{n+1}) \Delta t
  • Particularly effective for simulating conservative systems

Experimental validation

  • Critical for verifying theoretical models and numerical simulations in Engineering Mechanics - Dynamics
  • Ensures the accuracy and reliability of dynamic analysis in real-world applications
  • Provides insights into system behavior and helps refine analytical methods

Force measurement techniques

  • Load cells utilize strain gauges to measure applied forces
  • Piezoelectric sensors convert force into electrical signals
  • Force plates measure ground reaction forces in biomechanics studies
  • Calibration procedures ensure accurate force measurements
  • Considerations for dynamic loading and frequency response

Acceleration measurement

  • Accelerometers based on various principles (piezoelectric, capacitive, MEMS)
  • Proper mounting and signal conditioning crucial for accurate measurements
  • High-speed cameras and motion capture systems for visual acceleration analysis
  • Inertial measurement units (IMUs) combine accelerometers and gyroscopes
  • Applications in vibration analysis, impact testing, and vehicle dynamics

Error analysis and uncertainty

  • Identification and quantification of error sources in measurements
  • Statistical methods for analyzing experimental data (standard deviation, confidence intervals)
  • Propagation of uncertainties through calculations
  • Comparison of experimental results with theoretical predictions
  • Importance of repeatability and reproducibility in dynamic testing

Key Terms to Review (20)

Acceleration (m/s²): Acceleration is defined as the rate of change of velocity of an object with respect to time, measured in meters per second squared (m/s²). It indicates how quickly an object is speeding up, slowing down, or changing direction. This concept is crucial in understanding how forces affect motion and is directly linked to the fundamental principles of motion that describe the behavior of objects under various forces.
Action-reaction pair: An action-reaction pair refers to a set of forces that arise in interactions between two objects, where one object exerts a force on the second object and the second object exerts an equal and opposite force back on the first object. This concept is a fundamental aspect of Newton's third law of motion, emphasizing that forces always occur in pairs, and highlights the idea that interactions are mutual and interdependent, not isolated events.
Equilibrium: Equilibrium refers to a state in which all the forces acting on an object are balanced, resulting in no net force and no acceleration. In this state, an object at rest remains at rest, and an object in motion continues to move at a constant velocity. This concept is crucial as it establishes the conditions under which objects can maintain their state of motion without change, forming the foundation of Newton's laws of motion.
First Law of Motion: The First Law of Motion, also known as the Law of Inertia, states that an object at rest will remain at rest, and an object in motion will continue in motion with the same speed and in the same direction unless acted upon by a net external force. This law introduces the concept of inertia, which describes an object's resistance to changes in its state of motion. It lays the groundwork for understanding how forces interact with objects and sets the stage for further exploration of dynamics.
Force (n): Force is a vector quantity that represents an interaction capable of causing an object to change its velocity, which includes starting, stopping, or changing direction. It is typically measured in newtons (N) and is a fundamental concept in understanding motion, as it directly relates to the behavior of objects according to established physical laws.
Free-body diagram: A free-body diagram is a graphical representation that shows all the external forces acting on an isolated body. It is essential for visualizing the mechanics of a system, helping to apply fundamental principles like Newton's laws to analyze motion. By simplifying complex scenarios into clearer visuals, free-body diagrams serve as a critical tool in understanding interactions, equilibrium, and motion of rigid bodies under various forces.
Galileo Galilei: Galileo Galilei was an Italian astronomer, physicist, and mathematician, often referred to as the father of modern science. He made groundbreaking contributions to the understanding of motion and the scientific method, which laid the foundation for Newton's laws of motion and advanced the study of physics and astronomy.
Inertia: Inertia is the property of matter that causes it to resist any change in its state of motion, whether that be at rest or in motion. It is a fundamental concept in understanding how forces affect the motion of objects. This resistance depends on the mass of an object; more massive objects exhibit greater inertia and require a larger force to change their motion compared to lighter objects.
Isaac Newton: Isaac Newton was a pivotal figure in the scientific revolution, best known for formulating the laws of motion and universal gravitation. His contributions laid the groundwork for classical mechanics, connecting various concepts such as force, mass, and motion, and influencing fields ranging from astronomy to engineering dynamics.
Kinetic Friction: Kinetic friction is the force that opposes the motion of two surfaces sliding past each other. This frictional force acts when an object is already in motion, playing a crucial role in determining the dynamics of moving bodies, as it interacts with Newton's laws of motion to affect acceleration and velocity. Understanding kinetic friction is vital in analyzing how energy is transferred and transformed within a system, particularly when considering kinetic energy and the work done against frictional forces.
Linear Acceleration: Linear acceleration is the rate of change of velocity of an object moving along a straight path. It quantifies how quickly an object's speed increases or decreases and is a key concept in understanding motion, as it relates directly to the forces acting upon an object, as described by Newton's laws of motion. The relationship between force, mass, and acceleration helps in predicting how an object will move when subjected to various forces.
Mass (kg): Mass is a measure of the amount of matter in an object, typically expressed in kilograms (kg). It is a fundamental property that influences how an object behaves under the influence of forces, as described by the laws of motion. Mass is not the same as weight, as it remains constant regardless of the object's location in the universe, while weight can change depending on gravitational forces acting on it.
Net Force: Net force is the overall force acting on an object when all individual forces are combined. It determines the motion of the object according to how it interacts with its environment, influencing acceleration, direction, and velocity. Understanding net force is crucial for analyzing different motions, whether in a straight line, in a plane, or during collisions, as it provides insight into how objects respond to applied forces and changes in motion.
Non-uniform motion: Non-uniform motion refers to the movement of an object where its velocity changes over time. This type of motion can be caused by variations in speed or direction, leading to acceleration or deceleration. Understanding non-uniform motion is crucial for analyzing forces acting on objects and predicting their future positions based on the principles of dynamics and the behavior of objects moving along straight paths.
Point mass: A point mass is an idealized object that has mass but occupies no volume, allowing it to be treated as a single point in space. This simplification makes calculations easier in dynamics, as it allows for the application of Newton's laws of motion without needing to consider the shape or size of the object. Point masses are commonly used in problems involving motion, forces, and collisions.
Second Law of Motion: The Second Law of Motion states that the acceleration of an object is directly proportional to the net force acting on it and inversely proportional to its mass. This means that if you apply a greater force to an object, it will accelerate more, and if the object is heavier, it will accelerate less for the same force. It is often expressed with the formula $$F = ma$$, where $$F$$ is the net force, $$m$$ is the mass, and $$a$$ is the acceleration.
Static Friction: Static friction is the force that resists the initiation of sliding motion between two surfaces that are in contact and at rest relative to each other. This type of friction plays a crucial role in understanding how objects remain stationary under applied forces, balancing them until they reach a threshold where motion begins. The amount of static friction can vary depending on the materials in contact and the normal force acting between them, making it a key concept in analyzing forces and motion.
System of particles: A system of particles refers to a collection of multiple interconnected particles that can be analyzed as a single entity in terms of their collective motion and interactions. This concept allows for the application of principles such as force, momentum, and energy conservation to understand the behavior of complex systems where individual particles may be influenced by both internal and external forces.
Third law of motion: The third law of motion states that for every action, there is an equal and opposite reaction. This means that whenever one object exerts a force on a second object, the second object exerts a force of equal magnitude but in the opposite direction on the first object. This principle explains how forces interact in pairs and is fundamental to understanding motion and dynamics in various physical systems.
Uniform Motion: Uniform motion is the movement of an object at a constant speed in a straight line. This means that the object travels equal distances in equal intervals of time, without changing its speed or direction. Understanding uniform motion is crucial for analyzing how forces act on an object and how it moves along a linear path.
© 2024 Fiveable Inc. All rights reserved.
AP® and SAT® are trademarks registered by the College Board, which is not affiliated with, and does not endorse this website.
Back
Glossary
Glossary
2.2 Equations of motion
