AP Bio Unit 3 Review: Cellular Energetics

  • 12–16% of AP multiple choice
  • 5 topics
  • AP exam review verified for 2027

Cellular energetics is the study of how cells capture energy from the environment, convert it into usable forms like ATP, and use that energy to maintain order and carry out life functions. Enzymes make reactions fast enough to sustain life, photosynthesis stores light energy in sugars, and cellular respiration releases that stored energy as ATP.

Fiveable's AP Biology Unit 3 review covers 7 topics, with guided practice questions for the unit.

start with 3.1start unit practiceReview with a tutorReal people, 24/7, from UPchieve. Free for eligible students.

AP Bio unit 3 topics

3.1

Enzymes

Enzymes are protein catalysts that lower activation energy. The active site binds a specific substrate to form an enzyme-substrate complex, and the induced-fit model explains how the active site adjusts to stabilize the transition state and speed up the reaction.

open guide
3.2

Environmental Impacts on Enzyme Function

Temperature, pH, substrate concentration, and inhibitors all affect enzyme activity. Conditions outside the optimal range disrupt hydrogen bonds and can denature the enzyme. Competitive inhibitors block the active site; noncompetitive inhibitors bind an allosteric site and change the active site's shape.

open guide
3.3

Cellular Energy

All living systems require continuous energy input to maintain order. Cells obey thermodynamic laws by coupling exergonic reactions to endergonic ones through ATP. Metabolic pathways are sequential, and core pathways like glycolysis and oxidative phosphorylation are conserved across all domains of life.

open guide
3.4

Photosynthesis

Photosynthesis uses CO2, H2O, and light to produce glucose and O2. Light reactions in the thylakoid membranes produce ATP and NADPH through photosystems I and II and chemiosmosis. The Calvin cycle in the stroma uses those products to fix CO2 into sugar.

open guide
3.5

Cellular Respiration

Cellular respiration breaks down macromolecules to produce ATP through glycolysis (cytosol), the Krebs cycle (mitochondrial matrix), and oxidative phosphorylation (inner mitochondrial membrane). The electron transport chain builds a proton gradient that drives ATP synthase. Fermentation allows ATP production without oxygen by regenerating NAD+.

open guide
guide

Cellular Respiration Review

AP Bio cellular respiration review: glycolysis, Krebs cycle, electron transport chain, chemiosmosis, ATP synthase, and fermentation, with locations, inputs, and outputs.

open guide

Practice AP Bio unit 3 questions

Try AP-style questions on unit 3, then use the review notes below for anything you miss.

AP Bio unit 3 stimulus-based MCQs

open all practice
bar_chart

Stimulus-based practice question

Chloroplast pH was measured in the thylakoid lumen and stroma after extended dark and light conditions.

Question

Which explanation best relates the data to chloroplast ATP production?

Light excites electrons that reduce NADP+ directly, so ATP production does not require a proton gradient.

Light acidifies the lumen relative to the stroma, supporting chemiosmotic ATP synthesis by ATP synthase.

Light-driven electron transport creates a proton gradient used mainly for water splitting rather than ATP synthesis.

Light energy is transferred directly to ATP synthase, allowing ADP phosphorylation without a proton gradient.

diagram

Stimulus-based practice question

A model of yeast metabolism shows glucose entering glycolysis to form pyruvate. ATP inhibits phosphofructokinase, AMP stimulates it, and without oxygen the electron transport chain stops, causing ATP to decrease and AMP to increase.

Question

Which of the following best explains the yeast response shown in the model?

The accumulation of ethanol stimulates the electron transport chain, increasing the rate of ATP synthesis.

The absence of oxygen directly activates Krebs cycle enzymes, increasing the rate of carbon oxidation.

The increase in AMP inhibits substrate-level phosphorylation, decreasing the rate of glycolysis.

The decrease in ATP relieves inhibition of glycolysis, increasing the rate of glucose consumption.

AP Bio unit 3 FRQs

open all FRQs
FRQ

Electron transport chain energy conversion and proton gradient formation

1. Cellular respiration is a metabolic process that organisms use to convert chemical energy from nutrients into adenosine triphosphate (ATP). The final stage of this process, oxidative phosphorylation, occurs in the mitochondria.

During oxidative phosphorylation, electrons are transferred through a series of protein complexes in the inner mitochondrial membrane, known as the electron transport chain (ETC). This electron transfer releases energy used to pump protons (H+) from the mitochondrial matrix into the intermembrane space, creating an electrochemical gradient. The enzyme ATP synthase then uses the energy stored in this gradient to synthesize ATP from ADP and inorganic phosphate.

Researchers investigated the effects of two newly identified compounds, Chemical A and Chemical B, on mitochondrial function. They isolated mitochondria from rat liver cells and suspended them in a buffer containing succinate (an electron donor) and ADP. The mitochondria were divided into three groups: one treated with a solvent control, one treated with Chemical A, and one treated with Chemical B. The researchers measured the rate of oxygen consumption for each group (Figure 1).

In a second experiment using the same experimental setup, the researchers measured the rate of ATP production for each of the three groups. The results are shown in Figure 2.

A.

Describe the function of the electron transport chain in cellular respiration.

Figure 1. Mean rate of oxygen consumption (nmol O2/min/mg protein) for isolated rat liver mitochondria in buffer with succinate and ADP under three treatments: solvent-only Control, Chemical A, and Chemical B. Error bars show plus and minus SEx for each mean.

Figure 1
B.
i.

Identify the dependent variable in the experiment shown in Figure 1.

ii.

Justify the researchers' decision to include a group treated with the solvent only (Control) rather than just comparing Chemical A and Chemical B.

iii.

Based on Figure 1, describe the effect of Chemical A on the rate of oxygen consumption compared to the Control.

Figure 2. Mean rate of ATP production (nmol ATP/min/mg protein) for isolated rat liver mitochondria in buffer with succinate and ADP under three treatments: solvent-only Control, Chemical A, and Chemical B. Error bars show plus and minus SEx for each mean.

Figure 2
C.
i.

Identify the independent variable in the experiment shown in Figure 2.

ii.

Based on Figure 2, identify the treatment that resulted in the lowest rate of ATP production.

iii.

Using the mean data from Figure 1 and Figure 2, calculate the ratio of the rate of ATP production to the rate of oxygen consumption (ATP/O2) for the Control group.

D.
i.

Researchers claim that Chemical A inhibits the transfer of electrons between complexes in the electron transport chain. Using data from Figure 1, support the researchers' claim.

ii.

Researchers claim that Chemical B acts as an uncoupling agent, meaning it increases the permeability of the inner mitochondrial membrane to protons. Justify this claim based on your understanding of the relationship between the proton gradient and ATP synthesis.

FRQ

Proton gradient and ATP synthesis regulation

6. During oxidative phosphorylation, the electron transport chain pumps protons (H+) across the inner mitochondrial membrane to create an electrochemical gradient. This gradient powers ATP synthase to produce ATP from ADP and inorganic phosphate.

Scientists investigated the mechanism of action of a chemical called oligomycin. They isolated mitochondria and incubated them in a solution containing NADH, ADP, and inorganic phosphate. One group of mitochondria was treated with oligomycin, while the other group served as a control. After 10 minutes, the scientists measured the magnitude of the proton gradient across the inner mitochondrial membrane (Figure 1A) and the rate of ATP synthesis (Figure 1B).

Figure 1. Measurements taken after 10 minutes of incubation. (A) Relative magnitude of the proton gradient across the inner mitochondrial membrane and (B) rate of ATP synthesis in isolated mitochondria under two treatments: Control vs Oligomycin.

Figure 1
A.

Based on Figure 1A, identify the treatment that results in a greater accumulation of protons in the intermembrane space.

B.

Based on Figure 1B, describe the difference in ATP synthesis between the control and oligomycin-treated mitochondria.

C.

Scientists hypothesize that oligomycin inhibits ATP synthase directly rather than inhibiting the electron transport chain. Use the data in Figures 1A and 1B to support the scientists' hypothesis.

D.

Based on the function of ATP synthase in the electron transport chain, explain why the proton gradient observed in Figure 1A differs between the two treatments.

FRQ

Temperature effects on yeast cellular respiration rates

3. Yeast (Saccharomyces cerevisiae) are single-celled eukaryotic fungi that can generate ATP through aerobic cellular respiration or fermentation, depending on the availability of oxygen. These metabolic processes rely on a series of enzyme-catalyzed reactions to break down organic molecules.

Scientists conducted an experiment to investigate the effect of temperature on the rate of cellular respiration in yeast. They prepared five respirometers, each containing an identical mixture of yeast suspension and a 5% glucose solution. The respirometers were incubated in water baths at five different temperatures: 10∘C10^\circ\text{C}, 20∘C20^\circ\text{C}, 30∘C30^\circ\text{C}, 50∘C50^\circ\text{C}, and 70∘C70^\circ\text{C}.

The scientists measured the volume of carbon dioxide (CO2CO_2) gas produced in each respirometer every 5 minutes for a total of 30 minutes to determine the rate of respiration.

A.

Describe the specific role of oxygen (O2O_2) in the electron transport chain during aerobic cellular respiration.

B.

Identify a negative control treatment the scientists could include in this experiment to verify that the CO2CO_2 production is due to the metabolism of glucose by the yeast.

C.

Predict how the rate of CO₂ production will change across the five temperature treatments (10°C, 20°C, 30°C, 50°C, and 70°C). Include the expected pattern and identify which temperature(s) would produce the highest and lowest rates of respiration.

D.

The scientists then analyze the CO₂ production data from the temperature treatments. Justify your prediction from part (C) by explaining how temperature affects enzyme structure and catalytic activity in yeast cells.

AP Bio unit 3 practice test

A timed, AP-style test built only from unit 3 questions — multiple choice plus free response, scored with AI feedback. Use the standard format or build your own.

Take the unit 3 practice test

Unit 3 review notes

3.1

Enzyme Structure and Function

Enzymes are proteins that lower the activation energy of chemical reactions without being consumed. The active site is a three-dimensional pocket whose shape and charge are complementary to a specific substrate. When the substrate binds, an enzyme-substrate complex forms. The induced-fit model describes how the active site flexes slightly to better accommodate the substrate, stabilizing the transition state and accelerating the reaction.

  • Activation energy: The minimum energy needed to start a reaction; enzymes lower this barrier, increasing reaction rate.
  • Active site: The specific region of an enzyme where the substrate binds; its shape and charge determine substrate specificity.
  • Enzyme-substrate complex: The temporary structure formed when substrate binds to the active site, enabling the reaction to proceed.
  • Induced fit: The active site changes shape slightly upon substrate binding to better stabilize the transition state.
  • Substrate specificity: Only substrates with the correct shape and charge can bind the active site, making each enzyme specific to its reaction.

Can you explain why changing one amino acid in the active site could eliminate enzyme function, and how that connects to protein structure from Unit 1?

3.2

Environmental Impacts on Enzyme Function

Enzyme activity depends on temperature, pH, and the concentrations of substrates, products, and inhibitors. Each enzyme has an optimal temperature and pH at which its active site shape is maintained. Outside that range, hydrogen bonds and other weak interactions that hold the enzyme's tertiary structure are disrupted, causing denaturation. In some cases denaturation is reversible; in others it is permanent. Competitive inhibitors bind the active site reversibly, while noncompetitive inhibitors bind an allosteric site and change the active site's shape without competing for it.

  • Denaturation: Loss of an enzyme's 3D structure due to extreme temperature, pH, or chemical conditions, eliminating catalytic activity.
  • Competitive inhibition: An inhibitor molecule resembles the substrate and binds reversibly to the active site, blocking substrate access.
  • Allosteric regulation: A molecule binds a site other than the active site, causing a conformational change that increases or decreases enzyme activity.
  • Collision frequency: Higher temperatures increase molecular movement and enzyme-substrate collisions, raising reaction rate up to the optimal temperature.
  • Substrate concentration: Increasing substrate concentration raises reaction rate until the enzyme is saturated; product accumulation can slow the reaction.

Given a graph of enzyme activity vs. temperature, can you identify the optimal temperature, explain what happens above it, and distinguish that from competitive inhibition?

FeatureCompetitive InhibitionNoncompetitive Inhibition
Binding siteActive siteAllosteric site
Effect on active site shapeBlocks access; shape unchangedChanges active site shape
ReversibilityReversibleCan be reversible or irreversible
Overcome by excess substrate?YesNo
Example contextDrug mimics substrateFeedback inhibition in metabolic pathways
3.3

Cellular Energy and Thermodynamics

All living systems require a continuous input of energy to maintain order. Life obeys the first law of thermodynamics (energy is conserved) and the second law (entropy increases in isolated systems). Cells counteract entropy by coupling exergonic reactions (like ATP hydrolysis) to endergonic reactions (like biosynthesis). Metabolic pathways are sequential: the product of one reaction is the substrate for the next, allowing controlled, stepwise energy transfer. Core pathways like glycolysis and oxidative phosphorylation are conserved across all three domains of life, which is evidence for common ancestry.

  • Coupled reactions: An exergonic reaction releases energy that directly powers an endergonic reaction, as when ATP hydrolysis drives active transport.
  • ATP hydrolysis: Breaking ATP into ADP and inorganic phosphate releases energy used to power cellular work.
  • Metabolic pathways: Sequential enzyme-catalyzed reactions where each product becomes the next substrate, allowing controlled energy transfer.
  • First law of thermodynamics: Energy cannot be created or destroyed; cells transform energy from one form to another.
  • Entropy: Disorder increases spontaneously; cells must use energy input to maintain their organized, low-entropy state.

Why must energy input exceed energy loss for a cell to survive, and how does ATP coupling make otherwise unfavorable reactions possible?

3.4

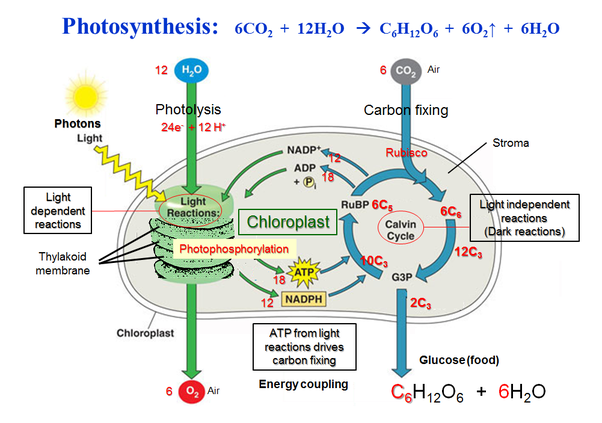

Photosynthesis

Photosynthesis occurs in two stages inside the chloroplast. The light-dependent reactions take place in the thylakoid membranes: photosystem II absorbs light and splits water (releasing O2 and electrons), electrons pass through an electron transport chain to photosystem I, and NADP+ is reduced to NADPH. The proton gradient built across the thylakoid membrane drives ATP synthesis through ATP synthase via chemiosmosis. The Calvin cycle in the stroma uses ATP and NADPH to fix CO2 into G3P, which can be used to build glucose. Photosynthesis first evolved in prokaryotes (cyanobacteria), whose oxygenic photosynthesis produced Earth's oxygenated atmosphere and whose pathways became the foundation of eukaryotic photosynthesis.

  • Light-dependent reactions: Occur in thylakoid membranes; use light energy to split water, produce ATP and NADPH, and release O2.
  • Photosystem II: Absorbs light at 680 nm, splits water to replace lost electrons, and passes electrons into the ETC.
  • Photosystem I: Absorbs light at 700 nm, re-energizes electrons, and reduces NADP+ to NADPH.
  • Chemiosmosis: Protons flow down their gradient through ATP synthase in the thylakoid membrane, powering ATP synthesis.
  • Carbon fixation: In the Calvin cycle, CO2 is incorporated into organic molecules using ATP and NADPH produced by the light reactions.

Trace an electron from water through photosystem II, the ETC, and photosystem I to NADPH. Then explain how the proton gradient produced along the way drives ATP synthesis.

FeatureLight ReactionsCalvin Cycle
LocationThylakoid membranesStroma
InputsH2O, light, ADP, NADP+CO2, ATP, NADPH
OutputsATP, NADPH, O2G3P (sugar precursor), ADP, NADP+
Energy conversionLight to chemical (ATP, NADPH)Chemical to stored carbon bonds
3.5

Cellular Respiration

Aerobic cellular respiration extracts energy from glucose and other macromolecules in three connected stages. Glycolysis in the cytosol converts glucose to two pyruvate molecules, yielding 2 ATP and 2 NADH. Pyruvate is transported into the mitochondrial matrix, oxidized to acetyl-CoA (releasing CO2), and fed into the Krebs cycle, which produces NADH, FADH2, ATP, and CO2 per turn. NADH and FADH2 deliver electrons to the electron transport chain in the inner mitochondrial membrane; as electrons pass through protein complexes to the final electron acceptor (O2), protons are pumped into the intermembrane space. This proton gradient drives ATP synthesis through ATP synthase via chemiosmosis, producing the majority of ATP. When oxygen is unavailable, fermentation regenerates NAD+ so glycolysis can continue, producing lactic acid or ethanol as byproducts.

  • Glycolysis: Cytosolic pathway that splits glucose into two pyruvate molecules, producing 2 ATP and 2 NADH net.
  • Krebs cycle: Occurs in the mitochondrial matrix; oxidizes acetyl-CoA, releasing CO2 and producing NADH, FADH2, and ATP.
  • Electron transport chain: Protein complexes in the inner mitochondrial membrane that pass electrons from NADH and FADH2 to O2, pumping protons to build a gradient.
  • Oxidative phosphorylation: ATP synthesis driven by the proton gradient across the inner mitochondrial membrane through ATP synthase.
  • Fermentation: Anaerobic process that regenerates NAD+ from NADH, allowing glycolysis to continue; produces lactic acid or ethanol.

Starting from glucose, identify where each stage of cellular respiration occurs, what electron carriers are produced, and how the ETC converts that electron flow into ATP.

StageLocationKey InputsKey OutputsATP produced
GlycolysisCytosolGlucose, NAD+, ADPPyruvate, NADH2 net
Pyruvate oxidationMitochondrial matrixPyruvate, NAD+Acetyl-CoA, NADH, CO20
Krebs cycleMitochondrial matrixAcetyl-CoA, NAD+, FADNADH, FADH2, CO22 per glucose
Oxidative phosphorylationInner mitochondrial membraneNADH, FADH2, O2H2O, ATP~28-32

Key terms

TermDefinition
Activation EnergyThe minimum energy required to start a chemical reaction; enzymes lower this barrier to speed up biological reactions.
Active SiteThe specific region on an enzyme where the substrate binds; its shape and charge determine which substrates the enzyme can catalyze.
Enzyme-Substrate ComplexThe temporary structure formed when a substrate binds to an enzyme's active site, enabling the reaction to proceed.
induced fitA model of enzyme-substrate interaction in which the active site adjusts its shape upon substrate binding to better stabilize the transition state.
DenaturationLoss of a protein's 3D structure due to disruption of hydrogen bonds by extreme temperature, pH, or chemical conditions, eliminating enzyme function.
Allosteric RegulationA molecule binds a site other than the active site, causing a shape change that increases or decreases enzyme activity.
coupled reactionsCellular processes in which energy released by an exergonic reaction (such as ATP hydrolysis) powers an endergonic reaction.
ATPThe primary energy currency of cells; stores and transfers chemical energy through its phosphate bonds to power cellular processes.
ChemiosmosisMovement of protons down their electrochemical gradient through ATP synthase to generate ATP; occurs in both mitochondria and chloroplasts.
Light-Dependent ReactionsReactions in the thylakoid membranes that use light energy to split water, produce ATP and NADPH, and release O2.
Carbon FixationThe Calvin cycle process in which CO2 is incorporated into organic molecules using ATP and NADPH from the light reactions.
GlycolysisCytosolic pathway that converts glucose into two pyruvate molecules, producing a net gain of 2 ATP and 2 NADH.
Krebs CycleMetabolic pathway in the mitochondrial matrix that oxidizes acetyl-CoA, releasing CO2 and producing NADH, FADH2, and ATP.
Electron Transport ChainProtein complexes in the inner mitochondrial membrane (or thylakoid membrane) that transfer electrons through redox reactions, building a proton gradient for ATP synthesis.
FermentationAnaerobic process that regenerates NAD+ from NADH so glycolysis can continue, producing lactic acid or ethanol as byproducts.

How to review unit 3

Topics students miss most

Miss rates come from Fiveable multiple-choice practice.

3.5
38%9,971 tries
3.3
36%7,574 tries
3.4
34%9,173 tries

Mistakes to avoid in Cellular Energetics

Confusing enzyme denaturation with inhibition

Denaturation permanently (or in some cases reversibly) destroys the enzyme's 3D structure. Inhibition, whether competitive or noncompetitive, does not destroy the enzyme; it temporarily reduces activity. Do not say an inhibitor denatures the enzyme.

Mixing up where each stage of respiration occurs

Glycolysis is in the cytosol, not the mitochondrion. The Krebs cycle is in the mitochondrial matrix. The electron transport chain and ATP synthase are in the inner mitochondrial membrane. Getting locations wrong on free-response questions costs points.

Thinking plants only photosynthesize and do not respire

Plants carry out both photosynthesis and cellular respiration. Respiration and fermentation are characteristic of all forms of life, including plants. Do not write that plants get energy only from photosynthesis.

Reversing the direction of the proton gradient

In the thylakoid, protons accumulate inside the thylakoid lumen (high concentration) and flow out through ATP synthase. In the mitochondrion, protons accumulate in the intermembrane space and flow into the matrix. Students often flip these directions.

Treating the Calvin cycle as a light-independent process that runs in the dark

The Calvin cycle does not require light directly, but it depends on ATP and NADPH from the light reactions. Without ongoing light reactions, the Calvin cycle stops because it runs out of ATP and NADPH.

Cellular Energetics on the AP exam

Experimental design and data interpretation

AP Bio frequently presents experimental data on enzyme activity, such as graphs of reaction rate vs. temperature, pH, or inhibitor concentration, and asks you to explain the results using molecular mechanisms. Practice connecting a change in conditions to a specific structural effect on the active site, then to the observed change in reaction rate.

Tracing inputs, outputs, and locations across metabolic pathways

Questions often ask you to identify where a specific molecule is produced or consumed, or to predict what happens to ATP yield when a step is blocked. Be ready to explain how disrupting the ETC, removing oxygen, or inhibiting ATP synthase affects the entire respiration sequence, and how analogous disruptions affect photosynthesis.

Connecting structure to function in organelles

The structural features of the chloroplast (thylakoid membranes, stroma) and mitochondrion (inner membrane, cristae, matrix, intermembrane space) are directly tied to where and how each reaction occurs. Exam tasks often ask you to explain why a structural feature, such as the folded cristae increasing surface area, supports a specific function.

Study unit 3 other ways

Unit 3 printables

Print the unit cheatsheets ($3) or unit exams ($5) for Unit 3. Yours to keep, no subscription needed.

get printables

Frequently Asked Questions

What's on the AP Bio Unit 3 progress check (MCQ and FRQ)?

The AP Bio Unit 3 progress check includes MCQ and FRQ parts that draw from all 5 topics in the unit: enzyme structure and function, how environmental factors like temperature and pH affect enzymes, cellular energy and ATP, photosynthesis, and cellular respiration. MCQ questions often ask you to interpret graphs of enzyme activity or metabolic rates. FRQ prompts typically ask you to predict what happens when a variable changes in photosynthesis or cellular respiration and explain the mechanism behind it. For practice questions matched to each progress check topic, visit AP Bio Unit 3.

How do I practice AP Bio Unit 3 FRQs?

AP Bio Unit 3 FRQs most often focus on photosynthesis, cellular respiration, and enzyme function because these topics require you to explain mechanisms, analyze experimental data, and predict outcomes, which is exactly what free-response questions test. A typical prompt might give you a graph of oxygen production in plants and ask you to connect it to the light-dependent reactions or the Calvin cycle. To practice, write out full explanations using the correct vocabulary (ATP, glycolysis, Krebs cycle, substrate concentration) and then check your reasoning against the scoring criteria. You can find FRQ-style practice at AP Bio Unit 3.

How should I study AP Bio Unit 3?

Start AP Bio Unit 3 by building a strong foundation in enzyme function (topics 3.1 and 3.2) before moving into photosynthesis and cellular respiration, since enzymes drive both pathways. For photosynthesis, map out the two stages separately: light-dependent reactions and the Calvin cycle, with their inputs and outputs. For cellular respiration, trace glucose through glycolysis, the Krebs cycle, and oxidative phosphorylation, tracking ATP yield at each stage. A few concrete steps that help:
- Draw the pathways from memory, then check your diagram against your notes.
- Practice interpreting graphs of enzyme activity, oxygen production, and CO2 output.
- Write out short explanations of what happens when a variable changes (temperature, pH, light intensity) to prep for FRQs.
- Do topic-by-topic MCQs to confirm your understanding before a full practice test. Visit AP Bio Unit 3 for organized practice resources for each topic.

Ready to review Unit 3?Start with the notes, check the topic cards, and use the practice or resource links when they are available for this course.
