Photosynthesis in AP Biology

In AP Biology, photosynthesis is the set of reactions that uses $CO_2$ , $H_2O$ , and light energy to make carbohydrates and $O_2$ . The light reactions happen in the thylakoid membranes, where chlorophyll absorbs light, water is split, electrons move through an ETC, and chemiosmosis makes ATP. The Calvin cycle happens in the stroma, where ATP and NADPH help build carbohydrates from $CO_2$ .

The exam focuses on inputs, outputs, locations, energy transfer, and structure-function connections. You do not need to memorize every Calvin cycle intermediate, but you do need to explain how chloroplast structure supports energy capture and storage.

more resources to help you study

practice multiple choice FRQ practice & scoring cheatsheets score calculator key terms

Why This Matters for the AP Biology Exam

Photosynthesis is one of the metabolic pathways you need to understand at the level of inputs, outputs, and where each step happens, not just memorized facts. On the AP Biology exam, you can expect to connect chloroplast structure to function, trace energy and electrons through the light reactions, and explain how the proton gradient drives ATP synthesis through chemiosmosis. You may also analyze data or diagrams about photosynthesis, predict how environmental changes affect the process, and write evidence-based responses that connect photosynthesis to energy flow and carbon transfer in ecosystems.

A big idea here is structure and function: the layout of the chloroplast directly supports how energy gets captured and stored. You should also be ready to use photosynthesis as evidence for common ancestry, since the same electron transport and chemiosmosis logic shows up in chloroplasts, mitochondria, and prokaryotes.

Key Takeaways

Photosynthesis turns carbon dioxide, water, and light energy into carbohydrates and oxygen; the overall reaction is $6CO_2+6H_2O+\text{light energy}\rightarrow C_6H_{12}O_6+6O_2$ .
The light reactions happen in the thylakoid membranes (grana) and produce ATP and NADPH; the Calvin cycle happens in the stroma and uses those products to fix carbon.
Splitting water in photosystem II replaces lost electrons and releases oxygen as a byproduct.
A proton gradient across the thylakoid membrane powers ATP synthase, and protons flowing back through it drive ATP formation by chemiosmosis (photophosphorylation).
Photosynthesis first evolved in prokaryotes, and cyanobacterial photosynthesis produced Earth's oxygenated atmosphere.
Electron transport chains and chemiosmosis are shared across chloroplasts, mitochondria, and prokaryotic membranes, which supports common ancestry.

What Photosynthesis Does

Photosynthesis is the series of reactions that use carbon dioxide ( $CO_2$ ), water ( $H_2O$ ), and light energy to make carbohydrates and oxygen ( $O_2$ ). Photosynthetic organisms capture energy from the sun and produce sugars they can use right away or store for later.

The overall equation for photosynthesis is:

$6CO_2+6H_2O+\text{light energy}\rightarrow C_6H_{12}O_6+6O_2$

This process matters because it captures light energy and stores it in chemical bonds, supplies the oxygen many organisms use, and forms the base of most food chains.

The Chloroplast and Its Structure

Photosynthesis occurs in organelles called chloroplasts. The way a chloroplast is built directly supports how it captures and stores energy.

Stroma

The fluid inside the inner chloroplast membrane and outside the thylakoid
Where the Calvin cycle (carbon fixation) reactions occur

Thylakoid membranes

Contain chlorophyll pigments organized into two photosystems (I and II)
Contain electron transport proteins
Where the light reactions occur

Grana

Stacks of thylakoids
The light reactions of photosynthesis take place here

The Light Reactions (in the Thylakoids)

The light reactions capture energy from light and convert it into chemical energy stored as ATP and NADPH.

1. Light absorption

Chlorophylls in photosystems I and II absorb light energy.
This boosts electrons to a higher energy level.

2. Water splitting (photolysis)

Water splits to supply electrons that replace those lost from photosystem II.
This releases oxygen.

3. Electron transport chain

Excited electrons pass through an electron transport chain in the thylakoid membrane.
As electrons move through a series of oxidation-reduction reactions, energy is released and used to move protons ( $H^+$ ) across the thylakoid membrane.
This builds a region of high proton concentration inside the thylakoid and low proton concentration outside it (in the stroma).
These electron transport chain reactions are not unique to photosynthesis; they also occur in mitochondria and across prokaryotic plasma membranes.

4. NADPH formation

Electrons that pass through the thylakoid membrane are ultimately transferred to $NADP^+$ , reducing it to NADPH in photosystem I.
NADPH carries high-energy electrons to the Calvin cycle.

5. ATP synthesis (photophosphorylation)

The proton gradient stores potential energy.
Protons flow back through ATP synthase by chemiosmosis, driving the formation of ATP from ADP and inorganic phosphate.
This is called photophosphorylation.

The Calvin Cycle (in the Stroma)

The Calvin cycle uses the ATP and NADPH made in the light reactions to build carbohydrates from carbon dioxide.

Occurs in the stroma of the chloroplast
Uses $CO_2$ as the carbon source
Powered by ATP and NADPH from the light reactions
Produces carbohydrates through a series of reactions

You do not need to memorize the individual steps of the Calvin cycle, the structures of the molecules, or the enzyme names (ATP synthase is the exception). Focus on what goes in, what comes out, and where it happens.

Why Photosynthesis Matters Evolutionarily

Photosynthesis has shaped life and Earth itself.

Ancient origins

Photosynthesis first evolved in prokaryotic organisms.

Oxygenated atmosphere

Scientific evidence supports the claim that prokaryotic (cyanobacterial) photosynthesis was responsible for producing Earth's oxygenated atmosphere.

Foundation for eukaryotes

Prokaryotic photosynthetic pathways were the foundation of eukaryotic photosynthesis.

Example application: many scientists describe chloroplasts as having originated from ancient cyanobacteria through endosymbiosis, which is one explanation for why chloroplasts contain their own DNA. Treat this as a connection you can make, not a required detail for this topic.

Photosynthesis and Cellular Respiration

These two processes complement each other. Both rely on electron transport chains and chemiosmosis, which is part of why they appear together in this unit.

Photosynthesis	Cellular Respiration
Occurs in chloroplasts	Occurs in mitochondria
Uses $CO_2$ and $H_2O$	Produces $CO_2$ and $H_2O$
Produces carbohydrates and $O_2$	Uses glucose and $O_2$
Stores energy	Releases energy
Builds molecules	Breaks down molecules

How to Use This on the AP Biology Exam

Multiple Choice

Match each stage to its location: light reactions in the thylakoid membranes (grana), Calvin cycle in the stroma.
Know the inputs and outputs. Light reactions take in light, water, ADP, and $NADP^+$ and produce ATP, NADPH, and $O_2$ . The Calvin cycle takes in $CO_2$ , ATP, and NADPH and produces carbohydrates.
Be ready to identify where the proton gradient is highest (inside the thylakoid) and how protons move through ATP synthase.

Data and Diagrams

You may be asked to read a chloroplast diagram and label or describe where each process occurs.

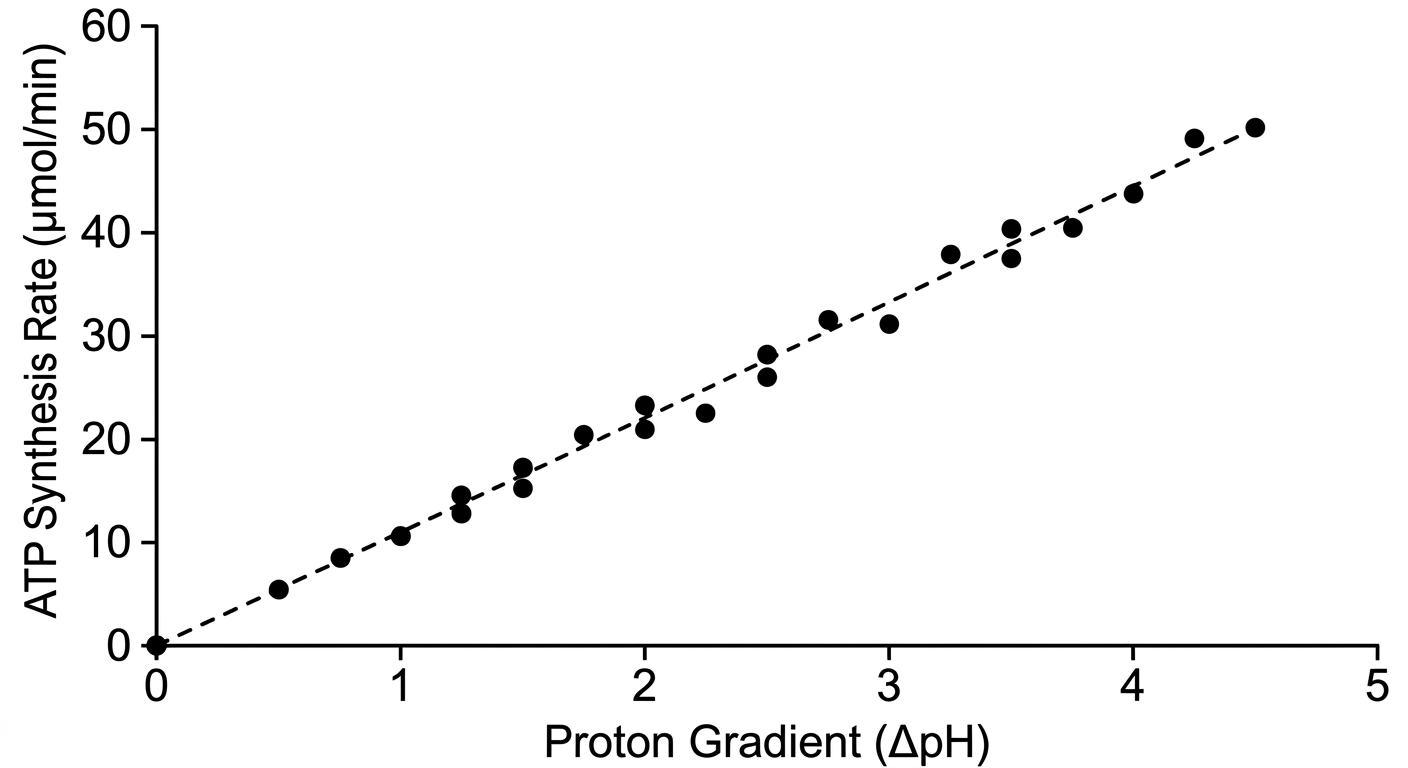

If you see absorption or action spectrum data, connect pigment light absorption to the rate of photosynthesis.
When given experimental data, predict how a change (less light, less $CO_2$ , less water) would affect ATP, NADPH, oxygen, or carbohydrate output.

Written Responses

Practice explaining how the structure of the chloroplast supports its function in capturing and storing energy.
Trace the path of electrons from water through photosystem II, the electron transport chain, and photosystem I to $NADP^+$ .
Connect evidence to a claim: use shared electron transport and chemiosmosis across chloroplasts, mitochondria, and prokaryotes as support for common ancestry.

Common Trap

Do not waste time naming Calvin cycle enzymes or intermediates. That level of detail is outside what you are tested on, except for ATP synthase.

Common Misconceptions

"Only plants do photosynthesis." Photosynthesis first evolved in prokaryotes, and many prokaryotes (like cyanobacteria) are photosynthetic.
"Oxygen comes from carbon dioxide." The oxygen released comes from splitting water, not from $CO_2$ .
"The Calvin cycle is the dark reactions and never needs light." It does not use light directly, but it depends on the ATP and NADPH made in the light reactions, so it stops without them.
"ATP is made directly by electrons in the chain." The electron transport chain builds a proton gradient, and that gradient drives ATP synthase. ATP forms through chemiosmosis, not directly from the electrons.
"Photosynthesis and respiration are opposites that cancel out." They are complementary pathways that move energy and carbon in different directions and rely on similar electron transport and chemiosmosis machinery.
"You must memorize every step of the light reactions and Calvin cycle." You need the inputs, outputs, locations, and energy logic, not a memorized list of intermediates.

zed into stacks called grana. This is where chlorophyll absorbs light, water is split, electrons move through the ETC, and ATP and NADPH are produced.

Where does the Calvin cycle happen?

The Calvin cycle happens in the stroma, the fluid inside the chloroplast but outside the thylakoids. It uses $CO_2$ , ATP, and NADPH to build carbohydrates.

What are the inputs and outputs of photosynthesis?

The overall inputs are $CO_2$ , $H_2O$ , and light energy. The overall outputs are carbohydrates and $O_2$ . More specifically, the light reactions produce ATP, NADPH, and $O_2$ , while the Calvin cycle produces carbohydrates.

Why is chemiosmosis important in photosynthesis?

Chemiosmosis lets the proton gradient drive ATP synthase. In chloroplasts, protons build up inside the thylakoid, then flow back through ATP synthase to help make ATP.

Does oxygen come from carbon dioxide or water?

The oxygen released during photosynthesis comes from splitting water, not from carbon dioxide. Water supplies replacement electrons for photosystem II and releases $O_2$ as a byproduct.

Vocabulary

The following words are mentioned explicitly in the College Board Course and Exam Description for this topic.

Term	Definition
adenosine triphosphate	The primary energy currency of cells that powers cellular functions.
ADP	Adenosine diphosphate; a molecule that is phosphorylated to form ATP during oxidative phosphorylation.
ATP synthase	A membrane-bound enzyme that uses the proton gradient to drive the synthesis of ATP from ADP and inorganic phosphate.
Calvin cycle	The light-independent reactions of photosynthesis that use ATP and NADPH to produce carbohydrates from carbon dioxide in the stroma.
carbohydrates	Biological molecules composed of carbon, hydrogen, and oxygen that serve as a primary source of energy and structural support in living organisms.
carbon fixation	The process in the Calvin cycle that incorporates carbon dioxide into organic molecules.
chemiosmosis	The process by which the flow of protons across a membrane through ATP synthase drives ATP synthesis.
chlorophyll	A pigment in chloroplasts that absorbs light energy and transfers electrons to higher energy levels in photosystems.
chloroplast	An organelle in plant cells where photosynthesis occurs, containing thylakoids and stroma.
cyanobacteria	Prokaryotic photosynthetic organisms responsible for producing an oxygenated atmosphere through photosynthesis.
electrochemical gradient	The combined effect of the concentration gradient and electrical potential difference across a membrane that influences ion movement.
electron transport	A series of protein complexes in thylakoid membranes that transfer electrons and help generate ATP and NADPH during the light reactions.
electron transport chain	A series of protein complexes in membranes that transfer electrons and establish an electrochemical gradient to generate ATP during photosynthesis and cellular respiration.
grana	Stacks of thylakoid membranes organized within the chloroplast where light reactions of photosynthesis occur.
inorganic phosphate	A free phosphate group (Pi) that is added to ADP to form ATP during ATP synthesis.
light reactions	The light-dependent stage of photosynthesis that occurs in the thylakoid membrane and produces ATP and NADPH.
NADP⁺	An electron carrier molecule that accepts electrons during photosynthesis and is reduced to NADPH to carry energy for the Calvin cycle.
NADPH	The reduced form of NADP⁺ that carries electrons and energy from the light reactions to power the Calvin cycle.
oxidation/reduction reactions	Chemical reactions in which electrons are transferred between molecules, occurring in the electron transport chain during photosynthesis.
photophosphorylation	The synthesis of ATP from ADP and inorganic phosphate using energy from the proton gradient established during the light reactions of photosynthesis.
photosynthesis	The series of reactions that use carbon dioxide, water, and light energy to produce carbohydrates and oxygen, allowing organisms to capture and store energy from the sun.
photosystem	Organized complexes of chlorophyll pigments and proteins in thylakoid membranes that capture light energy during the light reactions.
photosystem I	A light-harvesting complex embedded in the thylakoid membrane that uses light energy to boost electrons to a higher energy level and reduce NADP⁺ to NADPH.
photosystem II	A light-harvesting complex embedded in the thylakoid membrane that uses light energy to boost electrons and splits water to replace lost electrons.
prokaryotic photosynthesis	Photosynthetic processes in prokaryotic organisms, particularly cyanobacteria, that were the evolutionary foundation for eukaryotic photosynthesis.
proton gradient	A difference in proton concentration across a membrane, with higher concentration on one side than the other.
stroma	The fluid-filled space inside the chloroplast where the Calvin cycle occurs.
thylakoid	Membrane structures within the chloroplast that contain chlorophyll pigments and electron transport proteins, where light reactions occur.
thylakoid membrane	The membrane system within chloroplasts where light-dependent reactions of photosynthesis occur, containing photosystems and electron transport chains.
water splitting	The photolysis of water molecules during photosystem II that releases electrons, protons, and oxygen.

Frequently Asked Questions

What is photosynthesis in AP Biology?

Photosynthesis is the process that uses CO2, H2O, and light energy to make carbohydrates and O2. In AP Bio, you focus on how chloroplast structures capture and store energy.

Where do the light reactions happen?

The light reactions happen in the thylakoid membranes, which are organized into stacks called grana. This is where chlorophyll absorbs light, water is split, electrons move through the ETC, and ATP and NADPH are produced.

Where does the Calvin cycle happen?

The Calvin cycle happens in the stroma, the fluid inside the chloroplast but outside the thylakoids. It uses CO2, ATP, and NADPH to build carbohydrates.

What are the inputs and outputs of photosynthesis?

The overall inputs are CO2, H2O, and light energy. The overall outputs are carbohydrates and O2. More specifically, the light reactions produce ATP, NADPH, and O2, while the Calvin cycle produces carbohydrates.

Why is chemiosmosis important in photosynthesis?

Chemiosmosis lets the proton gradient drive ATP synthase. In chloroplasts, protons build up inside the thylakoid, then flow back through ATP synthase to help make ATP.

Does oxygen come from carbon dioxide or water?

The oxygen released during photosynthesis comes from splitting water, not from carbon dioxide. Water supplies replacement electrons for photosystem II and releases O2 as a byproduct.
