creates immersive experiences by providing depth perception and spatial awareness. Understanding , , and display technologies is crucial for cinematographers to capture and present realistic 3D visuals effectively.
Various display technologies have been developed to present 3D content, each with its own advantages and limitations. , , , and offer different approaches to creating 3D experiences for viewers.
Fundamentals of 3D content
3D content creates an immersive viewing experience by providing depth perception and spatial awareness
Understanding the basics of 3D content is crucial for cinematographers to effectively capture and display realistic and engaging visuals
Key components include stereoscopic imaging, depth cues, and specialized display technologies
Differences vs 2D media
Top images from around the web for Differences vs 2D media
Oculomotor and Monocular Depth Cues – Introduction to Sensation and Perception View original
Is this image relevant?

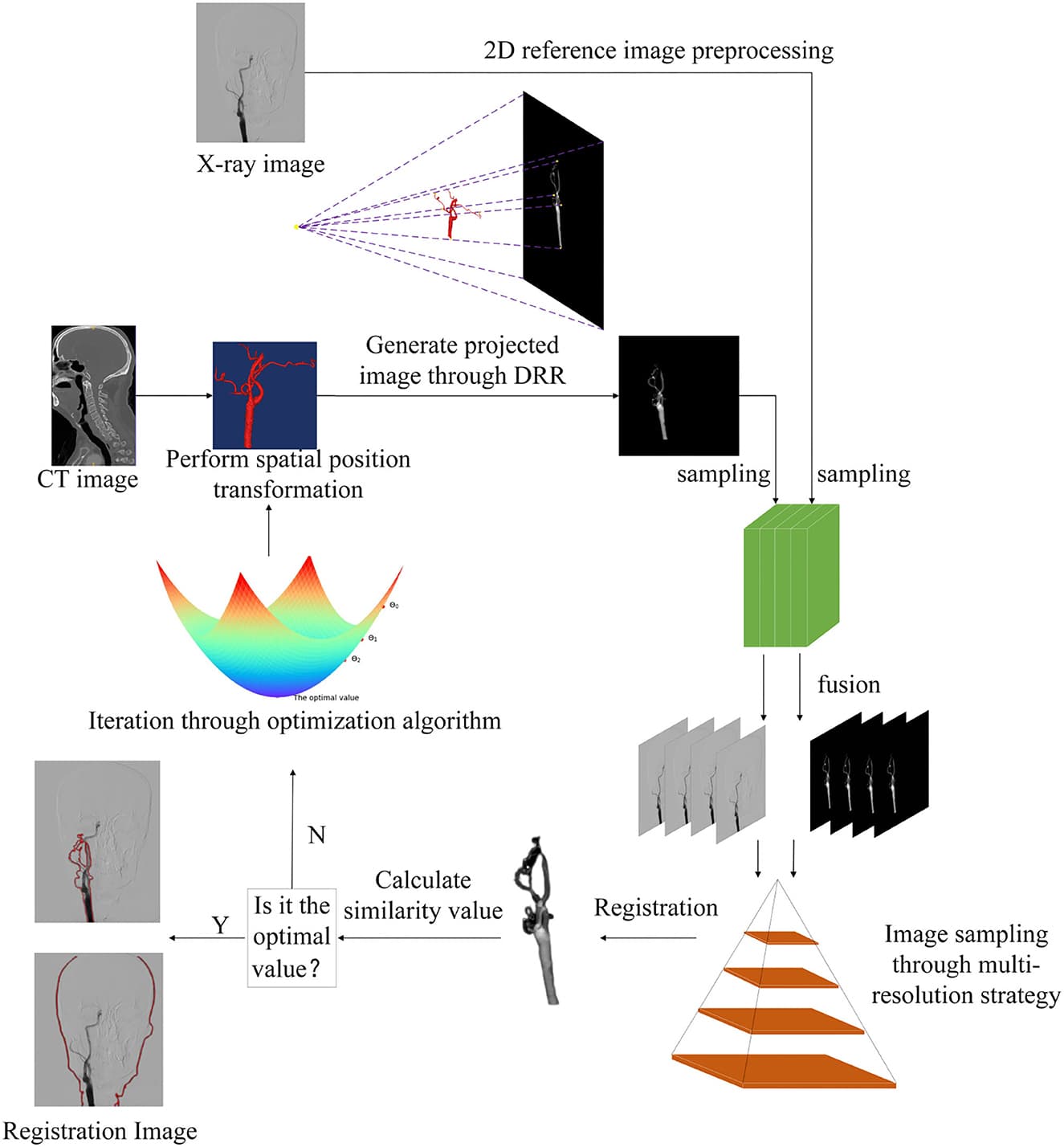

Frontiers | Enhancing the depth perception of DSA images with 2D–3D registration View original
Is this image relevant?
Oculomotor and Monocular Depth Cues – Introduction to Sensation and Perception View original
Is this image relevant?
Frontiers | Enhancing the depth perception of DSA images with 2D–3D registration View original
Is this image relevant?
1 of 2
Top images from around the web for Differences vs 2D media
Oculomotor and Monocular Depth Cues – Introduction to Sensation and Perception View original
Is this image relevant?
Frontiers | Enhancing the depth perception of DSA images with 2D–3D registration View original
Is this image relevant?
Oculomotor and Monocular Depth Cues – Introduction to Sensation and Perception View original
Is this image relevant?
Frontiers | Enhancing the depth perception of DSA images with 2D–3D registration View original
Is this image relevant?
1 of 2
3D content adds the perception of depth, allowing viewers to see the relative distances between objects on the screen
2D media is flat and lacks the illusion of depth, while 3D content creates a more realistic and immersive experience
3D requires specialized capture and display technologies, whereas 2D can be viewed on standard screens
Components of 3D systems
Stereoscopic cameras capture two slightly different views of the same scene, mimicking human binocular vision
3D displays present separate images to each eye, creating the illusion of depth through stereopsis
Synchronization between the left and right eye images is crucial for maintaining a comfortable and convincing 3D effect
Capturing 3D data
Dual-camera setups or specialized 3D cameras are used to record two distinct views of a scene
The distance between the cameras (interaxial distance) affects the perceived depth and should be adjusted based on the subject and desired effect
3D data can also be generated through computer graphics, using depth maps and 3D modeling techniques
3D display technologies
Various display technologies have been developed to present 3D content to viewers
Each technology has its own advantages and limitations, catering to different applications and viewing environments
Understanding the characteristics of each display type is essential for optimizing 3D content creation and presentation
Stereoscopic displays
Stereoscopic displays present separate images to the left and right eye, requiring the use of specialized glasses (active or passive) to filter the images
Active shutter glasses synchronize with the display to alternately block each eye, while passive glasses use polarized filters to separate the left and right eye images
Examples include 3D televisions and cinema projection systems
Autostereoscopic displays
Autostereoscopic displays provide a glasses-free 3D viewing experience by using special optical elements (lenticular lenses or parallax barriers) to direct different images to each eye
These displays have and sweet spots, requiring viewers to be positioned correctly to perceive the 3D effect
Examples include Nintendo 3DS and some smartphones with 3D screens
Head-mounted displays (HMDs)
HMDs are wearable devices that present separate images to each eye, creating a highly immersive 3D experience
They often include motion tracking and interactive features, allowing users to explore virtual environments
Examples include Oculus Rift, HTC Vive, and PlayStation VR
Volumetric displays
Volumetric displays create 3D images in free space, allowing viewers to see the content from different angles without the need for glasses
These displays use various techniques, such as spinning LED arrays or laser projection, to generate 3D light points
Examples include the Voxon VX1 and the Looking Glass display
3D projection systems
are used in cinemas and other large-scale viewing environments to display 3D content to a wide audience
These systems require specialized projectors, screens, and glasses to create the 3D effect
Different projection techniques offer unique advantages and trade-offs in terms of image quality, brightness, and cost
Active 3D projection
systems use high-refresh-rate projectors and active shutter glasses to alternately display left and right eye images
The glasses synchronize with the projector using infrared or radio frequency signals to block the opposite eye's view
This technique provides good image quality and minimizes crosstalk but requires expensive glasses and may cause flicker
Passive 3D projection
systems use two projectors (or a single projector with a polarizing filter) to simultaneously display left and right eye images with different polarizations
Viewers wear passive polarized glasses that filter the images for each eye, creating the 3D effect
This technique is cost-effective and eliminates flicker but may result in reduced image brightness and resolution
Polarization techniques
Linear polarization uses filters oriented at 90 degrees to each other to separate left and right eye images
Circular polarization uses clockwise and counterclockwise polarized filters to minimize crosstalk and allow for more flexible head positioning
The type of polarization used affects the viewing experience and the cost of the projection system
Interference filter technology
(also known as wavelength multiplexing) uses special filters to separate left and right eye images based on their wavelengths
The projector emits images with slightly different color spectra, which are then filtered by the glasses to create the 3D effect
This technique provides good color reproduction and minimal crosstalk but requires precise alignment and specialized glasses
Factors affecting 3D perception
Several factors influence how viewers perceive depth and experience 3D content
Understanding these factors is crucial for cinematographers to create compelling and comfortable 3D visuals
Manipulating these factors can enhance or diminish the 3D effect, depending on the desired artistic intent
Binocular disparity
refers to the difference in the images seen by the left and right eye due to their horizontal separation
The brain processes these slightly different views to create the perception of depth through stereopsis
The amount of disparity affects the perceived depth, with larger disparities resulting in greater depth sensation
Motion parallax
is the apparent relative motion of objects at different distances when the viewer or the camera moves
Objects closer to the viewer appear to move faster than those farther away, providing a strong depth cue
Cinematographers can use camera movement or subject motion to enhance the 3D effect through motion parallax
Ocular convergence
is the inward rotation of the eyes when focusing on a nearby object
In 3D displays, the eyes converge on the screen plane while the focus remains fixed, which can cause discomfort or fatigue if not managed properly
Cinematographers should maintain the 3D content within a comfortable viewing range to minimize eye strain
Depth cues in 3D
, such as occlusion, size, and perspective, provide depth information even in the absence of binocular disparity
Combining monocular and binocular depth cues enhances the overall 3D perception and creates a more convincing illusion of depth
Examples of monocular depth cues include atmospheric perspective, texture gradients, and linear perspective
Challenges in 3D display
Despite advancements in 3D technology, several challenges still exist in displaying 3D content effectively and comfortably
Cinematographers must be aware of these challenges and take steps to mitigate them during the production and post-production processes
Addressing these issues is essential for creating high-quality 3D experiences that are enjoyable for viewers
Viewer discomfort and fatigue
Prolonged viewing of 3D content can cause discomfort, eye strain, and headaches, especially if the content is not optimized for comfortable viewing
Factors such as excessive disparity, misaligned images, and rapid changes in depth can contribute to viewer discomfort
Cinematographers should follow established guidelines for comfortable 3D viewing and ensure proper alignment and calibration of 3D equipment
Limited viewing angles
Many 3D display technologies have limited viewing angles, restricting the range of positions from which viewers can perceive the 3D effect
Autostereoscopic displays, in particular, have narrow sweet spots that require viewers to be positioned correctly to experience the 3D content
Cinematographers should consider the intended viewing environment and adapt the 3D content accordingly
Crosstalk and ghosting
Crosstalk, also known as ghosting, occurs when the left and right eye images are not completely separated, causing a double image or a faint "ghost" image to appear
This can be caused by imperfect polarization, synchronization issues, or display limitations
Cinematographers can minimize crosstalk by using high-quality 3D equipment, ensuring proper calibration, and avoiding extreme disparities
Brightness and contrast issues
3D display technologies often reduce the overall brightness and contrast of the image due to the use of filters, glasses, or multiple projections
This can result in a dimmer and less vibrant image compared to 2D content, especially in passive projection systems
Cinematographers should account for the brightness loss during production and post-production, ensuring that the final 3D content maintains sufficient brightness and contrast
Optimizing 3D content creation
Creating compelling and comfortable 3D content requires careful planning and execution throughout the production process
Cinematographers must consider various technical and creative factors to optimize the 3D experience for viewers
Proper camera setup, depth management, and post-production techniques are essential for achieving high-quality 3D visuals
Stereoscopic camera setup
Stereoscopic camera rigs must be precisely aligned and synchronized to avoid discomfort and visual artifacts
The interaxial distance between the cameras should be adjusted based on the subject distance and desired depth effect
Toe-in and parallel camera configurations each have their advantages and disadvantages, affecting the depth and alignment of the 3D image
Convergence and interaxial distance
Convergence refers to the point where the left and right eye images appear to intersect, determining the screen plane and the perceived depth of objects
Interaxial distance is the separation between the left and right cameras, influencing the overall depth range and the strength of the 3D effect
Cinematographers should adjust based on the scene content, subject distance, and desired dramatic impact
Depth budget and comfort zone
The depth budget is the range of depths that can be comfortably perceived by viewers, typically measured in screen percentages or minutes of arc
The comfort zone is the central portion of the depth budget where the 3D effect is most comfortable and easy to view
Cinematographers should keep the majority of the 3D content within the comfort zone, using the full depth budget sparingly for dramatic effect
Post-production techniques for 3D
Post-production techniques, such as depth grading, disparity adjustment, and image alignment, can enhance and refine the 3D experience
Depth grading allows cinematographers to adjust the depth of specific objects or regions in the scene, emphasizing or de-emphasizing the 3D effect as needed
Image alignment and disparity adjustment can correct any misalignments or excessive disparities that may cause viewer discomfort
Future of 3D display technology
As 3D technology continues to evolve, new display techniques and advancements are emerging to improve the quality, comfort, and accessibility of 3D content
These developments have the potential to revolutionize the way cinematographers create and audiences experience 3D media
Staying informed about the latest trends and innovations in 3D display technology is essential for cinematographers to stay at the forefront of the industry
Advancements in autostereoscopic displays
Ongoing research aims to improve the viewing angles, resolution, and depth quality of autostereoscopic displays
Multi-view displays and directional backlighting techniques can provide a wider range of viewing positions and smoother transitions between views
These advancements could make glasses-free 3D experiences more accessible and enjoyable for viewers
Light field displays
capture and reproduce the entire light field of a scene, allowing viewers to perceive depth and parallax from different viewpoints
These displays use advanced optical elements, such as microlens arrays or multilayer LCDs, to create a more realistic and immersive 3D experience
Light field technology has the potential to enable more natural and comfortable 3D viewing without the need for glasses or limited viewing angles
Holographic display systems
Holographic displays generate true 3D images by recording and reproducing the complex light interference patterns of a scene
These displays can create highly realistic and immersive 3D content that can be viewed from multiple angles without any special glasses
Advances in holographic technology, such as real-time holographic video and large-scale holographic screens, could revolutionize the way we experience 3D media
Integration with virtual and augmented reality
The convergence of 3D display technology with virtual reality (VR) and augmented reality (AR) is creating new opportunities for immersive and interactive experiences
Stereoscopic 3D content can be seamlessly integrated into VR and AR environments, enhancing the sense of presence and depth perception
Cinematographers can leverage these technologies to create compelling narrative experiences that blur the line between the real and virtual worlds
