9.2 Stereoscopic camera rigs and alignment
10 min read•august 20, 2024
Stereoscopic camera rigs are essential tools for capturing 3D content. These setups use two cameras to mimic human binocular vision, creating in films and videos. Understanding different rig configurations and alignment techniques is crucial for producing high-quality 3D visuals.
Proper camera alignment and are key to creating comfortable, immersive 3D experiences. Filmmakers must carefully consider factors like , lens selection, and synchronization to achieve the desired depth effect while avoiding visual discomfort for viewers.
Principles of stereoscopic vision
- Stereoscopic vision enables depth perception by combining slightly different views from each eye
- The brain processes the differences between the two images to create a sense of depth and three-dimensionality
- Understanding the principles of stereoscopic vision is crucial for creating effective 3D content in cinematography
Binocular disparity and depth perception
Top images from around the web for Binocular disparity and depth perception
Stereo Depth Cues – Introduction to Sensation and Perception View original
Is this image relevant?

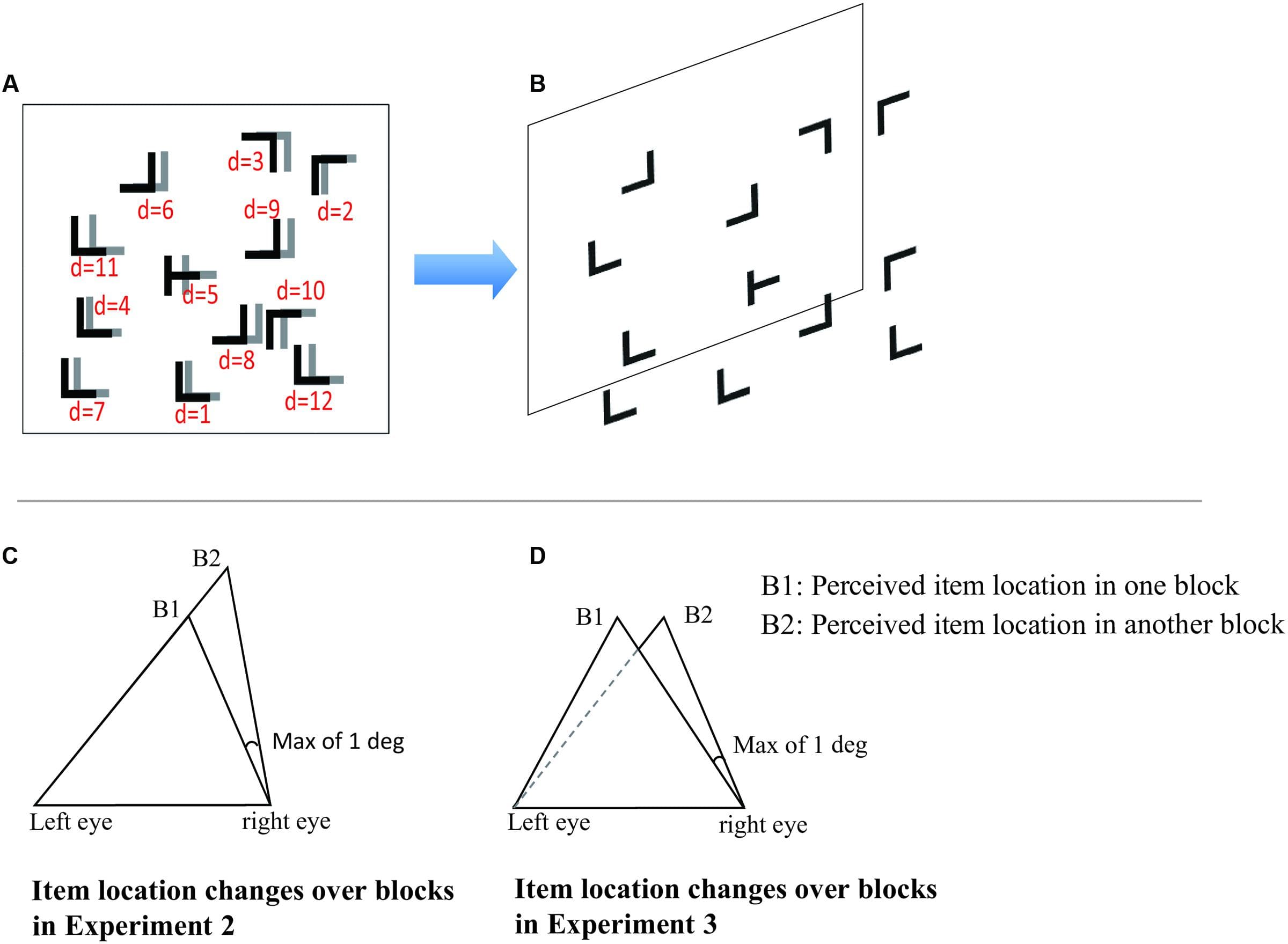

Frontiers | Contextual Cueing Effect in Spatial Layout Defined by Binocular Disparity View original
Is this image relevant?

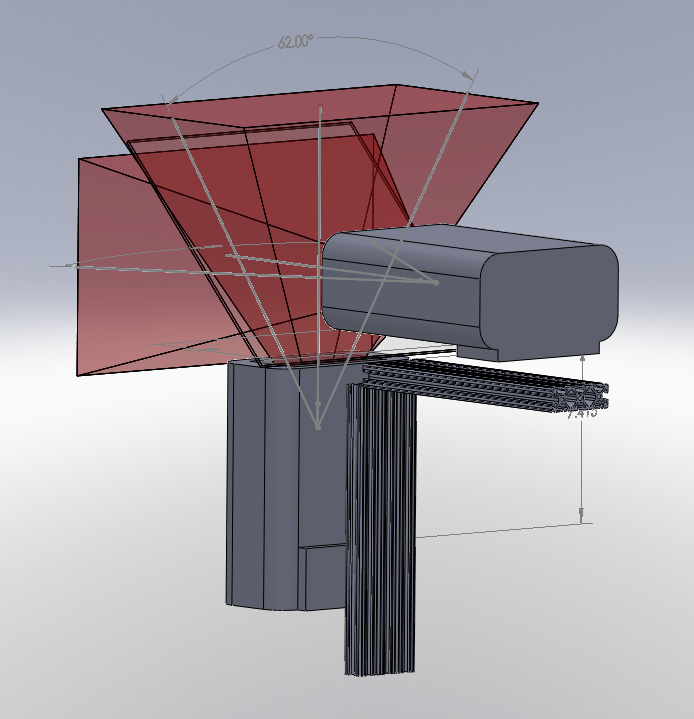

Stereoscopic 3D Beam-Splitter Camera Rig Designs View original
Is this image relevant?
Stereo Depth Cues – Introduction to Sensation and Perception View original
Is this image relevant?
Frontiers | Contextual Cueing Effect in Spatial Layout Defined by Binocular Disparity View original
Is this image relevant?
1 of 3
Top images from around the web for Binocular disparity and depth perception
Stereo Depth Cues – Introduction to Sensation and Perception View original
Is this image relevant?
Frontiers | Contextual Cueing Effect in Spatial Layout Defined by Binocular Disparity View original
Is this image relevant?
Stereoscopic 3D Beam-Splitter Camera Rig Designs View original
Is this image relevant?
Stereo Depth Cues – Introduction to Sensation and Perception View original
Is this image relevant?
Frontiers | Contextual Cueing Effect in Spatial Layout Defined by Binocular Disparity View original
Is this image relevant?
1 of 3
- refers to the difference in the position of an object as seen by the left and right eyes
- The brain uses this disparity to calculate the relative depth of objects in the scene
- Larger disparities indicate objects closer to the viewer, while smaller disparities suggest objects further away
Positive vs negative parallax
- occurs when an object appears behind the screen plane, creating a sense of depth
- happens when an object appears to protrude from the screen towards the viewer
- Balancing positive and negative is essential for comfortable and engaging 3D viewing experiences
Comfortable viewing range
- The is the depth range within which the audience can comfortably perceive 3D content without eye strain
- This range is typically limited to a percentage of the screen width (1-2% for cinema, 2-4% for TV)
- Keeping the 3D content within the comfortable viewing range ensures a pleasant viewing experience for the audience
Stereoscopic camera rig configurations
- Stereoscopic camera rigs are designed to capture two slightly different views of a scene, mimicking human binocular vision
- The choice of rig configuration depends on factors such as the desired 3D effect, camera size, and shooting conditions
- Understanding the strengths and limitations of each rig configuration is essential for effective stereoscopic cinematography
Side-by-side rig
- In a , two cameras are mounted next to each other, with their lenses separated by a specific interaxial distance
- This configuration is simple and compact, making it suitable for handheld or Steadicam shots
- Side-by-side rigs are often used for close-up shots or in tight spaces where other rigs may not fit
Mirror rig
- A uses a semi-transparent mirror placed at a 45-degree angle between two cameras
- This allows the cameras to be positioned closer together, reducing the minimum interaxial distance
- Mirror rigs are ideal for capturing 3D content with smaller interaxial distances, such as in macro photography or tight close-ups
Beam-splitter rig
- A uses a specially coated glass that splits the incoming light into two paths, allowing two cameras to share a single optical axis
- This configuration eliminates the need for post-production alignment and minimizes vertical disparities
- Beam-splitter rigs are often used for high-end productions requiring precise alignment and control over the 3D effect
Interaxial distance
- Interaxial distance, also known as , is the distance between the centers of the left and right camera lenses
- This distance plays a crucial role in determining the perceived depth and 3D effect in stereoscopic cinematography
- Understanding how to calculate and manipulate interaxial distance is essential for creating effective and comfortable 3D content
Relationship to depth perception
- Interaxial distance directly influences the amount of binocular disparity captured by the stereoscopic camera rig
- Larger interaxial distances result in greater disparities and a stronger 3D effect, while smaller distances produce more subtle depth cues
- The relationship between interaxial distance and depth perception is not linear, as the perceived depth also depends on factors such as screen size and viewing distance
Calculating optimal interaxial distance
- The optimal interaxial distance depends on various factors, including the desired depth effect, camera sensor size, and lens focal length
- A common rule of thumb is the "1/30 rule," which suggests setting the interaxial distance to 1/30th of the distance to the closest object in the scene
- More precise calculations can be made using stereoscopic calculators or software, which take into account the specific camera and lens parameters
Creative use of interaxial spacing
- Varying the interaxial distance throughout a scene can be used to create dynamic 3D effects and guide the audience's attention
- Increasing the interaxial distance can emphasize the depth of a particular object or area, while decreasing it can flatten the depth and create a more subtle 3D effect
- Creative use of interaxial spacing requires careful planning and execution to maintain comfortable viewing and avoid excessive divergence or convergence
Convergence and alignment
- Convergence refers to the angle at which the left and right camera lenses are pointed to create a single point of focus in the
- Proper alignment of the cameras is crucial for avoiding visual discomfort and creating a seamless 3D experience
- Understanding the different alignment techniques and their effects on the final image is essential for effective stereoscopic cinematography
Toe-in vs parallel alignment
- Toe-in alignment involves angling the cameras slightly inward so that their optical axes converge at a specific distance
- This method is simpler to set up but can introduce vertical disparities and
- Parallel alignment keeps the camera lenses parallel to each other and perpendicular to the stereo base
- This method requires precise alignment but eliminates vertical disparities and keystone distortion
- Parallel alignment is generally preferred for high-quality stereoscopic production
Setting convergence distance
- The is the point in the 3D space where the left and right camera images align, creating zero parallax
- Objects closer to the camera than the convergence distance will appear in negative parallax (in front of the screen), while objects further away will appear in positive parallax (behind the screen)
- Setting the appropriate convergence distance is important for creating a comfortable and engaging 3D experience, as it determines the depth placement of objects relative to the screen plane
Keystone distortion and correction
- Keystone distortion occurs when the left and right images have a trapezoidal shape due to the toe-in alignment of the cameras
- This distortion can cause vertical disparities and visual discomfort for the audience
- Keystone correction can be applied in post-production by adjusting the geometry of the left and right images to eliminate the distortion
- Using parallel camera alignment can help prevent keystone distortion in the first place
Synchronization and genlock
- Synchronization ensures that the left and right cameras capture images at precisely the same time, preventing temporal disparities and visual discomfort
- is a technique used to synchronize the timing of multiple devices, such as cameras and recorders, in a video system
- Proper synchronization and genlock are essential for creating high-quality stereoscopic content that is comfortable to view
Importance of synchronization
- Synchronization is crucial in stereoscopic cinematography because even a slight temporal offset between the left and right images can cause visual discomfort and disrupt the 3D effect
- Asynchronous images can lead to motion artifacts, such as judder or strobing, which can be particularly noticeable in fast-moving scenes
- Maintaining precise synchronization throughout the entire production pipeline, from capture to post-production, is essential for creating a seamless and comfortable 3D experience
Genlock signal and timecode
- Genlock (generator lock) is a reference signal that synchronizes the timing of multiple devices in a video system
- A master device, such as a sync generator, provides the genlock signal, which is distributed to the connected devices (cameras, recorders, etc.)
- Timecode is a sequence of numeric codes generated at regular intervals by a timing system, used to identify and synchronize specific frames in a video sequence
- Embedding timecode in the genlock signal ensures that all devices are synchronized and can be easily aligned in post-production
Sync issues and troubleshooting
- Common sync issues in stereoscopic production include drift, jitter, and phase differences between the left and right cameras
- Drift occurs when the cameras gradually lose synchronization over time, resulting in an increasing temporal offset between the images
- Jitter refers to short-term variations in the timing of the images, which can cause flickering or stuttering in the 3D content
- Phase differences happen when the left and right images are captured at slightly different points in the scanning process, leading to vertical disparities
- Troubleshooting sync issues involves regularly monitoring the genlock signal, checking cable connections, and ensuring that all devices are properly configured and calibrated
Lens selection for stereoscopic shooting
- Lens selection plays a crucial role in stereoscopic cinematography, as it affects the depth perception, image quality, and overall 3D experience
- Choosing the appropriate lenses for a stereoscopic project involves considering factors such as focal length, aperture, and optical characteristics
- Understanding the impact of lens selection on the stereoscopic image is essential for creating effective and engaging 3D content
Matching lenses and focal lengths
- In stereoscopic cinematography, it is essential to use matched lenses with identical focal lengths, apertures, and optical characteristics for the left and right cameras
- Mismatched lenses can introduce differences in image scale, perspective, and distortion, leading to visual discomfort and a compromised 3D effect
- Using matched lenses ensures that the left and right images are consistent and can be easily aligned in post-production
Prime vs zoom lenses
- Prime lenses have a fixed focal length and generally offer superior optical quality, sharpness, and contrast compared to zoom lenses
- Zoom lenses provide flexibility in focal length, allowing for quick adjustments during shooting, but may introduce more optical aberrations and breathing effects
- In stereoscopic cinematography, prime lenses are often preferred for their consistency and optical performance, but zoom lenses can be used effectively with careful planning and testing
Depth of field considerations
- Depth of field refers to the range of distances within which objects appear acceptably sharp in an image
- In stereoscopic cinematography, managing depth of field is important for guiding the audience's attention and creating a comfortable viewing experience
- Shallow depth of field can be used to isolate subjects and reduce the amount of depth information in the scene, while deep depth of field can emphasize the 3D effect and create a more immersive experience
- Balancing depth of field with the desired 3D effect requires careful consideration of lens aperture, focal length, and camera-to-subject distance
Monitoring and playback
- Monitoring and playback are essential aspects of stereoscopic cinematography, allowing the crew to assess the 3D effect, check alignment, and make necessary adjustments during production
- Specialized stereoscopic monitors and playback devices are used to display the left and right images simultaneously, providing an accurate representation of the final 3D content
- Understanding the tools and techniques for monitoring and analyzing stereoscopic content is crucial for ensuring the quality and effectiveness of the 3D experience
Stereoscopic monitors and displays
- Stereoscopic monitors and displays are designed to present the left and right images separately to each eye, creating the illusion of depth
- These displays use various technologies, such as passive polarization, active shutter glasses, or autostereoscopic (glasses-free) methods, to deliver the 3D effect
- High-quality stereoscopic monitors are essential for accurately assessing the depth, alignment, and overall quality of the 3D content during production and post-production
Real-time 3D preview
- allows the crew to view the stereoscopic content as it is being captured, providing immediate feedback on the 3D effect and alignment
- This preview is typically achieved using a stereoscopic monitor or a 3D viewfinder attached to the camera rig
- Real-time preview enables the crew to make adjustments to the interaxial distance, convergence, and other stereoscopic parameters on the fly, ensuring the desired 3D effect is achieved
Analyzing depth and alignment
- Analyzing depth and alignment is crucial for ensuring the quality and comfort of the stereoscopic content
- Depth analysis tools, such as depth maps and histograms, provide visual representations of the depth distribution in the scene, helping to identify areas of excessive positive or negative parallax
- Alignment analysis tools, such as vectorscopes and waveform monitors, help to detect and correct vertical disparities, color differences, and other alignment issues between the left and right images
- Regular analysis and correction of depth and alignment throughout the production process help to maintain the quality and effectiveness of the final 3D content
Post-production workflow
- The post-production workflow for stereoscopic content involves specialized tools and techniques for editing, color grading, depth adjustment, and delivery
- Stereoscopic post-production requires careful management of the left and right image streams, ensuring that the 3D effect is maintained and enhanced throughout the process
- Understanding the unique challenges and considerations of stereoscopic post-production is essential for creating high-quality, engaging, and comfortable 3D content
Stereoscopic editing and color grading
- Stereoscopic editing involves synchronizing and aligning the left and right image streams, ensuring that the 3D effect is consistent and comfortable throughout the story
- Editors must pay attention to factors such as depth continuity, screen placement, and pacing to create a seamless and engaging 3D experience
- Color grading for stereoscopic content requires matching the color, contrast, and brightness of the left and right images to avoid visual discomfort and maintain the 3D effect
- Specialized stereoscopic color grading tools and techniques are used to ensure consistency and optimize the 3D presentation
Depth grading and adjustment
- is the process of adjusting the perceived depth of the stereoscopic content in post-production
- This involves manipulating the interaxial distance, convergence, and other depth cues to enhance or reduce the 3D effect in specific scenes or shots
- Depth grading can be used to guide the audience's attention, create dramatic effects, or ensure a comfortable viewing experience throughout the content
- Specialized depth grading tools and plugins are used to automate and streamline the depth adjustment process
Delivery formats and encoding
- Stereoscopic content can be delivered in various formats, such as side-by-side, top-bottom, or frame-sequential, depending on the target platform and display technology
- Proper encoding and packaging of the stereoscopic content are essential for ensuring compatibility and quality across different playback devices and environments
- Stereoscopic delivery formats often require higher bitrates and specialized compression techniques to maintain the quality and depth of the 3D content
- Understanding the strengths and limitations of each delivery format and encoding option is crucial for optimizing the final 3D experience for the intended audience
Key Terms to Review (30)
2D-to-3D conversion guidelines: 2D-to-3D conversion guidelines are a set of principles and techniques used to transform flat, two-dimensional images or footage into a three-dimensional format. These guidelines are crucial for ensuring that the resulting 3D images maintain visual coherence and depth perception, which is essential in creating an immersive viewing experience. Proper alignment and calibration of stereoscopic camera rigs play a significant role in achieving high-quality 3D conversions, making adherence to these guidelines vital for cinematographers.
3D camera: A 3D camera is a specialized imaging device designed to capture stereoscopic images, providing depth perception by simulating human binocular vision. By using two or more lenses positioned at different angles, a 3D camera creates the illusion of depth, allowing viewers to experience a more immersive visual experience. This technology is essential in modern filmmaking and gaming, where the goal is to engage audiences in a three-dimensional space.
3D Space: 3D space refers to the three-dimensional environment where objects have depth, width, and height, allowing for a realistic representation of objects as they exist in the physical world. In filmmaking, particularly with stereoscopic camera rigs, understanding 3D space is crucial for creating immersive experiences that mimic human vision and perception. By manipulating camera alignment and positioning within this space, filmmakers can achieve depth perception and create more engaging visual storytelling.
Alignment Calibration: Alignment calibration refers to the precise adjustment of stereoscopic camera rigs to ensure that both lenses are aligned in relation to the subject being filmed. This process is crucial for achieving a seamless three-dimensional effect, as even slight misalignments can lead to uncomfortable viewing experiences and affect depth perception. Proper alignment calibration enhances the overall quality and realism of stereoscopic imagery.
Beam-splitter rig: A beam-splitter rig is a specialized camera setup that utilizes a beam splitter to simultaneously capture two slightly different images from two camera lenses, which are then processed to create a stereoscopic effect. This rig is crucial for creating three-dimensional visuals in filmmaking and photography, allowing the viewer to perceive depth and dimension. By precisely aligning the lenses and adjusting their distance apart, filmmakers can control the depth perception and achieve an immersive viewing experience.
Binocular disparity: Binocular disparity refers to the slight difference in the images perceived by each eye due to their horizontal separation. This difference is crucial for depth perception and three-dimensional vision, allowing the brain to merge these images into a single, cohesive view that conveys depth. Understanding how binocular disparity works helps in creating effective stereoscopic visuals, using camera alignment techniques, determining interaxial distance, and projecting 3D content accurately.
Comfortable viewing range: Comfortable viewing range refers to the optimal distance and angle from which viewers can perceive 3D imagery without experiencing discomfort or visual strain. This range is crucial in stereoscopic cinematography, as it helps ensure that the 3D effect is immersive and visually appealing while minimizing issues like eye fatigue or disorientation that can occur when viewers are positioned too close or too far from the screen.
Convergence: Convergence refers to the process where both eyes focus on a single point to create a sense of depth and dimension in visual perception. This critical aspect of human vision is essential in stereoscopic filmmaking, as it ensures that viewers perceive three-dimensional images accurately. Proper convergence allows for a seamless visual experience, enhancing the storytelling by providing depth cues that guide audience engagement.
Convergence Distance: Convergence distance is the distance at which two separate camera lenses, used in stereoscopic setups, focus on a common point in space, creating a three-dimensional effect. This concept is crucial for achieving proper alignment of the cameras in stereoscopic rigs, as it affects the viewer's perception of depth and realism in the final image. Proper management of convergence distance ensures that the stereoscopic images appear seamless and natural when viewed.
Depth budget: Depth budget refers to the spatial arrangement and planning of 3D elements within a scene to effectively manage the perception of depth in stereoscopic imaging. This concept is crucial for creating an immersive visual experience by balancing foreground, mid-ground, and background elements, ensuring that viewers can discern spatial relationships and maintain comfort while watching. A well-structured depth budget is essential in various stages of production, from camera setup to post-production, to achieve optimal stereoscopic effects.
Depth Grading: Depth grading is a post-production technique used in stereoscopic filmmaking to enhance the perceived depth of an image by manipulating color, contrast, and brightness across different layers of a scene. This technique plays a critical role in reinforcing the illusion of three-dimensionality, which is essential for creating a compelling viewing experience. By adjusting these visual elements, filmmakers can emphasize foreground and background objects, thereby guiding the audience's attention and enhancing spatial relationships within the frame.
Depth Perception: Depth perception is the ability to perceive the distance and three-dimensional structure of objects in our environment, enabling us to understand spatial relationships. This skill is crucial in visual storytelling, as it affects how viewers interpret leading lines and visual paths within a frame, as well as how they experience stereoscopic images created by different camera setups. Effective depth perception allows filmmakers to guide audience attention and create a sense of immersion in their narratives.
Flexible rig: A flexible rig is a versatile camera support system designed to adapt to various filming situations and environments, allowing cinematographers to achieve creative angles and movements. This type of rig is especially useful in dynamic shooting scenarios, as it can easily be adjusted or configured for different setups, which is crucial for achieving proper alignment and depth perception in stereoscopic imaging.
Genlock: Genlock is a synchronization technique used in video production to ensure that multiple cameras and video devices operate in perfect timing with each other. This is crucial when combining footage from different sources or when using stereoscopic setups, as it prevents image tearing and ensures consistent frame rates across all devices involved in the production process.
Interaxial distance: Interaxial distance refers to the spatial separation between the lenses of a stereoscopic camera rig, which plays a crucial role in creating the perception of depth in 3D imagery. This distance affects how viewers perceive three-dimensional space and depth, making it an essential factor in achieving effective stereoscopic alignment and convergence in 3D cinematography.
Interocular Distance: Interocular distance refers to the space between the eyes, which is crucial for creating a sense of depth in stereoscopic vision. This distance helps to establish the correct perspective needed for 3D images by mimicking the way human vision perceives depth. By adjusting interocular distance in stereoscopic camera setups, filmmakers can effectively control how viewers perceive spatial relationships and dimensionality in a scene.
Keystone distortion: Keystone distortion is a type of optical distortion that occurs when a rectangular object is photographed or projected at an angle, causing the object to appear trapezoidal instead of rectangular. This distortion is particularly relevant in stereoscopic camera rigs, where maintaining accurate alignment and perspective is crucial for creating a realistic 3D effect.
Lens matching: Lens matching is the process of ensuring that two or more camera lenses produce consistent visual characteristics, such as color, contrast, and distortion, which is particularly crucial in stereoscopic filming. Proper lens matching allows for a seamless integration of footage from different lenses, helping to create a cohesive visual experience when viewing stereoscopic content. This alignment is vital for achieving depth perception and maintaining viewer comfort in 3D imagery.
Mirror rig: A mirror rig is a specialized camera setup used in stereoscopic filmmaking that employs mirrors to allow a single camera to capture two slightly different perspectives simultaneously. This technique is essential for creating the illusion of depth in 3D films, as it mimics the way human eyes perceive the world. By reflecting the camera's view through mirrors positioned at specific angles, filmmakers can effectively align two images to enhance the stereoscopic effect.
Negative Parallax: Negative parallax refers to the visual phenomenon where an object appears to be positioned behind the screen plane in stereoscopic imaging. This effect occurs when the virtual image created by a stereoscopic camera rig is perceived as being further away than the actual screen, enhancing depth perception and creating a more immersive viewing experience. It plays a crucial role in how depth cues are managed in stereoscopic setups, especially in relation to camera alignment and rig configuration.
Parallax: Parallax is the apparent shift in the position of an object when viewed from different angles, which is critical in creating a sense of depth and spatial awareness in visual media. This concept plays a significant role in both tracking and matchmoving, where understanding the relationship between the camera and the subject is essential for achieving accurate motion and perspective. Additionally, parallax is fundamental in stereoscopic camera rigs, where it enables the creation of three-dimensional images by simulating human binocular vision.
Positive Parallax: Positive parallax refers to the phenomenon where objects that are closer to the viewer appear to move in the opposite direction to the viewer's movement, creating a depth effect in stereoscopic imaging. This effect is crucial for creating a sense of three-dimensionality, as it allows the brain to perceive depth by comparing the images received from both eyes. In stereoscopic camera rigs, proper alignment and positioning of the cameras can enhance this effect, making scenes more immersive.
Real-time 3d preview: Real-time 3D preview is a feature that allows filmmakers and cinematographers to see a three-dimensional representation of their shots as they are set up and adjusted, providing immediate visual feedback on composition, lighting, and depth. This technology is particularly valuable when working with stereoscopic camera rigs, as it enhances the understanding of how the two camera systems align and interact to create an effective three-dimensional image.
Rigid Rig: A rigid rig is a stable camera support system designed to hold multiple cameras in a fixed, aligned position, particularly for stereoscopic filming. This setup is crucial for achieving accurate alignment and consistency in the captured images, which is essential for creating effective 3D visuals. Rigid rigs allow filmmakers to maintain the correct interaxial distance between the cameras, minimizing parallax issues and ensuring that the final output provides a seamless viewing experience.
Side-by-side rig: A side-by-side rig is a type of stereoscopic camera setup designed to capture 3D images by placing two cameras parallel to each other, mimicking the distance between human eyes. This alignment allows for the creation of depth perception in film and video by producing two slightly different images that, when viewed together, create a three-dimensional effect. Proper alignment and calibration of these rigs are crucial for achieving a seamless stereoscopic image.
Stereo Base: The stereo base is the distance between the lenses of a stereoscopic camera rig, which is crucial for creating depth perception in 3D images. By adjusting the stereo base, cinematographers can manipulate how pronounced the 3D effect appears, allowing for greater control over viewer engagement and visual storytelling.
Stereo Disparity: Stereo disparity refers to the difference in images captured by two eyes or two camera lenses positioned at different angles, which creates the perception of depth in a three-dimensional image. This phenomenon is crucial in stereoscopic imaging as it helps viewers perceive depth and spatial relationships between objects. Accurate stereo disparity is essential in achieving a convincing 3D effect in films and other visual media.
Stereoscopic imaging standards: Stereoscopic imaging standards refer to the set of guidelines and technical specifications that govern the capture, processing, and display of 3D images. These standards ensure consistency and quality across various stereoscopic camera rigs and alignment techniques, enabling effective 3D representation in film, television, and other visual media. Proper adherence to these standards is crucial for achieving accurate depth perception and viewer comfort in stereoscopic presentations.
Stereoscopic lens: A stereoscopic lens is a specialized optical device designed to create a three-dimensional effect by capturing two slightly different images simultaneously, one for each eye. This lens configuration mimics human binocular vision, allowing viewers to perceive depth in an image or video. Proper alignment of these lenses is crucial for achieving accurate depth perception and ensuring a comfortable viewing experience.
Viewer comfort: Viewer comfort refers to the overall ease and satisfaction that an audience experiences while watching content, particularly in stereoscopic 3D films. It encompasses factors such as visual coherence, depth perception, and the avoidance of discomfort or fatigue that may arise from poor alignment or excessive 3D effects. Achieving viewer comfort is essential in stereoscopic productions to ensure that audiences remain engaged and can fully enjoy the immersive experience.
